Case Presentation

1

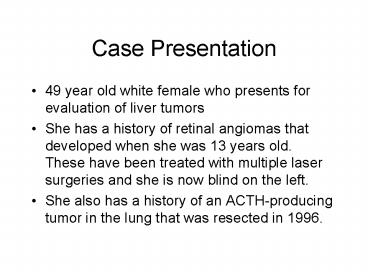

Case Presentation

• 49 year old white female who presents for
  evaluation of liver tumors
• She has a history of retinal angiomas that
  developed when she was 13 years old. These have
  been treated with multiple laser surgeries and
  she is now blind on the left.
• She also has a history of an ACTH-producing tumor
  in the lung that was resected in 1996.

2
Case continued

• ACTH producing neuroendocrine tumors were also
  found in the liver. These were treated with
  resection in 1998 and then radiofrequency
  ablation in 2001 for recurrent symptomatic
  lesions.

3
Case continued

• Also history of renal cell carcinomas. These
  have been resected in 1996 then in 2001.
• Other history includes a history of BAD, and
  surgeries after trauma.
• Medications include synthroid, psychiatric drugs,
  darvocet, celebrex.

4
Case continued

• Family history is significant for a father who
  died of heart disease at 81 and a mother who died
  of dementia at 73. She has 8 healthy sibs. She
  has one child 25 y/o with spina bifida, one with
  IDDM at 14 y/o, and a 20 y/o with learning
  disability.
• She lives with her husband and two children. She
  has 30 pack year of tobacco and quit 3 years ago.
• She drinks occasional alcohol and works in the
  home now.

5
Physical exam

• Obese white female with striae over her abdomen
  and axillae.
• P92 BP137/83 Wt 183 lb Afebrile
• Surgical scars on right thorax and on the abdomen
  across the midline to the right.
• Pupils with surgical changes bilaterally, left
  eye deviated laterally.
• Otherwise, unremarkable.

6
Radiographic Data

• CT of chest, abdomen, and pelvis remarkable for
  several arterial enhancing liver lesions. Also
  there is a pancreatic cyst and a mass consistent
  with a microcystic cystadenoma.
• Kidneys have multiple bilateral renal cysts.

7
(No Transcript)
8
(No Transcript)
9
Von Hippel-Lindau Syndrome

• Autosomal dominant tumor with multiple benign and
  malignant tumors in multiple organ systems.
• Hallmarks include retinal angiomas, cerebellar
  and spinal hemangioblastomas, and renal cell
  carcinomas.
• Also see cystic lesions in the kidneys, pancreas
  and epididymitis.
• Adrenal pheochromocytomas occur in 7-20 of those
  affected. The presence of pheos defines the
  disease as Type 2.

10
VHL

• Prevalence is around 1/40,000 in Western European
  countries.
• Affects sexes equally and is seen in all ethnic
  groups.
• Penetrance is estimated at 80-90 by 65 years
  old.
• Diagnosed at infancy thru seventh decade.

11
(No Transcript)
12
Diagnostic Criteria

• Single retinal or cerebellar hemangioblastom,RCC,
  or pheo is sufficient in someone with a known
  family history.
• In an isolated case, diagnosis is made with 2 or
  more hemangioblastomas or a single
  hemangioblastoma and a characteristic visceral
  tumor.
• Type I--No pheo
• Type 2A pheo without RCC and 2B with both.

13
Molecular Basis

• Positional cloning in families with overlapping
  germline deletions led to the identification of
  the VHL gene on 3p25-26.
• VHL is a tumor suppressor gene that follows
  Knudsons 2-hit hypothesis. In VHL families, the
  wild-type allele was lost in VHL tumors.

14
VHL gene product

• 213 amino acids with a molecular mass of the
  protein of approx. 20-30kDa
• mRNA expressed in all adult tissues.
• Mutations are heterogeneous. 15-20 have large
  deletions. 27 with missense and 27 with
  framshift or nonsense mutations.
• Mutations identified in nearly all VHL families.
• In Type 2- 96 have missense whereas deletion and
  premature termination is associated with I.

15
VHL protein

• Binds Elongin B and C. Elongin B and C are
  components of a transcriptional elongation
  complex called Elongin/SIII

16
pVHL and Ubiquitination

• pVHL forms stable complexes with the elongins and
  Cul2 and Rbx1. Cul2 and elongin C showed
  homology to yeast E3 ubiquitin ligases that were
  involved in substrate recognition for
  ubiquitination.
• Is pVHL involved in ubiquitination?

17
Ubiquitination Review(Simplified)

• Ubiquitin uses ATP to form a thiol ester
  intermediate with E1-ubiquitin activating enzyme.
• Activated ubiquitin is then transferred to E2
  from E1.
• In the presence of E3, E2 transfers ubiquitin to
  the specific substrate.
• Polyubiquitinated proteins are degraded by the
  26S proteasome.

18
IP VHL complex. Inc. with E1, 32P UB, indicated
E2 and ATP regen system.
VBC-Cul 2 is necessary for Ub
See more Ub w/ full-length pVHL
19
Infect insect cells with E3 components. Use Ub
system. Mutants found in VHL pts failed to Ub
p220 and p100.
See components expressed
20
Conclusion

• pVHL in the E3 complex is necessary for
  ubiquitination of p220 and p100.
• Mutations found in patients abrogates this affect.

21
VHL and Hypoxia

• VHL tumors are usually very vascular and
  overproduce VEGF. They can also overproduce epo.
  Since VEGF and Epo are induced by hypoxia, is
  VHL involved in hypoxia regulation?

22
Transfection of VHL into cell line lacking VHL
restores hypoxia-inducibility.
Controls not influenced by hypoxia or VHL.
mRNA analysis
pVHL is important for hypoxia-inducibility of
some RNAs
23
Hypoxia-Inducible Factor

• Heterodimeric transcription factor consisting of
  HIF-1 ? and HIF-1 ?.
• Induces transcription of glucose transporters,
  glycolytic enzymes, and VEGF as well as cell-type
  specific proteins such as erythropoietin,
  inducible nitric oxide synthase, and IGF-2.
• HIF1- ? is required for normal vascularization,
  development, and survival of mouse embryos as
  well as for physiologic responses to chronic
  hypoxia in adult mice.

24
HIF-1 is more stable in 1 O2. Degradation
mechanism saturated at high levels of expression
of HIF. Co-expression of VHL promotes the
degradation of HIF in 1O2
The proteasome inhibitor, MG-132 inhibits
degradation of HIF in the presence of VHL.
25
Complex from infected insect cells was purified.
pVHL containing E3 mediates Ub of HIF-1 but not
another protein.
Ub of HIF requires hUbc5a.as E2
26
Mutant pVHL do not form complex with elongins.
Mutant pVHL does not Ub HIF. pVHL is required.
27
Hypoxia-Inducible Factor cont.

• Under normoxic conditions HIF-1? is
  post-translationally hydroxylated at proline
  residues.

28
A hydroxylated proline peptide inhibits VHL HIF
interaction.
Wild-type but not mutant pVHL is captured by
OH-proline peptide.
29
(No Transcript)
30
Our Patient

• Atypical in that she has an ACTH expressing
  tumor. Pathologically this resembles a
  paraganglioma.
• She is followed by CT scan to assess growth of
  liver nodules and development of renal cell
  carcinoma.
• She has had stable to decreased disease over the
  last year and a half.
