WAG Mechanisms at macroscopic field level

1

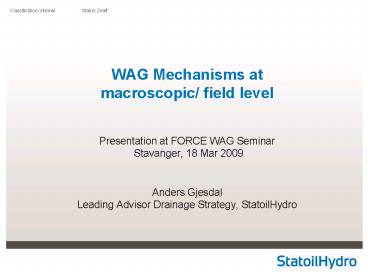

WAG Mechanisms at macroscopic/ field level

• Presentation at FORCE WAG Seminar Stavanger, 18
  Mar 2009
• Anders GjesdalLeading Advisor Drainage Strategy,
  StatoilHydro

2
Outline

• Introduction
• Sweep
• WAG in well pairs
• WAG at field level
• Concluding remarks

3
IntroductionTo make WAG work at all levels

• Levels
• Microscopic core level
• Macroscopic at well pair level
• Macroscopic in the reservoir
• Macroscopic at the field level
• (Macroscopic at area level )
• WAG mechanisms has to function at all levels to
  be successful
• Gas management constraints
• WAG development - Producers and Injectors
• Injection planning and prioritisation
• Surveillance

4
Introduction Key is Sweep

• Gas displacement often gives a better microscopic
  sweep compared to water. Sorg is often lower
  than Sorw , particularly at miscible conditions
• Fraction of the reservoir volume contacted by gas
  limits the impact of improved microscopic sweep.
• With good reservoir quality and long well
  distance often found offshore Norway this is
  often the case.
• At field level focus is turned towards increasing
  the volumetric sweep
• Key factors influencing volumetric sweep.
• Gravity
• Mobility ratio
• Heterogeneity of the reservoir
• Reservoir thickness and vertical communication
  kv/kh
• Geometry, Structure, top perforations, spill
  points
• Available gas
• Available gas capacities
• Injection schedule and rates
• Number of producers and injectors Well location
  and distance

Manageable
5
Effect of kv/kh, effect of horizontal restrictions

• Typically we anticipate that only 10-20 of the
  reservoir is gas contacted between well pairs
• Horizontal barriers tends to increase sweep
• At kv/kh 0.01 we see that the gas contacted
  volume increases noticeably
• The limited gas sweep makes sweep of the attics
  and geometry very important for the WAG mechanism

6
WAG mechanisms in well pair

• Attic Volumes andUpper part of stratigraphy
• Gas lift
• Free gas back-produced provides additional well
  hydraulic potential.
• Voidage
• Gas contributes to pressure maintenance, but
  voidage replacement is often reduced in gas
  injection periods
• Lower part of stratigraphy (up-dip wag)
• Pattern injection to increase sweep (not applied
  offshore Norway)

7
WAG at a reservoir or field level

• How can we get the most out of our WAG kit?
• Maximise injection effectiveness.
• Move the WAG kit around to new areas or flooding
  units?
• Keep the kit active
• Avoid excessive gas re-cycling, capacity
  utilization.
• Ensure back-production of gas, avoid stranded
  gas. (Ensure injection and producer timing)
• When to move? Re-cycling ratios are a good
  indication on the gas (and water) injection
  efficiency

8
Multidisciplinary WAG Surveillance Team

• Evaluate
• Optimizing of the gas utilization
• The effectiveness of the WAG process
•  Interpretation of the field performance
•  Tracer injection, planning and evaluation
•  Data acquisition, planning and evaluation

9
Monitoring each WAG injector and associated
producers
Observe well performance

• WAG response
• Increasing WHP
• Increasing oil rate
• Increasing GOR
• Decreasing WCT

Saturation logs
Monitor gas injection efficiency
4D Seismic
Tracers
Estimate incremental reserves
10
Monitoring at field level
Identify and map potential WAG oil
Identify injection points and associated producers
Plan and prioritize gas injection
Monitor gas injection efficiency
Prognosis for back-production
11
Typical WAG behaviour

• Volumetric gas sweep often low.
• Gas breakthrough varies from a few months to 1-2
  years.
• Slug size varies from 200 MSm3 to 1-2 GSm3
• Typical gain is 1 Sm³ of oil per 500-1500 Sm³ of
  gas injected
• Typical back-production of gas is 40-65
• Higher retained gas typically yields more
  incremental oil
• When attics have been filled, re-cycling rate
  increases and gas injection efficiently drops.
• Gas moves significantly faster than water

12
Concluding remarks

• WAG has successfully contributed with substantial
  IOR volumes
• Drainage of attics is the most important and most
  efficient mechanism
• Try to identify attics Use 4D seismic processing
  and detailed geological studies to target extra
  oil recovery
• Move the WAG into new areas
• Re-cycling ratios are a good indication on the
  gas (and water) injection efficiency
• Availability of WAG injectors important to
  ensure gas is injected where it gives the highest
  efficiency
• Gas tracer velocity can give information on gas
  storage, reservoir communication
• 4D seismic gives important information on gas
  movement
• Gas movement and the corresponding incremental
  oil seem to depend on
• Structural complexity and geometry
• Formation vertical communication
• Production well coverage
• Distance between WAG injector and production
  wells
• Each WAG injector has its own characteristics in
  terms of response time and behaviour of WAG
  producers
• KEY to success is Surveillance and good planning
