Title: FET ( Field Effect Transistor)


1

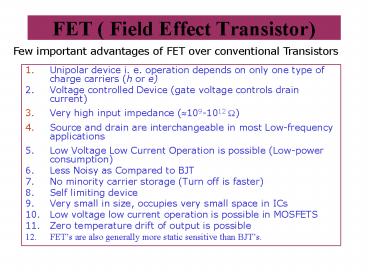

FET ( Field Effect Transistor)
Few important advantages of FET over conventional
Transistors
  1. Unipolar device i. e. operation depends on only
    one type of charge carriers (h or e)
  2. Voltage controlled Device (gate voltage controls
    drain current)
  3. Very high input impedance (?109-1012 ?)
  4. Source and drain are interchangeable in most
    Low-frequency applications
  5. Low Voltage Low Current Operation is possible
    (Low-power consumption)
  6. Less Noisy as Compared to BJT
  7. No minority carrier storage (Turn off is faster)
  8. Self limiting device
  9. Very small in size, occupies very small space in
    ICs
  10. Low voltage low current operation is possible in
    MOSFETS
  11. Zero temperature drift of output is possible
  12. FETs are also generally more static sensitive
    than BJTs.

2
Types of Field Effect Transistors (The
Classification)
  • JFET
  • MOSFET (IGFET)

n-Channel JFET p-Channel JFET
FET
Enhancement MOSFET
Depletion MOSFET
n-Channel DMOSFET
p-Channel DMOSFET
n-Channel EMOSFET
p-Channel EMOSFET
3
The Junction Field Effect Transistor (JFET)
Figure n-Channel JFET.
4
SYMBOLS
n-channel JFET Offset-gate symbol
p-channel JFET
n-channel JFET
5
Biasing the JFET
Figure n-Channel JFET and Biasing Circuit.
6
Construction and characteristics of JFET
  • JFET operation can be compared to a water faucet
  • The source of water pressure accumulated
    electrons at the negative pole of the applied
    voltage from Drain to Source
  • The drain of water electron deficiency (or
    holes) at the positive pole of the applied
    voltage from Drain to Source.
  • The control of flow of water Gate voltage that
    controls the width of the n-channel, which in
    turn controls the flow of electrons in the
    n-channel from source to drain.

7
Construction and characteristics of JFET
N-Channel JFET Circuit Layout
8
JFET Operating Characteristics
  • There are three basic operating conditions for a
    JFET
  • VGS 0, VDS increasing to some positive
  • value
  • B. VGS lt 0, VDS at some positive value
  • C. Voltage-Controlled Resistor

9
VGS 0, VDS increasing to some positive value
  • Three things happen when VGS 0
  • and VDS is increased from 0 to a
  • more positive voltage
  • the depletion region between p-gate and
    n-channel increases as electrons from n-channel
    combine with holes from p-gate.
  • increasing the depletion region, decreases the
    size of the n-channel which increases the
    resistance of the n-channel.
  • But even though the n-channel resistance is
    increasing, the current (ID) from Source to Drain
    through the n-channel is increasing. This is
    because VDS is increasing.

10
VGS 0, VDS increasing to some positive value
  • The flow of charge is relatively uninhibited and
    limited solely by the resistance of the n-channel
    between drain and source.
  • The depletion region is wider near the top of
    both p-type materials.
  • ID will establish the voltage level through the
    channel.
  • The result upper region of the p-type
  • material will be reversed biased by
  • about 1.5V with the lower region only
  • reversed biased by 0.5V (greater
  • applied reverse bias, the wider
  • depletion region).

11
VGS 0, VDS increasing to some positive value
  • IG0A ? p-n junction is reverse-biased for the
    length of the channel results in a gate current
    of zero amperes.
  • As the VDS is increased from 0 to a few volts,
    the current will increase as determined by Ohms
    Law.
  • VDS increase and approaches a level referred to
    as Vp, the depletion region will widen, causing
    reduction in the channel width. (p large, n
    small).
  • Reduced part of conduction causes the resistance
    to increase.
  • If VDS is increased to a level where it appears
    that the 2 depletion regions would touch
    (pinch-off)

12
VGS 0, VDS increasing to some positive value
  • Vp pinch off voltage.
  • ID maintain the saturation level defined as IDSS
  • Once the VDS gt VP, the JFET has the
    characteristics of a current source.
  • As shown in figure, the current is fixed at ID
    IDSS, the voltage VDS (for level gtVp) is
    determined by the applied load.
  • IDSS is derived from the fact that it is the
    drain-to-source current with short circuit
    connection from gate to source.
  • IDSS is the max drain current for a JFET and is
    defined by the conditions VGS0V and VDS gt Vp.

13
VGS 0, VDS increasing to some positive value
  • At the pinch-off point
  • any further increase in VGS does not produce any
    increase in ID. VGS at pinch-off is denoted as
    Vp.
  • ID is at saturation or
  • maximum. It is referred to as IDSS.
  • The ohmic value of the channel is at maximum.

14
Typical JFET operation
15
  • JFET modeling when IDIDSS, VGS0, VDSgtVP

16
VGS lt 0, VDS at some positive value
  • VGS is the controlling voltage of the JFET.
  • For n-channel devices, the controlling voltage
    VGS is made more and more negative from its VGS
    0V level.
  • The effect of the applied negative VGS is to
    establish depletion regions similar to those
    obtained with VGS0V but a lower level of VDS ?
    to reach the saturation level at a lower level of
    VDS.

17
VGS lt 0, VDS at some positive value
  • When VGS -Vp will be sufficiently negative to
    establish saturation level that is essentially
    0mA, the device has been turn off.
  • The level of the VGS that results in ID 0 mA is
    defined by VGS Vp, with Vp being a negative
    voltage for n-channel devices and a positive
    voltage or p-channel JFETs.
  • In this region, JFET can actually be employed as
    a variable resistor whose resistance is
    controlled by the applied gate to source voltage.
  • A VGS becomes more and more negative the slope
    of each curve becomes more and more horizontal.

18
VGS lt 0, VDS at some positive value
  • The region to the right of the pinch-off locus of
    the figure is the region typically employed in
    linear amplifiers (amplifiers with min distortion
    of the applied signal) and is commonly referred
    to as the constant-current, saturation, or linear
    amplification region.

19
Characteristic curves for N-channel JFET
20
Voltage-Controlled Resistor
  • The region to the left of the pinch-off point is
    called the ohmic region.
  • The JFET can be used as a variable resistor,
    where VGS controls the drain-source resistance
    (rd). As VGS becomes more negative, the
    resistance (rd) increases.

21
And as summary in practical
22
Operation of JFET at Various Gate Bias Potentials
Figure The nonconductive depletion region
becomes broader with increased reverse bias.
(Note The two gate regions of each FET are
connected to each other.)
23
Operation of a JFET
Drain
-
N
Gate
P
P


DC Voltage Source
-
-
N

Source
24
Output or Drain (VD-ID) Characteristics of n-JFET
Figure Circuit for drain characteristics of the
n-channel JFET and its Drain characteristics.
Non-saturation (Ohmic) Region The drain
current is given by
Saturation (or Pinchoff) Region
Where, IDSS is the short circuit drain current,
VP is the pinch off voltage
25
Simple Operation and Break down of n-Channel JFET
Figure n-Channel FET for vGS 0.
26
N-Channel JFET Characteristics and Breakdown
Break Down Region
Figure If vDG exceeds the breakdown voltage VB,
drain current increases rapidly.
27
VD-ID Characteristics of EMOS FET
Locus of pts where
Saturation or Pinch off Reg.
Figure Typical drain characteristics of an
n-channel JFET.
28
Transfer (Mutual) Characteristics of n-Channel
JFET
IDSS
VGS (off)VP
Figure Transfer (or Mutual) Characteristics of
n-Channel JFET
29
JFET Transfer CurveThis graph shows the value of
ID for a given value of VGS
30
Biasing Circuits used for JFET
  • Fixed bias circuit
  • Self bias circuit
  • Potential Divider bias circuit

31
JFET (n-channel) Biasing Circuits
For Fixed Bias Circuit
Applying KVL to gate circuit we get
and
Where, VpVGS-off IDSS is Short ckt. IDS
For Self Bias Circuit
32
JFET Biasing Circuits Count
or Fixed Bias Ckt.
33
JFET Self (or Source) Bias Circuit
This quadratic equation can be solved for VGS
IDS
34
The Potential (Voltage) Divider Bias
