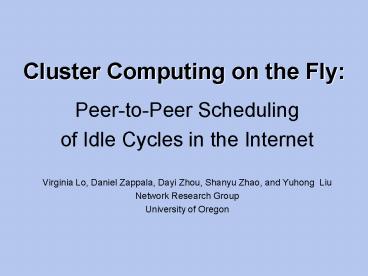

Cluster Computing on the Fly:

1
Cluster Computing on the Fly

• Peer-to-Peer Scheduling
• of Idle Cycles in the Internet
• Virginia Lo, Daniel Zappala, Dayi Zhou, Shanyu
  Zhao, and Yuhong Liu
• Network Research Group
• University of Oregon

2
CCOF Motivation

• A variety of users and their applications need
  additional computational resources
• Many machine throughout the Internet lie idle for
  large periods of time
• Many users are willing to donate cycles
• How to provide cycles to the widest range of
  users? (beyond institutional barriers)

3
CCOF Scenario 1

• Chess hobbyist want to test her chess program
• She only has a PC at home
• She joins the chess interest group cycle-sharing
  community and discovers hosts who will run her
  chess state space search algorithm for a few
  weeks

4
CCOF Scenario 2

• Experiments with network game due in a week to
  meet conference deadline
• Planet Lab overloaded
• Network Research Group machines overloaded
• Requests for hosts go out to machines in the
  department, campus, colleagues at other
  universities, personal friends, and general
  donors

5
CCOF Goals and Assumptions

• Cycle sharing in an open peer-to-peer environment
• Application-specific scheduling
• Long term fairness
• Hosts retain local control, sandbox

6
Cycle Sharing Applications

• Four classes of applications that can benefit
  from harvesting idle cycles
• Infinite workpile
• Workpile with deadlines
• Tree-based search
• Point-of-Presence (PoP)

7
Infinite workpile

• Consume huge amounts of compute time
• Master-slave model
• Embarrassingly parallel no communication among
  hosts
• Ex SETI_at_home, Stanford Folding, etc.

8
Workpile with deadlines

• Similar to infinite workpile but more moderate
• Must be completed by a deadline (days or weeks)
• Some capable of increasingly refined results
  given extra time
• Ex simulations with a large parameter space,
  ray tracing, genetic algorithms

9
Tree-based Search

• Tree of slave processes rooted in single master
  node
• Dynamic growth as search space is expanded
• Dynamic pruning as costly solutions are abandoned
• Low amount of communication among slave processes
  to share lower bounds
• Ex distributed branch and bound, alpha-beta
  search, recursive backtracking

10
Point-of-presence

• Minimal consumption of CPU cycles
• Require placement of application code dispersed
  throughout the Internet to meet specific
  location, topological distribution, or resource
  requirements
• Ex security monitoring systems, traffic
  analysis systems, protocol testing, distributed
  games

11
CCOF Architecture
12
CCOF Architecture

• Cycle sharing communities based on factors such
  as interest, geography, performance, trust, or
  generic willingness to share.
• Span institutional boundaries without
  institutional negotiation
• A host can belong to more than one community
• May want to control community membership

13
CCOF Architecture

• Application schedulers to discover hosts,
  negotiate access, export code, and collect and
  verify results.
• Application-specific (tailored to needs of
  application)
• Resource discovery
• Monitors jobs for progress checks jobs for
  correctness
• Kills or migrates jobs as needed

14
CCOF Architecture (cont.)

• Local schedulers enforce local policy
• Run in background mode v. preempt when user
  returns
• QoS through admission control and reservation
  policies
• Local machine protected through sandbox
• Tight control over communication

15
CCOF Architecture (cont.)

• Coordinated scheduling
• Across local schedulers, across application
  schedulers
• Enforce long-term fairness
• Enhance resource discovery through information
  exchange

16
CCOF Preliminary Work

• Wave Scheduler
• Resource discovery experiments
• Quizzes for Correctness
• Point-of-Presence Scheduler

17
Wave Scheduler

• Well-suited for workpile with deadlines
• Provides on-going access to dedicated cycles by
  following night timezones around the globe
• Uses a CAN-based overlay to organize hosts by
  timezone

18
Wave Scheduler
19
Resource Discovery(Zhou and Lo, to appear
WGP2P04 at CC-Grid 04)

• Highly dynamic environment (hosts come, go)
• Hosts maintain profiles of blocks of idle time
• Four basic search methods
• Rendezvous points
• Host advertisements
• Client expanding ring search
• Client random walk search

20
Resource Discovery

• Rendezvous point best
• high job completion rate and low msg overhead,
  but favors large jobs under heavy workloads
• gt coordinated scheduling needed for long term
  fairness

21
CCOF Verification

• Goal Verify correctness of returned results for
  workpile and workpile with deadline
• Quizzes easily verifiable computations that are
  indistinguishable from the actual work
• Standalone quiz v. Embedded quizzes
• Quiz performance stored in reputation system
• Quizzes v. replication

22
Point-of-Presence Scheduler

• Scalable protocols for identifying selected
  hosts in the community overlay network such that
  each ordinary node is k-hops from C of the
  selected hosts
• (C,k) dominating set Problem
• Useful for leader election, rendezvous point
  placement, monitor location, etc.

23
CCOF Dom(C,k) Protocol

• Round 1 Each node says HI to k-hop neighbors
• ltEach node knows size of its own k-hop
  neighborhoodgt
• Round 2 Each node sends size of its k-hop
  neighborhood to all its neighbors.
• ltEach node knows size of all nbrs k-hop
  nbrhoods.gt
• Round 3 If a node is maximal among its nbrhood,
• it declares itself a dominator and notifies
  all nbrs.
• ltSome nodes hear from some dominators, some
  dontgt
• For those not yet covered by C dominators, repeat
  Rounds 1-3 excluding current dominators, until
  all nodes covered.

24
CCOF Research Issues

• Incentives and fairness
• What incentives are needed to encourage hosts to
  donate cycles?
• How to keep track of resources consumed v.
  resources donated?
• How to prevent resource hogs from taking an
  unfair share?
• Resource discovery
• How to discover hosts in a highly dynamic
  environment (hosts come and go, withdraw cycles,
  fail)
• How to discover hosts that can be trusted, that
  will provide the needed resources?

25
CCOF Research Issues

• Verification, trust, and reputation
• How to check returned results?
• How to catch malicious or misbehaving hosts that
  change results with low frequency?
• Which reputation system?
• Application-based scheduling
• How does trust and reputation influence
  scheduling?
• How should a host decide from whom to accept work?

26
CCOF Research Issues

• Quality of service and performance monitoring
• How to provide local admission control?
• How to evaluate and provide QoS - guaranteed
  versus predictive service?
• Security
• How to prevent attacks launched from guest code
  running on the host?
• How to prevent denial of service attacks in which
  useless code occupies many hosts

27
Related Work

• Systems most closely resembling CCOF
• SHARP (Fu, Chase, Chun, Schwab, Vahdat,
  2003)
• Partage, Self-organizing Flock of Condors
  (Hu, Butt, Zhang, 2003)
• BOINC (Anderson, 2003) - limited to donation
  of cycles to workpile)
• Resource discovery
• (Iamnitchi and Foster, 2002) Condor
  matchmaking
• Load sharing within and across institutions
• Condor, Condor Flocks, Grid computing
• Incentives and Fairness
• See Berkeley Workshop on Economics of P2P
  Systems
• OurGrid (Andrade, Cirne, Brasileiro,
  Roisenberg, 2003)
• Trust and Reputation
• EigenRep (Kamvar, Schlosser, Garcia-Molina,
  2003) TrustMe(Singh and Liu, 2003)
