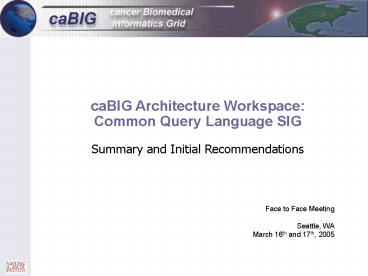

caBIG Architecture Workspace Common Query
Language SIG Summary and Initial Recommendations
Face to Face Meeting Seattle, WA March 16th and
17th, 2005
2
Agenda

• Overview of SIG
• Use Case Review
• Requirements Review
• Language Candidates
• Language Evaluation
• Recommendations
• Approach
• Language
• Implementation
• Whats next
• Discussion

3
Query SIG Mission

• To come to a consensus on the requirements,
  properties, and details of the language which
  will be used to query caBIG grid resources, and
  also to define the requirements of a query engine
  capable of performing the caBIG query use cases,
  and create/identify a query language which meets
  these criteria.

4
Data Sharing Vision
Courtesy of http//ccr.cancer.gov/news/frontiers/
Sept_2004.pdf
5
Example Queries - caTIES

• All use cases will extend a basic functionality
  that includes the ability to search for
  particular text strings or concepts and
  demographic information.
• For textual data, three general kinds of queries
  will be supported
• Query by text - users will be able to enter
  strings and the system will search for documents
  that exactly match this string
• Query by concept - users will be able to enter
  strings that will be mapped to candidate EVS
  concepts, and users will be able to select one of
  more EVS concepts to be included in the query.
  During this process, users will be able to
  interact with either the Metathesaurus
  broader-than/narrower-than tree, or the NCI
  Thesaurus to further browse and refine their
  concepts.
• Query by semantic type - users will be able to
  enter strings that will map to a subset of
  candidate EVS concepts based on predefined
  semantic types including Diagnosis, Procedure,
  and Organ. Users will be able to select one of
  more EVS concepts to be included in the query.
  During this process, users will be able to
  interact with either the Metathesaurus
  broader-than/narrower-than tree, or the NCI
  Thesaurus to further browse and refine their
  concepts.
• For non-textual data, users will be able to
  constrain queries by age, gender, values for
  extracted quantitative data such as tumor size,
  grade and stage, and temporal relationships
  between multiple reports for a single patient.

6
Example Queries - University of Pennsylvania

• I want to collect all microarray data (Affy only)
  available from all cancer centers from patients
  with bladder or ovarian cancer that were part of
  any clinical trial protocol using cisplatin
  within the past five years. In addition, I want
  to know all available tissue samples, cancerous
  and non-cancerous (normal) tissue localized
  within 10mm of tumor site from this patient group
  such that I can perform Affy gene expression
  studies to include with previously performed
  studies that were identified by the query.
  Finally, I need all severe adverse events for the
  group of patients identified that had a severity
  rating of 3-4 and are likely linked to cisplatin
  administration.
• I want all solid tumors, specifically for lung
  cancer, that have a diagnosis based on tumor
  pathology. Each diagnosis must have an image of
  the tumor that allows for independent
  verification of diagnoses. Each record retrieved
  must also have either proteomics marker data or
  microarray data (Affy or two-color) included so
  that different molecular techniques can be
  correlated to the tumor pathology. In addition, I
  want all protein annotations for markers and
  genes associated with the proteomics and
  microarray data so I can perform meta-analyses.
• I want to retrieve a dataset for all patients
  that have been in at least two clinical trials at
  any cancer center throughout the US that had two
  separate cancer diagnoses (not the same cancer
  diagnosed twice, but two different cancers). I
  also need a comprehensive treatment history for
  each patient. If treatment history is not
  complete, do not want patient included in dataset.

7
More Use Cases

• I want all images of grade I epithelial ovarian
  cancers in .tiff format at X100 resolution with
  file size less than 20Mb where resection occurred
  between 1997 and 2002.

• I want to make a tissue array which has benign
  colonic epithelium, adenomatous tissue, local
  adenocarcinoma, and metastases from as many colon
  cancer patients as possible. I need all four
  histologic classes of tissue on each patient, but
  I don't care what kind of adenoma is used nor
  where the metastatic tissue is from, as long as
  it's metastatic colon cancer. All samples must be
  available for use/consumption in a study I'm
  proposing. (Arizona)

8
Requirements Matrix
9
Functional Requirements

• Expression
• must allow the client to express complex queries
  easily and consistently
• Structured data query
• must minimally provide users and services the
  ability to query structured data correctly and
  completely.
• Full text search
• should provide a full text query capability
  correctly and completely.
• Semantic query
• must provide a capability to query semantic
  information correctly and completely.
• Semantic reasoning
• should provide a capability to perform semantic
  reasoning, and express queries using semantic
  inferences.
• Data creation / update
• should support the creation and modification of
  datasets.
• Core operations
• must provide a moderate set of core operations.
• Operation extension
• should support extensions to the core set of
  operations and transformations.
• Persistence
• should support the concept of persistent queries.

10
Non-Functional Requirements

• XML expression
• must be expressible in XML
• XML results
• must be consistent with results sets being in
  XML.
• Result set expression
• should describe how result sets will be
  structured.
• Metadata consistency
• must be straightforward for users to construct
  queries over data sets from examining an
  information model representation of the dataset.
• Implementation independent
• must be data resource agnostic, and not have any
  dependencies on a particular underlying storage
  technology.
• Security
• may need to have security-related constructs in
  it.
• Security of results
• the language may need to formalize the security
  requirements of result sets.
• Standards-based
• the language should follow a community accepted
  standard.
• Open implementation
• the language should have a freely available query
  engine implementation.

11
Potential Languages

• SQL
• OQL
• XQuery
• caGRID Phase 1 Query

12
SQL Structured Query Language

• SQL is an ANSI (American National Standards
  Institute) standard computer language for
  accessing and manipulating database systems. SQL
  statements are used to retrieve and update data
  in a database.
• SQL Data Manipulation Language (DML)
• SELECT - extracts data from a database table
• UPDATE - updates data in a database table
• DELETE - deletes data from a database table
• INSERT INTO - inserts new data into a database
  table
• SQL Data Definition Language (DDL)
• CREATE TABLE - creates a new database table
• ALTER TABLE - alters (changes) a database table
• DROP TABLE - deletes a database table
• CREATE INDEX - creates an index (search key)
• DROP INDEX - deletes an index
• Basic Query Example
• SELECT ltcolumnsgt FROM lttablesgt WHERE ltcolumngt
  ltoperatorgt ltvaluegt

13
OQL Object Query Language

• OQL is an object-oriented SQL-like query language
  and is the query language of the ODMG-93 standard
• OQL is a superset of the standard SQL part which
  allows you to query a database. Thus, any select
  SQL sentence which runs on relational tables,
  works with the same syntax and semantics on
  collect ions of ODMG objects. Extensions concern
  Object Oriented notions, like complex objects,
  object identity, path expression, polymorphism,
  operation invocation, late binding etc...
• Example Basic Query
• define jones as select distinct x from Students x
• where x.name "Jones"
• select distinct student_id from jones

14
XQuery XML Query Language

• XQuery is to XML what SQL is to databases
  defined by the W3C
• Built on XPath expressions
• XPath is a syntax for defining parts of an XML
  document Path expressions, Axes and Node Tests,
  and Predicates
• XPath defines a library of standard functions
  Node Set Functions, String Functions, Number
  Functions, Boolean Functions
• XPath supports numerical, equality, relational,
  and Boolean expressions.
• FLWR (pronounced "flower") expression is the
  analogue of the SELECT-FROM-WHERE construction in
  SQL
• FOR-clause binds one or more variables to a
  sequence of values returned by another expression
  (usually a path expression) and iterates over the
  values.
• LET-clause also binds one or more variables but
  without iterating.
• WHERE-clause contains one or more predicates
  that filters or limits the set of nodes as
  generated by the FOR/LET-clauses.
• RETURN-clause generates the output of the FLWR
  expression. The RETURN-clause usually contains
  one or more element constructors and/or
  references to variables and is executed once for
  each node-reference that is returned by the
  FOR/LET/WHERE-clauses.
• Example Basic Query
• FOR b IN collection(bib)/bib/book
• WHERE b/publisher/text() "Addison-Wesley" AND
  b/_at_year "1994
• RETURN b/title

15
caGRID Phase 1 Query Language

• Extensible query language, derived from data
  sources, which can be expressed in XML and
  associated with an XML schema.
• Data sources can only implement the "core" set of
  required tags and optional tags can be
  implemented as appropriate.
• Example
• ltcaGridXMLQuery name"caArrayQuery"gt
• ltcriteria name"gov.nih.nci.mageom.domain.Protoco
  l.Protocol"gt
• ltcriterion name"identifier" condition"EQUAL_TO
  value"P-MEXP-1963"/gt
• lt/criteriagt
• lt/caGridXMLQuerygt

16
Languages vs. Requirements
NOTE In this phase, distinctions between
versions of languages are not considered.
Indicates non-consensus or indecision
Family of SQL-based languages OQL-like
languages (OQL,HQL,etc) Family of XML Query
languages (XQuery,XPath,XUpdate)
17
Approach Recommendations

• The common query language will be the minimum
  entry point for caBIG data services.
• Distributed Query Services and other higher-level
  services which interact with data services should
  do so through this language
• This does not preclude data services from
  implementing other, more specialized, languages
• They just must also provide an implementation of
  the common query language
• Data Services should be classified in terms of
  their support of the common query language
• e.g. Gold, Silver, Bronze
• Clients will interact with the distributed query
  service which will implement the Gold Common
  Query Language
• It will have the responsibility of translating
  Gold queries into to multiple non-Gold queries to
  data services as appropriate
• Current approach should be to focus on structural
  queries, then layer semantics
• Structural queries can still leverage semantic
  information in the model (e.g. model built using
  semantic connector), but cant express semantic
  questions (e.g. is X a subclass of Y?)

18
Language Recommendations

• W3C XML Query
• The mission of the XML Query project is to
  provide flexible query facilities to extract data
  from real and virtual documents on the World Wide
  Web, thereby finally providing the needed
  interaction between the Web world and the
  database world. Ultimately, collections of XML
  files will be accessed like databases. The
  ambitious task of the XML Query (XQuery) Working
  Group is to develop the first world standard for
  querying Web documents...
• XQuery http//www.w3.org/XML/Query
• Use Cases http//www.w3.org/TR/xquery-use-cases/
• Requirements http//www.w3.org/TR/xquery-requirem
  ents/
• XPath http//www.w3.org/TR/xpath20/
• Full Text http//www.w3.org/TR/xquery-full-text/
• XUpdate (not W3C) http//xmldb-org.sourceforge.net
  /xupdate/

19
Preliminary Language Levels Recommendations

• Gold Level Support
• All of Silver
• Full XQuery
• Silver Level Support
• All of Bronze
• Full XPath, Limited XQuery (basic FLWR support)
• Bronze Level Support
• Limited XPath support with simple predicates
• Optional Add-ons
• Full-Text
• XUpdate

20
XQuery Example Description

• Give me all the expression data where there are
  at least 50 conditions for genes found in the
  vacuole.

vacuole
count gt 50
21
XQuery Example

• FOR gene IN service(http//cabio.osu.edu/GeneSe
  rvice.wsdl)/Gene,go IN service(http//cabio.os
  u.edu/GeneOntologyService.wsdl)/GeneOntology,mi
  croarray IN service(http//caarray.duke.edu/caArr
  ayService.wsdl)/Microarray
• LET subject microarray/experiment/subject
• WHEREgo/termvacuoleAND gene/goAccgo/acc
  AND gene/gbAccmicroarray/data/geneIdAND
  count(microarray/datageneIdgene/gbAcc/condit
  ion)gt50
• RETURNltsubjectgt ltsubjectIdgt subject/lsid
  lt/subjectIdgt ltspeciesgt subject/species
  lt/speciesgt ltmicroarrayDatagt
  microarray/data lt/microarrayDatagtlt/subjectgt

Join across objects
Simple XPath
Complex XPath
Result composition
22
Implementation Recommendations

• Focus on getting data services at Bronze and
  Silver Level
• Leverage some tools for initial implementation
  (the implementation can change the language and
  interfaces should not)
• JXPath (http//jakarta.apache.org/commons/jxpath/)
  , applies XPath expressions to graphs of objects
  of all kinds JavaBeans, Maps, Servlet contexts,
  DOM etc, including mixtures thereof.
• Multitude of Freely available parsers available
• Design Distributed Query Processor to support
  Gold Level queries against one or more Bronze and
  Silver Level data services
• Develop short-term clients and applications on
  custom languages and Bronze Level

23
System Overview
24
Whats next

• We have currently focused on the query language
  itself
• A high-level system architecture should be
  recommended
• Incorporation of other SIG recommendations
  (Identifiers, Security, Workflow?)
• Further evaluation of
• Existing query engines
• Tools to support data service implementation of
  the query language
• Distributed Query Frameworks
• A high-level system architecture for distributed
  query

25
Discussion

• Open for questions and discussion.

26

• Additional Information

27
Towards a Semantic Grid

• XML provides syntax transport layer
• RDF(S) provides basic relational language and
  simple ontological primitives
• the meaning of Grid services, resources and
  entities by assertions in a common data model
• OWL DL provides powerful but still decidable
  ontology language
• publish and share consensually agreed upon
  ontologies
• Further layers may (will) extend OWL
• Query, filter, integrate and aggregate the
  metadata
• Reason over metadata

28
Query Processing Models
29
OGSA-DAI Distributed Query Processor (DQP)
Architecture

• Currently works with OQL and targets only
  relational grid services
• May ultimately support XML data services
• May (probably will) still use OQL as client
  language, but will use XPath to query data
  services
• Timeline for XML may not work for us, but it is a
  useful reference implementation.
• Code may not work for XML, but architecture
  should
