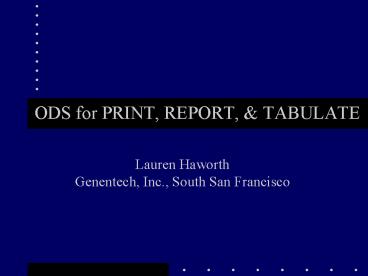

ODS for PRINT, REPORT, TABULATE

• Lauren HaworthGenentech, Inc., South San
  Francisco

2
Why are these PROCs Special?

• For most procedures you must use PROC TEMPLATE to
  change your output style
• PRINT, REPORT, and TABULATE allow you to change
  the output style attributes on the fly when the
  output is generated

3
This paper will show how to ...

• Change the fonts, colors, and alignment of your
  output
• Use formats to highlight key results in special
  colors
• Add images to table headings

4
Output destinations

• For convenience, all of the examples are shown as
  HTML output
• Except where noted, the examples work for RTF or
  printer output as well

5
SAS versions

• Based on SAS version 8.2
• PRINT examples require 8.2
• REPORT and TABULATE examples will also work with
  versions 8.0 and 8.1

6
The STYLE option

• Specify different style attributes for specific
  parts of your output.
• Style attributes control things like
• typefaces
• foreground and background colors
• text alignment
• table border styles

7
Changing Table Heading Styles for PROC PRINT

• Start with a simple table of data
• ODS HTML FILE'tables.htm' proc print
  datatables noobs label var Type Material
  Price run
• ODS HTML CLOSE

8
Original Table
(remaining rows not shown)
9
Adding the STYLE option
STYLE option
Style element

• ODS HTML BODY'tables.htm' proc print
  datatables noobs label STYLE(Header)FONT_FA
  CEArial Narrow var Type Material Price
  runODS HTML CLOSE

Value
Style attribute
10
Resulting table
Original
New
11
Changing Table Heading Styles for PROC REPORT

• Start with a table similar to the previous
  example.
• ODS HTML BODY'tables.htm' proc report
  datatables nowd column Type Material
  Price define Type / group define
  Material / group define Price / analysis
  mean runODS HTML CLOSE

12
Original Table
13
Adding the STYLE Option

• Same technique as with PROC PRINT
• ODS HTML BODY'tables.htm' proc report
  datatables nowd STYLE(Header)FONT_FACEAr
  ial Narrow column Type Material Price
  define Type / group define Material /
  group define Price / analysis mean
  runODS HTML CLOSE

STYLE option
Style element
Value
Style attribute
14
Resulting Table
Original
New
15
Changing Table Heading Styles for PROC TABULATE

• Start with a table similar to the previous
  example.
• ODS HTML BODY'tables.htm' proc tabulate
  datatables fdollar8. class Type
  Material var Price table
  TypeMaterial, PriceMean" "
  runODS HTML CLOSE

16
Original Table
17
How to Specify Style

• TABULATE syntax is different
• Specify styles for the row and column headings in
  the VAR and CLASS statements

18
Specifying the STYLE Options

• ODS HTML BODY'tables.htm' proc tabulate
  datatables fdollar8. class Type Material
  / STYLEFONT_FACE"Arial Narrow"
  var Price / STYLEFONT_FACE"Arial
  Narrow" table TypeMaterial,
  PriceMean" " runODS HTML CLOSE

Value
Style attribute
STYLE option
19
Resulting Table
Original
New
20
Fixing the Remaining Row Headers

• ODS HTML BODY'tables.htm' proc tabulate
  datatables fdollar8. class Type Material
  / STYLEFONT_FACE"Arial Narrow"
  classlev Type Material /
  STYLEFONT_FACE"Arial Narrow" var Price
  / STYLEFONT_FACE"Arial Narrow"
  table TypeMaterial, PriceMean" "
  runODS HTML CLOSE

21
Revised Results
First version
Revised
22
Applying Traffic Lighting to PROC PRINT

• What do traffic lights have to do with SAS
  Output?
• Redbad resultsYellowneutral resultsGreengood
  results
• Great for focusing the readers attention on the
  key results.

23
Step 1 Set up a Format for Colors

• proc format value traffic
  low-100'cx00CC33'
  100lt-300'cxFFFF66'
  300lt-high'cxFF3300'run

24
Step 2 Use the Format with STYLE

• ODS HTML FILE'tables.htm' proc print
  datatables noobs label var Type Material
  var Price / STYLEBACKGROUNDtraffic.
  runODS HTML CLOSE

25
Resulting Table

• Warning Notice that amounts are no longer
  formatted as dollars. This is to get around a
  v8.2 bug that affects using formats to apply
  styles in PROC PRINT.

26
Step 3 Fix the Font Weights

• With color background, numbers hard to read
• ODS HTML FILE'tables.htm'proc print
  datatables noobs label var Type Material /
  STYLEFONT_WEIGHTBOLD var Price /
  STYLEBACKGROUNDtraffic.
  FONT_WEIGHTBOLDrunODS HTML CLOSE

27
Resulting Table
28
Reversing the Effect

• You can also do traffic lighting with colored
  numbers instead of colored backgrounds.
• Change BACKGROUND to FOREGROUND
• var Price / STYLEFOREGROUNDtraffic.
  FONT_WEIGHTBOLD

29
Same Table with FOREGROUND Colors
30
Applying Traffic Lighting to PROC REPORT

• ODS HTML BODY'tables.htm' proc report
  datatables nowd column Type Material
  Price define Type / group
  STYLEFONT_WEIGHTBOLD define Material /
  group STYLEFONT_WEIGHTBOLD
  define Price / analysis mean
  STYLEBACKGROUNDtraffic.
  FONT_WEIGHTBOLD runODS HTML CLOSE

31
Resulting Table
32
Same Table with FOREGROUND Colors
33
Applying Traffic Lighting to PROC TABULATE

• ODS HTML BODY'tables.htm' proc tabulate
  datatables fdollar8. class Type
  Material var Price table
  TypeMaterial, PriceMean" "
  STYLEBACKGROUNDtraffic.
  FONT_WEIGHTBOLD runODS HTML CLOSE

34
Resulting Table
35
Same Table with FOREGROUND Colors
36
Creating Alternate Row Shading

• Technique for PROC REPORT
• Alternate gray and white row backgrounds
• Makes table easier to read

37
Using STYLE in the COMPUTE Block

• ODS HTML BODY'tables.htm' proc report
  datatables nowd column Type Material
  Price define Type / group define
  Material / group define Price / analysis
  mean compute Material count1
  if (mod(count,2)) then do CALL
  DEFINE(_ROW_, "STYLE",
  "STYLEBACKGROUNDcxFFFFFF") end
  endcomp runODS HTML CLOSE

38
Resulting Table
39
Adding a Logo Graphic to PROC REPORT Step 1

• ODS HTML BODY'tables.htm' proc report
  datatables nowd column Type Material
  Price define Type / group define
  Material / group define Price / analysis
  mean compute before _page_ / LEFT
  LINE "Totally Tables, Inc." endcomp
  runODS HTML CLOSE

40
Resulting Table
41
Adding a Logo Graphic to PROC REPORT Step 2

• compute before _page_ / LEFT
  STYLEPREIMAGE'table.gif'
  FONT_WEIGHTBOLD FONT_SIZE5
  FOREGROUNDcx993300 LINE "Totally
  Tables, Inc."endcomp

• Note This example is set up for HTML output, and
  gives the font size using a number which
  represents an HTML font size. If you are creating
  RTF or printer output, list the font size in
  points (for example, 14pt).

42
Resulting Table
43
Adding a Logo to PROC TABULATE

• ODS HTML BODY'tables.htm' proc tabulate
  datatables fdollar8. class Type
  Material var Price table
  TypeMaterial, PriceMean" " /
  BOXLABEL'Totally Tables, Inc.'
  STYLEPREIMAGE'dining.gif' runODS HTML
  CLOSE

Original Label
Extra Brackets
Attribute
STYLE option
44
Resulting Table
45
Fixing the Heading Alignment

• ODS HTML BODY'tables.htm' proc tabulate
  datatables fdollar8. class Type
  Material var Price / STYLEVJUSTB
  table TypeMaterial, PriceMean" "
  / BOXLABEL'Totally Tables, Inc.'
  STYLEPREIMAGE'dining.gif' runODS HTML
  CLOSE

46
Revised Table
47
Modifying the Entire Table

• You can use STYLE to change the font, color,
  etc. for the entire table
• Syntax
• PROC REPORT DATAdataset STYLEstyle-attribut
  e(s)
• PROC PRINT DATAdataset STYLEstyle-attribut
  e(s)

48
Modifying the Entire Table

• Syntax for PROC TABULATE
• TABLE ltltpage-definition,gt row-definition,gt
  column-definition / STYLEstyle-attribute(
  s)

49
Other Style Attributes

• Dozens of style attributes you can modify
• Many places to use them within each procedures
  output

50
Experiment

• Try the various style attributes
• Try the various places you can use STYLE
• Get creative, especially with the COMPUTE block
  in PROC REPORT

51
To Learn More

• Check out the examples in the Guide to the SAS
  Output Delivery System in the Online
  Documentation
• Some more examples are in my new book Output
  Delivery System The Basics
• Next year, look for Output Delivery System
  Advanced Topics

52
Conclusion

• The possibilities for output enhancement are
  endless.
• Have fun with these techniques.

53
