Safety Analysis of Usage Control UCON Authorization Model

1

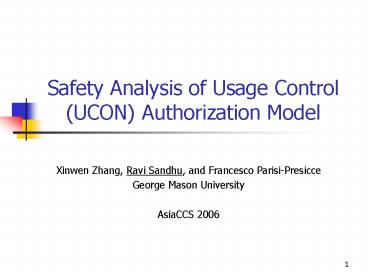

Safety Analysis of Usage Control (UCON)
Authorization Model

• Xinwen Zhang, Ravi Sandhu, and Francesco
  Parisi-Presicce
• George Mason University
• AsiaCCS 2006

2
Context
USAGE purpose

• electronic commerce
• information sharing
• etcetera

USAGE

• multi-party security objectives
• fuzzy objectives

INTEGRITY modification
AVAILABILITY access
CONFIDENTIALITY disclosure
3
Context

• Protection Objectives
• Sensitive information protection
• IPR protection
• Privacy protection
• Protection Architectures
• Server-side reference monitor
• Client-side reference monitor
• SRM CRM

4
UCON Model (Park and Sandhu 2004)

• Attributes can be updated as side-effects of a
  usage
• pre, ongoing, and post updates
• Attribute Mutability
• Core models
• preA0, preA1, preA2, preA3, onAx, preBx, onBx
  preCx onCx
• A real model may be a combination of core models.

5
An Example

• Resource-constrained access control
• Limited number (10) of ongoing accesses to a
  single object
• When 11th subject requesting new access, one
  ongoing accessing will be revoked.
• Different revocation policies
• By start time the longest ongoing usage is
  revoked
• By idle time the usage with the longest total
  idle time is revoked
• By total usage time the usage with the longest
  accumulating usage time is revoked.
• Need decision continuity, attribute mutability,
  and ongoing access revocations

6
Motivations

• Two fundamental properties in access control
• Expressive Power
• Safety Analysis
• Formalization of UCON Model is required
• for the precise semantics of the conceptual model
• for policy definition
• for the analysis of UCON properties.

7
Expressive Power Safety Analysis

• Expressive Power
• The flexibility to express policies for different
  requirements.
• Comparing expressive power among access control
  models
• Safety problem
• Given a system, specified by an initial state and
  a scheme, is there a reachable state in which a
  subject has a particular right on an object?
• Expressive power and manageable safety analysis
  are two conflicting properties of access control
  models
• In general, the more expressive power a model
  has, the harder it is (if at all possible) to
  carry out safety analysis.
• Examples HRU, SPM, and TAM

8
Formalization of UCONA

• We focus on UCON preA (UCONA) models in this
  paper
• Attributes and values
• Each object is specified by the same set of
  attributes ATT
• Each attribute has a value domain dom(a) for a ?
  ATT
• A system state is (O, ?), where
• O is a set of objects (including subjects)
• ? O ? ATT ? dom(ATT) ? null
• S ? O
• Three primitive actions for state transitions
• createObject o
• create a new object o
• ?a ? ATT, ?(o.a) null
• destroyObject o
• O O o
• ? o? O, ?a ? ATT, ?(o.a) ?(o.a)
• updateAttribute o.av
• ?(o.a) v, v? dom(a)
• ?(ent.att) ?(ent.att) if ent ? o or att ? a

9
UCONA Policy

• p1, pi are attribute predicates on s and o
• atc1, actk are actions on s and o
• creating policy
• If act1 is creatObject o
• Only o can be created single parent policy
• s is parent, o is child
• Assumptions
• Atomic policy enforcement
• Serialized accesses

10
Formal Model of UCONA

• A UCONA scheme is a 4-tuple (ATT, R, P, C),
  where
• ATT is a finite set of attribute names
• R is a finite set of rights,
• P is a finite set of predicates
• C is a finite set of policies
• A UCONA system is specified by a UCONA scheme and
  an initial state t0(O0, ?0).

11
Policy Specification Flexibility

• DRM policies
• RBAC models (RBAC0, RBAC1, RBAC2)
• Chinese Wall policies
• Dynamic separation of duty
• MAC policy with high watermark property

12
Expressive Power of UCONA iTunes-like Systems
iTunes music store
User
Music file
Device
13
Expressive Power of UCONA

• The expressive power of the UCONA model has been
  formally studied by comparing it with traditional
  access control models
• simulating the general SO-TAM model
• simulating the general SO-ATAM model

• Theorem
• UCONA is more expressive than TAM.
• UCONA is at least as expressive as ATAM.

14
Safety Analysis of UCONA

• Theorem
• Safety is undecidable in the general UCONA model.

• By reducing a general SO-TAM system to a UCONA
  system
• By simulating the operations of a general Turing
  machine with a UCONA model.

15
Safety Analysis of UCONA

• Theorem
• The safety problem of a UCONA system is decidable
  if
• the value domain of each attribute is finite, and
• there is no creating policy in the scheme.
• Proof idea
• Reduce a UCONA system with these restrictions to
  a FSM, where the safety problem is mapped to the
  empty language problem recognized by the FSM.
• The complexity of the safety problem is
• polynomial in the number of possible states of
  the system.
• NP-hard in number of policies in the scheme.

16
Safety Analysis of UCONA

• Theorem
• The safety problem of a UCONA system is decidable
  if
• the attribute creation graph is acyclic, and
• the attribute update graph has no cycle
  containing a create-parent attribute tuple, and
• in each creating policy, both the parent's and
  the child's attribute tuples are updated.
• Proof idea restrictions on creating policies
• If c(s,o) is a creating policy, then it has must
  have updateAttribute s.a action, and ?(s.a) ?
  ?(s.a)
• There is no policies that can update ?(s.a) to
  ?(s.a) in any state.

17
Expressive Power of Decidable UCONA

• RBAC96 model with URA97 or PRA97 scheme
• A state in RBAC96 S, P, R, UA, UAA, PA, RH,
  where P ? O x R
• URA97 scheme can_assign ? ARxCRx2R, can_revoke
  ? ARx2R
• A can_assign(ar, cr, r1,r2) or can_revoke(ar,
  r1,r2) can be reduced to a set of UCONA
  policies
• ?ri ? r1,r2, cr x ??y

18
Expressive Power of Decidable UCONA

• DRM applications with consumable rights
• Limited number of copies

19
Contribution Summary

• Formal study of the expressive power of UCONA
• UCONA is at least as expressive as ATAM.
• Safety analysis of UCONA
• Safety undecidability of the general model
• Two safety-decidable models with restrictions on
  the form of the policies in the general model
• Expressive power of the decidable models by
  simulating
• RBAC96 with URA97 or PRA97
• DRM applications

20
Ongoing and Future Work

• Comparing expressive power between UCON
  authorization and obligations models
• Efficiently decidable UCON models
• An administrative model of UCON
• Expressive power and safety analysis of UCON
  ongoing models.
• UCON architectures and mechanisms

21

• Thank you!
• Q A
