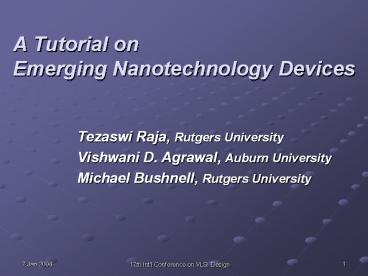

A Tutorial onEmerging Nanotechnology Devices
  • Tezaswi Raja, Rutgers University
  • Vishwani D. Agrawal, Auburn University
  • Michael Bushnell, Rutgers University

2
Outline
  • Introduction
  • Nano Scale MOSFET
  • Carbon Nanotube FETs
  • Solid State Quantum Devices
  • Molecular Electronics
  • Challenges and the Current State of the Art
  • Conclusion

3
Introduction
  • Feature size nearing the physical limits
  • Fabrication process approaching limits
  • Power consumption a concern
  • Quantum effects need to be accounted for
  • Solution? Nanotechnology
  • We present an overview of new devices and outline
    some open problems.

4

5

6
What is Nanotechnology?
  • Switching devices of nanometer (below 100nm,
    typically 10nm) dimensions define nanotechnology.

Emerging Nanotechnology Drivers
Emerging Nanotechnology Solutions
Logic (Our Focus)
Nano CMOS
Memory
Fabrication
7
Computing Devices
Solid State Devices
Molecular Devices
CMOS Devices
Quantum Devices
Nano CMOS
Quantum Dot
RTD
CNFET
SET
Electro- mechanical
Electro- chemical
Quantum
Photoactive
8
Nano-Scale MOSFET
Photo Courtesy Fujitsu Labs
  • Metal Oxide Semiconductor Field Effect Transistor
  • Three terminal device
  • Source, gate and drain
  • Vg controls the conduction from source to drain
  • Half thickness of the gate is called Feature
    size ?
  • Current feature sizes in production 90nm (Intel
    Pentium 5)
  • Demonstrated feature sizes up to 20nm (IBM).

9
Challenges
  • Difficulties
  • High electric fields
  • Power supply vs. threshold voltage
  • Heat dissipation
  • Interconnect delays
  • Vanishing bulk properties
  • Shrinkage of gate oxide layer
  • Too many problems to continue miniaturization as
    physical limits approach
  • Proposed solutions are short term
  • Open Problems
  • Improve lithographic precision (eBeam)
  • Explore new materials (GaAs, SiGe, etc.)
  • As a long term goal explore new devices

10
Outline
  • Introduction
  • Nano scale MOSFET
  • Carbon Nanotube FETs
  • Solid State Quantum Devices
  • Molecular Electronics
  • Challenges and current state of the art
  • Conclusions

11
Carbon Nanotubes
  • Carbon nanotubes are long meshed wires of carbon
  • Longest tubes up to 1mm long and few nanometers
    thick made by IBM.

Property Carbon Nanotubes Comparatively
Size 0.6-1.8 nm in diameter Si wires at least 50nm thick
Strength 45 Billion Pascals Steel alloys have 2 Billion P.
Resilience Bent and straightened without damage Metals fracture when bent and restraightened
Conductivity Estimated at 109 A/cm2 Cu wires burn at 106 A/cm2
Cost 2500/gram by BuckyUSA in Houston Gold is 15/gram
12
Electrical Properties of CNT
  • Carbon nanotubes can be metallic or semiconductor
    depending on their chirality.
  • Chiral Vector C is defined as the vector from one
    open end of the tube to the other after it is
    rolled.
  • If (n-m) is divisible by 3, the tube is metallic
  • If (n-m) is not divisible by 3, the tube is
    semiconducting.

C n a1 m a2
13
Carbon Nanotube FET
Courtesy IBM
  • CNT can be used as the conducting channel of a
    MOSFET.
  • These new devices are very similar to the CMOS
    FETs.
  • All CNFETs are pFETs by nature.
  • nFETs can be made through
  • Annealing
  • Doping
  • Very low current and power consumption
  • Although tubes are 3nm thick CNFETs are still the
    size of the contacts, about 20nm.

14
CNT Fabrication
Courtesy IBM
Courtesy IBM
  • Controlling the conductivity of the tubes
    (Constructive Destruction)
  • All tubes laid on the contact
  • Metallic tubes are destroyed
  • Controlling diameter of the tube
  • Start with MWNTs.
  • Destroy the outer layers one by one to reduce
    diameter.
  • Placing exactly at the required location. Yet to
    be demonstrated convincingly to exploit complete
    advantage using Lithography.
  • Using DNA for self assembly
  • Demonstrated by Techion-Israel very recently
    (Nov2003).

15
Summary and Challenges
  • CNTs are flexible tubes that can be made
    conducting or semiconducting.
  • Nano-scale, strong and flexible.
  • Challenges
  • Multilevel interconnects not available
  • Chip density still limited to the density of
    contacts.
  • Tube density not entirely exploited
  • Fabrication is still a stochastic process
  • Alternatives to gold contacts need to be found.
  • Open Problems and Initiatives
  • Fabrication using DNA for self assembly
    (Technion-Israel Science, Nov 2003)
  • Memory array of nanotubes using junctions as bit
    storages (Lieber at Harvard)
  • Using nanotube arrays to make computing elements
    (DeHon at Caltech)
  • Fabricate FPGAs using CNFETs and STM (Avouris at
    IBM)

16
Outline
  • Introduction
  • Nano scale MOSFET
  • Carbon Nanotube FETs
  • Solid State Quantum Devices
  • Molecular Electronics
  • Challenges and current state of the art
  • Conclusions

17
Solid State Quantum Devices
Occupied Energy Levels
Occupied Energy Levels
Energy
Barrier
Barrier
Allowed Energy Levels
Distance
Source
Island
Drain
  • Quantum effects used to build devices.
  • Electrons confined on an island
  • Island can be created by using different band-gap
    devices in succession
  • Island has certain allowed energy levels
  • If allowed energy levels are filled then the
    device is in conduction
  • Types of devices
  • Resonant Tunneling Diode (RTD)
  • Single Electron Transistor (SET)
  • Quantum Dot (QD)
  • Blocking conduction due to unavailable energy
    levels is called coulomb blockade

18
Principle of Conduction
Conduction
Conduction
Occupied Conduction Band
Occupied Conduction Band
Energy
Energy
Allowed Energy Levels
Allowed Energy Levels
Occupied Conduction Band
Gate bias
Source
Island
Drain
Source
Island
Drain
  • Conduction can occur by
  • Increasing source to drain voltage
  • Applying Gate Bias

19
Single Electron Transistors (SET)
Source
Cg
Gate
Island
Drain
  • Conductance changes in spurts as energy levels
    are discrete
  • To go from conducting to non-conducting stage, it
    requires voltage sufficient for one electron to
    cross
  • This is achieved by applying gate bias enough for
    just one electron charge -- hence the name SET
  • Bias required for conduction is coulomb gap
    voltage
  • Same device can act as pFET or nFET based on the
    barrier strength
  • Applications
  • Extra sensitive charge meters
  • CMOS style conducting devices

20
Quantum Dots and Arrays
Dot occupied by Electron
Inter-dot Barriers
Dot unoccupied
Outer Barriers
Courtesy vortex.tn.tudelft.nl/
grkouwen/kouwen.html
  • 3-dimensional island tunneling barrier
  • State determined by presence of electron and not
    by conduction.
  • Quantum cell array (QCA) is a lattice of these
    cells with 2 electrons confined.
  • Occupied electrons are furthest from each other
    due to repulsive forces.

21
Quantum Cellular Automata
1
1
QCA Wire
1
0
Stable
1
0
Unstable
QCA Inverter
  • 2 states 1 and 0.
  • Electrostatic interaction of nearby cells makes
    the bits flip.
  • Input to the cell is by manipulating the
    Inter-dot barriers.
  • Logic gates can be constructed.

22
Summary and Challenges
  • Summary
  • Electrons confined on an island.
  • Allowed energy levels are discrete and allow the
    device to fluctuate between conducting and
    non-conducting states.
  • SET 2 dimensional device with gate bias
    control.
  • QD device with electron presence as state.
  • QCA Arrays of QDs used for computing.
  • Challenges
  • Background charge may offset states (noise
    sensitivity)
  • Sensitivity of tunneling current to barrier width
    (lithographic accuracy)
  • Sensitivity to barrier widths
  • Cryogenic operation
  • Open Problems
  • Lithographic methods with guaranteed accuracy
  • Self assembly of systems
  • Background charge elimination
  • Synthesis and verification techniques needed
  • Testing of these devices as stuck-at models may
    be inadequate.

23
Outline
  • Introduction
  • Nano scale MOSFET
  • Carbon Nanotube FETs
  • Solid State Quantum Devices
  • Molecular Electronics
  • Challenges and current state of the art
  • Conclusions

24
Molecular Electronics
  • Incentives
  • Molecules are nano-scale
  • Self assembly is achievable
  • Very low-power operation
  • Highly uniform devices
  • Quantum Effect Devices
  • Building quantum wells using molecules
  • Electromechanical Devices
  • Using mechanical switching of atoms or molecules
  • Electrochemical Devices
  • Chemical interactions to change shape or
    orientation
  • Photoactive Devices
  • Light frequency changes shape and orientation.

25
Molecular Electronics
Thiol
Acetylene linkage
Benzene ring
  • Mechanical synthesis
  • Molecules aligned using a scanning tunneling
    microscope (STM)
  • Fabrication done molecule by molecule using STM
  • Chemical synthesis
  • Molecules aligned in place by chemical
    interactions
  • Self assembly
  • Parallel fabrication

26
An Atomic Relay
27
Summary and Challenges
  • Summary
  • Parallel self assembly
  • Very regular structures
  • Many alternatives proposed but inherent problems
  • Very low energy operation
  • Challenges
  • Signal restoration and gain
  • Finding non-interacting chemicals
  • Chemical reactions stochastic with by-products
  • Slow operating speeds
  • Open Problems
  • Self assembling of devices
  • Increased speed of operation
  • Guaranteed switching of molecules (HP- UCLA
    devices)
  • Simulation models and CAD

28
Conclusion
  • CMOS technology is approaching saturation
    problems in the nanometer range
  • Several new possibilities emerging
  • Carbon nanotubes (CNT)
  • Single-electron transistor (SET) and quantum dots
    (QD)
  • Molecular computing devices
