Title: Embedded Operating Systems


1

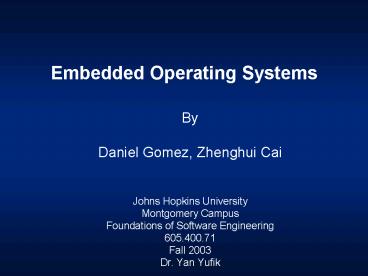

Embedded Operating Systems
  • By
  • Daniel Gomez, Zhenghui Cai
  • Johns Hopkins University
  • Montgomery Campus
  • Foundations of Software Engineering
  • 605.400.71
  • Fall 2003
  • Dr. Yan Yufik

2
What do these devices have in common?
Embedded Linux Operating System
3
The Operating System(A Modular Abstraction)
  • Software Layers
  • Embedded OS
  • Simple Function
  • Size
  • Hardware
  • Cost

4
Real-Time Operating System(RTOS)
  • Deadlines
  • A soft real-time system can tolerate latency when
    missing the ideal deadline.
  • A hard real-time systems are best described as
    those when it absolutely positively has to be
    done on time or the system crashes.

5
Thread vs. Process
http//www.lynuxworks.com/products/posix/processes
.php3
6
Thread vs. Process
http//www.lynuxworks.com/products/posix/processes
.php3
7
Thread vs. Process
http//www.lynuxworks.com/products/posix/processes
.php3
8
Scheduling Policy
  • Cooperative
  • Round-Robin
  • Priority Based

http//www.lynuxworks.com/products/posix/processes
.php3
9
Priority Inversion
Selecting the Right RTOS - A Comparative Study,
March 2002
10
COMPARISONS
11
Embedded Linux (1)
  • Pros
  • Rich Supported Hardware
  • Security and Reliability
  • Rich Software Library Support
  • Diversified Tools

12
Embedded Linux (2)
  • Cons
  • Open Source
  • Size
  • Development Tools
  • Real Time
  • Management

13
Embedded Linux (3)
  • Suitable Applications
  • Relatively Small Non-time Sensitive Applications
  • New Development
  • Real Time Feature
  • Compliant Kernel
  • Dual Kernel
  • Core Kernel

14
Windows CE (1)
  • Pros
  • Rich Multimedia Features
  • Mature Management And Long Time Development
  • Rich Library
  • Good Support
  • Excellent Development Tools
  • Hard Real Time Feature

15
Windows CE (2)
Hard Real Time feature in Embedded Windows
16
Windows CE (3)
  • Cons
  • Closed Source
  • Hardware Support is limited
  • Not been tested widely
  • Royalty Fee
  • At Least 3 Per Unit

17
Windows CE (4)
  • Suitable Applications
  • Large Application
  • Multimedia Requirement
  • New Development
  • Multimedia Support
  • Memory Management
  • Size
  • Security protocol Support

18
vxWorks (1)
  • Pros
  • Small Foot Print
  • Protection Domains
  • Wide Processor Support
  • Good IDE Support (Tonado)
  • Advanced Loader

19
vxWorks (2)
  • Cons
  • Poor Graphic Interface
  • Poor Multimedia Support
  • Closed Source
  • Suitable Applications
  • Defense System
  • Automotive System
  • Telecommunication System

20
Cross Comparison
21
FUTURE TRENDS
22
Market Trends
Data source Embedded Systems Developer Survey,
Volume 2, 2002 OSes targeted in current and next
embedded projects
23
Open Source
  • Share-Cropping vs. Ownership
  • Open Platform ? Open Source
  • Challenges Ahead

24
Is Linux Ready for the Future?
  • Kernel 2.6
  • On-Time Arrival Deterministic
  • No Delays Preemtible
  • Just Say No No Keyboard, No Monitor, No Wires

25
Most Common Mistakes with RTOS Software
Development
  • Delays implemented as an empty loop
  • Software engineers not participating in hardware
    design
  • Generalizations based on a single
  • architecture
  • No memory analysis
  • Improper use of Global variables
  • Indiscriminate use of interrupts
  • One Big Loop
  • Too many inter-module and circular dependencies
  • No measurements of execution time

26
Future development and Prediction
  • Expert system applied in IDE to minimize common
    mistakes
  • Desktop system will be replaced by embedded
    system
  • Desktop full-featured operating system will be
    replaced by/ merged with embedded operating
    system.
  • The Future is Open Source

27
MERRY CHRISTMAS!!!
