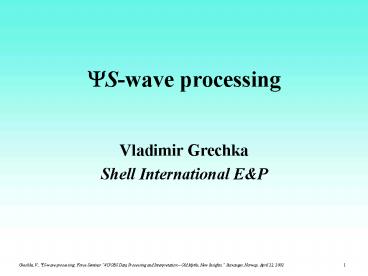

Swave processing

1
?S-wave processing

• Vladimir Grechka
• Shell International EP

2
Reflected PS-wave
3
Complications of PS-wave data

• moveout asymmetry
• polarity reversal
• conversion point dispersal
• no standard processing flow

4
PP PS SS method
(Grechka and Tsvankin, 2001)
5
PP PS SS method
6
PP PS SS method
7
PP PS SS method

• PP and PS event correspondence
• ? accurate velocity and anisotropy
• model not needed
• prestack traveltime picking

8
PP PS SS method

• PP and PS event correspondence
• ? accurate velocity and anisotropy
• model not needed
• prestack traveltime picking

9
PP PS SS method

• PP and PS event correspondence
• ? accurate velocity and anisotropy
• model not needed
• prestack traveltime picking
• convolution of PP and PS traces

10
PP PS SS method

• PP and PS event correspondence
• ? accurate velocity and anisotropy
• model not needed
• prestack traveltime picking
• convolution of PP and PS traces
• ?S data suitable for
• S-wave velocity analysis

11
?S-wave data
integration over all P-wave source and
receiver locations
12
Synthetic example
13
Input PP and PS data
PS moveout asymmetry
14
Input PP and PS data (zoom)
15
Input PP and PS data (zoom)
polarity reversal
16
Input PP and PS data (zoom)
polarity reversal
different PP and PS wavelets
17
Generated ?S data
18
Generated ?S data
correct traveltimes of ?S arrivals
19
Generated ?S data (zoom 1)
20
Generated ?S data (zoom 1)
longer ?S wavelets
21
Generated ?S data (zoom 1)
longer ?S wavelets no polarity reversal
22
Generated ?S data (zoom 1)
longer ?S wavelets no polarity reversal
almost zero ?S trace at zero offset
23
Generated ?S data (zoom 2)
24
Generated ?S data (zoom 2)
?S-waves cannot be reconstructed at large
offsets
25
Generated ?S data (zoom 2)
?S-waves cannot be reconstructed at large
offsets ? critical angle
26
Critical offset for ?S-waves
S
P
P
R
critical ray
27
Critical offset for ?S-waves
S
P
P
R
critical ray
28
Critical offset for ?S-waves
S
P
P
R
critical ray
29
Gulf of Mexico (PP-waves, shallow)
offset depth
30
Gulf of Mexico (?S-waves, shallow)
offset depth
31
Gulf of Mexico (PP-waves, deep)
offset depth
32
Gulf of Mexico (?S-waves, deep)
offset depth
33
PP- and ?S-wave gathers
34
Evidence for effective anisotropy
in homogeneous VTI media
isotropy does not fit data
35
Conclusions (I)

• complications of PS-wave data irrelevant
• ? moveout asymmetry
• ? polarity reversal
• ? conversion point dispersal

36
Conclusions (II)

• ?S data ideal for S-wave velocity analysis
• accuracy of shear-wave stacking velocities
  governed by the ratio
• straightforward estimating of
  effective anisotropy

37
Issues

• absence of P-wave data (gas chimneys)
• event correspondence

Further opportunities
post-critical ?S events diving P-waves
amplitudes migration of ?S data
38
Acknowledgements

• Helmut Jakubowicz (Veritas)
• Joe Dellinger (BP)
• Chris Corcoran, Fons ten Kroode,
• Jon Sheiman, Allen Hillery, Jared Martin,
• Mark Zama, Paul Milcik, Barbara Yantis,
• Richard Cook (Shell)
• Pawan Dewangan (CSM)
