File Organization and Indices

1

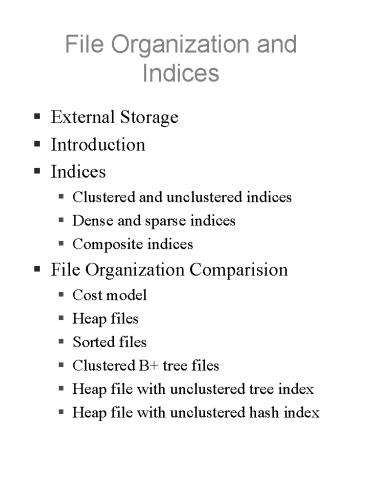

File Organization and Indices

• External Storage
• Introduction
• Indices
• Clustered and unclustered indices
• Dense and sparse indices
• Composite indices
• File Organization Comparision
• Cost model
• Heap files
• Sorted files
• Clustered B tree files
• Heap file with unclustered tree index
• Heap file with unclustered hash index

2
External Storage

• Databases store a large amount of data
• The data must be persistent.
• It is stored on disk (or tape).
• Accessing data from disk is costly
• Data on disk is read or written in units of a
  page, usually 4 or 8 KB.
• e.g. 10 milliseconds for accessing a record on a
  disk versus 60 nanoseconds for accessing a record
  in main memory.
• Note that reading pages in sequence is less
  expensive than reading them one at a time.
• Every record in a file is given a unique record
  ID (rid). This includes a disk page address.
• Disk access (time) can be improved by the use of
  specific file organizations and indexing
  techniques.
• A file organization is a method of arranging
  records in a file.
• Each file organizations has it strengths and
  weaknesses (in terms of file operations).

3
File Organizations

• A file organization is a method of storing
  records in a file when the file is on a disk.
• A file will be accessed and modified in a number
  of ways.
• Different organizations enable different
  operations to be carried out efficiently.
• A file sorted by SIN helps in retrieving records
  in SIN order but is not helpful in retrieving
  customers in a particular range of incomes.
• Files should be given organizations based on
  their patterns of use.
• A DBMS often has to support more than one type of
  operation.
• Compare a number of possible file (and index
  organizations).
• Heap (unordered, no index) file.
• Sorted file (no index).
• Clustered B tree file.
• Heap file with unclustered B tree index.
• Heap file with unclustered hash index.

4
Indices

• An index is an additional data structure to
  efficiently retrieve records based on the search
  key of the index.
• An index is a collection of data entries.
• An index must have an efficient way to find all
  data entries with search key value k.
• For example store SIN and rids.
• Data entry alternatives.
• A data entry is a record with search key value k.
• There is no need to store the data records
  separately.
• Referred to as an indexed file organization.
• A data entry is a k, rid pair.
• Independent of the file organization.
• A data entry is a k, rid-list pair.
• Independent of the file organization.
• Good space utilization but contains variable
  length data.
• The last two alternatives are independent of the
  underlying file organization.

5
Clustered vs. Unclustered

• If a file is ordered in the same way as an index
  the index is clustered.
• That is, both the files records and the indexs
  data entries are ordered on the same field.
• If the data records are the data entries the file
  must be clustered.
• Maintaining data records in order involves high
  overhead on insertions and deletions.
• In practice (unless the index uses data records
  as data entries) files are rarely fully sorted.
• Initially records are sorted and some free space
  is kept on pages for insertions.
• Once the free space is used up insertions are put
  in a linked list of overflow pages.
• Periodically, when the order has degenerated the
  file is sorted again.
• If an index is unclustered the data records are
  not ordered on the indexs search key.
• Consequently retrieving a range selection on the
  index search key takes longer than with a
  clustered index.
• If a file has more than one index only one can be
  clustered.

6
Dense vs. Sparse

• A dense index is one where there is (at least)
  one data entry for each search key value that
  appears in a data record.
• If the data entries are the data records the
  index is always dense.
• A sparse index contains one data entry for each
  page of records in a data file.
• A sparse index must also be clustered or it would
  be impossible to find records with search key
  values between the data entry values.
• A sparse index is usually much smaller than a
  dense index.
• Primary and secondary indices
• A primary index is one where the search key
  includes the primary key.
• The search key of a secondary index does not.
• If there is a dense secondary index on a file the
  file is referred to as being inverted.
• If there is a dense secondary index on each field
  not in the primary key it is referred to as being
  fully inverted.

7
Composite Indices

• An indexs search key can contain several fields.
• Such search keys are referred to as composite
  search keys or concatenated keys.
• For example fName, lName
• For searches on equality the values for each
  field in the search key must match the values in
  record.
• e.g. John Smith does not match John Jones or Fred
  Smith.
• For range queries ranges can be specified for all
  fields in the search key.
• If no range is specified for a field it implies
  that any value is acceptable for that field.
• e.g. (fName ) John will find all customer whose
  first name is John regardless of their last
  names.

8
Index Data Structures

• Hash-based indexing
• Group the records (or data entries) in buckets
  consisting of a primary page and, if necessary, a
  chain of overflow pages.
• Records are mapped to buckets by applying a hash
  function to the search key.
• Supports very efficient equality searches.
• The cost is typically 1 or 2 disk I/Os.
• Tree indexing
• The non-leaf levels of the tree provide a sparse
  index to the level below.
• The leaf level contains either a dense index to
  the file, or the records themselves.
• Tree indexes efficiently support range searches.
• To find a record costs 1 disk I/O for each level
  of the tree.
• Therefore a tree with a high fan-out (each node
  has many children) is desirable.

9
File Organization Comparison

• Consider the following operations
• Scan fetch all records in a file from disk into
  the buffer.
• Search with equality selection fetch all
  records that satisfy the selection. Pages with
  matching records must be fetched from disk and
  the records located within the pages.
• Search with a range selection fetch all records
  that contain a range of values.
• Insert insert a given record into a file. The
  page for the insert must be located and fetched,
  then modified to include the new record and
  written back to the file.
• Delete delete a record from a file. The page
  for the record must be located, fetched, modified
  and written back.
• Both insert and delete may involve fetching and
  modifying more than the page with the insertion
  or deletion.
• Note that most of the file organizations require
  a search key.

10
Cost Model

• To compare file organizations we need to estimate
  the cost (in execution time) of different DB
  operations.
• Assume the following
• B data pages with R records a page.
• Average time to read / write a page is D.
• Average time to process a record is C.
• The time to map a value to a hash function is H.
• Typical values for these are
• D 15 milliseconds.
• C and H 100 nanoseconds.
• Therefore the cost of I / O dominates and will be
  used as the cost metric for the comparison.
• Real world systems must consider other aspects of
  cost.
• CPU cost and usage.
• Transmission cost if the DB is distributed.
• The importance of reading contiguous pages where
  possible (blocked access).
• etc.

11
Heap Files

• Scan.
• The cost is B(D RC).
• Each page must be read and each record must be
  processed.
• Search with equality selection.
• Where the selection is on a superkey.
• The cost is ½ B(D RC) (if the record exists).
• Only one record needs to be fetched so only half
  the file needs to be scanned (on average).
• Where the selection returns multiple records
• The cost is B(D RC).
• Search with a range selection.
• The cost is B(D RC).
• The entire file has to be scanned because we
  dont know where qualifying records are.
• Insert.
• Assume records inserted at the end of the file.
• The cost is 2D C (read and write and modify).
• Delete.
• First retrieve the record. If the rid is known
  so is the page, otherwise scan the file.
• The cost is therefore search cost D C

12
Sorted Files

• Scan.
• The cost is B(D RC) to examine all records.
• Records are scanned in sort order.
• Search with equality selection.
• If the selection is not on the sort key.
• If selection is a superkey cost is ½ B(D RC).
• Otherwise, the cost is B(D RC).
• If the selection is on the sort key.
• Find the first page using a binary search and
  then fetch all qualifying records.
• The cost is Dlog2B Clog2R.
• Note that the cost increases as the number of
  records that match the selection increases (only
  1 if the selection is on a superkey).
• Search with a range selection.
• If it is not on the sort key cost is B(D RC).
• If the selection is on the sort key perform a
  binary search as for the equality selection.
• With a large range the selection may not fit on
  one page.
• Therefore the cost increases as additional pages
  have to be retrieved.

13
Sorted Files continued

• Insert.
• The record has to be inserted in order so its
  position must be found.
• The cost of finding a record is the same as the
  cost for selection on equality.
• Once found and written all pages subsequent to
  the page with the insert must be read and written
  (to shift records down one space). On average a
  record is in the middle of the file.
• Modifying each page costs 2D RC
• The cost is search cost B(D ½RC).
• Delete.
• The cost is similar to the insert cost (because
  the file has to be compacted).
• However, if the rid is known there is no
  additional cost for finding the record (though it
  still has to be fetched).
• The cost is search cost B(D ½RC).

14
Clustered B Tree File

• This organization consists of a B tree where the
  leaf pages contain data records.
• The pages are usually only 2/3 full.
• There are therefore 1.5B data pages.
• Scan.
• The cost is 1.5B(D RC) to examine all records.
• Records are scanned in sort order.
• Search with equality selection.
• If the selection is not on the search key.
• If selection is a superkey cost is ½ 1.5B(D
  RC).
• Otherwise, the cost is 1.5B(D RC).
• If the selection is on the search key.
• Find the first page using the tree. Visit each
  level of the tree (including a leaf). The height
  is given by logF1.5B where F is the fan-out of a
  node.
• The cost is DlogF1.5B Clog2R.
• Note that the cost increases as the number of
  records that match the selection increases (only
  1 if the selection is on a superkey).

15
Clustered B Tree Files continued

• Search with a range selection.
• If it is not on the search key cost is 1.5B(D
  RC).
• If the selection is on the search key use the
  index as for equality selection and search
  contiguous leaf pages until the end of the range
  is reached.
• Note that additional leaf pages may have to be
  retrieved if the selection is relatively large.
• Insert.
• The record has to be inserted in the appropriate
  place so find its position using the index.
• Once the page is found it must be modified and
  written back.
• The cost is DlogF1.5B Clog2R D.
• This analysis assumes that the new record can fit
  on the leaf page.
• Delete.
• The cost is the same as the insert cost as the
  record must be found and the leaf page modified.
• The cost is DlogF1.5B Clog2R D.

16
Heap File with Unclustered Tree Index

• With an unclustered index the leaf pages contain
  data entries (search key, rid pairs).
• These are typically smaller than data records.
• The number of leaf pages L is therefore less than
  B. Assume that there are RL data entries per
  leaf page.
• Scan.
• The cost is B(D RC) to examine all records.
• This assumes the records are scanned from the
  heap file without using the index (not in order).
• If the scan is to be ordered by the search key it
  is better to sort the file than to use the index.
• Search with equality selection.
• If the selection is not on the search key the
  file has to be scanned.
• If the selection is on the search key.
• Find the appropriate leaf page using the tree.
  Use the data entry to find the associated record.
• The cost is DlogFL Clog2RL D
• The cost increases with the number of records
  that match the selection. Because the file is a
  heap file matching records may not reside on the
  same page.

17
Heap File with Unclustered Tree Index

• Search with a range selection.
• If it is not on the search key cost is B(D RC).
• If the selection is on the search key use the
  index as for equality selection and search
  contiguous leaf pages until the end of the range
  is reached.
• For each matching data entry in a leaf page
  retrieve the record. As records may reside on
  separate pages, using the index may become
  prohibitively expensive if the range is large.
• Insert.
• First insert the record in the heap file (2D
  C).
• Then insert an entry in the index find, modify
  and write it back (DlogFL Clog2RL D).
• This analysis assumes that the new record can fit
  on the leaf page.
• Delete.
• Find the record to be deleted using the index,
  modify and write back the file and index pages.
• The cost is DlogF1.5B Clog2R D 2D.

18
Heap File with Unclustered Hash Index

• With an unclustered index the buckets contain
  data entries (search key, rid pairs).
• These are typically smaller than data records.
  Assume that there are RB data entries per bucket.
• The cost of using a hash index (H) is the cost of
  making a main memory calculation (like C).
• Scan.
• The cost is B(D RC) to examine all records.
• This assumes the records are scanned from the
  heap file without using the index (not in order).
• Search with equality selection.
• If the selection is not on the search key the
  file has to be scanned.
• If the selection is on the search key.
• Find the appropriate bucket using the hash
  function. Retrieve the bucket (1 I/O) and then
  retrieve the appropriate page of the file.
• The cost is H 2D ½RB
• The cost increases with the number of records
  that match the selection. Because the file is a
  heap file matching records may not reside on the
  same page.

19
Heap File with Unclustered Hash Index

• Search with a range selection.
• Range selections are not supported by hash
  indices.
• Because a hash function is uniform and random,
  entries in the range will be randomly distributed
  across buckets.
• A file scan is therefore required.
• Insert.
• First insert the record in the heap file (2D
  C).
• Then insert an entry in the hash index find,
  modify and write it back (H 2D C).
• Delete.
• Find the record to be deleted using the index,
  modify and write back the file and index pages.
• The cost is H 2D ½RB 2D.
• Overflow pages.
• This analysis assumes that each bucket consists
  of one primary page with no overflow pages.
