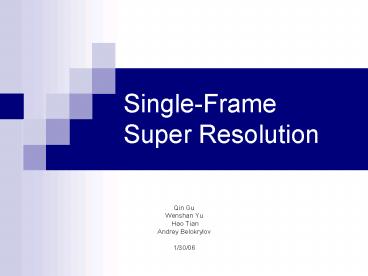

Single-Frame Super Resolution

• Qin Gu
• Wenshan Yu
• Hao Tian
• Andrey Belokrylov
• 1/30/06

2
Introduction

• Super-resolution is the problem of generating a
  high-resolution image (HR) from one or more
  low-resolution images (LR).


3
Motivation

• A number of real-world applications
• A common application occurs when we want to
  increase the resolution of an image while
  enlarging it using a digital imaging software
  (such as Adobe Photoshop).
• To save storage space and communication bandwidth
  (hence download time)
• Another application arises in the restoration of
  old, historic photographs, enlarge them with
  increased resolution for display purposes.

4
Interpolation
LR image
True HR image
Interpolation blurred!
5
Our method

• Most methods of super-resolution are based on
  multiple low-resolution images of the same scene
  (which means we have to take the same photos many
  times for each evaluation).
• Our method is generating a high-resolution image
  from a single low-resolution image, with the help
  of a set of one or common training images.

6
Training Set
Training Set (Low-High resolution image pairs)
7
Our project

• Our project implements 2 kinds of
  super-resolution algorithms.
• Super-resolution Through Neighbor Embedding
  (Manifold learning ,LLE)
• Learning Low-Level vision (Example Based
  Algorithm )
• Both of them are based on learning training
  examples.
• Finally, we will compare the performance of these
  2 algorithms for different images and training
  examples.

8
Overlap patches

• For the low-resolution images, we use 3 3
  patches with an overlap of one or two pixels
  between adjacent patches.

3x3
9
Overlap patches
10
Super-Resolution Through Neighbor Embedding

• 1. For each patch x in image Xt
• (a) Find the set Nq of K nearest neighbors in Xs.
• (b) Compute the reconstruction weights of the
  neighbors that minimize the error of
  reconstructing x
• (c) Compute the high-resolution embedding y,using
  the appropriate high-resolution features of the K
  nearest neighbors and the reconstruction weights.
• 2. Construct the target high-resolution image Yt
  by enforcing local compatibility and smoothness
  constraints between adjacent patches obtained in
  step 1(c).

11
Example K5
3x3
Training Set
w1 w2 w3 w4 w5
9x9
12
Feature vector

• Each patch is represented as a feature vector
• N dimensional feature space.
• Intensity, gradient, etc.

13
LR image
True HR image
Our result
Interpolation
14

• Purpose
• To get high resolution image from the input
  low resolution image.
• Way
• Use a set of training examples

15
Single-image super-resolution

• Application
• 1.Enlarge a digital image (software).
• 2.Click the image on the web page.

16
Related previous work

• Simple resolution enhancement methods.
• 1.Smoothing Gaussian, Wiener, median filters
• 2.Interpolation 1)bicubic interpolation
• 2)cubic interpolation

17
Problem formulation

• 1.Input(X)low resolution image
• 5050
• 2.Target(Y)high resolution image

18
Training set

• X1 X2 X3 X4 X5
• Y1 Y2

19
Training set

• Y3 Y4
• Y5

20
Get the patch

• Patch
• Separate the image into patches.
• Each patch is 33.
• Need to extend the image.
• One column and one row

21
Get the patch in Training set

• The patch
• The patch(?(I(i,j)-A(i1,j1))2) 1/2
• ai(?(I(i,j)-A(i1,j1))2) 1/2

22
Get the patch in Training set

• Input low resolution patch
• Five nearest neighbors

23
Get the weight in Training set

• The weight
• The weightai/?(ai) i1,2,3,4,5
• bi ai/?(ai)

24
Get the initial image

• For all patch
• Yb1a1b2a2b3a3b4a4b5a5

25
Overlap

• For overlap
• We use 3N3N patches in the high resolution, then
  we use 1N1N for the adjacent patches.
• Get the average value for the adjacent patches.

26
Basic Framework

• Given image data y, we want to estimate the
  underlying scene, x
• We use the posterior probability,
• We seek the MAP estimate.
• We make the Markov assumption

27
Markov network with loops
F(xi,yi)
?(xi,xj)

• Knowing xj implies knowing yj
• Knowing xj gives information about nearby xs

28
Markov network without loops
Example


29
Representation F and ?

• At each node we collect a set of 10 or 20 scene
  candidates
• We want to find, in each column, the scene
  candidate which best explains the image patch,
  and is compatible with its neighbors

30
Two main assumptions

• High frequencies are independent of low
  frequencies. (Only mid-frequencies)
  P(HM,L)P(HM)
• Image frequencies are independent of image
  contrast

31
Training set
Spline interpolation
downsample
Difference between them (high frequencies)
Eliminating low frequences using high-pass
filter(next slide)
Normalized(/MeanAbse) patches
32
Predicting and RMS error
Final Image (1Iteration) (RMS10.8)
Final Image (4 iterations) (RMS6.8)
Original Image
Diff.
High frequencies we need to predict
Recovered High frequencies (1 iteration)
Recovered High frequencies (4 iterations)
Interpolated Image (RMS11.3)
33
Different training sets
Original-gt
34
Motivation of improvement

• The fact that belief propagation converged to a
  solution of the Markov network so quickly(
  typically 3-4 iterations) led us to believe that
  more straightforward and time efficient approach
  can be used in practice.
• Premise produce comparable results.

35
Basic idea (One-pass)

• Goal maximize two compatibilities
• similarity compatibility---sc
• neighboring compatibility---nc
• Markov find a set of candidate patches with

• highest sc then predict the best
  one
• by iterative belief propagation.
• One-pass directly find one patch with best sc
  and
• nc in single operation.

36
Assumption

• Base of One-pass
• Raster-scanning processing
• which means we only need to compute the
  neighboring compatibility with previous decided
  high-patch( left, top)

37
Concatenation

• 1.Combine two parts
• and then search for
• most similar patch
• in training set.
• 2. Change the storage
• structure in training
• set to the same
• concatenated model.

38
Control balance

• The parameter a controls the trade-off between
  matching the low resolution patch data and
  finding a high-resolution patch that is
  compatible with its neighbors. (Mlow patch size,
  Nhigh patch size)
• pixels in low resolution patch
  pixels in borders of precious
•
  decided patches

39
Illustrative example
Training set
Input image
output image
40
Exploring best training patch

• Similarity function
• Euclidean distance sqrt((a-a1)2(b-b1)2
  )
• Manhattan distance abs(a-a1) abs(b-b1).
• Searching Algorithm (how to search training
  space)
• Brute Searching
• best effect, very time-consuming because of
  huge space (at least more than 10 thousand)
• Based on Mean
• divide training set to groups. Compare the
  mean between current low patch and each group,
  then search the group with most similar mean.

mean searching
brute searching
41
LLE Example Based Algorithm

• Both of them are looking for one or a set of most
  similar patches in training set.
• LLE manage to restore the high patch by computing
  weighted combination of those selected patches.
• Example Based Algorithm manage to find the best
  one of selected patches and take it as the output
  high patch directly.

Output of Example Based Algorithm
Output of LLE
42
Training set limitation

• It might seem that to enlarge an image of one
  featurefor example, a catwe would need a
  training set that contained images of other cats
  . However, this isnt the case.
• Although the training set doesnt have to be very
  similar
• to the image to be enlarged, it should be in
  the same
• image classsuch as text or color image.

43
Thanks
Thanks

• Qin Gu
• Wenshan Yu
• Hao Tian
• Andrey Belokrylov
