CMPE 588 MODELLING OF INTERNET

1

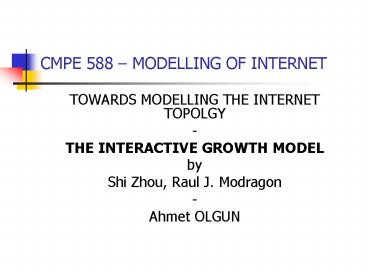

CMPE 588 MODELLING OF INTERNET

• TOWARDS MODELLING THE INTERNET TOPOLGY
• -
• THE INTERACTIVE GROWTH MODEL
• by
• Shi Zhou, Raul J. Modragon
• -
• Ahmet OLGUN

2
OUTLINE

• INTRODUCTION
• RICH-CLUB PHENOMENON
• DEGREE-BASED INTERNET TOPOLOGY GENERATORS
• Inet-3.0 Model
• Barabasi-Albert (BA) Model
• Generalized Linear Preference (GLP) Model
• INTERACTIVE GROWTH (IG) MODEL
• MODEL VALIDATION
• Degree Distribution
• Low-range degree distribution
• High-range degree distribution
• Maximum degree
• Rich-club Phenomenon
• Rich-club connectivity
• Node-node link distribution
• CONCLUSIONS

3
INTRODUCTION

• Aim Modelling Internet Topology
• The Internet topology at the AS graph has
• Power-law degree distribution (Faloutsos)
• Tier structure (Subramanian)
• Internet power-law topology generators
• Degree-based
• Structure-based (Tangmunarunkit found degree
  distributions produced by these generators are
  not power-laws)
• Interactive Growth (IG) model based on joint
  growth of new nodes and new links is introduced

4
INTRODUCTION (cntd)

• power-law degree distribution
• The fraction of nodes with degree d 1/db for
  some constant b gt 0
• tier structure (layers)
• AS graph

Router
AS
5
INTRODUCTION (cntd)

• AS graph is compared against
• IG Model (proposed)
• three degree-based models
• Inet-3.0 model
• BA Scale-free model
• GLP model
• It has been shown that IG model favors other
• Closely resembles degree distribution of AS graph
• Matches the hierarchical structure

6
RICH-CLUB PHENOMENON

• Rich nodes
• Power-law technologies have small number of nodes
  having large number of links.
• AS graph shows this phenomenon
• Rich nodes are well connected to each other
• Rich nodes are connected preferentially to the
  other rich nodes.
• It s measured in the
• Original-maps of the AS graph (BGP Routing tables
  by University of Oregon Route Views Project)
• Extended-maps of the AS graph (BGP Routing tables
  Looking Glass (LG) data Internet Routing
  Registry data)

7
RICH-CLUB PHENOMENON (cntd)

• Comparison of original-maps extended-maps
• Both have similiar number of nodes
• Extended-maps have 40 more links than the
  original-maps
• Research Outcome
• Majority of missing links in the original-maps
  are connecting rich nodes of the extended-map
• Therefore extended-maps show rich-club phenomenon
  stronger than the original-maps
• Why rich-club phenomenon is relevant?

8
RICH-CLUB PHENOMENON (cntd)

• Connectivity between rich nodes can be crucial
  for network properties (routing effieciency,
  redundancy, robustness, ...)
• Alternative routing paths
• Super traffic hub
• It is simple way to differentiate tier structures
  between power-law topologies

9
DEGREE-BASEDINTERNET TOPOLOGY GENERATORS

• Inet-3.0 model
• Barabasi-Albert (BA) model
• Generalized Linear Preference Model

10
Inet-3.0 model

• Designed to match the measurements of the
  original-maps of the AS graph
• of links generated depends on
• Total of nodes
• Percentage of nodes with degree 1
• Typically generates 26 less links than
  extended-AS graph

11
Barabasi-Albert (BA) model

• Power-law degree distribution can arise from two
  mechanisms
• Growth (addition of new nodes)
• preferential attachment (new nodes are
  preferentially attached to nodes that are already
  well connected)
• Probability of attachment
• Using mean-field theory it is estimated that BA
  model generates networks with degree distribution
  P(k) k-3

12
Generalized Linear Preference (GLP) model

• A modification of the BA model.
• Evolution of AS graph mostly due to two reasons
• The addition of new nodes
• The addition of new links between existing nodes
• It starts with m0 nodes connected through m0-1
  links

13
Generalized Linear Preference (GLP) model (cntd)

• At each time step
• With probability p m lt m0 new links are added
  between m pairs of nodes chosen from existing
  nodes
• With probability 1-p a new node is added and
  connected to m existing nodes

14
Generalized Linear Preference (GLP) model (cntd)

• Probability to choose node i is,
• Constant parameter can be adjusted such that
  nodes have a stronger preference of high degree
  nodes than BA model
• It matches AS graph (original-maps) in terms of
  two characteristics of small-world networks
• Characteristic path length
• Clustering coefficient

15
Interactive Growth (IG) model

• Also reflects two main operations
• Addition of new nodes
• Addition of new links
• So, what is difference?
• Growth of links and nodes are interdependent in
  IG model
• At each time step a new node is connected to
  existing nodes (host nodes), and new links will
  connect the host nodes to other existing nodes
  (peer nodes)
• By the way, IG model uses same linear preference
  as BA model when choosing existing nodes to
  connect.

16
Interactive Growth (IG) model (cntd)
17
Interactive Growth (IG) model (cntd)

• What about actual internet?
• New nodes bring new traffic load to its host
  nodes
• Results?
• Increase of traffic volume
• Change of traffic pattern around host nodes
• In order to balance network traffic and optimize
  network performance addition of new links between
  hosts and peers is triggered.

18
Interactive Growth (IG) model (cntd)

• This joint growth of new nodes and new links is
  called INTERACTIVE GROWTH
• Impacts of INTERACTIVE GROWTH
• Rich nodes of IG model is better inter-connected
  than BA model
• Rich nodes of IG model have higher degrees than
  those of BA model

19
Interactive Growth (IG) model (cntd)

• Time-evolution of node degree in both the BA and
  IG obeys a power-law
• Barabase predicted theta of BA is 0.5, authors
  calculated IGs 0.6
• What is reason?
• During interactive growth host nodes connect to
  peer nodes as well

20
MODEL VALIDATION
21
DEGREE DISTRIBUTION

• Degree distribution P(k) is the percentage of
  nodes with degree k
• Degree distribution of AS graph deviates from a
  strict power law.
• So, it is studied in three levels
• Low-range (klt3)
• High range (1000 richest nodes)
• Maximum degree
• NOTEP(1)ltP(2) in AS graph. Only IG shows this
• WHY P(1) P(2) IS IMPORTANT???
• 70 of AS graph!!!

22
DEGREE DISTRIBUTION(cntd)
23
RICH CLUB PHENOMENON

• RICH CLUB CONNECTIVITY
• INTER-CONNECTION BETWEEN RICH NODES
• INTERESTING NOTE GLPs gt AS
• NODE-NODE LINK DISTRIBUTION
• L(Ri,Rj) number of links connecting nodes with
  rank ri to nodes with rj. Ranks are normalized by
  total number of nodes and ri lt rj

24
RICH CLUB PHENOMENON(cntd)
25
RICH CLUB PHENOMENON(cntd)
26
CONCLUSIONS

• Inet-3.0 is not a dynamic model
• The BA model generates a strict power-law degree
  distribution which is very from AS graph gt
  network structure is different, because ...
• ALL NEW LINKS CONNECT WITH NEW NODES. Due to
  PREFERENTIAL ATTACHMENT, AS NETWORK GROWS THE
  PROBABILITY FOR A NEW NODE TO BECOME RICH NODE
  DECREASES...
• SO, rich nodes are NOT well connected
• GLP model does not reproduce details of degree
  distribution of AS graph.
• NOTE rich club phenomenon obtained is
  significantly stronger than AS graph

27
CONCLUSIONS (cntd)

• IG model compares favorable with others
• Simple and dynamic
• Resemles degree distribution of AS graph
• Matches hierarchical structure of AS graph
• POSSIBLE IMPROVEMENTS
• Including BANDWITH and DELAY as model parameters

28

• THANKS
• Q A
