Managing Natural Resource Pathways An Agency Perspective

1

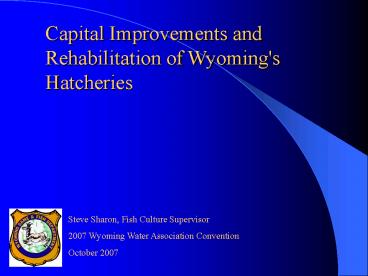

Capital Improvements and Rehabilitation of
Wyoming's Hatcheries
Steve Sharon, Fish Culture Supervisor 2007
Wyoming Water Association Convention October 2007
2
Capital Improvements and Rehabilitation of
Wyoming's Hatcheries OR Ten Bumps in Wyomings
Water Pipeline
Steve Sharon, Fish Culture Supervisor 2007
Wyoming Water Association Convention October 2007
3
Wyoming Game and Fish Department Fish Culture
Section

• 10 Manned Facilities

4
Wyoming Game and Fish Department Fish Culture
Section

• 10 Manned Facilities

• Como Bluff Hatchery, Closed 10/2005

5
Wyoming Game and Fish Department Fish Culture
Section

• 10 Manned Facilities

• 103 Water Rights on File (WY ID)

• Include Domestic, Irrigation Fish Rearing

• Fish Rearing Non-Consumptive Rights

• Vast Majority of Volume is Non-Consumptive

• Combined Flow of 63 Cubic Feet/Second

• Supplies are primary springs wells

6
Wyoming Game and Fish Department Fish Culture
Section

• Three Integrated Strategies

7
Wyoming Game and Fish Department Fish Culture
Section

• Three Integrated Strategies

• Spawning

8
Wyoming Game and Fish Department Fish Culture
Section

• Three Integrated Strategies

• Spawning

• Hatcheries and Rearing Stations

9
Wyoming Game and Fish Department Fish Culture
Section

• Three Integrated Strategies

• Spawning

• Hatcheries and Rearing Stations

• Distribution

10
Wyoming Game and Fish Department Fish Culture
Section
Two Types of Fish Culture Facilities

• Hatcheries (6)

• Rearing Stations (4)

Several fish culture facilities also manage
captive brood stocks

• Ten stocks at 7 facilities

11
How many are stocked?
2006 Stocking

• 4,134,050 Trout Salmon Stocked

12
How many are stocked?
2006 Stocking

• 4,134,050 Trout Salmon Stocked

Over 1,126,500 were Cutthroat
13
Nickel Hatchery Tour
14
Auburn Map
Auburn Hatchery
15
Auburn Hatchery Overview
16
Auburn Hatchery Building
17
Auburn Brood Building
18
Auburn Brood Building
19
Snake River Brood
20
Boulder Map
Boulder Rearing Station
21
Boulder Rearing Station
22
Boulder Brood Unit
23
Clark Map
Clarks Fork Hatchery
24
Clarks Fork Hatchery
25
(No Transcript)
26
Clarks Fork Hatchery
27
Clarks Fork Hatchery
28
Daniel Map
Daniel Hatchery
29
Daniel Hatchery
30
Daniel Hatchery
31
Daniel Hatchery Brood Ponds Top
32
DUBOIS Map
Dubois Hatchery
33
Dubois Hatchery
34
Dubois Incubator
35
Speas Map
Dan Speas Rearing Station
36
Speas Rearing Station
37
Speas Rearing Station
38
Goose Egg Spring
39
Story Map
Story Hatchery
40
Story Hatchery
41
Story Hatchery
42
Story Hatchery
43
Story Big Spring
44
Spawning Operations
45
Ten Sleep Map
Ten Sleep Hatchery
46
Ten Sleep Hatchery
47
Ten Sleep Incubator
48
Ten Sleep Brood Unit
49
Tillett Map
Tillett Rearing Station
50
Tillett Overview
51
Tillett Brood Pond
52
Wigwam Map
Wigwam Rearing Station
53
Wigwam Rearing Station
54
CRC Brood Unit
55
Wyoming Game and Fish Department Fish Culture
Rehabilitation
Oldest -- Story Hatchery

• Established in 1908

Newest Clarks Fork Hatchery

• Established in 1970

Majority of Facilities Built 1938 - 1958
Limited Major Construction 1971 to 1991
56
Story Hatchery -- 1992
57
Rehabilitation Begins!
Whirling Disease Strikes
58
Rehabilitation Begins!
1999 Daniel -- Forty Rod Creek Positive
Whirling Disease Strikes
59
Daniel Hatchery Building Prior to Improvements
60
Daniel Hatchery RacewaysPrior to Improvements
61
Daniel PondsPrior to Improvements
62
Daniel PondsPrior to Improvements
63
Daniel Hatchery New Production and Brood Building
64
Daniel Hatchery Back View
65
Daniel Hatchery w/ Forty Rod
66
Daniel Hatchery Interior facing south
67
Daniel Hatchery Interior facing north
68
Daniel Hatchery Brood Ponds Bottom
69
Daniel Hatchery

• Gain
• Remove Predation
• Remove Exposure
• Improve Health
• Reduce Maint.

• Loss
• Production Ponds

Cost 814,932 (FY00)
70
Rehabilitation Begins!
1999 Boulder Open Water Source
Whirling Disease Nearby
71
Boulder Rearing Station
72
Boulder Rearing Station Spring Supply Main Pond
73
Boulder Spring Supply Upper Ditch
74
(No Transcript)
75
Boulder Rearing Station Completion of Phase I
76
Boulder Rearing Station Completion of Phase I
77
Boulder Rearing Station Phase II Water Supply
78
Completion of Phase II
Boulder Rearing Station Phase II Water Supply
79
Completion of Phase II North View
Boulder Rearing Station Phase II Water Supply
80
Boulder Rearing Station Rcwys
Boulder Rearing Station Raceways
81
Boulder Rearing Station D Raceways
82
Boulder Rearing Station Brood Pond
83
Existing Brood Ponds Downstream
84
(No Transcript)
85
Overview of new Brood Unit
Boulder Rearing Station New Brood Catchable
Units
86
Spawning House Access
Boulder Rearing Station New Brood Catchable
Units
87
Boulder Catchable Rcwys
Boulder Rearing Station Catchable Units
88
2YR Old Rearing Unit
Boulder Rearing Station 2 Year Old Brood Unit
89
Spawn House Outside
Boulder Rearing Station Spawning House
90
(No Transcript)
91
Down Stream In Brood House
92
Brood Area
93
Old Brood Settling Pond
94
Boulder Rearing Station

• Gain
• Clean Closed Water Supply
• Increased Production
• Remove Predation
• Remove Exposure
• Improve Health
• Reduced Maintenance

Boulder Spring Phase I 122,187
(FY00) Boulder Spring Phase II 294,422
(FY01) Boulder Brood Rcwys 590,000
(FY02) Total Renovations 1,006,000
95
Rehabilitation Continues!
2000 WD in Webster Creek
Whirling Disease in Brood Water Supply
96
Auburn Hatchery OverviewPre-Construction
97
Auburn Hatchery Brood Facility
98
Auburn Hatchery OverviewCompleted Brood Facility
99
Clarifier unit
100
Auburn Brood Building
101
Auburn Brood Complex
102
Auburn Hatchery

• Gain
• Remove Exposure
• Improved Health
• Reduced Maintenance
• Clean Closed Water Supply
• Efficient Spawning Egg Handling Operations
• Equipment Storage

Total Cost 690,932 (FY01)
103
Rehabilitation Continues!
2000 Dubois Positive for WD!!!
Whirling Disease in Stream Supply
104
Old Dubois Hatchery Geyser Spring House
105
Old Dubois Hatchery Spring Collection
106
Old Jakeys Fork Creek Box
107
Conley Spring 220 GPM
108
Dubois Coldwater Spring 120 GPM
109
Darwin Spring 350 to 400 GPM
110
Tensleep Well
111
Dubois Hatchery

• Gain
• Closed Water
• Remove Exposure
• Reduce Maint.
• Temperature Range

• Loss
• Water Volume
• High Temperature
• Production Volume

Darwin Test Well 160,780 Ten
Sleep Well 67, 980 Well Spring
Pipeline 196,924 Cost to 2002
425,684 (FY01)
112
Rehabilitation Continues!
2003 Protect YSC Brood at Ten Sleep
Whirling Disease Downstream
113
Tensleep YSC Brood Pond
114
New Site
115
New Site
116
(No Transcript)
117
(No Transcript)
118
(No Transcript)
119
(No Transcript)
120
Ten Sleep Hatchery

• Gain
• Totally Protected
• Multiple Rearing Units
• Adequate Size

• Loss
• Fish Under Reuse
• Warmer Water Supply

Brood Stock Unit 458,073 (FY03)
Completed December 2003
121
FY- 05/06 Legislative Funding

• 3,300,000
• Wigwam 950,000
• Dubois 400,000
• Speas 1,950,000
• Funding Adjustable Between

122
Major Renovations Begin!
2004 Replace Dirt Ponds etc. at Wigwam
Whirling Disease From 2000 Transfer
123
Old Wigwam Rearing Station Overview
124
Wigwam R.S. Renovation
125
Wigwam R.S. Renovation
126
Wigwam R.S. Renovation
127
(No Transcript)
128
Vacuum Degassing
129
Oxygen Generation
130
Low Head Oxygenation
131
Dual Drain Circ
Dual Drain Circulars
132
Drum Filtration
133
Present Wigwam Rearing Station
134
Wigwam Rearing Station

• Gain
• N2 Gas Removal
• O2 Enhancement
• Waste Removal
• Rearing Protection

• Loss
• Production Volume

• Base Construction Cost
• 2,100,702
• 655,261 Department Funds
• 1,445,441 Legislative Funds
• Completed September 2005

135
Major Renovations Continues!
2004 Completely Renovate Dubois
Remove Exposure, Increase Production
136
Dubois Hatchery Renovation
137
Dubois Hatchery Renovation
138
(No Transcript)
139
Dubois Hatchery After
Dubois Hatchery 2005
140
Dubois Hatchery After
Dubois Hatchery 2005
141
CO2 Stripper
CO2 Stripper and Low Head Oxygenator

• Removes CO2 and Ferrous Iron from Water Supply

142
Water Filtration

• Removes Ferric Iron from Water Supply

143
Oxygen Generation
144
Low Head Oxygenation
145
Drum Filtration
146
VFD Pumps
147
(No Transcript)
148
Dubois Hatchery

• Gains
• N2 Gas Removal
• O2 Enhancement
• Waste Removal
• Rearing Protection

• Production Increase
• Increased Fish Health
• Rearing Diversity

• Base Construction Cost
• 2,227,026
• 725,551 Department Funds (FY05/FY06)
• 1,501,475 Legislative Funds (FY05/06)
• Completed December 2005

149
Major Renovations Continue!
2005 - 2007 Improve Speas Water Supply
New Well, Water Treatment
150
Speas R. S. Upgrade

• Results
• Excellent Water Quality
• 54F vs 60F
• Tied to Goose Egg Spring
• Still being evaluated, 300 to 600 GPM
  available
• Separate Pipeline to Speas

151
Speas R. S. Upgrade
152
Speas Water Treatment
153
Speas Water Treatment
154
Speas Water Treatment
155
Speas Water Treatment
156
Speas Water Treatment
157
Speas Rearing Station

• Gains
• N2 Gas Removal
• O2 Enhancement
• Colder Water Supply

• Increased Fish Health
• Rearing Diversity

• Base Construction Cost
• 1,188,594
• 353,084 05/06 Legislative Funds
• 605,000 Dept. Funds
• 230,510 07/08 Legislative Funds

158
FY- 07/08 Legislative Funding

• 13,114,077
• Speas 10,494,246
• Story 2,619,831
• Funding Specific to Site

159
Speas Rearing Station Renovation

• Contain and Cover Goose Egg Spring

• Upgrade Existing Concrete Raceways

• Expand Production Capacity

• Increase Capacity from 100,000 to 300,000
  Pounds Annually

160
Goose Egg Spring
161
Goose Egg Spring
162
Goose Egg Spring
163
Sprung Spring Cover
164
(No Transcript)
165
(No Transcript)
166
(No Transcript)
167
(No Transcript)
168
(No Transcript)
169
(No Transcript)
170
Speas Rearing Station

• Gains
• Waste Management
• O2 Enhancement

• Increased Fish Health
• Major Production Increase

Base Construction Cost 7,390,175 07/08
Legislative Anticipated Completion Late 2008 or
early 2009
171
Speas Projects Remaining

• House for Additional Employee

• Feed Management System

• Support Buildings

172
Story Hatchery Renovation

• Contain and Cover Spring Supplies

• Replace ELR BKT Brood Ponds

• Better Manage LAT Brood Stock

• Enclose and Improve Spawning Area

• Improve Water Quality

173
(No Transcript)
174
(No Transcript)
175
(No Transcript)
176
(No Transcript)
177
Story Projects Remaining

• Brood Facility Being Finalized

• Possible Renovation to Hatchery Building if
  funding base is available

178
32KOE
Questions?????
