Database Overview

1

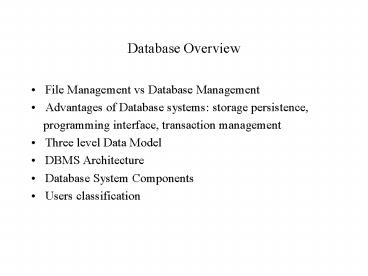

Database Overview

• File Management vs Database Management
• Advantages of Database systems storage
  persistence,
• programming interface, transaction management
• Three level Data Model
• DBMS Architecture
• Database System Components
• Users classification

2
File Management System Problems

• Data redundancy
• Data Access New request-new program
• Data is not isolated from the access
  implementation
• Format incompatible data
• Concurrent program execution on the same file
• Difficulties with security enforcement
• Integrity issues

3
Advantages of Databases

• Persistent Storage Database not only provides
  persistent storage but also efficient access to
  large amounts of data
• Programming Interface Database allows users to
  access and modify data using powerful query
  language. It provides flexibility in data
  management
• Transaction Management Database supports a
  concurrent access to the data

4
Three Aspects to Studying DBMS's

• 1. Modeling and design of databases.
• Allows exploration of issues before committing to
  an implementation.
• 2. Programming queries and DB operations like
  update.
• SQL intergalactic dataspeak.
• 3. DBMS implementation.
• .

5
Definitions

• A database is a collection of stored operational
  data used by various applications and/or users by
  some particular enterprise or by a set of outside
  authorized applications and authorized users
• A DataBase Management System (DBMS) is a software
  system that manages execution of users
  applications to access and modify database data
  so that the data security, data integrity, and
  data reliability is guaranteed for each
  application and each application is written with
  an assumption that it is the only application
  active in the database.

6
Three Level Data View Data Abstractions
. . . . .
View1
View k
Conceptual View Of Data
Phyisal Data Storage
7
DBMS Architecture
8
Logical and Physical Database Components

• Data Definition Language (DDL)
• Data Manipulation Language (DML)
• Host Language Interface
• Data Administrator
• Users
• Query Processor
• Compiler
• Optimizer
• Management
• Transaction Manager
• File Manager
• Buffer Manager
• Authorization and Integrity Manager

Logical
Physical
9
Database Languages
Department
Faculty
Dept
Chair
Name
Dept
SQL

• SELECT Chair
• FROM Faculty, DepartmentWHERE Faculty.name
  Ken Noname AND Faculty.Dept
  Department.Dept
• Data definition language (DDL) like type
  definitions in C or C
• Data Manipulation Language (DML) Query
  (SELECT) UPDATE lt relation name gt SET
  ltattributegt lt new-valuegt WHERE ltconditiongt

10
Logical Data Models

• A collection of tools for describing
• data
• data relationships
• data semantics
• data constraints
• Value based models ER Model, OO Model
• Record Based Models Relational Model

11
Entity-Relationship Model

• The enterprise data can be described as a set of
  entities and a set of relationships between them.
• Entity a data that pertains to, or describes
  some component of the enterprise
• Each entity is characterized by a set of
  attributes
• Relationship describes an interconnection
  between different entities
• Entity Set a set of entities that are
  characterized by the same entity definition
• Relationship Set a set of relationships of the
  same type

12
Entity-Relationship Model

• Example of schema in the entity-relationship model

13
Relational Model

• An enterprise is represented as a set of
  relations
• Domain is a set of atomic values. Each domain
  has a NULL value.
• Data type Description of a form that domain
  values can be represented.
• Relation is a subset of a cartesian product of
  one or more domains
• The elements of relations are called tuples. Each
  element in the cartesian product is called
  attribute.

14

• Relational model is good for
• Large amounts of data gt simple operations
• Navigate among small number of relations
• Difficult Applications for relational model
• VLSI Design (CAD in general)
• CASE
• Graphical Data

ALU
ADDER
CPU
A
FA
Adder
ALU
ADDER
Bill of Materials or transitive closure
15
Relational Model
Attributes
Street
City
gpa
Name
Student-id

• Example of tabular data in the relational model

Johnson Smith Johnson Jones Smith
192-83-7465 019-28-3746 192-83-7465 321-12-3123
019-28-3746
Alma North Alma Main North
3.6 2.7 3.2 4.0 3.45
Palo Alto Rye Palo Alto Harrison Rye
16
Relational Algebra

• Lecture 2

17
Relational Model

• Basic Notions
• Fundamental Relational Algebra Operations
• Additional Relational Algebra Operations
• Extended Relational Algebra Operations
• Null Values
• Modification of the Database
• Views
• Bags and Bag operations

18
Basic Structure

• Formally, given sets D1, D2, . Dn a relation r
  is a subset of D1 x D2 x x DnThus,
  a relation is a set of n-tuples (a1, a2, , an)
  where each ai ? Di
• Example
• customer_name Jones, Smith,
  Curry, Lindsay customer_street Main, North,
  Park customer_city Harrison, Rye,
  PittsfieldThen r (Jones, Main, Harrison),
  (Smith, North, Rye),
  (Curry, North, Rye),
  (Lindsay, Park, Pittsfield) is a relation over

• customer_name , customer_street, customer_city

19
Relation Schema

• A1, A2, , An are attributes
• R (A1, A2, , An ) is a relation schema
• Example
• Customer_schema (customer_name,
  customer_street, customer_city)
• r(R) is a relation on the relation schema R
• Example
• customer (Customer_schema)

20
Database

• A database consists of multiple relations
• Information about an enterprise is broken up into
  parts, with each relation storing one part of
  the information
• account stores information about accounts
  depositor stores information about which
  customer owns which
  account customer stores information
  about customers
• Storing all information as a single relation such
  as bank(account_number, balance,
  customer_name, ..)results in repetition of
  information (e.g., two customers own an account)
  and the need for null values (e.g., represent a
  customer without an account)

21
Keys

• Let K ? R
• K is a superkey of R if values for K are
  sufficient to identify a unique tuple of each
  possible relation r(R)
• by possible r we mean a relation r that could
  exist in the enterprise we are modeling.
• Example customer_name, customer_street and
  customer_name are both superkeys
  of Customer, if no two customers can possibly
  have the same name.
• K is a candidate key if K is minimalExample
  customer_name is a candidate key for.
• Primary Key

22
Select Operation Example
A
B
C
D

• Relation r

? ? ? ?
? ? ? ?
1 5 12 23
7 7 3 10

• ?AB D gt 5 (r)

A
B
C
D
? ?
? ?
1 23
7 10
23
Project Operation Example
A
B
C
? ? ? ?
10 20 30 40
1 1 1 2

• Relation r

A
C
A
C

• ?A,C (r)

That is, the projection of a relation on a set of
attributes is a set of tuples
? ? ? ?
1 1 1 2
? ? ?
1 1 2

24
Union Operation Example
A
B
A
B
? ? ?
1 2 1
? ?
2 3

• Relations r, s

s
r
A
B
? ? ? ?
1 2 1 3
r ? s
25
Set Difference Operation Example
A
B
A
B
? ? ?
1 2 1
? ?
2 3

• Relations r, s

s
r
A
B
? ?
1 1
r s
26
Cartesian-Product Operation-Example
A
B
C
D
E
Relations r, s
? ?
1 2
? ? ? ?
10 10 20 10
a a b b
r
s
r x s
A
B
C
D
E
? ? ? ? ? ? ? ?
1 1 1 1 2 2 2 2
? ? ? ? ? ? ? ?
10 10 20 10 10 10 20 10
a a b b a a b b
27
Additional Operations

• We define additional operations that do not add
  any power
• to the relational algebra, but that simplify
  common queries.
• Set intersection
• Natural join
• Division
• Assignment

28
Set-Intersection Operation - Example
A B

• Relation r, s
• r ? s

A B
? ? ?
1 2 1
? ?
2 3
r
s
A B
? 2
29
Natural Join Operation Example

• Relations r, s

B
D
E
A
B
C
D
1 3 1 2 3
a a a b b
? ? ? ? ?
? ? ? ? ?
1 2 4 1 2
? ? ? ? ?
a a b a b
r
s
A
B
C
D
E
? ? ? ? ?
1 1 1 1 2
? ? ? ? ?
a a a a b
? ? ? ? ?
30
Division Operation Example
A
B
Relations r, s
B
? ? ? ? ? ? ? ? ? ? ?
1 2 3 1 1 1 3 4 6 1 2
1 2
s
r ? s
A
r
? ?
31
Another Division Example
Relations r, s
A
B
C
D
E
D
E
? ? ? ? ? ? ? ?
a a a a a a a a
? ? ? ? ? ? ? ?
a a b a b a b b
1 1 1 1 3 1 1 1
a b
1 1
s
r
A
B
C
r ? s
? ?
a a
? ?
32
Example Queries

• Find the largest account balance
• 1. Rename account relation as d
• 2. The query is

?balance(account) - ?account.balance
(?account.balance lt d.balance (account x rd
(account)))
33
Example Queries

• Find all customers who have an account at all
  branches located in Brooklyn city.

34
Extended Relational-Algebra-Operations

• Generalized Projection
• Outer Join
• Aggregate Functions

35
Generalized Projection

• Extends the projection operation by allowing
  arithmetic functions to be used in the projection
  list. ? F1, F2, , Fn(E)
• E is any relational-algebra expression
• Each of F1, F2, , Fn are are arithmetic
  expressions involving constants and attributes in
  the schema of E.
• Given relation credit-info(customer-name, limit,
  credit-balance), find how much more each person
  can spend
• ?customer-name, limit credit-balance
  (credit-info)

36
Aggregate Functions and Operations

• Aggregation function takes a collection of values
  and returns a single value as a result.
• avg average value min minimum value max
  maximum value sum sum of values count
  number of values
• Aggregate operation in relational algebra
• G1, G2, , Gn g F1( A1), F2( A2),, Fn( An)
  (E)
• E is any relational-algebra expression
• G1, G2 , Gn is a list of attributes on which to
  group (can be empty)
• Each Fi is an aggregate function
• Each Ai is an attribute name

37
Aggregate Operation Example
A
B
C

• Relation r

? ? ? ?
? ? ? ?
7 7 3 10
sum-C
g sum(c) (r)
27
38
Aggregate Operation Example

• Relation account grouped by branch-name

branch-name
account-number
balance
Perryridge Perryridge Brighton Brighton Redwood
A-102 A-201 A-217 A-215 A-222
400 900 750 750 700
branch-name g sum(balance) (account)
branch-name
balance
Perryridge Brighton Redwood
1300 1500 700
39
Aggregate Functions

• Result of aggregation does not have a name
• Can use rename operation to give it a name
• For convenience, we permit renaming as part of
  aggregate operation

branch-name g sum(balance) as sum-balance
(account)
40
Outer Join Example

• Relation loan
• Employee(ename,str,city)
• Works(ename,cname,sal)
• Company(cname,city)
• Manages(ename,mname)

• Relation borrower

41
SQLLecture 3
42
SQL

• Data Definition
• Basic Query Structure
• Set Operations
• Aggregate Functions
• Null Values
• Nested Subqueries
• Complex Queries
• Views

43
Data Definition Language
Allows the specification of not only a set of
relations but also information about each
relation, including

• The schema for each relation.
• The domain of values associated with each
  attribute.
• Integrity constraints
• The set of indices to be maintained for each
  relations.
• Security and authorization information for each
  relation.
• The physical storage structure of each relation
  on disk.

44
Basic Query Structure

• A typical SQL query has the form select A1, A2,
  ..., An from r1, r2, ..., rm where P
• order by
• group by
• having Q
• Ais represent attributes
• ris represent relations
• P is a predicate.
• This query is equivalent to the relational
  algebra expression.
• ?A1, A2, ..., An(?P (r1 x r2 x ... x
  rm))
• The result of an SQL query is a relation.

45
Set Operations

• Find all customers who have a loan, an account,
  or both

(select customer-name from depositor) union (sel
ect customer-name from borrower)

• Find all customers who have both a loan and
  an account.

(select customer-name from depositor) intersect
(select customer-name from borrower)

• Find all customers who have an account but no
  loan.

• (select customer-name from depositor) minus
• (select customer-name from borrower)

46
Aggregate Functions

• These functions operate on the multiset of values
  of a column of a relation, and return a value
• avg average value min minimum value max
  maximum value sum sum of values count
  number of values

47
Null Values and Aggregates

• Total all loan amounts
• select sum (amount) from loan
• Above statement ignores null amounts
• result is null if there is no non-null amount,
  that is the
• All aggregate operations except count() ignore
  tuples with null values on the aggregated
  attributes.

48
Nested Subqueries

• SQL provides a mechanism for the nesting of
  subqueries.
• A subquery is a select-from-where expression that
  is nested within another query.
• A common use of subqueries is to perform tests
  for set membership, set comparisons, and set
  cardinality.

49
Set Comparison

• Find all branches that have greater assets than
  some branch located in Brooklyn.

select distinct T.branch-name from branch as T,
branch as S where T.assets gt S.assets and
S.branch-city Brooklyn

• Same query using gt some clause

select branch-name from branch where assets gt
some (select assets from branch
where branch-city Brooklyn)
50
Example Query

• Find the names of all branches that have greater
  assets than all branches located in Brooklyn.

select branch-name from branch where assets gt
all (select assets from branch where
branch-city Brooklyn)
51
Test for Empty Relations

• The exists construct returns the value true if
  the argument subquery is nonempty.
• exists r ?? r ? Ø
• not exists r ?? r Ø

52
Example

• Student(name,sport)

Name
Sport
Yuri soccer Yuri baseball Yuri
tennis Joe football Joe soccer Jane
tennis Jim tennis Yuri tennis Jim
football
Find students that play all sports
.
(Student)
.
Student
sport
53
Example

• Student(name,sport)
• Find students that play all sports
• Select distinct id
• from students S
• where not exists (
• (select distinct
  sport from student)
• minus
• (select distinct
  sport from student T
• where S.id
  T.id)
• Find students that are playing exactly one sport
• Select id
• from (select id, count()
• from student
• group by id
• having count() 1)

54
Entity-Relationship Model

• Lecture 5

55
ER Model Components

• Entity Sets
• Attributes
• Relationships

56
ER Model
title
year
Name
Address
Star-in
Movies
Stars
length
genre
owns
Studios
Name
Address
57
Relationship

• A relationship is a cartesian product of
• n ? 2 entities
• (e1, e2, en) e1 ? E1, e2 ? E2, , en ?
  Enwhere (e1, e2, , en) is a relationship

58
Degree of a Relationship Set

• Refers to number of entity sets that participate
  in a relationship set.
• Relationship sets that involve two entity sets
  are binary (or degree two). Generally, most
  relationship sets in a database system are
  binary.
• Relationship sets may involve more than two
  entity sets.
• Relationships between more than two entity sets
  are rare. Most relationships are binary.

• E.g. Suppose employees of a bank may have jobs
  (responsibilities) at multiple branches, with
  different jobs at different branches. Then there
  is a ternary relationship set between entity sets
  employee, job and branch

59
Courses
Enrolls
Students
Instructors

• Students Courses TAs
• Ann CS43005 Jan
• Sue CS43005 Pat
• Bob CS43005 Jan

60
Types of Binary Relationships
Many-one
Many-many
One-one

• Representation of Many-One

Many-one E/R arrow pointing to one.
61
Keys for Relationship Sets

• The combination of primary keys of the
  participating entity sets forms a super key of a
  relationship set.
• (customer-id, account-number) is the super key of
  depositor
• NOTE this means a pair of entity sets can have
  at most one relationship in a particular
  relationship set.
• E.g. if we wish to track all access-dates to each
  account by each customer, we cannot assume a
  relationship for each access. We can use a
  multivalued attribute though
• Must consider the mapping cardinality of the
  relationship set when deciding the what are the
  candidate keys
• Need to consider semantics of relationship set in
  selecting the primary key in case of more than
  one candidate key

62
Converting Multiway to 2-Way

• Create a new connecting E.S. to represent rows of
  a relationship set.
• E.g., (Joe's Bar, Bud, 2.50) for the Sells
  relationship.
• Many-one relationships from the connecting E.S.
  to the others.

BBP
The-Bar
The-Beer
The-Price
Bars
Beers
Price
63
Specialization

• within an entity set that are distinctive from
  other entities in the set.
• These subgroupings become lower-level entity sets
  that have attributes or participate in
  relationships that do not apply to the
  higher-level entity set.
• Depicted by a triangle component labeled ISA
  (E.g. Top-down design process we designate
  subgroupings customer is a person).
• Attribute inheritance a lower-level entity set
  inherits all the attributes and relationship
  participation of the higher-level entity set to
  which it is linked.

64
Specialization Example
65
Generalization

• A bottom-up design process combine a number of
  entity sets that share the same features into a
  higher-level entity set.
• Specialization and generalization are simple
  inversions of each other they are represented in
  an E-R diagram in the same way.
• The terms specialization and generalization are
  used interchangeably.

66
Aggregation

• Consider the ternary relationship works-on,
  which we saw earlier
• Suppose we want to record managers for tasks
  performed by an employee at a branch

67
E-R Diagram With Aggregation
68
Weak Entity Sets

• An entity set that does not have a primary key is
  referred to as a weak entity set.
• The existence of a weak entity set depends on the
  existence of a identifying entity set
• it must relate to the identifying entity set via
  a total, one-to-many relationship set from the
  identifying to the weak entity set
• Identifying relationship depicted using a double
  diamond
• The discriminator (or partial key) of a weak
  entity set is the set of attributes that
  distinguishes among all the entities of a weak
  entity set.
• The primary key of a weak entity set is formed by
  the primary key of the strong entity set on which
  the weak entity set is existence dependent, plus
  the weak entity sets discriminator.

69
Weak Entity Sets

• We depict a weak entity set by double rectangles.
• We underline the discriminator of a weak entity
  set with a dashed line.
• payment-number discriminator of the payment
  entity set
• Primary key for payment (loan-number,
  payment-number)

70
Example
student
instructor
enrolls
teaches
offering
isoffered
course
requires
71
Reduction of an E-R Schema to Tables

• Primary keys allow entity sets and relationship
  sets to be expressed uniformly as tables which
  represent the contents of the database.
• A database which conforms to an E-R diagram can
  be represented by a collection of tables.
• For each entity set and relationship set there is
  a unique table which is assigned the name of the
  corresponding entity set or relationship set.
• Each table has a number of columns (generally
  corresponding to attributes), which have unique
  names.

72
Representing Entity Sets as Tables

• A strong entity set reduces to a table with the
  same attributes.

73
Representing Relationship Sets as Tables

• A many-to-many relationship set is represented as
  a table with columns for the primary keys of the
  two participating entity sets, and any
  descriptive attributes of the relationship set.
• E.g. table for relationship set borrower

74
Additional Rules for Translating Relationship
into Relation
If one entity set participates several times in
the relationship with different roles, its key
attributes must be listed as many times and with
different names for each role. Studies(SSN,
Name) Favorite(SSN, Name) Friends(SSN1, SSN2)
Name
SSN
subject
studies
Student
friends
favorite
75
Redundancy of Tables

• Many-to-one relationship sets that are total on
  the many-side can be represented by adding an
  extra attribute to the many side, containing the
  primary key of the one side
• Example We eliminate relation Favorite and we
  extend relation for Student as follows
• Student(SSN, Name, Subject.name)
• If, however, the relationship is many-to-many we
  cannot do that since it leads to redundancy
• For example relation Studies cannot be
  eliminated since otherwise we may end up with
• 111-222-333 John OS
• 111-222-333 John DBMS

76
Representing Weak Entity Sets

• A weak entity set becomes a table that includes a
  column for the primary key of the identifying
  strong entity set

77
Representing Specialization as Tables

• Form a table for the higher level entity
• Form a table for each lower level entity set,
  include primary key of higher level entity set
  and local attributes table table
  attributesperson name, street, city
  customer name, credit-ratingemployee name,
  salary
• Drawback getting information about, e.g.,
  employee requires accessing two tables

78
Relations Corresponding to Aggregation

• To represent aggregation, create a table
  containing
• primary key of the aggregated relationship,
• the primary key of the associated entity set
• Any descriptive attributes

79
Example
ssn
name
ISA
person
passenger
age
booked
ISA
date
departure
assigned
pilot
fhrs
gate
instantof
canfly
flight
plane
dtime
atime
F
man
model
80
Example
ssn
Name
name
Plays
Player
Team
age
Uses
ISA
Has
Colors
Captain
Likes-Colors
likes
Fan
name
addr
81
Relational Database Design Theory

• Lecture 6

82
First Normal Form

• Domain is atomic if its elements are considered
  to be indivisible units
• Examples of non-atomic domains
• Set of names, composite attributes
• Identification numbers like CS101 that can be
  broken up into parts
• A relational schema R is in first normal form if
  the domains of all attributes of R are atomic
• Non-atomic values complicate storage and
  encourage redundant (repeated) storage of data
• Example Set of accounts stored with each
  customer, and set of owners stored with each
  account
• We assume all relations are in first normal form

83
First Normal Form

• Atomicity is actually a property of how the
  elements of the domain are used.
• Example Strings would normally be considered
  indivisible
• Suppose that students are given roll numbers
  which are strings of the form CS0012 or EE1127
• If the first two characters are extracted to find
  the department, the domain of roll numbers is not
  atomic.
• Doing so is a bad idea leads to encoding of
  information in application program rather than in
  the database.

84
Functional Dependencies

• Constraints on the set of legal relations.
• Require that the value for a certain set of
  attributes determines uniquely the value for
  another set of attributes.
• A functional dependency is a generalization of
  the notion of a key.

85
Functional Dependencies

• Let R(A1, A2, .Ak) be a relational schema X and
  Y are subsets of A1, A2, Ak. We say that X-gtY,
• if any two tuples that agree on X, then
  they agree on Y.
• Example
• Student(SSN,Name,Addr,subjectTaken,favSubject,Prof
  )
• SSN-gtName
• SSN-gtAddr
• subjectTaken-gtProf
• Assign(Pilot,Flight,Date,Departs)
• Pilot,Date,Departs-gtFlight
• Flight,Date-gtPilot

86
Functional Dependencies

• A functional dependency X-gtY is trivial if it is
  satisfied by any relation that includes
  attributes from X and Y
• E.g.
• customer-name, loan-number ? customer-name
• customer-name ? customer-name
• In general, ? ? ? is trivial if ? ? ?

87
Closure of a Set of Functional Dependencies

• Given a set F set of functional dependencies,
  there are certain other functional dependencies
  that are logically implied by F.
• E.g. If A ? B and B ? C, then we can infer
  that A ? C
• The set of all functional dependencies logically
  implied by F is the closure of F.
• We denote the closure of F by F.

88
Closure of a Set of Functional Dependencies

• An inference axiom is a rule that states if a
  relation satisfies certain FDs, it must also
  satisfy certain other FDs
• Set of inference rules is sound if the rules lead
  only to true conclusions
• Set of inference rules is complete, if it can be
  used to conclude every valid FD on R
• We can find all of F by applying Armstrongs
  Axioms
• if ? ? ?, then ? ? ?
  (reflexivity)
• if ? ? ?, then ? ? ? ? ?
  (augmentation)
• if ? ? ?, and ? ? ?, then ? ? ? (transitivity)
• These rules are
• sound and complete

89
Example

• R (A, B, C, G, H, I)F A ? B A ? C CG
  ? H CG ? I B ? H
• some members of F
• A ? H
• by transitivity from A ? B and B ? H
• AG ? I
• by augmenting A ? C with G, to get AG ? CG
  and then transitivity with CG ? I

90
Procedure for Computing F

• To compute the closure of a set of functional
  dependencies F
• F Frepeat for each functional
  dependency f in F apply reflexivity and
  augmentation rules on f add the resulting
  functional dependencies to F for each pair of
  functional dependencies f1and f2 in F if
  f1 and f2 can be combined using transitivity
  then add the resulting functional dependency to
  Funtil F does not change any further

91
Closure of Attribute Sets

• Given a set of attributes a, define the closure
  of a under F (denoted by a) as the set of
  attributes that are functionally determined by a
  under F a ? ? is in F ? ? ? a
• Algorithm to compute a, the closure of a under
  F result a while (changes to result)
  do for each ? ? ? in F do begin if ? ?
  result then result result ? ? end

92
Uses of Attribute Closure

• There are several uses of the attribute closure
  algorithm
• Testing for superkey
• To test if ? is a superkey, we compute ?, and
  check if ? contains all attributes of R.
• Testing functional dependencies
• To check if a functional dependency ? ? ? holds
  (or, in other words, is in F), just check if ? ?
  ?.
• That is, we compute ? by using attribute
  closure, and then check if it contains ?.
• Is a simple and cheap test, and very useful
• Computing closure of F
• For each ? ? R, we find the closure ?, and for
  each S ? ?, we output a functional dependency ?
  ? S.

93
Example of Attribute Set Closure

• R (A, B, C, G, H, I)
• F A ? B, A ? C, CG ? H, CG ? I, B ? H
• (AG)
• 1. result AG
• 2. result ABCG (A ? C and A ? B)
• 3. result ABCGH (CG ? H and CG ? AGBC)
• 4. result ABCGHI (CG ? I and CG ? AGBCH)
• Is AG a key?
• Is AG a super key?
• Does AG ? R? Is (AG) ? R
• Is any subset of AG a superkey?
• Does A ? R? Is (A) ? R
• Does G ? R? Is (G) ? R

94
Extraneous Attributes

• Consider a set F of functional dependencies and
  the functional dependency ? ? ? in F.
• Attribute A is extraneous in ? if A ? ? and
• F logically implies (? A) ? ? or
• Attribute A ? ? is extraneous in ? if A ? ?
  and the set of functional dependencies (F
  ? ? ?) ? ? ?(? A) logically implies F.
• Example Given F A ? C, AB ? C
• B is extraneous in AB ? C because A ? C
  logically implies AB? C, A ?C.
• Example Given F A ? C, AB ? CD
• C is extraneous in AB ? CD since AB ? D,A ?C
  implies AB ? C

95
Testing if an Attribute is Extraneous

• Consider a set F of functional dependencies and
  the functional dependency ? ? ? in F.
• To test if attribute A ? ? is extraneous in ?
• compute (? A) using the dependencies in
• F
• 2. check that (? A) contains A if it does,
  A is extraneous
• To test if attribute A ? ? is extraneous in ?
• compute ? using only the dependencies in
  F (F ? ? ?) ? ? ?(? A),
• check that ? contains A if it does, A is
  extraneous

96
Canonical Cover

• Sets of functional dependencies may have
  redundant dependencies that can be inferred from
  the others
• Eg A ? C is redundant in A ? B, B ? C,
  A ? C
• Parts of a functional dependency may be redundant
• E.g. A ? B, B ? C, A ? CD can be
  simplified to A ? B,
  B ? C, A ? D
• E.g. A ? B, B ? C, AC ? D can be
  simplified to A ? B,
  B ? C, A ? D
• A canonical cover of F is a minimal set of
  functional dependencies equivalent to F, having
  no redundant dependencies or redundant parts of
  dependencies

97
Canonical Cover(Formal Definition)

• A canonical cover for F is a set of dependencies
  Fc such that
• F logically implies all dependencies in Fc, and
• Fc logically implies all dependencies in F, and
• No functional dependency in Fc contains an
  extraneous attribute, and
• Each left side of functional dependency in Fc is
  unique.

98
Canonical CoverComputation

• To compute a canonical cover for Frepeat Use
  the union rule to replace any dependencies in
  F ?1 ? ?1 and ?1 ? ?1 with ?1 ? ?1 ?2 Find a
  functional dependency ? ? ? with an extraneous
  attribute either in ? or in ? If an extraneous
  attribute is found, delete it from ? ? ? until F
  does not change

99
Example of Computing a Canonical Cover

• R (A, B, C)F A ? BC B ? C A ? B AB ?
  C
• Combine A ? BC and A ? B into A ? BC
• A is extraneous in AB ? C
• Set is now A ? BC, B ? C
• C is extraneous in A ? BC
• Check if A ? C is logically implied by A ? B and
  the other dependencies
• Yes using transitivity on A ? B and B ? C.
• The canonical cover is A ? B B ? C

100
Decomposition

• All attributes of an original schema (R) must
  appear in the decomposition (R1, R2)
• R R1 ? R2
• Lossless-join decomposition.For all possible
  relations r on schema R
• r ?R1 (r) ?R2 (r)
• A decomposition of R into R1 and R2 is lossless
  join if and only if at least one of the following
  dependencies is in F
• R1 ? R2 ? R1
• R1 ? R2 ? R2

101
Normalization Using Functional Dependencies

• When we decompose a relation schema R with a set
  of functional dependencies F into R1, R2,.., Rn
  we want
• Lossless-join decomposition Otherwise
  decomposition would result in information loss.
• Dependency preservation Let Fi be the set of
  dependencies F that include only attributes in
  Ri.
• (F1 ? F2 ? ? Fn) F
• .

102
Example

• R (A, B, C)F A ? B, B ? C)
• Can be decomposed in two different ways
• R1 (A, B), R2 (B, C)
• Lossless-join decomposition
• R1 ? R2 B and B ? BC
• Dependency preserving
• R1 (A, B), R2 (A, C)
• Lossless-join decomposition
• R1 ? R2 A and A ? AB
• Not dependency preserving (cannot check B ? C
  without computing R1 R2)

103
Testing for Dependency Preservation

• To check if a dependency ??? is preserved in a
  decomposition of R into R1, R2, , Rn we apply
  the following simplified test (with attribute
  closure done w.r.t. F)
• result ?while (changes to result) do for each
  Ri in the decomposition t (result ? Ri) ?
  Ri result result ? t
• If result contains all attributes in ?, then the
  functional dependency ? ? ? is preserved.
• We apply the test on all dependencies in F to
  check if a decomposition is dependency preserving
• This procedure takes polynomial time, instead of
  the exponential time required to compute F and
  (F1 ? F2 ? ? Fn)

104
Boyce-Codd Normal Form
A relation schema R is in BCNF with respect to a
set F of functional dependencies if for all
functional dependencies in F of the form ??? ?,
where ? ? R and ? ? R, at least one of the
following holds

• ?? ? ? is trivial (i.e., ? ? ?)
• ? is a superkey for R

105
Example

• R (A, B, C)F A ? B B ? CKey A
• R is not in BCNF
• Decomposition R1 (A, B), R2 (B, C)
• R1 and R2 in BCNF
• Lossless-join decomposition
• Dependency preserving

106
Testing for BCNF

• To check if a non-trivial dependency ???? causes
  a violation of BCNF
• 1. compute ? (the attribute closure of ?), and
• 2. verify that it includes all attributes of R
• Using only F is incorrect when testing a relation
  in a decomposition of R
• E.g. Consider R (A, B, C, D), with F A ?B, B
  ?C
• Decompose R into R1(A,B) and R2(A,C,D)
• Neither of the dependencies in F contain only
  attributes from (A,C,D) so we might be mislead
  into thinking R2 satisfies BCNF.
• In fact, dependency A ? C in F shows R2 is not
  in BCNF.

107
BCNF Decomposition Algorithm

• result Rdone falsecompute Fwhile
  (not done) do if (there is a schema Ri in result
  that is not in BCNF) then begin let ?? ? ?
  be a nontrivial functional dependency that holds
  on Ri such that ?? ? Ri is not in F, and ? ? ?
  ?result (result Ri ) ? (Ri ?) ? (?, ?
  ) end else done true
• Each Ri is in BCNF, and decomposition is
  lossless-join.

108
BCNF and Dependency Preservation
It is not always possible to get a BCNF
decomposition that is dependency preserving

• R (A, B, C)F AB ? C C ? BTwo candidate
  keys AB and AC
• R is not in BCNF
• Any decomposition of R will fail to preserve
• AB ? C

109
Third Normal Form

• A relation schema R is in third normal form (3NF)
  if for all ? ? ? in F at least one of the
  following holds
• ? ? ? is trivial (i.e., ? ? ?)
• ? is a superkey for R
• Each attribute A in ? ? is contained in a
  candidate key for R.
• If a relation is in BCNF it is in 3NF (since in
  BCNF one of the first two conditions above must
  hold).
• Third condition is a minimal relaxation of BCNF
  to ensure dependency preservation.

110
Third Normal Form

• Example
• R (A,B,C)F AB ? C, C ? B
• Two candidate keys AB and AC
• R is in 3NF
• AB ? C AB is a superkey C ? B B is contained
  in a candidate key
• BCNF decomposition has (AC) and (BC)
• Testing for AB ? C requires a join

111
Testing for 3NF

• Use attribute closure to check for each
  dependency ? ? ?, if ? is a superkey.
• If ? is not a superkey, we have to verify if each
  attribute in ? is contained in a candidate key of
  R
• this test is rather more expensive, since it
  involve finding candidate keys
• testing for 3NF has been shown to be NP-hard
• However, decomposition into third normal form can
  be done in polynomial time

112
3NF Decomposition Algorithm

• Let Fc be a canonical cover for Fi 0for
  each functional dependency ? ? ? in Fc do if
  none of the schemas Rj, 1 ? j ? i contains ? ?
  then begin i i 1 Ri ? ?
  endif none of the schemas Rj, 1 ? j ? i
  contains a candidate key for R then begin i
  i 1 Ri any candidate key for
  R end return (R1, R2, ..., Ri)

113
Storage Hierarchy
114
Storage Hierarchy

• primary storage Fastest media but volatile
  (cache, main memory).
• secondary storage next level in hierarchy,
  non-volatile, moderately fast access time
• also called on-line storage
• E.g. flash memory, magnetic disks
• tertiary storage lowest level in hierarchy,
  non-volatile, slow access time
• also called off-line storage
• E.g. magnetic tape, optical storage

115
Magnetic Disks

• Disk controller interfaces between the computer
  system and the disk drive hardware.
• accepts high-level commands to read or write a
  sector
• initiates actions such as moving the disk arm to
  the right track and actually reading or writing
  the data
• Computes and attaches checksums to each sector to
  verify that data is read back correctly
• If data is corrupted, with very high probability
  stored checksum wont match recomputed checksum
• Ensures successful writing by reading back sector
  after writing it
• Performs remapping of bad sectors

116
Disk Subsystem

• Multiple disks connected to a computer system
  through a controller
• Controllers functionality (checksum, bad sector
  remapping) often carried out by individual disks
  reduces load on controller
• Disk interface standards families
• ATA (AT adaptor) range of standards
• SCSI (Small Computer System Interconnect) range
  of standards
• Several variants of each standard (different
  speeds and capabilities)

117
Performance Measures of Disks

• Access time the time it takes from when a read
  or write request is issued to when data transfer
  begins. Consists of
• Seek time time it takes to reposition the arm
  over the correct track.
• Average seek time is 1/2 the worst case seek
  time.
• 4 to 10 milliseconds on typical disks
• Rotational latency time it takes for the sector
  to be accessed to appear under the head.
• Average latency is 1/2 of the worst case
  latency.
• 4 to 11 milliseconds on typical disks
• Data-transfer rate the rate at which data can
  be retrieved from or stored to the disk.
• 4 to 8 MB per second is typical
• Multiple disks may share a controller, so
  transfer rate that controller can handle is also
  important
• E.g. ATA-5 66 MB/second, SCSI-3 40 MB/s
• Fiber Channel 256 MB/s

118
Storage Access

• A database file is partitioned into fixed-length
  storage units called blocks. Blocks are units of
  both storage allocation and data transfer.
• Database system seeks to minimize the number of
  block transfers between the disk and memory. We
  can reduce the number of disk accesses by keeping
  as many blocks as possible in main memory.
• Buffer portion of main memory available to
  store copies of disk blocks.
• Buffer manager subsystem responsible for
  allocating buffer space in main memory.

119
Buffer Manager

• Programs call on the buffer manager when they
  need a block from disk.
• If the block is already in the buffer, the
  requesting program is given the address of the
  block in main memory
• If the block is not in the buffer,
• the buffer manager allocates space in the buffer
  for the block, replacing (throwing out) some
  other block, if required, to make space for the
  new block.
• The block that is thrown out is written back to
  disk only if it was modified since the most
  recent time that it was written to/fetched from
  the disk.
• Once space is allocated in the buffer, the buffer
  manager reads the block from the disk to the
  buffer, and passes the address of the block in
  main memory to requester.

120
Buffer-Replacement Policies

• Most operating systems replace the block least
  recently used (LRU strategy)
• Idea behind LRU use past pattern of block
  references as a predictor of future references
• Queries have well-defined access patterns (such
  as sequential scans), and a database system can
  use the information in a users query to predict
  future references
• LRU can be a bad strategy for certain access
  patterns involving repeated scans of data
• e.g. when computing the join of 2 relations r
  and s by a nested loops for each tuple tr of r
  do for each tuple ts of s do if the
  tuples tr and ts match
• Mixed strategy with hints on replacement strategy
  providedby the query optimizer is preferable

121
Buffer-Replacement Policies

• Pinned block memory block that is not allowed
  to be written back to disk.
• Toss-immediate strategy frees the space
  occupied by a block as soon as the final tuple of
  that block has been processed
• Most recently used (MRU) strategy system must
  pin the block currently being processed. After
  the final tuple of that block has been processed,
  the block is unpinned, and it becomes the most
  recently used block.
• Buffer manager can use statistical information
  regarding the probability that a request will
  reference a particular relation
• E.g., the data dictionary is frequently accessed.
  Heuristic keep data-dictionary blocks in main
  memory buffer
• Buffer managers also support forced output of
  blocks for the purpose of recovery

122
File Organization

• The database is stored as a collection of files.
  Each file is a sequence of records. A record is
  a sequence of fields.
• One approach
• assume record size is fixed
• each file has records of one particular type only

• different files are used for different relations
• This case is easiest to implement will consider
  variable length records later.

123
Fixed-Length Records

• Simple approach
• Store record i starting from byte n ? (i 1),
  where n is the size of each record.
• Record access is simple but records may cross
  blocks
• Modification do not allow records to cross block
  boundaries
• Deletion of record I alternatives
• move records i 1, . . ., n to i, . . . , n 1
• move record n to i
• do not move records, but link all free records
  on afree list

124
Variable-Length Records Slotted Page Structure

• Slotted page header contains
• number of record entries
• end of free space in the block
• location and size of each record
• Records can be moved around within a page to keep
  them contiguous with no empty space between them
  entry in the header must be updated.
• Pointers should not point directly to record
  instead they should point to the entry for the
  record in header.

125
Organization of Records in Files

• Heap a record can be placed anywhere in the
  file where there is space
• Sequential store records in sequential order,
  based on the value of the search key of each
  record
• Hashing a hash function computed on some
  attribute of each record the result specifies in
  which block of the file the record should be
  placed
• Records of each relation may be stored in a
  separate file. In a clustering file organization
  records of several different relations can be
  stored in the same file
• Motivation store related records on the same
  block to minimize I/O

126
Sequential File Organization

• Suitable for applications that require sequential
  processing of the entire file
• The records in the file are ordered by a
  search-key

127
Clustering File Organization

• Simple file structure stores each relation in a
  separate file
• Can instead store several relations in one file
  using a clustering file organization
• E.g., clustering organization of customer and
  depositor
• l scan using a secondary index is expensive
• each record access may fetch a new block from
  disk
• an entry was deleted from their parent)
• Root node then had only one child, and was
  deleted and its child became the new root node
