Title: SOARS

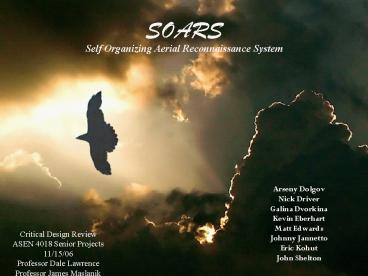

1
SOARS
Self Organizing Aerial Reconnaissance System
  • Arseny Dolgov
  • Nick Driver
  • Galina Dvorkina
  • Kevin Eberhart
  • Matt Edwards
  • Johnny Jannetto
  • Eric Kohut
  • John Shelton

Critical Design Review ASEN 4018 Senior
Projects 11/15/06 Professor Dale
Lawrence Professor James Maslanik
1
2
Presentation Outline
  • Overview and Objectives
  • System Architecture
  • Critical Test Results
  • Design Elements
  • Electrical Design
  • Software Design
  • Integration and Verification
  • Project Plan Management
  • Appendix

2
3
Project Overview
  • Objective Design, build and test an autonomous
    aerial system (UAS) capable of imaging multiple
    targets within a 1km circle as quickly as
    possible with 99 probability of object detection
    (according to Johnson criteria).
  • AFRL COUNTER Project
  • Optimal imaging altitude lt100m for a small aerial
    vehicle
  • Minimize risk to larger master vehicle

Master
GPS Coordinates, Heading
Ground Station
1. AFRL COUNTER Project. Used with permission.
3
4
Test Scenario
4
5
Requirements Overview
  • Image at least 3 targets, satisfy Johnson
    Criteria
  • Time lt8 minutes
  • Flying distance gt4 km
  • Slave UAV gt1km radius of operation in relation to
    stationary (assumed) Master vehicle
  • Targets given by GPS location and heading from
    ground station
  • Slave UAV
  • Max weight 1.5kg
  • Maximum width for below-wing mounting 120 cm
  • New critical requirement Image lag lt 2 seconds
    from slave to ground-station
  • Motivation Operator must react quickly if a
    threat is detected
  • Camera image retrieval takes at least 1 second

5
6
Deliverables
Future COUNTER Mission
Target System
  • Selection of slave vehicle
  • GS to Master to Slave RF link
  • Image reception
  • Target specification
  • Demonstrate lt2 sec image delay
  • Slave telemetry (GPS position, altitude,
    heading, speed)
  • 3 Images taken with correct position, attitude
    (Johnson criteria)
  • Autonomous navigation
  • Deployment feasibility

6
7
Requirements Summary
8
System Architecture Slave
  • Slave requires custom interface and power board
    to house camera and send data to CU Autopilot.
  • Custom autopilot and controls software will be
    developed to meet target imaging requirements.

Design and Fabricate PCB (Printed Circuit Board)
9
System Architecture Master
  • Master houses two COTS radios
  • 1 long-range point-to-point (for communication
    with ground-station)
  • 1 short-range multipoint (for communicating with
    multiple networked slaves)
  • CU autopilot provides data for verification,
    maintains master UAV loiter
  • Custom microcontroller software handles command
    dispatch and data/telemetry

Design and Fabricate PCB
10
System Architecture Ground Station
  • Ground station houses 1 long-range radio for
    sending commands to master
  • Laptop uses software to interface directly to
    radio no need for MCU.
  • MATLAB interfaces with/controls Aerocomm
    development board via serial link
  • MATLAB GUI allows user to enter target location,
    issue commands
  • Image and telemetry display

Target GPS XYZ Heading ?
11
Slave Component Layout
GPS Antenna
Rate Gyro
ZigBee Radio
RC Receiver
Ducted Fan
2.4GHz RF Antenna
ESC
Camera Mount Under Wing
LiPo Battery Pack
Elevon Control Surfaces
Custom Canopy
Winglet Stabilizers
12
Complete System Assembly
Comm Board Battery Pack
SIG Rascal 110 ARF
Slave Vehicle
Mounting Pylon
13
Expected Performance
  • Autopilot
  • Imaging
  • Communications
  • Propulsion Power

14
Autopilot Performance
  • Vector field guides slave UAV to arbitrary target
    and heading
  • Total distance traveled for three targets 7 km
  • Minimum speed for mission length lt8 min 33 mph

14
15
Trajectory Control
15
16
Imaging Performance
  • Quick Imaging Geometry Facts
  • Max Imaging Range 80 m
  • (actual 65 m)
  • Camera can see 19,000 m2
  • Airplane is in imaging window
  • for 2.7 s

Tangential Velocity Required lt60 m/s Actual 15
m/s
Cruise velocity 17 m/s
Pitch Rate Required lt0.4 rad/s Actual 0.2 rad/s
Depression Angle 45 deg
Radial Velocity Required lt80 m/s Actual 8 m/s
Imaging Altitude 45 m
Ground distance to target 45 m
17
Communications Performance
  • Communications subsystem must ensure lt2 seconds
    image propagation delay
  • Camera outputs 16kbyte JPEG images
  • Slowest link in system must be gt115kbps
  • Current system limited by image retrieval speed
    from camera
  • 115kbps bottleneck in camera interface
  • No other camera available with built-in JPEG
    compression
  • Most cameras output RAW format in 8-bit parallel,
    image size too big (gt400kbytes)
  • Communications system has large margin (250kbps
    minimum data rate) to leave room for protocol
    overhead, errors and dropped packets

Actual Path Delay 1.4 s
18
Critical Pre-CDR Test Results
19
Critical Testing Camera Jitter
  • Image blur/distortion due to engine jitter and
    vibrations is unpredictable and must be tested
  • High-frequency (kHz range) vibrations cause CCD
    to move while rows of pixels are read resulting
    image gets shifted between row reads
  • Engine must be stopped during imaging

Blur Shutter too slow
Engine OFF
Rolling Shutter Distortion
Engine ON, 80 Throttle
Engine ON, Camera Rotated 90
Fast Global Shutter
1 Electronic Shuttering for High-Speed CMOS. -
Dalsa Corp.
20
Critical Testing Camera Resolution
  • JPEG compression might cause loss of effective
    camera resolution must be verified
    experimentally
  • Resolution test pattern used to verify actual
    resolution
  • Test indicates no noticeable loss in camera
    resolution
  • Camera meets design-to specification of gt300 lines

Lines become indistinguishable at approximately
400 lines of resolution marker
21
Critical Testing Power System
  • Wingless ducted fan tested at 56mph
    (manufacturers optimal speed) in the wind tunnel
    to simulated actual load conditions
  • Measured battery discharge voltage and current
  • ElectriFly 3 Li-Polymer Cells
  • 11.1 Volts
  • 910 mAhr
  • Ran for 5.5 minutes

22
Electrical Design
23
Electrical Design Communications
  • Master to Ground Aerocomm AC1524 Modem
  • Master to Slave X-Bee PRO ZigBee Radio
  • Multiple selectable channels on each radio to
    prevent interference

Required 250 kbps Actual 800 kbps
Required 250 kbps Actual 250 kbps
Required 2 km Actual 3.2 km
Required 1 km Actual 1.6 km
24
Electrical Design Power
  • Slave UAV power requirements driven by propulsion
    system (avionics consume lt2 compared to motor)
  • Master UAV requirements driven by high-power RF
    transceivers

25
Electrical Design Power
  • Slave avionics must operate for gt8 minutes
  • Battery 3-Cell 1800mAh LiPo
  • Master avionics must operate for gt30 minutes
  • Battery 3-Cell 1000mAh LiPo
  • Master UAV power supply design-to
  • Input Voltage 7.5V-11.1V due to LiPo discharge
    variation
  • Outputs
  • 1A _at_ 5.0V for Long-Range transmitter
  • 500mA _at_ 3.3V for Short-Range Zig-Bee radio

26
Master UAV Comm Board Layout
  • Minimize trace length for high-frequency/data
    rate signals
  • Power supply decoupling close to MCU pins to
    minimize noise from RF
  • Bottom-layer ground plane to reduce noise

Long Range Radio Modem
PIC Microcontroller
Power Supplies
ZigBee short-range Radio
27
Electrical Design Slave UAV Daughter Board
  • Slave daughter board connects to main autopilot
    board
  • Provides camera connection and power (from main
    LiPo battery)
  • Provides SPI-to-Asynchronous bridge from MCU to
    Camera
  • Translates voltage signals between 5.0V and 3.3V

Camera Header
Level Shifter
Power Supply
SPI Header
Crystal
SPI Bridge Chip
28
Software Design
29
Software Design
  • Design-to
  • Slave
  • Control algorithm must ensure proper entry into
    imaging cone
  • Perform imaging within allowable window of
    opportunity
  • 250kbps image uplink rate
  • Update X,Y,Z, heading, velocity at 1Hz
  • Master
  • 250kbps data throughput
  • Manage at least 2 slaves
  • lt 2 seconds image data lag
  • Ground Station
  • Allow Lat/Long/Heading target designation
  • Image display
  • Telemetry display update at 1Hz

30
Software Slave
  • Software performs major function of
  • Hardware Configuration
  • Control Implementation
  • Imaging Control/Transmission
  • Telemetry Transmission
  • Servo and Peripheral communications handled via
    interrupt service routine
  • Major additions are ability to receive ground
    commands in flight and imaging system

31
Slave Imaging Software
  • Compressed image sent as packets (64-512 bytes)
  • Image will be taken with 6 byte configuration
    information
  • Location information (Lat, Long and Altitude)
    will be attached to image transmission

32
Slave Received Command Handling
  • The ID is one byte of data specifying what the
    MCU should do with the following data.
  • Two main options
  • Next Target
  • Emergency Mode
  • Manual Control
  • Turn off Engine

33
Software Design Master
  • Master vehicle acts as client to ground station
    and as server to slaves
  • Ground station initializes master service
    requests
  • Master initializes slave service requests
  • Get image
  • Get telemetry
  • Download targets
  • Chosen Network Topology
  • Ground to Master Point-to-Point
  • Master to Slave(s) Point-to-Multipoint

2.4Ghz Zig-Bee
2.4Ghz Radio Modem
34
Master Software Design
  • Interrupt-driven operation ensuresthat both
    radios are serviced bymaster vehicle
  • Master waits in idle most of the time
  • Ground issues data request
  • Interrupt occurs from serial data being received
  • Master accumulates packet
  • Performs decision
  • Issues commands and datarequests to slaves
  • Slave response causes interrupt
  • Cycle repeated

35
Software Data Transmission Model
  • Need to optimize packet size to meet lt 2 sec
    image delay requirement
  • Zig-Bee data frames have at least 120bits
    overhead

Packet too small Overhead Dominates
Packet too big Wasted Idle Time
Optimal Packet Size Delay Approaches 115kbps
limit
Total Image Delay Time
36
Software Packet Length Optimization
  • Transmission time does not meet requirement for
    very short or very long packets.
  • Optimal packet size 50bytes

Maximum Zig-Bee Packet Size
37
Software Ground Station
  • Ground station runs MATLAB GUI which controls LR
    radio
  • GUI allows user to enter target information,
    visualize slave telemetry and take pictures

38
Integration Testing
39
Systems Integration and Validation
  • Integration and Testing Progression
  • Level 1 Isolated Component Testing
  • Performance verification of individual components
  • Level 2 Subsystems Integration and Testing
  • Aircraft, Control System (slave vehicle),
    Imaging, Communications
  • Level 3 Systems Integration and Testing
  • Test systems functionality

Subsystems Integration Integrate isolated
components into relevant subsystems
Systems Integration Integrate individual
subsystems into complete system
Integrated System Validation Validate complete
integrated system performance
40
Level 1 Component Testing
  • Aircraft Communications
  • Slave avionics and propulsion test Autopilot
    (Zig-bee) transceiver test
  • Range and battery discharge verification Master
    communications link
  • Long period axial oscillation frequency Ground
    station communications link
  • Flight test (GPS speed/altitude verification)
    Verify GUI (display slave altitude,
  • Sig Rascal performance verification speed,
    current target image)
  • (GPS speed/altitude verification)
  • Autopilot Imaging
  • Particle vector field simulation High frequency
    motor vibration
  • Simulink vector field simulation with Stryker
    Camera resolution determination
  • Simulink vector field simulation with
    Miglet Rotational blur (spinning table)
  • Flight test Miglet (autonomous control) Camera
    data output rate
  • JPEG compression error

41
Level 2 Subsystems Testing
  • Aircraft Communications
  • Slave controllability Verify air-to-air
    air-to-ground comm.
  • - RC from ground Verify transceiver ranges
  • Master flight capability with slaves
    attached Quantify bit error in data transmission
  • Slave deployment from master (simulated)
    -Ground/master, master/slave
  • Determine transmission time between
  • ground and master, master and slave
  • Autopilot Imaging
  • Generate target vector field for GPS coord.
    Take image per autopilot instruction
  • sent from external comm. link Compress image
    to JPEG
  • Command elevon servos to execute flight path
    Pass image to slave transceiver
  • Instruct camera to take image
  • Receive images from camera, tag picture data
  • with telemetry and pass to comm. link

42
Level 3 Integrated System Validation
  • Flow Up Integrated System Testing
  • Ground/ Master
  • Ground station to master comm. link
  • Ground station sends GPS coordinate to master/
    master receives GPS coordinate
  • Master to ground station comm.
  • Master sends picture and telemetry data to ground
    station and
  • Master/Slave
  • Master sends GPS coordinate and is received by
    slave
  • Slave sends picture and telemetry data to master
  • Slave/Autopilot
  • GPS coordinate received by autopilot (Zigbee)
  • Autopilot generates flight path and target vector
    fields
  • Autopilot communicates with elevons and ESC to
    actively control slave to follow flight path
  • Autopilot/Camera

43
Level 4 System Requirements Verification
  • Aircraft
  • 3 targets imaged in under 8 minutes from
    acquisition of first GPS coordinate
  • 99 probability of detection (Johnson Criteria)
  • Communications
  • Image and telemetry data received by GUI within
    2 sec of time captured
  • Autopilot
  • 3 target locations navigated to and over flown
    with 99 probability of
  • detection (Johnson Criteria)
  • lt 15 degree heading error at time of imaging
  • lt /- 6 m deviation from intended altitude
  • lt /- 5 m/s derivation from intended flight speed
    at time of imaging
  • Imaging
  • Image 3 targets each with 99 probability of
    detection (Johnson Criteria)
  • Images have sufficient resolution that a human
    can discern 1 x 0.5 x 1.5m object

44
Systems Integration Flow Chart
Level 1 Component Testing Level 2
Subsystems Integration Level 3 Systems
Integration Level 4 System verification

Time
45
Project Plan Management
46
Project Management Overview
  • Organizational Chart
  • Work Breakdown Structure
  • Critical Path Elements
  • Budget Predictions/Expenditure

47
Organization
48
Work Breakdown Structure
49
Critical Path Elements
  • Defined as elements with highest unknown time
    requirement and risk which are heavily depended
    on elsewhere in the project.
  • Imaging Software/Interface
  • PCB Verification
  • Control Software/Algorithms
  • Communications Software

50
Budget Analysis
Category Name/Item Description Unit Price () Quantity Total Cost Purchased Amount ()
Controls Microcontroller Unit 20.00 3 60.00
  GPS (Units) 75.00 2 150.00
  Rate Gyros 50.00 3 150.00
  Radio Development 120.00 1 120.00
  Radios 35.00 2 70.00
  Receiver 60.00 3 180.00
  Autopilot 500.00 1 500.00
  PCB Manufacturing 100.00 3 300.00
Vehicles SIG Rascal 399.99 1 399.99
  Motor 40.00 1 40.00
  Slave Plane 150.00 3 450.00 3-Nov-06 99.99
  Glue 8.00 1 8.00 3-Nov-06 7.99
  6 Channel Radio 180.00 1 180.00 3-Nov-06 34.99
  Battery 60.00 3 180.00 3-Nov-06 39.99
  Battery Charger 100.00 1 100.00 3-Nov-06 36.48
  Electronic Speed Control 85.00 3 255.00
  Servo 15.00 10 150.00 3-Nov-06 159.99
  Servo Extension Wires 5.00 1 5.00 3-Nov-06 4.29
Power Slave Motor 40.00 3 120.00
  Speed Control 40.00 1 40.00
  Battery Charger 50.00 1 50.00
  Voltage Regulators 50.00 3 150.00
Communications Modules 199.95 2 399.90
Imaging Camera 50.00 3 150.00
  Evaluation Board 50.00 3 150.00 5-Nov-06 55.80
Sub-Total Sub-Total Sub-Total Sub-Total 4,357.89 Total Spent 439.52
TOTAL with 25 Margin TOTAL with 25 Margin TOTAL with 25 Margin TOTAL with 25 Margin 5,810.52  Total Left   5,480.48
  • Total Available
  • 5,900.00
  • Funding
  • Senior Project
  • Funds 4000
  • EEF 1900

51
Appendix
52
Electrical Design Communications
  • Network topology trades
  • Server-client point-to-point direction connection
    network
  • Suitable for high-data rate
  • Minimal protocol and handshaking overhead
  • Long ranges possible
  • Simple to design, robust
  • Minimal required CPU intervention
  • Server to multiple-client point-to-multipoint
    connection network
  • Suitable for medium data rates
  • Lots of protocol and handshaking overhead
  • Short-range
  • More difficult to design
  • Allows for more complex networks with multiple
    clients

RADIO MODEM
ZIG-BEE
53
Testing Plan
  • Testing and Verification Tree
  • Requirements Verification Breakdown
  • Order of Testing
  • Component Verification
  • Major System Test Procedures

53
54
Testing and Verification Tree
55
Master Vehicle Requirement Verification
56
Master Vehicle Requirement Verification
57
Ground Station Requirement Verification
58
Testing Progression
Component Level Testing
Miglet Initial Flight Testing
Sub System Level Testing
Autopilot Testing
Software And Interface Testing
System Level Testing
Communications System Test
59
Major Systems
  • Ground Station System Test
  • Goal To verify proper operation of the User
    Interface and display software
  • Master Vehicle System Test
  • Goal To verify proper operation of the Master
    Vehicles communications system and handshaking
    ability in conjunction with the Ground Station
  • Slave Vehicle System Test
  • Goal To verify proper operation of the Slave
    Vehicles integrated subsystems in conjunction
    with the Ground Station and the Master Vehicle
  • Communications System Test
  • Goal To verify proper operation of the
    communications system prior to integration with
    the SOARS system

60
Ground Station System Test
  • Procedure
  • Place master and slave within LOS of the ground
    station
  • Have ground station request image from slave
    through the master
  • Record time requested and time elapsed to ground
    station display
  • Verify location of the slave and master with
    handheld GPS receiver
  • Test Location Arvada Associated Modelers Club

Stationary
2 km
1 km
Stationary
61
Master Vehicle System Test
  • Procedure
  • Launch the master and place on station 2 km from
    the ground station and place the slave within LOS
    of the master
  • Have ground station request image from slave
    through the master
  • Record time elapsed to ground station display
  • Ensure flight endurance of 20 minutes

2 km
1 km
Stationary
62
Slave Vehicle System Test
  • Procedure
  • Launch master and slave and place on station at 2
    km and 1 km, respectively
  • Have slave conduct target run on field setup
  • Record time elapsed to ground station display
  • Ensure slave flight endurance of 10 minutes
  • Observe test images

Target
63
Communications System Test
  • Connect Test Procedure
  • Use internal testing option of communications
    system program
  • Plug both radios into two different USB ports on
    the same computer
  • Run test program for 10 minutes
  • Save file
  • Repeat test for varying time and test settings
    (continuous, break on error)
  • Range Test Procedure
  • Plug both radios into two different USB ports on
    two different computer
  • Place computers 2 km apart at test field and
    verify distance through a handheld GPS receiver
  • Run same settings as in previous test to ensure
    proper operation for communications system

64
Hardware Integration Flow Chart
  • Slave

3 Cell/ 910mAh LiPo Battery
6 Ch Futaba receiver
Autopilot
ESC
Throttle Servo
380 Brushed motor (Ducted Fan Unit)
Elevon Mixer
Elevon Servos
Imaging (camera)
Master
Futaba 6EXS Controller
Futaba 6 Ch. receiver
ESC
Throttle Servo
  • - Blue boxes denote isolated subsystem components
  • - Orange boxes denote primary integrated
    subsystems

Elevator/Aileron Servos
GUI (Laptop)
Ground Transceiver
Slave
65
Imaging Camera Choice
Study Results the C328-7640 Camera Module will
be our initial imager
66
Imaging Specific Requirements
  • We can now calculate maximum imaging range using
    Johnson Criteria (80 m)
  • Given this range, we can calculate maximum pitch,
    yaw, roll, and velocity and ensure our chosen
    airplane conforms to these requirements in its
    planned flight path
  • Max tangential velocity 60 m/s
  • Max radial velocity 80 m/s
  • Max pitch/yaw 0.2 rad/s
  • Max roll 2 rad/s

67
Imaging Fulfillment of Requirements
  • We will fly our airplane at a cruising speed of
    17 m/s (40 mph) directly over the target, imaging
    at just under max imaging range
  • Altitude 45 m (allows for error in altimeter)
  • Satisfies all blur requirements
  • Pitch Rate 0.1 rad/s (lt0.2 rad/s)
  • Yaw Rate 0 rad/s by definition of flight path
  • Roll Rate 0 rad/s by definition of flight path
  • Radial Velocity 8 m/s (lt80 m/s)
  • Tangential Velocity 15 m/s (lt60 m/s)
  • Imaging window time of 3 seconds

68
Power Ducted Fan Test
  • Measured Baseline Normal and Axial Forces in Wind
    Tunnel with Motor Off
  • Measured Forces With Motor On
  • Results Inconclusive
  • Reexamine Test Set Up

69
Power - Backup
  • Normal Force Plot

70
Power Motor Test
  • Measure Ducted Fan Forces and Motor Power
    Consumption
  • Speed 370 Brushed Motor
  • 0.8 W Resistance
  • 5.5 Minutes

71
Power - Conclusions
  • Need to Increase Battery Capacity
  • Current 910 mAh (stock) lasts 5.5 min
  • Need 1800 mAh for gt8 min
  • Found Pro Lite 11.1 V, 20C discharge battery

Battery Capacity Mass (g) Volume (mm)
ElictriFly GPMP0815 910 mAh 79 20 x 34 x 62
Pro Lite TP20003 2000 mAh 120 19 x 47.6 x 63.5
72
Electrical Design Master UAV Comm Board
73
Electrical Design Slave UAV Daughter Board
74
Project Risk
Software Failure
Cannot control aircraft to requirements
Failure of communications relay
Microcontroller cannot handle all operations
Battery endurance not to requirement
Unable to take picture in desired location
Payload Mass too High
LOW Medium High
Impact on System
75
Facility Requests
  • Wind Tunnel
  • Dynamic thrust test and battery power testing.
  • Table Mountain Radio Quiet Zone
  • Secured for flight testing of slave, master and
    ground system.
  • Aerospace Electronics Lab

76
Schedule Overview
  • Aircraft Selection and Stability
  • Power and Electrical
  • Imaging
  • Controls
  • Communications
  • Software/Electrical Hardware
  • Safety/Testing
  • Management
  • Presentations/Documentation

77
Schedule (Slide 1)
78
Schedule Software (Slide 2)
79
Schedule Integration and Testing
80
Schedule Project Management
81
Control System Requirements
  • Path Tracking
  • Altitude Control
  • Slave
  • Path tracking to allow imaging of target
  • Master
  • Circular loiter

82
Control System Selection
  • Using existing graduate student board
  • Modifying autopilot
  • Consists of developing new vector field
  • New model and controller to fit different
    aircraft

83
Design and Verification Process
  • Design of vector fields for trajectory tracking
  • Verifying vector field via particle simulation
  • Model aircraft dynamics and controller design
  • Verification of system via Simulink Model
  • Flight Test

84
Vector Field Design
  • Globally attractive
  • Field switched for individual targets

85
Master Vector Field
  • 300m Diameter Loiter Circle

86
Altitude Control
  • Throttle Control
  • Elevon Control
  • Combination

87
Camera Mounting
  • Camera module is embedded in the foam wing, far
    enough away from the fuselage to prevent blocking
    the FOV

PCB and CMOS sensor
Camera Lens
Pylon Attachment Point
88
Slave UAV Interconnect Diagram
Power
Data
Battery

-
16 gage high-current wire
4-Channel Bus
PWMBus
Autopilot
ESC
RC Receiver
Motor
Servos
Camera Power Interface Board
Asynchronous Serial Bus
Camera Module
89
Master UAV Interconnect Diagram
Power
2.4 GHz Antenna 1
2.4 GHz Antenna 2
Data
Comm Board
RF Coax
RF Coax
Battery

-
16 gage high-current wire
4-Channel Bus
PWMBus
Autopilot
ESC
RC Receiver
Motor
Servos
Write a Comment
User Comments (0)
About PowerShow.com
