Title: M-CORE%20Introduction


1

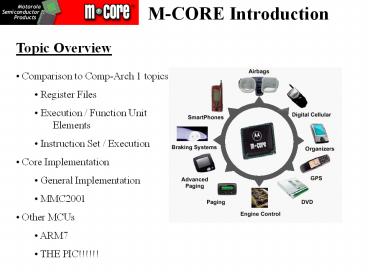

M-CORE Introduction
  • Topic Overview
  • Comparison to Comp-Arch 1 topics
  • Register Files
  • Execution / Function Unit Elements
  • Instruction Set / Execution
  • Core Implementation
  • General Implementation
  • MMC2001
  • Other MCUs
  • ARM7
  • THE PIC!!!!!!

2
Embedded Processors
  • Embedded vs. Desktop Processors
  • Advantages
  • Lower cost
  • Optimized Instruction Set
  • Lower Power consumption
  • Smaller footprint
  • Disadvantages
  • Slower clock speeds
  • Less Processing power
  • Applications
  • Embedded Processors
  • Cell phones / pagers / PDAs
  • DAQ
  • Controls (Automotive, Industrial)
  • Smart Media
  • Desktop Processors
  • Desktop computers
  • Notebook computers / Laptops

3
Overview
4
Register File
  • User Programming Model
  • 16 X 32 bit General Purpose Registers
  • 32 bit Program Counter (PC)
  • Carry Flag (C Bit)
  • Supervisor Programming Model
  • 16 X 32-bit alternate register file
  • Processor and Global status registers (PSR/GSR)
  • Vector base register (VBR)
  • Exception saved Special Function Registers
  • Five 32-bit supervisor scratch registers
    (SS0-SS4)
  • Global Control Register (GCR)

5
Register File - Continued
6
Execution Unit Elements
  • Hardware
  • 32 bit ALU
  • 32 bit Barrel Shifter
  • Support Hardware for Multiplication
  • Performance
  • All instructions executed in single cycle except
  • Multiply
  • Unsigned Divide
  • Signed Divide

7
Instruction Execution
  • 4 level pipeline
  • Instruction Fetch
  • Instruction Decode / Reg File Read
  • Execute
  • Reg File Write

8
Instruction Set Overview
  • Instruction Types
  • Data
  • Byte / Bit Manipulation
  • Logical
  • Shifts (Rotates)
  • Load and Store
  • Control
  • Conditional
  • Arithmetic
  • Special

Monadic Instruction Format
Dyadic Instruction Format
Examples ABS (Absolute Value Monadic) XOR
(Exclusive OR Dyadic)
9
Exception Processing
  • Exception Types
  • Reset
  • Misaligned access
  • Access error
  • Divide by zero
  • Illegal instruction
  • Privilege violation
  • Trace
  • Breakpoint
  • Unrecoverable error
  • Soft reset
  • Interrupt
  • Fast interrupt
  • Hardware accelerator
  • Trap instructions
  • Exception Handling
  • Save PSR and PC to shadow registers (FPSR / FPC
    for fast interrupts, EPSR / EPC for all others)
  • Determine Vector Number of Exception
  • Determine Address of the First Instruction of
    Exception and Pass Control to Handler, Load PC
    and PSR with new values

10
Special Features
  • Power Management
  • Power Saving Instructions WAIT, DOZE, and STOP
  • Compact die (2.2 mm2)
  • Minimized Logic and Routing Capacitance
  • Gated Clocks
  • Effective access to Internal and External Memory
  • Hardware Accelerator Interface (HAI)
  • Support for task acceleration by external
    hardware
  • Data is Transferred between core and accelerator
    block by appropriate interface
  • Acceleration blocks may be a counter, high speed
    multiply/accumulate or data encryption
  • Debug Interface
  • M-CORE Supports on chip emulation (OnCE) allowing
    a user to examine registers, memory or on-chip
    peripherals

11
Implementation
M-CORE More then just a CPU core MLB M-CORE
Local Bus PIG Peripheral Interface Gasket PIG
Bus Peripheral Bus MIG Module Interface
Gasket EIM External Interface Module PIE PIG,
Interrupt Control, EIM MIM M-CORE Integration
Module
12
ImplementationMMC2001
  • MMC2001 Includes
  • M-CORE 32 Bit Processor
  • 256 K-Byte ROM
  • 32 k-Byte SRAM with battery backup support
  • External Interface Module
  • 20 Address / 16 Data Lines
  • Timer/Reset Module
  • Time of Day timer
  • Watchdog Timer
  • Reset unit
  • 2 Independent UART Modules
  • 6 Independent PWM Modules
  • Serial Peripheral Interface (SPI) Bus
  • OnCE Debugger Module

13
M-CORE Key Advantages
  • High Code Density
  • 30 less memory than most 32 bit CPUs
  • Low Power
  • 1.8 to 3.6 V currently
  • 0.9 V near future
  • Several peripherals on chip
  • Easy interface form the core to
  • communication hardware
  • memory

14
M-CORE Disadvantages
  • Compared to other embedded processors, M-CORE
    really isnt all it is hyped up to be!
  • Motorola support is very poor
  • Difficult to navigate website
  • Poor documentation
  • Motorola development tools are non-existent (or
    hard to find) Very poor selection
  • MMC2001
  • MMC2107
  • Most features M-CORE prides itself on are
    Future developments

15
M-Core Compared - ARM
M-CORE ARM
Data Size 32 Bit 32 Bit
Speed 50 MIPS 130 MIPS
Size 2.2 mm2 .59 mm2
Power Consumption .41mW/MHz .25mW/MHz
Register File 16 GP Registers 16 GP Registers
16
M-Core Compared - PIC
M-CORE PIC
Number of Devices 2 Nearly 100
Speed 50 MIPS 10 MIPS Today 30 MIPS Future
Footprint 144 Pin QFP 8 Pin (DIP or SOIC) up to 80 Pin QFP
Comments Difficult to navigate documentation, Poor customer service Easy to navigate, Good customer service
17
M-Core Compared - PIC
M-CORE (MMC2107) PIC (PIC18F458) dsPIC (dsPIC30F6014)
Data Size 32 Bit 8 Bit 16 Bit
Speed 31 MIPS 10 MIPS 30 MIPS
ROM 128K X 8 16K X 16 144K
RAM 8K X 8 1.5K 256 EEPROM 8K 4k EEPROM
Peripherals 10 bit ADC WDT SPI/SCI 10 bit ADC WDT UART/SPI/CAN 2.0 10 bit ADC WDT UART/SPI/I2C/CAN/ AC97/I2S
Package 144 QFP 44 QFP 80 QFP
Clock input 0 33 MHz 0 40 MHZ 0 10 MHZ
Cost 30.00 10.00 Future Product
18
QUESTIONS?
19
References
http//www.motorola.com/SPS/MCORE/ http//www.digi
key.com http//www.arm.com/armtech/ARM7_Thumb?Open
Document http//www.microchip.com/1010/index.htm M
icrochip Technologies 4th Quarter 2001 Product
Line Card
