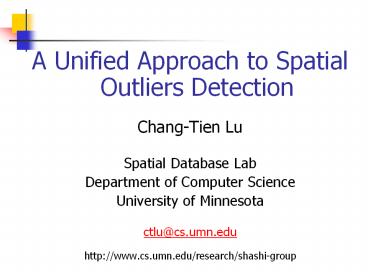

• A Unified Approach to Spatial Outliers Detection
• Chang-Tien Lu
• Spatial Database Lab
• Department of Computer Science
• University of Minnesota
• ctlu_at_cs.umn.edu
• http//www.cs.umn.edu/research/shashi-group

2
Outline

• Introduction
• Motivation
• General Definition of Spatial Outlier
• Related Work
• Proposed Approach and Algorithm
• Evaluation of Proposed Approach
• Conclusions

3
Spatial Data Mining

• Spatial Databases are too large to analyze
  manually
• NASA Earth Observation System (EOS)
• National Institute of Justice Crime mapping
• Census Bureau, Dept. of Commerce - Census Data
• Spatial Data Mining
• Discover frequent and interesting spatial
  patterns for post processing (knowledge
  discovery)
• Pattern examples outliers, crime hot spots,
  land-use classification
• Historical Example
• London, 1854
• Cholera water pump

4
Spatial Outlier

• Definition A data point that is extreme
  relative to its neighbors

5
Application Domain Traffic Data

6
An Example of Spatial Outlier

• Spatial outlier S, global outlier G,
  L

7
Spatial Outlier Detection Z s(x) approach
Function
If
Declare x as a spatial outlier
8
Evaluation of Statistical Assumption

• Distribution of traffic station attribute f(x)
  looks normal
• Distribution of
  looks normal too!

9
Outlier Detection Tests
10
Outlier Detection Tests

• Related work
• 1-dimension ignores geographic location
• Homogeneous multi-dimension mixes location with
  attributes
• Spatial outlier
• 2 classes of dimensions location, attribute
• Neighborhood based on location dimension
• Difference compares attribute dimension
• Comparison of outlier detection methods

11
Issues

• Numerous tests
• Each has custom algorithm
• Add complexity to implement Spatial Database
  Management System
• Desirable
• Unified test
• A general algorithm to perform different tests
• High performance

12
Our Contribution

• A general definition of spatial outlier
• S - outlier
• Show that existing definitions are special cases
  of
• s -outlier
• Design efficient algorithms
• Analyze the computation structures
• Develop I/O cost models
• Evaluate alternate disk page clustering methods

13
General Definition of Spatial Outlier

• Given
• A spatial framework SF consisting of locations
  s1, s2, , sn
• An attribute function f si ? R
• (R set of real numbers)
• A neighborhood relationship N ? SF ? SF
• A neighborhood aggregation function RN ?
  R
• A difference function Fdiff R ? R ? R
• Statistic test function ST R ? True, False
• Test is based on Fdiff (f, (f, N) )
• General definition S -outlier
• An object O ? SF is a S -outlier (f, ,
  Fdiff , ST )
• if ST TRUE

14
Related Work- Spatial Outlier Tests

• Different spatial outlier tests
• Spatial statistic approach
• Scatter plot approach (Luc Anselin 94)
• Moran Scatter plot approach (Luc Anselin 95)
• Variogram cloud approach (Graphic)
• All these are special cases of S -outlier
• Show this for one case scatter plot

15
Scatter Plot Approach

• Lemma
• Scatter plot is a special case
• of S -outlier
• Given
• An attribute function f(x)
• A neighborhood relationship N(x)
• An aggregation function
• A difference function
• Fdiff ? E(x) (m ? f(x) b)
• Detect spatial outlier by
• Statistic test function
• ST

E(x)
f(x)
16
Outline

• Introduction
• Proposed Approach and Algorithm
• Problem formulation
• Our approach
• Efficient algorithm
• Cost model
• Evaluation of Proposed Approach
• Conclusions

17
Problem Formulation

• General definition S -outlier
• An object O is a S -outlier (f, , Fdiff, ST
  )
• if ST TRUE
• Design
• An efficient algorithm to detect S -outlier
• i,e., O si? si ? SF , si is a spatial
  outlier
• Objective
• Efficiency to minimize the computation time
• Constraints
• Fdiff and ST are algebraic aggregate functions of
  values
• of f and
• The size of the data set gtgt the main memory size
• Computation time is determined by I/O time

18
Aggregate Function

• Distributive aggregate function F
• Global F value can computed by applying the G
  function to the value of F in each partition of
  the data set, F G for most cases
• Algebraic aggregate function F
• Global F value can be computed using a fixed
  number of sub-aggregates from each partition of
  the data set

19
Our Approach

• Separate two phases
• Model building
• Testing (a node or a set of nodes)
• Computation structure of model building
• Key insights
• Spatial self join using N(x) relationship
• Algebraic aggregate functions can be computed in
  one disk scan of spatial join
• Computation structure of testing
• Single node spatial range query
• Get-All-Neighbors(x) operation

20
An Example of Our Approach Scatter plot

• Model building
• An attribute function f(x)
• Neighborhood aggregate function
• Distributive aggregate functions
• Algebraic aggregate functions
• where
  ,
• Testing
• Difference function
• where
• Statistic test function

21
Model Building Algorithm

• Steps
• For each node x
• Retrieve data record of x (f(x), list of
  neighbors(x))
• Get-All-Neighbors(x) Retrieve data records of
  neighbor(x)
• If neighbor y is not in the memory buffer,
  request another I/O operation
• Compute neighborhood aggregate function
• Accumulate distributive aggregate function
• , ,..,
• Compute algebraic aggregate function
• , ,.. ,
• I/O cost
• Dominant operation Get-All-Neighbors(x)
• I/O cost of Get-All-Neighbors(x) is determined by
  the clustering efficiency

22
Attribute Table
Node x Attribute volume f(x) List of Neighbors N(x)
V1 125 V3, V5, V10
V2 130 V4, V6
V3 140 V1, V7
. . .
V10 120 V1, V7, V12
23
Computation structure

• Lemma
• In model building algebraic aggregate function
  can be computed in one disk scan of the spatial
  self-join
• Proof
• A fixed k number of distributive aggregate
  functions
• , ,.., are used to store the
  aggregate values
• Algebraic aggregate functions are then computed
  using these aggregate values
• In all cases, one needs a very small number of
  distributive aggregate functions (k ? 10)

24
Testing Algorithm

• Steps
• For each node x
• Retrieve data record of x (f(x), list of
  neighbors(x))
• Get-All-Neighbors(x) Retrieve data records of
  neighbor(x)
• If neighbor y is not in the memory buffer
• Request another I/O operation
• Compute difference function Fdiff
• If test function ST True
• Declare x as a spatial outlier

25
I/O Cost Model

• Definition
• CE Clustering efficiency
• N Total number of nodes
• Bfr Blocking factor (number of nodes in a disk
  page)
• K Avg. number of neighbors for each node
• L Number of nodes in a route
• Cost model of A1
• The cost to retrieve all nodes
• The cost to retrieve neighbors of all nodes
• Cost model of A2

26
Clustering Efficiency

• CE definition
• Probability vi and a neighbor of vi are stored
  in the same disk page
• (Total number of unsplit edges)/(Total number of
  edges)
• Computation cost (I/O cost) is determined by
  Clustering Efficiency (CE)

27
Clustering Efficiency

• An example
• CE depends on
• Disk page size
• Node record size,
• edge distribution
• over nodes
• Clustering method

28
I/O Cost Model

• Definition
• CE Clustering efficiency
• N Total number of nodes
• Bfr Blocking factor (number of nodes in a disk
  page)
• K Avg. number of neighbors for each node
• L Number of nodes in a route
• Cost model of Model Building
• The cost to retrieve all nodes
• The cost to retrieve neighbors of all nodes
• Cost model of Testing

29
Outline

• Introduction
• Proposed Approach and Algorithm
• Evaluation of Proposed Approach
• Candidates (Clustering Methods)
• Experiment Design
• Results
• conclusions

30
Experimental Evaluation (Summary)

• Hypothesis
• I/O cost of the algorithm is determined by the
  clustering efficiency
• Physical Data Page Clustering Method
• CCAM
• Cell Tree
• Z-order
• Benchmark data
• Minneapolis- St. Paul traffic data
  (loop-detector)
• Benchmark tasks
• Model building
• Testing
• Metrics Clustering efficiency(CE), I/O cost

31
Clustering Method CCAM

• Connectivity Clustered Access Method
• Cluster the nodes via min-cut graph partitioning
• Use B tree with Z-order as the secondary index

32
Clustering Method CCAM
33
Clustering Methods Cell Tree

• Binary Space Partitioning (BSP)
• Decompose universe into disjoint convex subspaces
• Cannot exploit edge information, pure geometric

34
Clustering Method Cell Tree
35
Clustering Method Z-order

• Impose a total order on the nodes
• Z-order interleave (bits of X, bits of Y)

36
Clustering Method Z-order
37
Experiment Design

• Questions/Hypotheses
• What is the ranking of candidate clustering
  methods?
• Is CE a predictor of relative performance of
  clustering methods?
• Does cost model predict observed ranking?
• What are the effects of parameters
• Disk page size
• Memory buffer size

38
Experiment Design
39
Model Building Effect of Page Size

• Fixed parameters buffer size
• Variable parameters page size, clustering
  strategy

Configuration

• CCAM has the best performance, the highest CE
  value
• High CE gt Low I/O cost
• Cost model (N/Bfr)NK(1-CE)
• Increase page size gt reduce number of page
  accesses

Trends
40
Model Building Effect of Buffer Size

• Fixed parameters
• Page size 2 Kbytes
• Clustering Efficiency
• CCAM0.81, Cell0.69,
• Z-ord0.51
• Variable parameters
• Number of buffers
• Clustering strategies
• Trends
• Increase buffer size
• gt reduce number of page accesses
• CCAM has the best performance

41
Testing Effect of Page Size

• Fixed parameters buffer size
• Variable parameters page size, clustering
  strategy

Configuration
Trends

• CCAM has the best performance, the highest CE
  value
• High CE gt Low I/O cost
• Cost model L(1-CE)LK(1-CE)
• Increase page size
• Reduce number of page access, performance gap
  reduces

42
Summary of Experimental Results

• Model building and testing
• CCAM achieves higher clustering efficiency
• CCAM has lower I/O than Cell-Tree and Z-order
• Higher CE leads to lower I/O cost
• CE is a good predictor of relative I/O
  performance
• Page size improves clustering efficiency of all
  methods
• Reduces performance gap between methods

43
Outlier Station Detected
44
MinneapolisSt. Paul Traffic Data

45
Outlier Station Detected
46
Conclusion

• A general definition of spatial outlier
• S -outlier models existing spatial outlier
  definitions
• Scatter plot, Moran Scatterplot, Spatial
  Statistic, ..
• Efficient algorithm to detect spatial outlier
• Model building Testing
• Recognize the computation structure of algorithms
• Algebraic aggregate functions on ? self join
• Get-All-Neighbor(x) dominates I/O cost
• Develop algebraic cost models
• Evaluate alternate disk page clustering methods
• CCAM, Cell-Tree, Z-order

47
Future Directions

• Extend Spatial Outlier Detection Test
• Multi-attributes
• Combination of traffic volume, speed, occupancy
• Location attribute includes time
• Temporal and Spatial-Temporal Outliers
• Explore other spatial patterns beyond spatial
  outlier
• Land-use classification
• Co-locations
• Fire ignition source feature
• Needle vegetation type feature
• Drought feature
• Iterative Spatial Outlier Detection

48
Application Domain Traffic Volume Matrix
49
Spatial Outlier Detection
50
Iterative Spatial Outlier Detection
51
Related Publications

• Detecting Graph-based Spatial Outliers
  Algorithms and Applications, ACM SIGKDD
  International Conference on Knowledge Discovery
  and Data Mining, September, 2001
• Detecting Graph-based Spatial Outliers, the
  International Journal of Intelligent Data
  Analysis (IDA), Vol. 6, No 3. 2002
• A Unified Approach to Spatial Outliers Detection,
  IEEE Transactions on Knowledge and Data
  Engineering. (under review)

52
http//www.cs.umn.edu/ctlu
Thank you !!!
