Thermal Relations Heat Flow Across Glaciers Boundaries

1
Thermal RelationsHeat Flow Across Glaciers
Boundaries
2

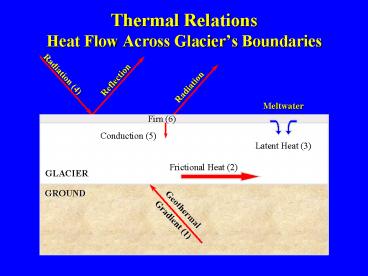

Thermal Relations Heat Flow Across Glaciers
Boundaries

• Footnotes for Diagram
• (1) varies considerably, depending upon
  geologic
• conditions
• (2) depends upon rate of flow
• (3) very important if surface is often above
  melting temp.
• (4) mostly reflected
• (5) from atmos., firn, snow
• (Note could be loss to atmos.)
• (6) incorporated in glacier
• (Note could be warmer or colder)

3
Thermal RelationsThermal Classification

• ICE
• Cold ice below its
• pressure-controlled melting point
• Warm ice above its pressure-controlled melting
  point (above
• 0oC ??)

• GLACIERS
• Polar cold ice
• Temperate warm ice (except near-surface ice in
  winter)
• However, both types can occur in the same glacier.

4
Thermal Relations Temperature Gradient Taku
Glacier
-17C
-10C
0C
Feb 8
Feb 28
June 4
July 15
65M
0C
5
Thermal Relations Temperature Grad. NW Greenland
-50C
-25C
-5C
Winter
Mid-Aug.
-25C
6
Thermal RelationsTemperature Gradient Antarctica
7
Glacial MovementStress and Strain

• External force acting on unconfined soilid sets
  up 3 types of internal stresses compressive,
• tensile, and shearing.
• Because of stress, changes occur in shape,
  volume, or both.

Shearing Stress
8
Glacial Movement Stress and Strain

• Consider forces acting on a cubic cm of ice at
  base of glacier. See Fig. 3-7B.
• The force is the weight, acting vertically
  downward
• W ?gb where ? density of ice (0.9
  gm/cm3) g acceleration due to gravityFig.
  3.7C (cm/sec2) b thickness of glacier

9
Glacial MovementStress and Strain (Fig. 3.7B)
10
Glacial MovementShearing Stress

• Now, the component of the weight acting parallel
  to the slope (Wt) is the shearing stress (?)
• ? ?gb sin?
• where ? surface slope
• ? ? increases with increase in b or ?.
• (? is usually 0.5 to 1.5 bars.)

11
Glacial Movement Glen Flow Law of Ice Creep

• Experiments in ice deformation have shown how ice
  behaves as it is deformed.
• It is not a Newtonian fluid.
• It is not a perfect elastic.
• It shows components of both of these, a style of
  deformation expressed as ice creep.

t 1.0 kg/cm2
Strain
t 0.1 kg/cm2 (elastic)
Time
12
Glacial MovementGlen Flow Law

• e A?nwhere
• e strain rate
• ? stress
• A a constant related to ice temperature
• n a constant with a mean value of approximately
  3

-0.02C
-6.7C
-12.8C
Strain
The strain rate is highly sensitive to shear
stress and less so to temperature.
Time
13
Glacial MovementGlen Flow Law (Fig. 3.7C)
Vs
Vi
Vb
14
Glacial MovementGlen Flow Law

• Rate of strain governs that component of velocity
  due to internal motion.
• The rate of strain decreases upward. Why?
• However, each cube of ice moves forward by an
  amount equal to the sum of all strain rates
  below
• Can be considered as a piggyback effect.
• Therefore, the velocity must increase upward.

15
Glacial MovementGlen Flow Law

• An equation for determining surface velocity -
  the glaciers maximum velocity Vs 1/32 (?g)3
  (sin?3) b4Rapid increase in V, with slight
  increase in b or ?.? must be steep near
  glaciers terminus because b is less.

16
Glacial MovementModels of Ice Creep

• Newtonian fluid has strain rate that is linear
  function of ?.
• Perfect plastic shows no deformation until
  critical (yield) stress then continuous
  deformation occurs.

17
Glacial Movement Factors Influencing Ice Creep
18
Glacial Movement Basal Slip

• Effectiveness depends primarily upon temperature
  of basal ice.
• What is the situation for Greenland? for
  Antarctica?
• How can we determine the amount of slip?

19
Glacial MovementBasal Slip
20
Glacier MovementBasal Slip - Processes
21
Glacier MovementBasal Slip

• Regelation

22
Glacial Movement

• Direction of Flow and Variations in
  Velocity Flow occurs to distribute
  accumulation. Longitudinal
  Section Plan View

Zone of Accumulation
Equilibrium Line
Equilibrium Line
Zone of Ablation
23
Glacial Movement

• Direction of Flow and Variations in Velocity
• Maximum velocities occur at the equilibrium line.
• Due to increase in ice Q through accum. zone.

Accumulation Zone
24
Glacial Movement Direction of Flow and
Variations in Velocity

• Transverse Sections Velocity decreases away
  Above EL from central axis.
• Below EL

0.12
0.08
0.04
0.02
V
25
Glacial Movement Compressive and Extending Flow

• Compressive flow where velocity decreases loss
  of ice thickness - ablation zone where bed is
  concave Thrust faulting
• Extending flow where velocity increases gain in
  ice thickness - zone of accumulation where bed
  is convex Normal faulting

26
Glacial MovementCompressive and Extending Flow
27
Glacial Movement Variations with Time

• 1) Random Variations Due to local causes
  weather conditions, release of obstructed ice,
  thrust faulting
• 2) Seasonal Variations
• 3) Kinematic Waves Set up by increases in
  accumulation. Pulses move down-glacier at 2 to 5
  times the rate of ice flow. Greatest effects
  are in ablation zone. Amplitudes of up to 100 m.

28
Glacial Movement Variations with Time

• 4) Surges Sudden, spectacular movements. Velocit
  y increase of 10 to 100 times normal. No new ice
  added. Response to intrinsic threshold. Often
  periodic. Explanations Ice-damming Behind
  stagnant ice. Thickness increases. Stress
  increases release occurs. Re-establishment of
  equilibrium profile.

29
Glacial Movement Variations with Time

• Hydraulic lifting
• Water buildup along base. Pore pressure
  increases. Friction reduced until threshold
  crossed. Surge takes place.
