Title: The XENON Project


1

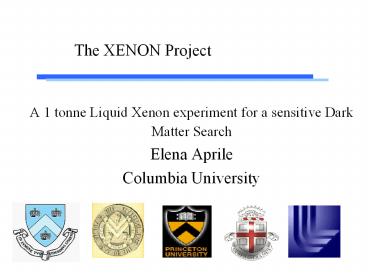

The XENON Project
  • A 1 tonne Liquid Xenon experiment for a sensitive
    Dark Matter Search
  • Elena Aprile
  • Columbia University

2
The XENON Collaboration
  • Columbia University E. Aprile (Principal
    Investigator)
  • T. Baltz, A. Curioni (graduate student), K-L.
    Giboni, C. Hailey, L. Hui,
  • M. Kobayashi and K. Ni (graduate student)
  • Brown University R. Gaitskell
  • Princeton University T.Shutt
  • Rice University U. Oberlack
  • LLNL W. Craig

3
Current and Projected Limits of WIMP Searches
  • Projection for CDMS Soudan (7kg GeSi) is 1
    event / kg / yr. Similar limits projected for
    competing experiments in Europe.
  • It will take a substantial increase in target
    mass and superior background discrimination power
    to reach a sensitivity of 1 event / 100kg / yr.
  • For a Xe target with lt10 keV recoil energy
    threshold this rate corresponds to a WIMP-nucleon
    s of 10-46 cm2
  • A 1 tonne XENON experiment approaches this
    sensitivity, assuming 3.9x 10-5 cts /kg /d /keV
    background rate, 99.5 discrimination and 10
  • keV recoil energy threshold .

4
Liquid Xenon for a Dark Matter Detector
  • Many favorable properties, from high Z (54) and
    density (3g/cc) for a compact instrument of
    flexible design, to high ionization (60,000 e/
    MeV) and scintillation yields if highly
    purified, to only stable isotopes ...etc but a
    low energy threshold is essential for a sensitive
    WIMP detector.

Expected rates of WIMP interactions in Xe and
other targets as a function of recoil energy
threshold for a 100 GeV WIMP with a s 10-9 pb
(from R. Schnee).
5
Ionization and Scintillation in Liquid Xenon
I/S (electron) gtgt I/S (non relativistic particle)
6
The XENON Experiment Design Overview
  • The XENON design is modular.
  • An array of 10 independent 3D position
    sensitive LXeTPC modules, each with a 100 kg
    active Xe mass, is used to make the 1-tonne
    scale experiment.
  • The TPC fiducial LXe volume is self-shielded by
    a few cm thick layer of additional LXe. The
    active scintillator shield is very effective for
    charged and neutral background rejection.
  • One common vessel of 60 cm diameter and 60 cm
    height is used to house the TPC teflon and copper
    rings structure filled with the 100 kg Xe target
    and the 50 kg Xe for shielding.

7
The XENON TPC Principle of Operation
  • 30 cm drift gap to maximize active target ? long
    electron lifetime in LXe demonstrated
  • 5 kV/cm drift field to detect small charge from
    nuclear recoils ? internal HV multiplier
    (Cockroft Walton type)
  • Electrons extraction into gas phase to detect
    charge via proportional scintillation (1000 UV
    g/e/cm)? demonstrated
  • Internal CsI photocathode with QE31 (Aprile et
    al. NIMA 338,1994) to enhance direct light
    signal and thus lower threshold ? demonstrated
  • PMTs readout inside the TPC for direct and
    secondary light ? need PMTs with low activity
    from U/Th/K


8
The XENON TPC Signals Nuclear Recoil
Discrimination
  • Redundant information from charge (secondaryl
    light) signal (S2) and primary scintillation
    light (S1) signal from PMTs and CsI photocathode
  • Background (g,e,a) produce electron recoils with
    S2/S1 gtgt0
  • WIMPs (and neutrons) produce nuclear recoils with
    S2/S10
  • Depth of interaction Z from timing and XY from
    c.o.g of PMT signals.
  • 3D event localization for effective background
    rejection via fiducial volume cuts

9
The Columbia LXeTPC for Gamma-Ray Astrophysics
30 kg active Xe mass 20 x 20 cm2 active area 8
cm drift gap with 4 kV/cm Charge and Light
readout for calorimetry and 3D imaging 1st
LXeTPC demonstration in near space
10
Compton Imaging of MeV g-ray Sources with a LXeTPC
11
Background Considerations for XENON
  • ? and ? induced background
  • 85Kr (?1/210.7y) 85Kr/Kr ? 2 x 10-11 in air
    giving 1Bq/m3
  • Standard Xe gas contains 10ppm of Kr??10 Hz
    from 85Kr decays in 1 liter of LXe.
  • Allowing lt1 85Kr decay/day i n XENON energy
    band ? lt1 ppb level of Kr in Xe
  • 136Xe 2??? decay (?1/28 x 1021y) with Q 2.48
    MeV expected rate in
  • XENON is 1 x 10-6 cts/kg/d/keV before any
    rejection
  • Neutron induced background
  • Muon induced neutrons spallation of 136Xe and
    134Xe ? take 10 mb and Homestake 4.4 kmwe?
    estimate 6 x 10-5 cts/kg/d before any rejection
  • ? reduce by muon veto with 99 efficiency
  • (?,n) neutrons from rock ?1000/n/m2/d from (?,n)
    reactions from U/Th of rock
  • ? appropriate shield reduces this background to
    ?1 x 10-6 cts/kg/d/keV
  • Neutrons from U/Th of detector materials within
    shield, neutrons from U/Th of
  • detector components and vessel give?? 5 x 10-5
    cts/kg/d/keV
  • ? lower it by x10 with materials selection

12
Background Considerations for XENON
  • ? -rays from U/Th/K contamination in PMTs and
    detector components dominate the background rate.
    For the PMTs contribution we have assumed a low
    activity version of the Hamamatsu R6041 ( ? 100
    cts/d ) consistent with recent measurements in
    Japan with a Hamamatsu R7281Q developed for the
    XMASS group (Moriyama et al., Xenon01 Workshop).

Numbers are based on Homestake location and
reflect 99.5 background rejection but no
reduction due to 3D imaging and active LXe
shield.
13
Charge readout with GEMs a promising alternative
  • High gain in pure Xe with 3GEMs demonstrated
  • Coating of GEMs with CsI
  • 2D readout for mm resolution

See Bondar et al.,Vienna01
14
Proposed Strategy for XENON
  • 10 kg prototype with all design parameters of
    100 kg module.
  • Demonstrate electron drift over 30 cm and
    charge/light readout under high field operation.
    Test with electron/nuclear recoils.
  • Study Kr removal techniques (distillation,
    cryopumping).
  • Develop and test low activity PMTs (Hamamatsu
    metal channel and/or Burle MCP based).
  • Test multi GEMs charge readout in LXe.
  • Studies of low activity detector materials.
  • Finalize the design of a 100 kg LXeTPC after
    2yrs of RD.
  • Construction phase of 1st XENON module starts in
    3rd year.
  • Enlarge collaboration and start underground
    operation by 2005.

15
Summary
  • Liquid Xenon is an excellent detector material
    well suited for the large target mass required
    for a sensitive Dark Matter experiment.
  • The XENON experiment is proposed as an array of
    ten independent, self shielded, 3D position
    sensitive LXeTPCs each with 100 kg active mass.
  • The detector design, largely based on established
    technology and gt10 yrs experience with LXe
    detectors development at Columbia, maximizes the
    fiducial volume and the signal information useful
    to distinguish the rare WIMP events from the
    large background.
  • With a total mass of 1-tonne, a nuclear recoil
    discrimination gt 99.5 and
  • a threshold of 10 keV, the projected
    sensitivity for XENON is ? 0.0001 events/kg/day
    in 3 yrs operation, covering most SUSY
    predictions.
