Ontology-based Knowledge Management in the Steel Industry

1

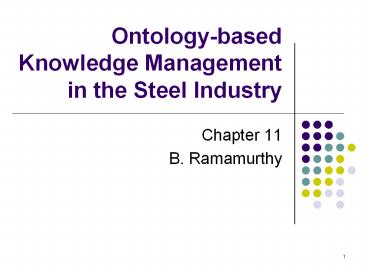

Ontology-based Knowledge Management in the Steel
Industry

• Chapter 11
• B. Ramamurthy

2
Introduction

• An important aspect for businesses is knowledge
  and intelligence generation and management.
• Right knowledge and intelligence is important for
  right and timely decisions.
• We will discuss the approach used by steel
  industry to address knowledge and intelligence
  management.

3
Steel Industry Context

• Arcelor Mittal worlds number one steel company
• 330,000 employees
• 60 countries
• Geographical diversity Industrial activities in
  27 countries across Europe, Americas, Asia and
  Africa.
• Arcelor Research Knowledge Innovation (KiN)
  Center aims to classify, model and put into
  service the knowledge of this group.
• Knowledge-intensive tasks steer business
  processes (how?)
• Business processes are realized using services
  (WS) in the implementation (how?)

4
Critical Business areas

• Business optimizations supply chain, sales,
  purchasing, marketing
• Customer solutions based on knowledge (ex
  American relationship with Cuba has been
  improving steer business to pay attention to
  customer needs in this region).
• Industrial process support Factory-wide, line
  piloting, process models
• Cross-cutting service assistance (transversal
  service assistance) (ex services spanning
  multiple domains)

5
Solution basis

• Data mining
• Knowledge-based systems
• Simulations of optimization techniques
• Semantic web
• ArcelorMittal collaborates with CTIC Foundation
  (Center for the Development of Information and
  Communication Technologies) for semantic web
  related activities.
• Together they provide steel industry standard for
  W3C semantic web activity

6
Motivation and Use Cases

• Knowledge capitalization tools
• Unified data description layer
• Supply chain management raw materials to
  finished products
• Ontologies are not new used for knowledge
  representation
• Ontologies will be used here to integrate?

7
Ontologies for integration

• Structural clarity hierarchical structure vs.
  RDBMS
• Human understanding
• Maintainability
• Reasonability infer new knowledge
• Flexibility
• Interoperability (OWL suite)
• In summary, ontology is a powerful tool for
  knowledge management, information retrieval and
  extraction, and information exchange in
  agent-based as well as in interactive systems.

8
Knowledge Capitalization

• Group of applications devoted to manage content,
  documents, and information, structured so that
  users can access knowledge, add and modify them.
• Content management systems, document management
  systems, wikis, dynamic web portals, search
  engines, etc.
• What is required?
• Ontologies and tools to exploit them
• tools semantic search, human resources
  networking and management

9
Knowledge capitalization human resources and
networking

• Human resources in multinational company
• Departments need to exchange professional
  information contacts, employee profiles, etc.
• Typically reside in departments hard drive
• HRMS Human Resource Management System to
  describe people, job requirements
  qualifications.
• Extensive Ontologies and taxonomies are
  available
• Hierarchy
• E-recruitment
• Experts Assignment

10
Unified data description layer

• Huge company built from many smaller companies
  incrementally
• All kinds of software widely varying levels of
  usages
• XML has emerged as a syntactical solution for
  inter-application data communication

11
XML can dos and not

• Promotes reuse (XML parsers)
• XML instances can be checked for syntactical
  correctness against grammar (XML Schema)
• Can be queried (XQuery, XPath)
• Can be transformed (XSL)
• Can be wrapped using commodity protocols (web
  services)
• However they convey only structure they are
  meaningless (no semantics)
• Ontologies have the potential to fix this
  situation by providing precise machine-readable
  semantic descriptions of the data.

12
Adding Semantics to content

• How to do it?
• Managing legacy DB
• Choice 1 transform into relational db to
  ontology collections (R2O) v
• Choice 2 Wrap relational databases with semantic
  interfaces
• Steel producers use models and simulation tools
  to predict or control impact of various events
  semantics can help in re-use of many existing
  models across departments, countries and
  organizations.
• Distributed searches can index multiple
  repositories, esp. in multilingual environments

13
Supply Chain Management (SCM)

• Supply chain is a coordinated system of
  organizations, people, processes, and resources
  involved in moving a product or service from
  suppliers to customers.
• In AM (ArcelorMittal) is indeed quite complex
• Independent business units
• Mitigate delays in production process
• Variances in production times and product quality
• Managing orders and sub-orders
• Heterogeneous processes
• Supply chain modeling and simulation
• Highly dynamic
• Most data reside in heterogeneous systems
• Islands of automation
• Need to form a global model

14
SCM Solution at AM

• Ontology engineering to support supply chain
  modeling
• Identify data and knowledge required for specific
  model
• Develop mechanisms to extract the above
  information
• Populate Ontologies with required knowledge
• Build simulation models and implant a generic
  procedure to fill the necessary input values

15
A Business process Abstraction

• AM will use Supply Chain Operation Reference
  (SCOR) model developed by supply chain council.
• Ontology will be developed based on SCOR.
• SCOR is structured around five processes Plan,
  Source, Make, Deliver and Return
• All these can be semantic (composite) web
  services in the model
• Processes are decomposable

16
Ontology for Business processes

• Ontology will address categories of the supply
  knowledge
• Process process cost, process quality
• Resource capacity of resource
• Inventory control policy
• Order demand or order quantity, due dates
• Planning forecast methods, order schedule
• Develop supply chain ontology help simulations
  and future system designs.

17
Modeled Factory and Metallurgical Routes

• Application of ontology design and semantic web.
• A metallurgical route involves set of processes
  (realized using web services) from order to
  production.
• How can it help? What was the situation before
  introduction of semantics?
• Lack of modularity
• Lack of standards
• Lack of integration between business models and
  production rules
• Solution formal description of the concepts that
  occur in metallurgical routes.
• All concepts are formalized as ontology classes.
• These concepts or blueprints have to be agreed
  upon by different plants.
• This framework represents a common understanding
  of the products and production lines.

18
Semantic Metallurgical route HotRollingMill

• Maximum/minimum entrance width
• Maximum/minimum exit width
• Productivity
• Thickness reduction capacity
• Input material is of type Slab
• Output material is of type HotRoll
• Adding semantic enabled each facility to add
  values to a semantic instance of the concept.
• Web services could query the facilities before
  processing orders (p.255) that is HotRollingMill
  will be available via a web service to the
  applications that need its information details.
• Ontology is centrally developed, and instances
  are kept at decentralized locations and served by
  WS.
• More intelligence is embedded in WS through
  addition of semantic to data results in less
  number of rules.
• Here is an example of services-enabled enterprise
  (AM).

19
AM, The Ultimate Service-enabled Enterprise

• Semantic search Ontologies, metadata, thesauri
  and taxonomies (ARIADNE project)
• H.R. and networking Ontologies, international
  classifications and rules
• Unified data description layer Ontologies and
  data mediation
• Expert knowledge and industry process modeling
  Ontologies and rules
• Supply chain management Ontologies, SCOR model,
  semantic web services, rules
• Modeled factory Ontologies and rules
  (metallurgical routes, Visonto)

20
Practical Experiences

• Ontologies are powerful mechanisms to capture
  knowledge.
• Knowledge is key factor in productivity.
• Sharing knowledge among employees perform similar
  tasks
• Overall productivity can be improved by transfer
  of knowledge from experienced employees to
  inexperienced ones.
• This is needed for spanning the gap in
  multilingual world, to improve understanding and
  productivity and to avoid industrial accidents
  and to provide best practices.

21
Expert Knowledge and Industrial Process Modeling

• Metal working and factory modeling how to manage
  bottlenecks, solve inventory, and work in
  progress problems like line stoppages, and
  material defects, optimize production rates,
  determine plant capacity etc.
• Solution build a shared ontological abstraction
  of metallurgical concepts and to use it as an
  interoperable framework in production lines and
  product life cycle management.
• An ontology that focuses on process, equipments,
  problematic and best practices of continuous
  annealing line has been built.
• Different models are developed at different
  production lines which share many concepts there
  is need for reuse and interoperability.
• Solution ontology based services-enabled
  framework

22
Generic Production Line (p.2527-258)
Process
Performs/ Performed by
Is composed of/ is component of
Equipment
Tool
Line
Supplies/ Supplied by
Products
23
Enhancing Ontology Reuse and Interoperability

• Ontology language (OWL-Full, OWL-DL, OWL-Lite)
• OWL-DL (Description Language) was chosen for its
  expressiveness and for its support of
  computational completeness and decidability.
• Common semantics need to share same vocabulary
  and points of view.
• Meta-modeling multi-layering of concepts
  highest level described more general concepts and
  the lowest specific for each line intermediate
  layers describe common processes and equipment
  and tools.

24
Ontology Meta-model
High-level ontology (meta-model)
Component Library
Component Library
Common/shared
Line specifics
Line Model
Line Model
Line Model
Line Model
25
Usage of Ontologies

• Used for streamlining industrial equipment to
  perform steel fabrication
• Also help staff to maintain devices, control of
  processes, test product quality and other
  operations involving human intervention.
• RDF model allows information (from experts) as
  web resources.
• OWL has a annotation feature to add metadata
  information to any resource of an ontology.
• Ex rdfs comment, rdfs seeAlso
• Also applying a social network enhances the
  utility of the factory ontology.
• Experts share the same model of the whole process
  and they can interchange information and
  documents by means of the ontology.

26
Visonto A tool for ontology visualization

• Ontology authoring protégé?
• No, they developed their own in collaboration
  with CTIC foundation.
• Can be customized within the ontology.
• View tree view heavily linked to web pages for
  knowledge dissemination
• Multilinguism is a key feature
  language-agnostic for domain knowledge with
  annotation in multiple languages, other subtle
  details such as units of measurement, monitory
  units and dates/time etc.
• Simple string-search based search query-based
  search based on SPRQL.
• Query by example interface a good choice
• Filter of information through points of view and
  other filters.

27
Visonto Architecture

• Visonto is a web application, without any
  substantial software installed by the client.
• Knowledge sharing and collaborative environment.
  A common pool of Ontologies and comments.
• Long term plan involves adding reasoners,
  semantic web services.

28
Visonto Architecture
Application services
JSF Web Interface
Syntactic search
Ontology Repository
Ontologies
Semantic Queries
Ontology access
Data base
Business Objects
Comment persistence
View engine
Favorite persistence
29
ARIADNE Enrichment of syntactic search

• Another internal project
• Verity/autonomy K2 product
• Indexing spider gathers and builds repositories
  of all internal documents
• J2EE web user interface was built on top of the
  search engine API.
• Result is a powerful capitalization of company
  information.
• Web interface in Java and Jena framework.
• Search comparison in multiple languages.

30
Open Issues

• Development of large ontologies
• Semantic web services
• Combining ontologies and rules
• Development of more tools for leveraging
  knowledge base
