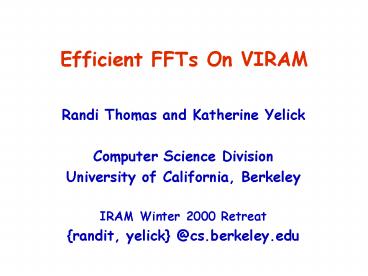

Efficient FFTs On VIRAM

1
Efficient FFTs On VIRAM

• Randi Thomas and Katherine Yelick
• Computer Science Division
• University of California, Berkeley
• IRAM Winter 2000 Retreat
• randit, yelick _at_cs.berkeley.edu

2
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

3
What is the FFT?

• The Fast Fourier Transform
• converts
• a time-domain function
• into
• a frequency spectrum

4
Why Study The FFT?

• 1D Fast Fourier Transforms (FFTs) are
• Critical for many signal processing problems
• Used widely for filtering in Multimedia
  Applications
• Image Processing
• Speech Recognition
• Audio video
• Graphics
• Important in many Scientific Applications
• The building block for 2D/3D FFTs
• All of these are VIRAM target applications!

5
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

6
VIRAM Implementation Assumptions

• System on the chip
• Scalar processor 200 MHz vanilla MIPS core
• Embedded DRAM 32MB, 16 Banks, no subbanks
• Memory Crossbar 25.6 GB/s

• Vector processor 200 MHz
• I/O 4 x 100 MB/sec

7
VIRAM Implementation Assumptions

• Vector Processor has four 64-bit pipelineslanes
• Each lane has
• 2 integer functional units
• 1 floating point functional unit
• All functional units have a 1 cycle multiply-add
  operation
• Each lane can be subdivided into
• two 32-bit virtual lanes
• four 16-bit virtual lanes

8
Peak Performance

• Peak Performance of This VIRAM Implementation
• Implemented
• A 32 bit Floating point version (8 lanes, 8 FUs)
• A 16 bit Fixed point version (16 lanes, 32 FUs)

9
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

10
Computing the DFT (Discrete FT)

• Given the N-element vector x, its 1D DFT is
  another N-element vector y, given by formula
• where the jkth root of
  unity
• N is referred to as the number of points
• The FFT (Fast FT)
• Uses algebraic Identities to compute DFT in
  O(NlogN) steps
• The computation is organized into log2N stages
• for the radix 2 FFT

11
Computing A Complex FFT

• Basic computation for a radix 2 FFT
• The basic computation on VIRAM for Floating Point
  data points
• 2 multiply-adds 2 multiplies 4 adds
• 8 operations
• 2 GFLOP/s is the VIRAM Peak Performance for this
  mix of instructions

• Xi are the data points
• w is a root of unity

12
Vector Terminology

• The Maximum Vector Length (MVL)
• The maximum of elements 1 vector register can
  hold
• Set automatically by the architecture
• Based on the data width the algorithm is using
• 64-bit data, MVL 32 elements/vector register
• 32-bit data, MVL 64 elements/vector register
• 16-bit data, MVL 128 elements/vector register
• The Vector Length (VL)
• The total number of elements to be computed
• Set by the algorithm the inner for-loop

13
One More (FFT) Term!

• A butterfly group (BG)
• A set of elements that can be computed upon in 1
  FFT stage using
• The same basic computation
• AND
• The same root of unity
• The number of elements in a stages BG determines
  the Vector Length (VL) for that stage

14
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

15
Cooley-Tukey FFT Algorithm
vr1vr21 butterfly group VL vector length
16
Vectorizing the FFT

• Diagram illustrates naïve vectorization
• A stage vectorizes well when VL ³ MVL
• Poor HW utilization when VL is small (lt
  MVL)
• Later stages of the FFT have shorter vector
  lengths
• the of elements in one butterfly group is
  smaller in the later stages

Stage 4VL 1
Stage 3VL 2
Stage 2VL 4
Stage 1VL 8
vr1
vr1
vr2
vr1
vr2
vr1
vr2
vr2
Time
17
Naïve Algorithm What Happens When Vector
Lengths Get Short?
32 bit Floating Point
VL64MVL

• Performance peaks (1.4-1.8 GFLOPs) if vector
  lengths are ³ MVL
• For all FFT sizes, 94 to 99 of the total time
  is spent doing the last 6 stages, when VL lt MVL
  ( 64)
• For 1024 point FFT, only 60 of the work is done
  in the last 6 stages
• Performance significantly drops when vector
  lengths lt lanes (8)

18
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

19
Optimization 1 Add auto-increment

• Automatically adds an increment to the current
  address in order to obtain the next address
• Auto-increment helps to
• Reduce the scalar code overhead
• Useful
• To jump to the next butterfly group in an FFT
  stage
• For processing a sub-image of a larger image in
  order to jump to the appropriate pixel in next row

20
Optimization 1 Add auto-increment

• Small gain from auto-increment
• For 1024 point FFT
• 202 MFLOP/s w/o AI
• 225 MFLOP/s with AI
• Still 94-99 of the time spent in last 6 stages
  where the VL lt 64
• Conclusion Auto-increment helps, but scalar
  overhead is not the main source of the
  inefficiency

32 bit Floating Point
21
Optimization 2 Memory Transposes

• Reorganize the data layout in memory to maximize
  the vector length in later FFT stages
• View the 1D vector as a 2D matrix
• Reorganization is equivalent to a matrix
  transpose
• Transposing the data in memory only works for N
  ³ (2 MVL)
• Transposing in memory adds significant overhead
• Increased memory traffic
• cost too high to make it worthwhile
• Multiple transposes exacerbate the situation

22
Optimization 3 Register Transposes

• Rearrange the elements in the vector registers
• Provides a way to swap elements between 2
  registers
• What we want to swap (after stage 1 VL MVL
  8)

VL 4 BGs 2
VL 2 BGs 4

• This behavior is hard to implement with one
  instruction in hardware

23
Optimization 3 Register Transposes

• Two instructions were added to the VIRAM
  Instruction Set Architecture (ISA)
• vhalfup and vhalfdn both move elements one-way
  between vector registers
• Vhalfup/dn
• Are extensions of already existing ISA support
  for fast in-register reductions
• Required minimal additional hardware support
• mostly control lines
• Much simpler and less costly than a general
  element permutation instruction
• Rejected in the early VIRAM design phase
• An elegant, inexpensive, powerful solution to the
  short vector length problem of the later stages
  of the FFT

24
Optimization 3 Register Transposes
Stage 1
SWAP

• Three steps to swap elements
• Copy vr1 into vr3
• Move vr2s low to vr1s high (vhalfup)
• vr1 now done
• Move vr3s high to vr2s low (vhalfdn)
• vr2 now done

25
Optimization 3 Final Algorithm

• The optimized algorithm has two phases
• Naïve algorithm is used for stages whose VL ³ MVL
• Vhalfup/dn code is used on
• Stages whose VL lt MVL the last log2 (MVL)
  stages
• Vhalfup/dn
• Eliminates short vector length problem
• Allows all vector computations to have VL equal
  to MVL
• Multiple butterfly groups done with 1 basic
  operation
• Eliminates all loads/stores between these stages
• Optimized vhalf algorithm does
• Auto-increment, software pipelining, code
  scheduling
• the bit reversal rearrangements of the results
• Single precision, floating point, complex,
  radix-2 FFTs

26
Optimization 3 Register Transposes
32 bit Floating Point

• Every vector instruction operates with VLMVL
• For all stages
• Keeps the vector pipeline fully utilized
• Time spent in the last 6 stages
• drops to 60 to 80 of the total time

27
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

28
Performance Results
32 bit Floating Point

• Both Naïve versions utilize the auto-increment
  feature
• 1 does bit reversal, the other does not
• Vhalfup/dn with and without bit reversal are
  identical
• Bit reversing the results slows naïve algorithm,
  but not vhalfup/dn

29
Performance Results
32 bit Floating Point

• The performance gap testifies
• To the effectiveness of the vhalfup/dn algorithm
  in fully utilizing the vector unit
• The importance of the new vhalfup/dn instructions

30
Performance Results
32 bit Floating Point

• VIRAM is competitive with high-end specialized
  Floating Point DSPs
• Could match or exceed the performance of these
  DSPs if the VIRAM architecture were implemented
  commercially

31
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

32
16 bit Fixed Point Implementation

• Resources
• 16 lanes (each 16 bits wide)
• Two Integer Functional Units per lane
• 32 Operations/Cycle
• MVL 128 elements
• Fixed Point Multiply-Add not utilized
• 8 bit operands too small
• 8 bits 8 bits 16 bit product
• 32 bit product too big
• 16 bits 16 bits 32 bit product

33
16 bit Fixed Point Implementation (2)

• The basic computation takes
• 4 multiplies 4 adds 2 subtracts 10
  operations
• 6.4 GOP/s is Peak Performance for this mix
• To prevent overflow two bits are shifted right
  and lost for each stage
• Input
• Sbbb bbbb bbbb bbbb.
• Output
• Sbbb bbbb bbbb bbbb bb.


Decimal points
Shifted out
34
Performance Results
16 bit Fixed Point

• Fixed Point is Faster than Floating point on
  VIRAM
• 1024 pt 28.3 us verses 37 us
• This implementation attains 4 GOP/s for 1024 pt
  FFT and is
• An Unoptimized work in progress!

35
Performance Results
16 bit Fixed Point

• Again VIRAM is competitive with high-end
  specialized DSPs
• CRI Scorpio 24 bit complex fixed point FFT DSP
• 1024 pt 7 microseconds

36
Outline

• What is the FFT and Why Study it?
• VIRAM Implementation Assumptions
• About the FFT
• The Naïve Algorithm
• 3 Optimizations to the Naïve Algorithm
• 32 bit Floating Point Performance Results
• 16 bit Fixed Point Performance Results
• Conclusions and Future Work

37
Conclusions

• Optimizations to eliminate short vector lengths
  are necessary for doing the FFT
• VIRAM is capable of performing FFTs at
  performance levels comparable to or exceeding
  those of high-end floating point DSPs. It
  achieves this performance via
• A highly tuned algorithm designed specifically
  for VIRAM
• A set of simple, powerful ISA extensions that
  underlie it
• Efficient parallelism of vector processing
  embedded in a high-bandwidth on-chip DRAM memory

38
Conclusions (2)

• Performance of FFTs on VIRAM has the potential to
  improve significantly over the results presented
  here
• 32-bit fixed point FFTs could run up to 2 times
  faster than floating point versions
• Compared to 32-bit fixed point FFTs, 16-bit fixed
  point FFTs could run up to
• 8x faster (with multiply-add ops)
• 4x faster (with no multiply-add ops)
• Adding a second Floating Point Functional Unit
  would make floating point performance comparable
  to the 32-bit Fixed Point performance.
• 4 GOP/s for Unoptimized Fixed Point
  implementation (6.4 GOP/s is peak!)

39
Conclusions (3)

• Since VIRAM includes both general-purpose CPU
  capability and DSP muscle, it shares the same
  space in the emerging market of hybrid CPU/DSPs
  as
• Infineon TriCore
• Hitachi SuperH-DSP
• Motorola/Lucent StarCore
• Motorola PowerPC G4 (7400)
• VIRAMs vector processor plus embedded DRAM
  design may have further advantages over more
  traditional processors in
• Power
• Area
• Performance

40
Future Work

• On Current Fixed Point implementation
• Further optimizations and tests
• Explore the tradeoffs between precision
  accuracy and Performance by implementing
• A Hybrid of the current implementation which
  alternates the number of bits shifted off each
  stage
• 2 1 1 1 2 1 1 1...
• A 32 bit integer version which uses 16 bit data
• If data occupies the 16 most significant bits of
  the 32 bits, then there are 16 zeros to shift
  off
• Sbbb bbbb bbbb bbbb b000 0000 0000 0000 0000

41
Backup Slides
42
(No Transcript)
43
Why Vectors For IRAM?

• Low complexity architecture
• means lower power and area
• Takes advantage of on-chip memory bandwidth
• 100x bandwidth of Work Station memory hierarchies
• High performance for apps w/ fine-grained ism
• Delayed pipeline hides memory latency
• Therefore no cache is necessary
• further conserves power and area
• Greater code density than VLIW designs like
• TIs TMS320C6000
• Motorola/Lucent StarCore
• ADs TigerSHARC
• Siemens (Infineon) Carmel
