Y'1711 FECCV Tutorial

1

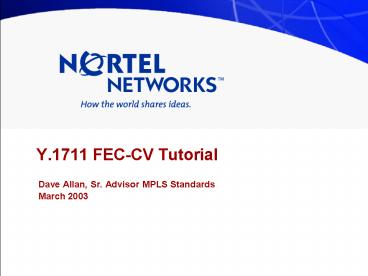

Y.1711 FEC-CV Tutorial

• Dave Allan, Sr. Advisor MPLS Standards
• March 2003

2
Presentation Roadmap

• Introduction
• Problem Space
• Solution Overview
• Solution Specifics
• Standards Status

3
Introduction

• Current verification techniques for FEC/FTN
  configuration or MPLS/LDP networks are very
  control processor intensive. An easily
  implemented solution that can be processed at
  line rate and has minimal non-LSP dependencies is
  desirable.
• Verification involves auditing forwarding
  policy/configuration between an egress and the
  set of ingresses for an LSP. Both ends need to
  agree on the raison d'etre for the LSP, or there
  has been either a failure or implementation
  problem.
• Verification can be performed by periodically
  comparing the set of FECs associated with the LSP
  by the ingress with the set of FECs advertised by
  the egress. Ingress set should be perfect subset
  of the egress.
• Use of "knowledge filters" permits set of FECs
  for an LSP to be encoded in a fixed length,
  unstructured bit vector. Simple comparison of bit
  vectors generated by the ingress and egress
  identifies mismatch conditions.
• This allows FTN verification to be added to
  Y.1711 monitoring functions without impacting
  Y.1711 availability metrics. Further, FEC
  verification permits the possibility of the
  egress to dynamically associate specific ingress
  points with FECs/LSP IDs etc. in order to perform
  availability measurement.

4
Problem Space
5
The Generic Problem Space
Configuration
Forwarding
Users
Originator

• Originator passes configuration information to
  users
• Some type of traffic mapping information "what
  to do with this forwarding path"
• Users employ configuration information to map
  traffic to forwarding path
• Set of configuration information offered by
  originator can incrementally change
• route flaps, administrative additions or
  deletions etc.
• changes have finite propagation time
• Set of configuration information employed by
  users may only be subset of that offered by
  originator
• may be pruned locally or by intermediate systems
• Originator may not have knowledge of the set of
  users
• Users dont necessarily know who originator is
• How do you verify that users are correctly using
  the path between the user and the originator?
• Simplest form, echo the configuration being used,
  Im using this path to reach this FEC

6
FTN Verification

• The FTN is the FEC-NHLFE table in an LSR.
• FEC forwarding equivalence class
• NHLFE next hop label forwarding entry
• How packets get mapped to LSPs
• Currently FTN may be configured, or populated via
  LDP protocol exchange.
• In the LDP DU scenario, FTN info flows from
  egress to ingress
• FTN Verification adds comprehensive
  misbranching/misconfiguration detection to Y.1711
• Can detect (Any-LSP) leaking into ER-LSP
• Can detect (Any-LSP) leaking into LDP-LSP lt--NEW
  to Y.1711
• Can add verification of LSP FTN configuration.
  lt--NEW to Y.1711
• FTN Verification permits plug and play
  availability to common MPLS applications
• VPN, PW, BGP, any time the transport LSP FEC is
  the egress node I.D.
• FTN Verification detects problems traditional
  CNLS networks mechanisms cannot detect

7
Sidebar Misbranching

• Misbranching/FTN misconfiguration can manifest
  itself in a number of forms
• 1) An LSP can be cross connected onto a label
  value that is not in use. This will result in the
  traffic being discarded at the next LSR as there
  will be no incoming label map (ILM) for the
  packet.
• 2) An LSP can be cross connected onto a label
  that is being used. This will result in traffic
  being delivered to the wrong egress point in the
  network.
• 3) An intermediate LSR can propagate an incorrect
  FEC/label binding upstream. This will result in
  traffic being delivered to the wrong egress point
  in the network.
• 4) An LSR can assign an incorrect FEC/FTN entry
  to a label at the ingress. This will result in
  traffic being delivered to the wrong egress point
  in the network.
• 5) Misbranching can also occur vertically in the
  MPLS hierarchy due to mis-configuration of LDP,
  as an artifact of independent label distribution,
  or due to other stack handling problems.
• Unlike IP where a mis-forwarding of a packet will
  be corrected by the next hop router, in MPLS a
  mis-forwarded packet can emerge just about
  anywhere in the MPLS network.

8
Relevant LDP specifics

• LDP has probably the most demanding
  characteristics.
• Connectivity is defined in terms of FECs not
  LSPs.
• LSP ingress used for an FEC by an LSR can change
• LSP that traffic arrives on at egress for an FEC
  for a given ingress can change
• FEC is the only constant
• Multiple FEC elements may be associated with an
  LDP label advertisement
• Each FEC element is a prefix (address range or
  host route)
• FTN verification corresponds to MPLS scalability
  (unlike ICMP PING!)
• Set of advertised FECs with an LSP next hop may
  vary.
• E.g. LSR 'A' advertises to 'B' FECs XYZ
• LSR 'B' advertises to 'C' FECs XY
• LSR 'C' advertises to 'D' FEC X etc.
• What 'D' would want to test is a subset of what
  'A' advertised.
• Multiple dimensions to label distribution/retentio
  n
• Ordered/independent

9
Solution Overview
10
"Do simple things all the time, or complex
things some of the time"

• Monitoring and measurement is "All the Time"
• Simple audit of sets of FECs between ingress and
  egress is non-trivial.
• Echoing back on the data plane what LDP sent out
  just replicates LDP.
• Complex implementation, ultimately need to
  consider DOS attacks, and impact on overall
  network operation.
• Results degrade when the network is under stress
• Proactive Monitoring/Measurement requires a
  simpler verification test than a simple brute
  force audit

11
The FEC-CV Solution

• Use "knowledge digest" techniques to encode FECs
  into a simple fixed length token at both ingress
  and egress.
• Transport ingress token to egress in monitoring
  probes for verification.
• Comparison of tokens easily implemented
• "Stateless" comparison, works for LDP/MP2P/ECMP
  etc.
• Is whomever is using this LSP, doing it for a
  valid FEC?
• "Knowledge digest" has desirable property of
  permitting set 'A' to be verified as a subset of
  set 'B' in a single operation.
• Key to handling all aspects of LDP FEC/label
  distribution.
• NOTHING IS FREE Technique introduce small
  statistical uncertainty into detecting FTN
  problems
• Techniques exist to minimize statistical
  uncertainty
• Uncertainty is proportional to
• Number of FECs encoded into the array.
• Size of the array
• Number of encoding schemes (hashes) employed
  simultaneously.
• Can be engineered to 99.9999 reliability.
• The good news is that the uncertainty is confined
  to not detecting errors, rather than "crying
  wolf".

12
Sidebar Bloom Filter

• Concept is fairly simple
• Bit array is used to represent a set of
  information tokens
• Each information token in the set is fed through
  multiple hash functions, output is a bit position
  to set in the array.
• When testing set membership, finding ALL the
  required bits set in the filter indicates token
  is probably present.
• Any bits not set is absolute authoritative
  indication the token is NOT in the set..
• Accuracy is in proportion to the array length,
  the number of tokens represented and the number
  of bits used per token

13
Bloom Filter Example

• 16 bit filter, uses two bits per FEC for
  encoding.
• FILTER VALUES
• "FEC A" hashes to bits 2 and 9 0000001000000100
• "FEC B" hashes to bits 11 and 15 100010000000000
  0
• "FEC C" hashes to bits 2 and 13 0010000000000100

• "Set ABC" A OR B OR C 1010101000000100
• "FEC D" hashes to bits 11 and 14 010010000000000
  0
• Is "FEC D" in "Set ABC"?
• "FEC D" 0100100000000000
• AND NOT "Set ABC" 0101010111111011
• is non zero 0100000000000000
• So "FEC D" is absolutely NOT in "Set ABC"
• "FEC E" hashes to bits 9 and 13 0010001000000000

• AND NOT "Set ABC" 0101010111111011
• is zero, "FEC E" generates a "false
  positive" 0000000000000000

14
Filter Engineering

• Probability of error (false positive)
• Perr (1-(1-1/m)kn)pq
• Where
• m filter size
• k number of hash functions used by egress
• n number of elements in egress set
• p number of hash functions used by ingress
• q number of elements in ingress set
• NOTE Filter engineering equation assumes perfect
  randomization of the dataset by each of the hash
  algorithms.
• Probability of error converges on being a
  function of the number of bits per entry.
  Therefore for a given desired probability of
  error, a filter size can be determined.
• Profiling of practical implementations of
  randomization algorithms shows we can expect
  about 20 deviation from the ideal.

We distinguish ingress and egress because optimal
inter/intra application performance requires
different coding rules per application
15
Example Filter size 128 bitCommon encoding
rules
Note how past a certain point using too many hash
algorithms actually degrades filter performance.
- 99.25 reliable _at_ 12 FECs/LSP - 99.92
reliable _at_ 7 FECs/LSP - 99.9936 reliable _at_ 4
FECs/LSP - 99.9998 reliable _at_ 2 FEC/LSP -
99.99999 for one.
16
Typical Operation
1 - Egress LSR decides to advertise FEC.
Configures I/F OAM modules with Bloom Filter
encoding of FECs for the LSP. (Could be OAM
extension to ILM). 2 - FECs advertised to
neighbors with LDP 3 - FEC advertisement (or some
subset) arrives at ingress LSR. 4 - LSR chooses
to use FEC advertisement and configures I/F with
Bloom Filter for FEC. 5 - I/F OAM module sends
periodic FEC-CV with Bloom Filter. 6 - Egress LSR
verifies FEC-CV filter is subset of filter
programmed in step 1. If mismatch, notify CP.
(Other information in probe sufficient to
initiate tracking down precise problem)
17
Solution Specifics
18
FEC-CV PDU Format
Delta from basic Y.1711 CV

LSP Trail Termination Source

Bloom
BIP16

Function

Padding
Padding

filter

Identifier (TTSI), 16 octet v6 LSR
Type
(00Hex)

(00Hex)

ID

(07Hex)


4 octet access point ID
1 octet

3 octets

20 octets

16 octets


2 octets

2 octets

• Current proposed filter length is 128 bits
• Fields line up on 32 bit boundaries.
• OAM alert label (14) distinguishes OAM PDUs from
  ANY payload.
• PDU is padded to minimum Ethernet frame size
  when prefixed with transport, and OAM alert
  labels

19
FEC CV Filter Encoding/1

• Encoding is specific to the application
• Filter entry application specific number of
  filter offsets
• Filter offset bit position in the filter
• LDP uses 3 filter offsets to encode an FEC
  element as a filter entry
• RFC 2547 VPN uses 5 filter offsets to encode the
  BGP next hop, RD and RT as a filter entry

20
FEC CV Filter Encoding/2

• CR-LDP uses 3 filter offsets to encode FEC
  elements as a filter entry

21
FEC CV Filter Encoding/3

• RSVP TE uses 4 filter offsets to encode a filter
  entry
• For make before break operations the egress
  will encode both the old and new LSP I.D.s in the
  filter so that the changeover does not result in
  any false alarms. Receiver can promiscuously
  accept FEC-CVs encoding either LSP ID during
  changeover.
• When pathtear for the old LSP-ID occurs, egress
  can update filter accordingly.

22
Computing Filter Offsets

• FEC-CV uses a specific CRC32 polynomial,
  optimized to maximize hamming distance for
  smaller data tokens
• G(x) x32x30x28x21x19x15x12x9x8x4x3x2
  x1
• Mask and fold the computed CRC to produce the
  requisite number of 7 bit filter offsets. For
  example, the masking and folding to generate 3
  filter offsets is

23
Filter processing

• Goal is to
• distinguish synchronization artifacts from
  genuine problems
• Artifacts are generated by
• Adding a FEC to the set of FECs associated with
  an LSP
• Removing a FEC from the set of FECs associated
  with an LSP
• Artifacts exist due to delays in control plane
  propagation across the network
• Provide mechanisms to tolerate ingress or
  intermediate LSR filtering
• The set of FECs that the ingress instantiates may
  only be a subset of that offered by the egress.
• Ingress may apply filtering to the FECs
• Intermediate node may only relay a subset of the
  FECs received ( for example independent mode
  label distribution)
• Adding a FEC is not problem. Egress filter will
  be superset of ingress.
• Removing a FEC requires keeping a copy of the
  pre-FEC-removal filter around for some amount
  of time. The pre-FEC- removal filter is termed
  the cumulative filter (you may also get adds in
  conjunction with removals).

24
Filter processing

• Application specific, either acceptable subset
  or exact match

Acceptable subset assumes either ingress LSR or
intermediate LSRs have modified the set of
Information offered by the egress
Exact match assumes that neither the ingress LSR
nor intermediate LSRs will modify FEC
information.
25
Additional processing

• When a dFECfilter_Mismatch or dFECfilter_Mismerge
  is detected
• TTL matters (or at least can facilitate
  minimizing MTTR), the higher the TTL, the closer
  the probe source is to the defect.

26
Probe Frequency

• Arrival rate of FEC-CV at the egress is a
  function of the number of ingresses.
• 100s of PEs can hit on a single egress.
• Ability to detect problems and recover from
  problems without state machines flapping
• In particular leakage between LSPs
• Optimal rate is a function of the number of
  ingresses and the network diameter.
• Not flapping is a probability game, what rate is
  the most frugal of resources, and provides timely
  detection of real problems while minimizing false
  alarms
• Current proposal is a configured network wide
  value in the range 1 sec. to 1 minute.

27
Plug n Play LDP Availability

• FEC-CV probe contains sufficient information for
  probes to self register for connectivity
  tracking at the egress.
• Egress needs to be unique for FEC, ingress needs
  to use liberal label retention
• Augments link and node fault detection to provide
  authoritative coverage
• Procedure
• Egress offers FEC/label bindings
• Ingress receives binding, encodes FECs into
  FEC-CV engine.
• Ingress starts inserting FEC-CV probes into LSPs
• Egress receives FEC-CV probe,
• verifies FEC filter is OK,
• Checks if TTSI is known
• No, instantiate state for tracking
• Yes, update availability state machine.
• Egress periodically reviews who is sending FEC-CV
• Flags gaps.
• Recovers state in nodes deemed to have failed.
• Changes in egress connectivity can be correlated
  between interfaces
• Arrival interface simply moved.

28
Plug n Play Issues

• Egress scalability
• Implementations will have practical limits to the
  number of peers they can track
• Issue is common to all proactive detection
  mechanisms
• Alarm suppression Alarm generation needs to be
  coordinated with the IGP. Otherwise any link or
  node failure will result in all peers declaring
  an alarm.
• If the originating LSR fails, or originating
  numbered link fails and this is IGP flooded, then
  the LSR detecting the connectivity problem should
  not generate an alarm for any LSPs originating
  with the failed link.
• LSR I.D. in TTSI provides sufficient information
  to do this.
• If unnumbered links are used, situation is more
  ambiguous, a link associated with an LSR I.D. has
  failed, and some LSPs that have the same LSR I.D.
  will be noted to have failed.
• Alarm suppression for inter-area is FFS.
• Implies that implementations should only track
  availability for nodes in the same area.

29
Next Steps

• Devise a de-registering mechanism to support
  availability measurement with conservative label
  retention and permit other administrative
  actions.
• Alarm suppression for inter-area LSPs.

30
Conclusions/Summary

• FEC-CV generation is always on
• Ingress implementation is trivial
• Egress determines degree of processing employed
• Ignore messages / detect misbranching / measure
  availability
• FEC-CV works in two scenarios
• Simple misbranching detection
• Use of FEC-CV by ingresses provides
  misbranching/mismerging detection across the
  MPLS architecture.
• Closes a gap in MPLS fault detection
• Availability measurement
• Provides simple audit that the network is
  functioning as a system, routing, signalling and
  forwarding all have to be working.

31
Acronyms

• BGP - border gateway protocol
• CP - control processor
• CV - connectivity verification probe
• ER - explicitly routed
• FEC - forwarding equivalence class
• FMO - future mode of operation
• FTN - FEC to NHLFE table
• ILM - Incoming label map
• LDP - label distribution protocol
• LSP - label switched path
• LSR - label switch router
• MP2P - multi-point to point
• NHLFE - next hop label forwarding entry
• PMO - present mode of operation
• P2P - point to point
• TTSI - trail termination source identifier

32
References

• Bloom, B., "Space/Time Trade Offs in Hash Coding
  with Allowable Errors", Communications of the
  ACM, Vol. 13, No. 7, July 1970
• Ripeanu, M., Iamnitchi, A., "Bloom Filters
  Short Tutorial", www.cs.uchicago.edu/matei/PAPER
  S/bf.doc
• Andersson et. al., "LDP Specification", IETF RFC
  3036, January 2001
• Awduche, D., et.al., "RSVP-TE Extensions to RSVP
  for LSP Tunnels", IETF RFC 3209, Decmeber 2001
• Rosen, E., et. al., "BGP/MPLS VPNs", IETF RFC
  2547, March 1999
• Jamoussi, B. et.al., "Constraint Based LSP Setup
  using LDP", IETF RFC 3212, January 2002
• Rekhter, Tappan, Sangli, "BGP Extended
  Communities Attribute", May 2002,
  draft-ietf-idr-bgp-ext-communities-05.txt
