The MUON trigger in AliRoot

1

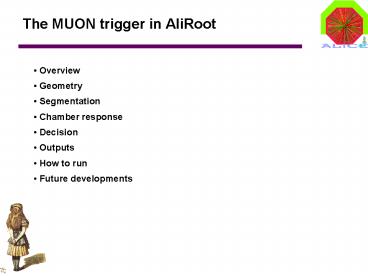

The MUON trigger in AliRoot

• Overview
• Geometry
• Segmentation
• Chamber response
• Decision
• Outputs
• How to run
• Future developments

2
Overview

• AliMUONChamberTrigger,
• AliMUONTriggerGeometryBuilder,
• AliMUONSegmentationTrigger,
• AliMUONSegmentationTriggerX,
• AliMUONSegmentationTriggerY,
• AliMUONResponseTrigger,
• AliMUONResponseTriggerV1,
• AliMUONTriggerConstants,
• AliMUONTriggerLut,
• AliMUONTriggerDecision,
• AliMUONTriggerCircuit,
• AliMUONLocalTrigger,
• AliMUONGlobalTrigger,
• AliMUONTriggerTrack,
• MUONTriggerLut.root,
• MUONTriggerLutPtCal.root,
• MUONtrigger.C,
• MUONTriggerLut.C
• MUONTestTrigger.C,

• 14 classes
• 2 root files
• 4 macros
• framework for geometry, segmentation,
  digitalization, clusterization reconstruction
  heritated from tracking

3
Geometry

• AliMUONTriggerGeometryBuilder

• very compact thanks to design
• all planes identical, scaling with zpos/zpos1
• 5 chamber types per plane
• makes use of the virtual envelopes (Eric, Gines,
  Ivana)

4
Segmentation

• AliMUONSegmentationTrigger
• AliMUONSegmentationTriggerX, AliMUONSegmentationTr
  iggerY

• loop over 2 63 modules
• assign X Y strips according to
  AliMUONTriggerConstants

5
Segmentation (frames)
6
Segmentation (strips)
7
Chamber Response

• AliMUONChamberTrigger,
• AliMUONResponseTrigger, AliMUONResponseTriggerV1

• digits are flagged according to ToF
• a digit is taken into account into L0 decision if
  ToF lt 75 ns
• default chamber response AliMUONResponseTrigger
• a hit fires one and only one strip
• realistic response AliMUONResponseTriggerV1
• a hit can fire several strips according to a
  parameterization of the cluster-size measured in
  test-beam (ALICE INT/DIM/01-04). this response
  can be activated in AliMUONFactory

8
Display hits, digits color code

• this digit will not be taken into account into
  L0 decision
• this hit fires 2 strips

9
L0 Trigger Decision

• AliMUONTriggerDecision,
• AliMUONTriggerCircuit, AliMUONTriggerLut

• feed TriggerCircuits with digits (a
  TriggerCircuit is a standalone L0 trigger
  board)
• loop over TriggerCircuits
• get X Y answers of L0 trigger (see algorithm
  in L0-PRR ALICE EN/2003-010)
• get L0 local answer (Xstrip11, Ystrip11, dev,
  sign, pt)
• get global answer (number of single -, single ,
  single undefined, unlike-sign pairs, like-sign
  pairs, with All pt, Low pt, High pt)

• X Y algo. are copy paste from FPGA of L0
  trigger board
• ? powerful for debugging both software hardware
• pt is given from LUTs

10
pt calculation

• AliMUONTriggerLut, MUONTriggerLut.root

• for each combination of (circuit, Xstrip11,
  Ystrip11, deviation) we need to know whether the
  corresponding pt is larger than 1 GeV/c (low pt
  cut) and larger than 2 GeV/c (high pt cut)
• this pt can be calculated via

fast procedure but does not take into account
field asymmetries energy losses
11
Realistic pt estimation (currently in
AliRoot)B.Forestier PhD Thesis

• shoot 1 GeV/c and 2 GeV/c pt muons into the
  spectrometer
• get deviation corresponding to each triplets
  (circuit, Xstrip11, Ystrip11)
• store output in 4D histograms (MUONTriggerLut.roo
  t)

in AliRoot, AliMUONTriggerDecision reads
MUONTriggerLut.root via AliMUONTriggerLut
old LUT can be re-activated
(MUONTriggerLutPtCal.root) and re-generated
(MUONTriggerLut.C)
12
How to run (local global trigger answer)

• MUONtrigger.C, AliMUONLocalTrigger,
  AliMUONGlobalTrigger

• from ALICE_ROOT/MUON/README
• IMPORTANT!!!
• create write digits
• create write raw clusters
• create write trigger response

at this step local global trigger answers are
written in TreeR of MUON.RecPoints.root
13
Getting more information online
from fDebug of AliMUONTriggerDecision
14
How to retrieve local global trigger answers
1 from a TBrowser
15
How to retrieve local global trigger answers
2 from MUONdisplay
Trigger button reads global trigger information
from MUON.RecPoints.root and prints it in the
terminal
16
How to retrieve local global trigger answers
3 from MUONCheck.C
loop over events, reads global local trigger
information from MUON.RecPoints.root and prints
it in the terminal
17
Making tracks with trigger info (1)
MUONTriggerTracker.C, AliMUONTriggerTrack,
AliMUONEventReconstructor

• loop over local triggers
• build human readable info.
• fill TreeT of MUON.Tracks.root

AliMUONEventReconstructor from Dr.Finck
18
Making tracks with trigger info (2)

• X pos on MC11
• Y pos on MC11
• Theta X
• Theta Y
• Global trigger (Long_t)

19
Future developments
20
The MUON trigger in reality

• 234 Local Trigger Boards
• adopted official numbering (PRR)
• all identical
• 10 configuration switches
• up-down neighbors are connected
• 3 trigger levels (local, regional, global)

21
The MUON trigger in AliRoot

• 234 TriggerCircuits (equivalent to standalone
  Local Trigger Boards)
• numbering from AliMUONTriggerConstants
  (different from reality)
• (some) switches are hard-coded in the Loadxxx
  methods
• some other switches are not defined (e.g. no
  connections needed between 2 circuits since, in
  contrast to a local board, a circuit has, by
  definition, all needed information to deliver its
  local trigger decision)
• regional global trigger levels not implemented
  in a realistic way (regional trigger skipped,
  global trigger loop over 234 TriggerCircuits)

22
What cannot be done with the present version of
the code

• easily assign a TriggerCircuit to a local board
  (because of different numbering)
• estimate the effect of mismatching in a local
  board configuration (because switches are
  hard-coded)
• estimate the effect of a non-working local board
  on the global trigger performances (because some
  switches are not simulated)
• investigate regional algorithm performances

23
To do list

• redefine TriggerCircuit numbering like in
  reality
• redefine TriggerCircuit objects as closer to
  real local boards
• switches (data members) to be read from a
  database (234?10 entries)
• define a new interface between digits
  TriggerCircuits
• allow TriggerCircuits to talk between each other
  via switches
• simulate 16 virtual crates, fill-in the
  corresponding TriggerCicuits, implement regional
  global trigger algorithms like in reality

note needs Local2Global Global2Local to be
implemented first
