Prelim 2 Topics

1

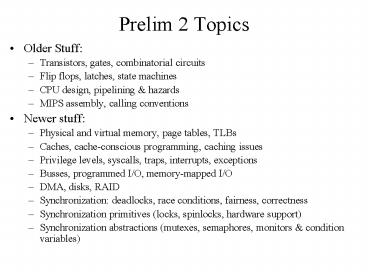

Prelim 2 Topics

• Older Stuff
• Transistors, gates, combinatorial circuits
• Flip flops, latches, state machines
• CPU design, pipelining hazards
• MIPS assembly, calling conventions
• Newer stuff
• Physical and virtual memory, page tables, TLBs
• Caches, cache-conscious programming, caching
  issues
• Privilege levels, syscalls, traps, interrupts,
  exceptions
• Busses, programmed I/O, memory-mapped I/O
• DMA, disks, RAID
• Synchronization deadlocks, race conditions,
  fairness, correctness
• Synchronization primitives (locks, spinlocks,
  hardware support)
• Synchronization abstractions (mutexes,
  semaphores, monitors condition variables)

2
Critical Sections

• Properties
• correctnessat most one thread inside critical
  section
• livenessif no thread inside, then a waiting
  thread should eventually get in
• fairnessa waiting thread can get cheated only a
  bounded number of times (or, equal probabilites
  among waiters) (or, fifo ordering among waiters)
  (or, )
• Suppose we have two threads (with thread_id 0 and
  1) using a critical section. Which of the three
  properties are achieved by each of the folowing
  implementations?

3
CritSec Attempt 1

• int turn 0
• void enter_cs()
• while (turn thread_id)
• void leave_cs()
• turn thread_id

4
CritSec Attempt 2

• int in_crit_sect2 0, 0
• enter_cs()
• while (in_crit_sectother_thread_id)
• in_crit_sectthread_id 1
• leave_cs()
• in_crit_sectthread_id 0

5
CritSec Attempt 3

• int want_crit_sect2 0, 0
• enter_cs()
• want_crit_sectthread_id 1
• while (want_crit_sectother_thread_id)
• leave_cs()
• want_crit_sectthread_id 0

6
CritSec Attempt 4

• int want_crit_sect2 0, 0
• int turn 0
• enter_cs()
• want_crit_sectthread_id 1
• turn thread_id
• while (want_crit_sectother_thread_id
  turn thread_id)
• leave_cs()
• want_crit_sectthread_id 0

7
Semaphores

• The following code is meant to exchange the items
  at the top of two stacks.
• - it must appear to be a single atomic operation
• - if either stack is empty, it should do nothing
• - if the stacks are one and the same, it should
  do nothing
• - multiple swaps should proceed simultaneously
  so long as they are using different stacks
• How is this code broken? Fix it using semaphores.

8

• void atomic_swap(Stack q1, Stack q2)
• Item item1
• Item item2
• P(q1-gtlock)
• item1 pop(q1)
• if(item1 ! NULL)
• P(q2-gtlock)
• item2 pop(q2)
• if(item2 ! NULL)
• push(q2, item1)
• push(q1, item2)
• V(q2-gtlock)
• V(q1-gtlock)

9
Synchronization

• There are two printers. Write a function called
  print_anywhere(char doc) that prints a document
  on either one of the two printers. Your solution
  must guarantee
• safety each printer has at most one process
  trying to print to it at a time
• liveness a process trying to print will not
  wait if a printer is free
• fairness a process trying to print will
  eventually be allowed to print

10
Monitors

• Does this work? Can we fix it?
• struct cond
• struct sema s
• void wait(struct cond c) c-gts-gtP()
• void signal(struct cond c) c-gts-gtV()

11
Synchronization Primitives

• Suppose we have a kernel that does not provide
  any direct support for synchronization
  primitives. What are the consequences of this
  limitation?

12
Disks DMA

• A disk controller with enough memory can perform
  read-ahead, reading blocks on the current track
  into its memory before the CPU can ask for them.

• Should it also do write behind?

13
Disks

• Give a nearly worst-case algorithm for erasing
  all data on a hard disk with 3 platters, 1000
  cylinders, and 20 sectors per track.
• Give a best-case algorithm.

14
Memory MMU 1

• If a machine has 4GB of actual RAM, does it
  still make sense to implement virtual memory?
• What impact, if any, does it have on the
  implementation (simplicity, performance,
  features, etc.)?
• assume 32-bit physical addresses

15
Memory MMU 2

• If a machine has no hard disk, does it still
  make sense to implement virtual memory?
• What impact, if any, does it have on the
  implementation (simplicity, performance,
  features, etc.)?
• a so-called "thin client" that fetches all
  programs and data from the network

16
Memory MMU 3

• If a machine has no support for asynchronous
  traps, does it still make sense to implement
  virtual memory?
• What impact, if any, does it have on the
  implementation (simplicity, performance,
  features, etc.)?
• Motorola M68000 was just such a processor
  but the M68010 added asynchronous trap handling.

17
Memory MMU 4

• If a machine's MMU has no support for page
  reference bits or page modification bits, how can
  we simulate the functionality?

18
Memory Layout

• It is nice to have applications be loadable at
  arbitrary places in memory (i.e., libraries, or
  your corewars programs).
• How can we achieve this?

19
Privilege Levels

• Normally the system call interface is accessed
  by means of executing a special instruction (i.e.
  syscall). We could instead make the system
  automatically transition to privileged mode on
  any jump to a kernel-only memory page. Is this
  feasible?Is this a good idea?

20
MMU-conscious programming

• Assume the virtual memory system uses twenty 1KB
  pages, with LRU replacement
• int A40964096, B40964096, C40964096
• for (int i0 ilt 4096 i)
• for (int j0 jlt 4096 j)
• int sum 0
• for (int k 0 k lt 4096 k)
• sum sum Ai, kBk,j
• Ci,j sum
• Approx. how many page faults will there be
  during a single iteration of the j loop? Can we
  improve this?

21
Interrupts Polling

• Devices can be managed using interrupts or
  polling.
• Under what circumstances would it be better to
  use interrupts? polling?

22
Caches

• (a) For a 1MB, 8-way associative cache, with 128
  byte blocks, find the number of bits needed for
  the cache tag, index, and offset.
• (b) Consider a direct mapped cache, with 32
  lines, and a 21 bit tag. What is the block or
  line size (in bytes), and the capacity of the
  cache?
• (c) For a 256 byte cache with a 28 bit tag and 4
  word blocks, find the number bits in the index
  and then compute the associativity.
• (d) In a 32-bit address space, 8 MB of data map
  to a single set/index in a cache. If the cache
  can hold a total of 8192 data words (not bytes)
  and has 64 byte blocks, what is the capacity, the
  number of sets, and the associativity?

23
Cache Misses (according to Wikipedia)

• Compulsory misses are those misses caused by the
  first reference to a datum. Cache size and
  associativity make no difference to the number of
  compulsory misses.
• Capacity misses are those misses that occur
  regardless of associativity or block size, solely
  due to the finite size of the cache.
• Conflict misses are those misses that could have
  been avoided, had the cache not evicted an entry
  earlier.
