Enabling NetworkAware Applications

1

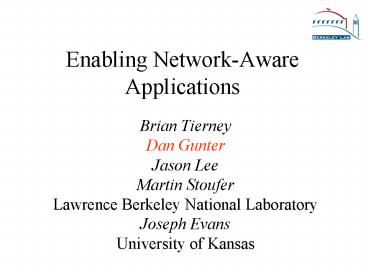

Enabling Network-Aware Applications

• Brian Tierney
• Dan Gunter
• Jason Lee
• Martin Stoufer
• Lawrence Berkeley National Laboratory
• Joseph Evans
• University of Kansas

2
Outline

• Motivation
• WAN basics
• Enable approach
• Use cases
• Enable components
• Sample results
• Future work

3
Motivation

• Many high performance distributed applications
  use a (small) fraction of their available
  bandwidth
• For, e.g., bulk data transfer, TCP tuning
  techniques can make a large difference
• Hand-tuning is time consuming, error-prone and
  often an administrative nightmare

4
Motivation (2)

• We need to understand where and how to put
  intelligence into the network

5
WAN basics (1)

• Proper selection of TCP buffer size depends upon
  bandwidth-delay product of link
• buf delay BW
• On an uncongested network, parallel streams can
  help with TCPs conservative (congestion
  avoidance) behavior
• however, too many streams can stress the CPU
• unfair in a congested network, and may have
  router interactions

6
WAN basics (2)
7
Network Awareness

• Paths are dynamic and sometimes (20)
  asymmetrical accurately gauging network
  capabilities is hard

8
Current Approaches

• Put network tests (like a ping and a small timed
  data transfer) into the application
• Provide configuration options, and require users
  to run tests before running the application
• Make a best guess as to the likely network
  characteristics
• Do nothing use system defaults

9
Enable Approach

• Provide an advice service with a simple
  high-level API
• Focus on bulk data transfer
• Co-locate the advice service with the data server
  (e.g., the FTP server)
• Recognize new data clients and schedule
  measurements automatically
• Calculate statistical metrics based on the
  results of many measurements

10
Enable Architecture
11
Use-Case (1) Single client
12
Use-Case (2) Automatic testing
Later that day..
13
Use-Case(3) Multiple clients
14
Use-Case(4) Tool Comparison
15
Enable Components
16
Enable server functionality

• Schedule tests
• Current network tests ping, pipechar, iperf
• consider conflicts iperf, pipechar need to run
  serially multiple pings can run in parallel.
• Record last N results in the database
• Perform analysis needed for advice
• keep running average of all tests to keep track
  of long-term changes in characteristics
• do trimmed-mean and stddev of last N to calculate
  TCP buffers, etc.

17
Enable API

• Uses XML-RPC so the API is cross-platform and
  cross-language
• C and Python are implemented Java is next
• Primary goal is simplicity -- requesting advice
  is a single function call
• sz srv.getBufferSize(my.host.org)

18
Enable DB

• Simply makes its test/result objects
  persistent, so little additional infrastructure
  is required
• everything stored in a single file
• transactions/locking considered overkill
• Last N (configurable) results stored
• Long-term archiving done with NetLogger (to
  flat-files or relational DB)

19
Sample Results (1)

• iperf over four network paths

Path RTT bottleneck link bandwidth LBL-CERN 180
ms 45 Mbits/sec LBL-ISI East 80 ms 1000
Mbits/sec LBL-ANL 60 ms 45 Mbits/sec LBL-KU 50
ms 45 Mbits/sec
Tuning method LBL-CERN LBL-ISI east
LBL-ANL LBL-KU no tuning 2 Mbits/sec 5
Mbits/sec 5 Mbits/sec 6 Mbits/sec Linux 2.4
auto 6 Mbits/sec 110 Mbits/sec 9 Mbits/sec 9
Mbits/sec hand tuning 18 Mbits/sec 266
Mbits/sec 17 Mbits/sec 27 Mbits/sec Enable
tuning 18 Mbits/sec 264 Mbits/sec 16 Mbits/sec 26
Mbits/sec
20
Sample results (2)

• Tests over a 5 to 30 hour time period between a
  host at LBNL and a host at Kansas University.
• ping
• pipechar
• iperf

21
iperf results (1)
22
iperf results (2)
tightly clustered
longer left tail
23
pipechar results (1)
24
pipechar results (2)
tightly clustered
very long left tail
25
ping results (1)
26
ping results (2)
very tightly clustered
much longer right tail
27
Comparing Results

• Enable makes it easy to add new tools
• This is useful for comparing different tools
• how pipechar, iperf, and nettest measure
  bandwidth
• how good is web100 autotuning?
• It also provides better insight into how to
  provide a good summary statistic for any given
  tool

28
Future Work

• Better advice
• more tools/tests (NWS, asymmetric paths?)
• better analysis (confidence intervals)
• QoS
• Fancier scheduling (stochastic intervals)
• Scalability issues
• Aggregation of clients
• Aging/purging of stored results
• Multiple Enable hosts on same subnet to overcome
  OS limitations on parallel tests (e.g.
  pipechar)

29
Getting Enable

• http//www-didc.lbl.gov/ENABLE
• Current version 1.0-Beta
• Functional
• Requires Python (2.1)
• Codebase is small and easily installed
