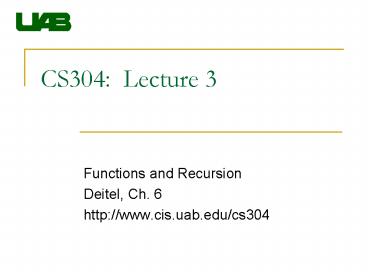

Title: CS304: Lecture 3


1
CS304 Lecture 3
  • Functions and Recursion
  • Deitel, Ch. 6
  • http//www.cis.uab.edu/cs304

2
Things I Wont Cover That You Should Know!TM
  • Recursion! Didnt you do this in CS302?
  • Read 6.19-6.21, please!

3
A Clarifying Note on Definitions
  • Implementations of a function require variable
    names in the argument list Prototypes do not!
    Why?
  • class test int method1(int)int
    method2(string, int)
  • int testmethod1(int intname)
  • int testmethod2(string stringname, int intname)

4
More on Prototypes
  • Prototype Interface Definition
  • Formal parameters in the prototype must conform
    to the function signature (i.e. types must
    match), but names of parameters are of no
    importance

5
Divide and Conquer
  • Ideal way to construct large programs
  • Manageability
  • Simplicity
  • Accomplished in many ways in C
  • Functions
  • Classes
  • Libraries
  • STL

6
Prepackaged Functions
  • Many common functions are provided for you
  • Math
  • String Parsing
  • Time
  • Containers
  • Vector
  • List
  • Queue
  • Algorithms

7
Math
  • include ltcmathgt
  • All functions are global
  • Most functions take doubles as arguments
  • See page 242 for a list of common functions

8
ltcmathgt functions
  • ceil(x) rounds x to the smallest integer not less
    than x
  • exp(x) exponential function ex
  • fabs(x) absolute value of x
  • floor(x) rounds x to the largest integer not
    greater than x
  • fmod(x, y) remainder of x/y as a floating-point
    number
  • log(x) natural logarithm of x (base e)
  • log10(x) logarithm of x (base 10)
  • pow(x, y) x raised to the power of y
  • Complex numbers, too!

9
We cant do math with floats? Or ints?
  • Argument Coercion can adapt the math functions to
    our uses.
  • This happens (largely) behind the scenes and
    automatically
  • Square (4.5) 16
  • Data could be lost in the conversion
  • E.g., long to int, double to int.
  • Promotion rules should be followed
  • Hierarchy of data types (pp. 250)
  • Explicit override can be given by casting
  • Also applies to mixed-type expressions

10
Other Header Files
  • ltiostreamgt Standard I/O
  • ltiomanipgt Functions for stream manipulation
  • ltcmathgt Math functions
  • ltcstdlibgt Mishmash! String/number conversion,
    memory allocation, random numbers, etc.
  • ltctimegt Time functions
  • ltvectorgt, ltlistgt, ltdequegt, ltqueuegt, ltstackgt,
    ltmapgt, ltsetgt, ltbitsetgt Standard Template
    Library ADTs
  • ltcctypegt Character functions (upper-lower
    conversion, type tests)
  • ltcstringgt Contains C-style string processing
    functions
  • ltexceptiongt, ltstdexceptgt Exception handling
    classes
  • ltfstreamgt Functions for file I/O
  • ltstringgt Contains C string class from STL
  • See page 251 for a list of common functions

11
Generate a Random Number Using the Standard
Library
  • include ltiostreamgt
  • include ltcstdlibgt
  • include ltctimegt
  • using namespace std
  • int main()
  • unsigned int seed
  • cout ltlt "Enter seed, or 0 for time "
  • cin gtgt seed
  • srand((seed 0)?time(0)seed)
  • cout ltlt "Your random number is " ltlt rand() ltlt
    endl
  • return 0

12
Want to generate specific numbers?
  • Within a range, between at least start and less
    than end
  • int number rand()(end-start)start

Only works for integers!!
Scaling Factor
Shifting Factor
Question given a random float number generator,
how to generate a float within a range?
13
The Enum Datatype
  • Have you ever done this?
  • int first 0, second 1, third 2, nth
    n-1
  • int Sunday 0, Monday 1, , Saturday 6
  • Use this instead!
  • enum Numbers FIRST, SECOND, THIRD, , NTH
  • enum Days SUNDAY, MONDAY, TUESDAY, WEDNESDAY,
    THURSDAY, FRIDAY, SATURDAY
  • This creates a datatype called (Numbers or Days)
    that can hold one of the values contained (i.e.
    FIRST, SECOND, MONDAY, etc. where appropriate).
    This is NOT a class.
  • See Section 6.8 for this applied

14
Storage Classes
  • Storage classes are modifiers that change how the
    memory associated with the variable behaves
    within a function
  • There are five storage classes (auto, register,
    extern, mutable, static), but we will discuss
    three
  • auto Allocate the variable when it is declared,
    deallocate it when it is no longer in scope.
    This applies to local variables.
  • register Used with an automatic variable to
    suggest to the compiler that this variable be
    kept in a hardware register
  • static Used with global variables
    (automatically) or local variables (explicit).
    This causes a variable to retain its value
    throughout the execution of the program.

Please read Section 6.9 for details!
15
Scope
  • Scope refers to where in a program a variable is
    usable.
  • Alive ! usable e.g., you cannot use a static
    variable defined inside of a function outside of
    the function scope.
  • Six types of scopes Function, File, Block,
    Function-Prototype, Class, and Namespace
  • File scope A static variable declared outside
    of any class or function (or is a function!)
  • Function scope Known throughout a function, no
    matter where declared (labels!)
  • Block scope A variable declared within
  • Careful about hiding other variables!
  • Function-Prototype scope Variables declared
    within the parameter list
  • See Fig. 6.12 for a scope example

16
Function Calls in C
  • The C runtime environment can be described as a
    stack LIFO structure.
  • Each function call is represented by an
    activation record
  • Each record holds all information needed for that
    particular instance of the function
  • Each time the function gets called, a new
    activation record is added

17
Activation Records Example On Board
  • include ltiostreamgt
  • using namespace std
  • int square (int)
  • int main() int a 10cout ltlt a ltlt squared
    ltlt square( a ) ltlt endlreturn 0
  • int square(int x) return x x

Read 6.11 for details, nice figure!
18
Inline functions
  • Function calls are slow!
  • the call stack
  • Function calls are good!
  • e.g., reusable
  • Inline function calls are fast and good!
  • Acts as advice to the compiler to insert the
    body of the function directly

19
Cube function
  • inline double cube (const double side) return
    side side side
  • int main() cout ltlt cube(3.0) ltlt endl
  • cout ltlt cube(4.0) ltlt endlreturn 0

20
Turns to
  • int main () cout ltlt 3.0 3.0 3.0 ltlt
    endlcout ltlt 4.0 4.0 4.0 ltlt endlreturn 0

21
Reference Parameters
  • From our discussion of activation records, you
    know that copies occur when parameters are passed
    (a new local copy is created).
  • What if we want to make changes to the parameter
    within the function call and keep the change
    after leaving the function?
  • What if we dont want to copy whole structures?
  • Passing classes?

22
Passing an Argument by Reference
  • Pass by value int funcall(int arg1)
  • Pass by reference int funcall(int arg1)
  • reference (or address-of) operator
  • This requires no change to the body of the
    function!
  • Use const modifier to prevent changes to the
    structure
  • Why would we want to do this?
  • References are first-class datatypes, and can be
    used everywhere in a program

23
Reference Example
  • void makesquared(int num) num num
  • int main() int num 3makesquarednum(num)cou
    t ltlt num // output 3return 0

24
Reference Example
  • void makesquared(int num) num num
  • int main() int num 3makesquarednum(num)cou
    t ltlt num // output 9return 0

25
Remember what Java does?
  • Always pass-by-reference for Classes
  • Always pass-by-value for primitive types, e.g.,
    int
  • What if we want to pass two int values to a
    function and keep the changes after the function
    call is finished?

26
Default arguments
  • Specify a default argument this way
  • int myfun(int x 0, int y 1, int z 2)
  • Arguments that have a default should be rightmost
  • Must have it make sense! (No ambiguity!)
  • This is done in one place, typically the prototype

27
Overloading Functions
  • Specify different arguments (without conflicts,
    of course).
  • int sqrt(int x)
  • float sqrt(float x)
  • double sqrt(double x)
  • string sqrt(string x)
  • int sqrt()
  • What is different arguments?
  • Number of parameters
  • Type of each parameter
  • Order of the parameters

? How about float sqrt()
28
Templates
  • Hate overloading every function for every
    argument?
  • Generalize! Templates allow everything that
    makes sense (more on this later in the course)
  • Our square root function written using templates
  • templatelt class T gt
  • T sqrt(T value)
  • // Do some fancy calculations return answer
