Getting Started with ANTLR

1

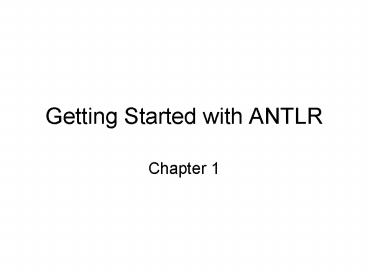

Getting Started with ANTLR

• Chapter 1

2
Domain Specific Languages

• DSLs are high-level languages designed for
  specific tasks
• DSLs include data formats, configuration file
  formats, text-processing languages,
• DSLs make their users effective in a specific
  domain

3
The Big Picture

• Translators map input sentences to output
  sentences
• Translators have to recognize many different
  sentences
• We break recognition into two similar but
  distinct tasks lexical analysis and parsing

4
Lexical Analysis

• Lexical analysis consists of reading the input
  stream, character by character.
• Characters are combined and output as tokens
• if (x gt 312) system.out.println(Hi)
• Tokens if, (, x,WS, gt,WS, 312, ),,
  system.out.println, (,Hi, ), ,

5
Lexical Analysis

• Tokens carry additional information in addtion to
  the characters they represent
• ANTLR generates a lexical analyser, a Lexer,
  based on an input grammar it is provided
• We will be building grammars and having ANTLR
  generate the lexer code for us

6
Parsing

• Parsing consists of reading tokens and trying to
  organize them into a valid sentence in the
  language
• The parser can generate output immediately based
  on the sentences it recognizes or preserve the
  structure in the form of an abstract syntax tree
  (AST) which can be further processed

7
Translation Data Flow
Tokens
Output
Characters
Lexer
Parser
AST
Tree Walker
8
Finally

• An emitter can take the output of the parser and
  emit output based on all computations of the
  previous phases
• Emitter can use templates (documents with holes)
  that can be filled in
• ANTLR uses the StringTemplate engine to make it
  easier to build emitters

9
Characters, Tokens, ASTs

• Lexers consume characters from a CharStream such
  as ANTLRStream or ANTLRFileStream
• These streams assume that the entire input fits
  into memory and, as a result, can buffer all
  characters in memory
• Tokens point directly to character strings in the
  buffer rather than creating String objects for
  each token

10
Characters, Tokens, ASTs
Characters (CharStream)
... W I D T H 2 0 0
\ n
tokens (Token)
ID WS WS INT WS
x x x

AST (CommonTree)
INT
ID
11
Characters, Tokens, ASTs

• AST nodes point at token objects rather than
  copying token data into a tree node
• CommonTree is a predefined node containing a
  Token payload.
• The type of an ANTLR AST node is treated as
  Object so there are no restrictions on tree data
  types

12
A-mazing Analogy

• Book focuses on the discovery of the implicit
  tree structure in input sentences and the
  generation of structured text
• A maze can be thought of as a language
  recognizer. Imagine a maze with words written on
  the floor
• Any sentence that guides you from the entrance to
  the exit is valid
