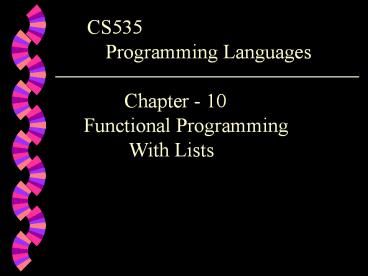

Title: Functional%20Programming%20with%20Lists


1
CS535 Programming
Languages Chapter -
10 Functional Programming
With Lists
2
Outline
  • Functional Language LISP
  • Scheme, a Dialect of LISP
  • The structure of lists
  • List manipulation
  • Storage allocation for lists

3
Functional Language LISP
  • Includes all the basic concepts of
  • functional programming
  • First designed in 1958 by John McCarthy
  • Functions include recursion, first-class
  • functions and garbage collection
  • Lisp implementation led the way in
  • integrated programming environments

4
Scheme, A Dialect Of LISP
  • A scheme is a small language that provides
  • constructs at the core of Lisp
  • Constructs include
  • 1. Conditionals
  • 2. The let construct
  • 3. Quoting (data in the form of expressions)

5
Expression
  • Scheme uses a form of prefix notation for
  • expressions
  • The general form of an expression in Scheme is
  • ( E1 E2 E3 E?)
  • The expression 4 5 7 is written as
  • ( 4 ( 5 7) )
  • The above uniformity in Lisp syntax makes
  • it easy to manipulate programs as data

6
Function Definition
  • The recursive and non recursive function
    definition associates a function value
  • with a name
  • The general syntax of function definition
  • ( define (ltfunction namegt ltargumentsgt)
    ltexpressiongt)
  • An example
  • ( define ( Square X ) ( X X ) )
  • (Square 5) 25

7
Conditionals
  • Conditional expressions come in two forms
  • 1. (if P E1 E2)
  • 2. ( cond ( P1 E1) .
  • ( Pn E n )
  • ( else E n 1 ) )
  • Conditionals are generally required for
  • recursive functions

8
let Construct
  • The general syntax of the let construct is
  • ( let ( (X1 E1 ) (X 2 E 2) (X k E k)
    ) F )
  • For instance (33) (44) is written as
  • ( let ( (three-sq(square 3))
  • (four-sq(square 4) )
  • ( three -sq four-sq) )
  • 25

9
Quoting
  • Used to choose a spelling as a symbol or a
    variable name
  • Two methods of quoting are
  • 1. ( quote ltitemgt )
  • 2. ltitemgt
  • ( define f ) // Unquoted
  • ( f 2 3 ) 6
  • ( define f ) //Quoted represents symbol which
    is a bad procedure
  • ( f 2 3 )

10
The Structure of Lists
  • List 1 (this is (a list) of elements)

this
is
Fig1 Tree representation of the
structure of List 1 - () are important
a
( ) nil
list
of
elements
( )
11
Operations on Lists
  • List X ()
  • List Y ( this is (a list) of elements)
  • Basic Operation Result
  • 1. (null? X) t
    (rue)
  • 2. ( car Y ) this
    (first element)
  • 3. ( cdr X ) (is (a list) of
    elements)
  • (rest of the list after the first is
    removed)
  • 4. (car (cdr X) ) is
  • 5. (cdr (cdr X) ) ( (a list) of elements
    )
  • 6. (cons a X ) ( a )

12
List Manipulation
  • 1. Length function
  • The equation for non empty list X
  • (length x) ( 1 (length (cdr x) ) )
  • Corresponding length function definition
  • ( define (length X)
  • ( cond ( (null? X) 0)
  • (else ( 1 ( length
    (cdr x) ) )
  • )
  • )

13
2. Append function
The equation for appending two lists is (append
X Z) (cons (car X) (append (cdr X)
Z)) Corresponding append function
definition (define (append X Z) ( cond
( ( null? X) Z) (else (cons (car X)
(append (cdr X) Z) ) ) ) )
14
3. Mapping a function
A function f applied to a single list element
can be extended using map and applied to all
elements of the same list Eg Considering the
square function , ( define (square n) ( n n
) ) ( map square ( 1 2 3 4 5 ) ) Result (1
4 9 16 25)
15
Storage allocation for lists
  • Implementation of lists in Scheme and ML
  • is usually done by using cells.
  • Each cell holds pointers to the head and tail
  • or car and cdr, respectively
  • The cons operation allocates a single cell
  • Each execution of cons returns a pointer to
  • a newly allocated cell

16
Consider the list formed from the
expressions 1. ( cons it (cons seems (cons
that () ) ) )
List formed (it seems that)
X
( )
seems
that
it
Fig2 List X created by executing the above
expression
17
2. ( cons (car X) (cdr X) )
List Y formed (it seems that)
Y
X
( )
seems
it
that
Fig 3 List Y created by executing the above
expression
18
Allocation and Deallocation
  • Cells no longer in use have to be deallocated
  • to avoid the problems of memory shortage
  • A standard technique is to link the cells on a
    list called a free list
  • A free list acts as a stack of cells on which the
  • standard PUSH and POP operations are
    performed
  • A language implementation performs the garbage
    collection when it returns cells to the
  • free list

19
Approaches to Deallocation of cells
  • 1. Lazy approach
  • Deallocation starts only after all the memory
  • is exhausted, after which all the dead cells
    are
  • collected.
  • This method is time consuming
  • Possibility of interrupting the ongoing
  • processing

20
  • 2. Eager approach
  • Deallocating is done by checking a cell
  • for any future requirement in an operation
  • The cell is then placed on the free list to be
    freshly
  • allocated on a POP operation
  • Standard technique is to reserve some space
  • in each cell for a reference count of the
    number
  • of pointers to the cell.

21
Implementation of garbage collection
  • The Mark Sweep Approach
  • 1. Mark phase involves marking all the cells
    which
  • can be reached by following pointers.
  • 2. Sweep phase involves sweeping through the
    memory, looking for any unmarked cells.
  • 3. The sweeping phase starts at one end of the
  • memory and looks at every cell
  • 4. Once identified, all the unmarked cells are
    sent
  • to the free list for fresh allocation.

22
Equal? And Eq?
  • Equal? - value equality
  • eq? - pointer equality
