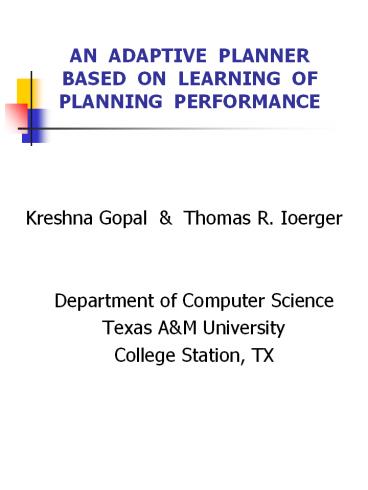

AN ADAPTIVE PLANNER BASED ON LEARNING OF PLANNING PERFORMANCE

1
AN ADAPTIVE PLANNER BASED ON LEARNING OF
PLANNING PERFORMANCE

• Kreshna Gopal Thomas R. Ioerger
• Department of Computer Science
• Texas AM University
• College Station, TX

2
APPROACHES TO PLANNING

• Planning as Problem Solving
• Situation Calculus Planning
• STRIPS
• Partial Order Planning
• Hierarchical Planning
• Enhance Language Expressiveness
• Planning with Constraints
• Special Purpose Planning
• Reactive Planning
• Plan Execution and Monitoring
• Distributed, Continual Planning
• Planning Graphs
• Planning as Satisfiability
• Machine Learning Methods for Planning

3
MACHINE LEARNING METHODS FOR PLANNING

• Learning Macro-operators
• Learning Bugs and Repairs
• Explanation-Based Learning
• Reinforcement Learning
• Case-Based Planning
• Plan Reuse

4
PLAN REUSE ISSUES

• Plan storage indexing
• Plan retrieval - matching new problem with solved
  ones
• Plan modification - to suit requirements of new
  problem
• Nebel Koehler
• Plan matching is NP-hard
• Plan modification is worse than plan generation
• Motivations of proposed method
• Avoid plan modification
• Very efficient matching using a neural network

5
COMPONENTS OF PROPOSED PLANNING SYSTEM

• Default Planner
• Plan Library (I Initial State, G Goal State, P
  Solution Plan)
• I1 G1 P1
• I2 G2 P2
• .
• .
• .
• In Gn Pn
• Training predict default planners performance
  using a neural network

6
SCHEME OF REUSE

• New problem ltInew,Gnewgt
• Retrieved plan ltIk,Gk,Pkgt
• Pnew
• Inew Gnew
• PI PG
• Ik Gk
• Pk
• Proposed approach use default planner to
  generate PI and PG (instead of Pnew) and return
  concatenation of PI , Pk and PG as solution

7
DISTANCE AND GAIN METRICS

• Distance(I,G)
• Time default planner will take to solve ltI,Ggt
• Gain(Inew,Gnew,Ik,Gk)
• Distance(Inew,Gnew)
• Distance(Inew,Ik) Distance(Gk,Gnew)
• Choose case with maximum Gain
• There should be a minimum Distance and a minimum
  Gain for reuse

8
THE TRAINING PHASE

• Target function
• Time prediction, t
• Training experience
• Solved examples, D
• Target function representation
• n
• t ? wifi (n features, f0 1)
• i 0
• Learning algorithm
• Gradient descent minimizes error, E, of weight
  vector w
• E(w) ½ ? (td - od)2
• d ? D

9
GRADIENT DESCENT ALGORITHM

• Inputs 1. Training examples, where each example
  is a pair ltx,tgt, where x is the
  input vector and t is target output
  value.
• 2. Learning rate, ?
• 3. Number of iterations, m
• Initialize each wi to some small random value
• repeat m times
• Initialize each ?wi to 0
• for each training example ltx,tgt do
• Find the output o of the unit on input x
• for each linear unit weight wi do
• ?wi ?wi ?(t - o)xi
• for each linear unit weight wi do
• wi wi ?wi

10
FEATURE EXTRACTION

• Feature extraction by domain experts
• Knowledge-acquisition bottleneck
• Automatic feature extraction methods can be used
• Domain dependence domain knowledge is crucial
  for efficient planning systems

11
PLAN RETRIEVAL AND REUSE ALGORITHM

• Inputs LIBRARY, w, MinGain, MinTime and a new
  problem ltInew, Gnewgt
• if Distance(Inew, Gnew) lt MinTime
• then Call default planner to solve ltInew, Gnewgt
• else
• MaxGain -? / MaxGain records
  the maximum Gain so far /
• for k 1 to n do / There are n
  cases in LIBRARY /
• kth case ltIk, Gk, Pkgt
• Gain Distance(Inew, Gnew)
  /Distance(Inew, Ik)
• Distance(Gk, Gnew)
• if Gain gt MaxGain then
• MaxGain Gain
• b k / b is the index
  of the best case found so far /
• if MaxGain gt MinGain
• then

12
EMPIRICAL EVALUATION

• Default planner STRIPS (Shorts Dickens)
• Learning perceptron
• Blocks-world domain (3-7 blocks)
• Plan library (100 - 1000 cases)
• Common LISP, SPARCStation

13
EXAMPLE OF REUSE SUSSMAN ANOMALY PROBLEM

• Inew Gnew
• PI,K PG,k
• PK
• Ik Gk
• PK MOVE-BLOCK-TO-TABLE(Blue,Red),
• MOVE-BLOCK-FROM-TABLE(Red,Blue)
• PI,K MOVE-BLOCK-TO-BLOCK(Blue,Yellow,Red)
• PG,K MOVE-BLOCK-FROM-TABLE(Yellow,Red)

14
BLOCKS-WORLD DOMAIN

• BLOCKS A, B, C,
• PREDICATES
• ON(A,B) block A is on block B
• ON-TABLE(B) block B is on table
• CLEAR(A) block A is clear
• OPERATORS
• MOVE-BLOCK-TO-BLOCK(A,B,C)
• Move A from top of B to top of C
• MOVE-BLOCK-TO-TABLE(A,B)
• Move A from top of B to table
• MOVE-BLOCK-FROM-TABLE(A,B)
• Move A from table to top of B

15
FEATURES

• Domain-independent features
• Size of problem
• SIZE
• Number of conditions in goal state already
  satisfied in initial state
• SAT-CLEAR, SAT-ON, SAT-ON-TABLE
• Number of conditions in goal state not satisfied
  in initial state
• UNSAT-CLEAR, UNSAT-ON,
• UNSAT-ON-TABLE
• Domain-dependent features
• Number of stacks in the initial and goal states
• STACK-INIT, STACK-GOAL
• Number of blocks already in place i.e. they need
  not be moved to reach goal configuration
• IN-PLACE
• Heuristic function which guesses the number of
  planning steps
• STEPS

16
CONCLUSIONS

• Plan modification is avoided
• Problem matching is done very efficiently
• The planning system is domain-independent
• Other target functions (like quality of plans)
  can be learned and predicted
• Utility problem
• Indexing the library
• Selective storage
• Integrate with other techniques
