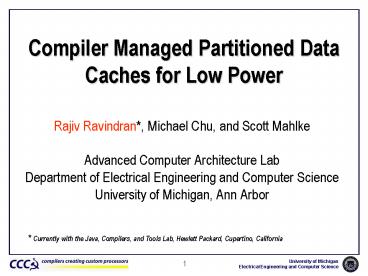

Compiler Managed Partitioned Data Caches for Low Power

1
Compiler Managed Partitioned Data Caches for Low
Power

• Rajiv Ravindran, Michael Chu, and Scott Mahlke
• Advanced Computer Architecture Lab
• Department of Electrical Engineering and Computer
  Science
• University of Michigan, Ann Arbor

Currently with the Java, Compilers, and Tools
Lab, Hewlett Packard, Cupertino, California
2
Introduction Memory Power

• On-chip memories are a major contributor to
  system energy
• Data caches ? 16 in StrongARM Unsal et. al,
  01

Hardware
Software
Banking, dynamic voltage/frequency, scaling,
dynamic resizing Transparent to the user
Handle arbitrary instr/data accesses Limited
program information Reactive
Software controlled scratch-pad, data/code
reorganization Whole program information
Proactive No dynamic adaptability
Conservative
3
Reducing Data Memory PowerCompiler Managed,
Hardware Assisted
Hardware
Software
Banking, dynamic voltage/frequency, scaling,
dynamic resizing Transparent to the user
Handle arbitrary instr/data accesses ? Limited
program information ? Reactive
Software controlled scratch-pad, data/code
reorganization Whole program information
Proactive ? No dynamic adaptability ?
Conservative
4
Data Caches Tradeoffs
Advantages
Disadvantages

• Capture spatial/temporal locality
• Transparent to the programmer
• General than software scratch-pads
• Efficient lookups

• Fixed replacement policy
• Set index? no program locality
• Set-associativity has high overhead
• Activate multiple data/tag-array
• per access

5
Traditional Cache Architecture
tag
set
offset
tag
data
lru
tag
data
lru
tag
data
lru
tag
data
lru
Replace
?
?
?
?
41 mux

• Lookup ? Activate all ways on every
  access
• Replacement ? Choose among all the ways

6
Partitioned Cache Architecture
Ld/St Reg Addr k-bitvector
R/U
tag
set
offset
tag
data
lru
tag
data
lru
tag
data
lru
tag
data
lru
P0
P3
P2
P1
Replace
?
?
?
?
41 mux

• Advantages
• Improve performance by controlling replacement
• Reduce cache access power by restricting number
  of accesses

• Lookup ? Restricted to partitions
  specified in bit-vector if R, else default to
  all partitions
• Replacement ? Restricted to partitions specified
  in bit-vector

7
Partitioned Caches Example
for (i 0 i lt N1 i) for (j 0 j lt
N2 j) yi j w1 xi j
for (k 0 k lt N3 k) yi k w2
xi k
ld1/st1
ld3
ld5
ld2/st2
ld4
ld6
way-0
way-2
way-1
tag
data
tag
data
tag
data
ld1 100, R ld5 010, R ld3 001, R
ld1, st1, ld2, st2
ld5, ld6
ld3, ld4
y
w1/w2
x

• Reduce number of tag checks per iteration from
  12 to 4 !

8
Compiler Controlled Data Partitioning

• Goal Place loads/stores into cache partitions
• Analyze applications memory characteristics
• Cache requirements ? Number of partitions per
  ld/st
• Predict conflicts
• Place loads/stores to different partitions
• Satisfies its caching needs
• Avoid conflicts, overlap if possible

9
Cache Analysis Estimating Number of Partitions

• Minimal partitions to avoid conflict/capacity
  misses
• Probabilistic hit-rate estimate
• Use the working-set to compute number of
  partitions

j-loop
k-loop
X W1 Y Y X W1 Y Y X W2 Y
Y X W2 Y Y
B1
B1
B1
B1
M
M
M
M

• M has working-set size 1

10
Cache AnalysisEstimating Number Of Partitions

• Avoid conflict/capacity misses for an
  instruction
• Estimates hit-rate based on
• Reuse-distance (D), total number of cache blocks
  (B), associativity (A)

(Brehob et. al., 99)
D 2
D 0
D 1
1
2
3
4
1
2
3
4
1
2
3
4
.76
.98
1
1
8
.87
1
1
1
1
1
1
1
8
8
16
16
16
24
24
24
32
32
32

• Compute energy matrices in reality
• Pick most energy efficient configuration per
  instruction

11
Cache Analysis Computing Interferences

• Avoid conflicts among temporally co-located
  references
• Model conflicts using interference graph

X W1 Y Y X W1 Y Y X W2 Y
Y X W2 Y Y
M4 M2 M1 M1 M4 M2 M1 M1
M4 M3 M1 M1 M4 M3 M1 M1
M4 D 1
M2 D 1
M1 D 1
M3 D 1
12
Partition Assignment

• Placement phase can overlap references
• Compute combined working-set
• Use graph-theoretic notion of a clique
• For each clique, new D ? S D of each node
• Combined D for all overlaps ? Max (All cliques)

M4 D 1
Clique 1
M2 D 1
M1 D 1
Clique 1 M1, M2, M4 ? New reuse distance (D)
3 Clique 2 M1, M3, M4 ? New reuse distance (D)
3 Combined reuse distance ? Max(3, 3) 3
M3 D 1
Clique 2
13
Experimental Setup

• Trimaran compiler and simulator infrastructure
• ARM9 processor model
• Cache configurations
• 1-Kb to 32-Kb
• 32-byte block size
• 2, 4, 8 partitions vs. 2, 4, 8-way
  set-associative cache
• Mediabench suite
• CACTI for cache energy modeling

14
Reduction in Tag Data-Array Checks
8
8-part
4-part
2-part
7
6
5
Average way accesses
4
3
2
1
0
1-K
2-K
4-K
8-K
16-K
32-K
Average
Cache size

• 36 reduction on a 8-partition cache

15
Improvement in Fetch Energy
16-Kb cache
60
2-part vs 2-way
4-part vs 4-way
8-part vs 8-way
50
40
30
Percentage energy improvement
20
10
0
epic
cjpeg
djpeg
unepic
Average
pegwitenc
pegwitdec
rawcaudio
rawdaudio
mpeg2dec
mpeg2enc
pgpencode
pgpdecode
gsmencode
gsmdecode
g721encode
g721decode
16
Summary

• Maintain the advantages of a hardware-cache
• Expose placement and lookup decisions to the
  compiler
• Avoid conflicts, eliminate redundancies
• 24 energy savings for 4-Kb with 4-partitions
• Extensions
• Hybrid scratch-pad and caches
• Disable selected tags ? convert them to
  scratch-pads
• 35 additional savings in 4-Kb cache with 1
  partition as SP

17
Thank You Questions
18
Cache Analysis Step 1 Instruction Fusioning

• Combine ld/st that accesses the same set of
  objects
• Avoids coherence and duplication
• Points-to analysis

for (i 0 i lt N1 i) for (j 0 j lt
readInput1() j) yi j w1 xi
j for (k 0 k lt readInput2() k)
yi k w2 xi k
ld1/st1
ld3
ld5
M1
M2
ld2/st2
ld4
ld6
19
Partition Assignment

• Greedily place instructions based on its cache
  estimates
• Overlap instructions if required
• Compute number of partitions for overlapped
  instructions
• Enumerate cliques within interference graph
• Compute combined working-set of all cliques
• Assign the R/U bit to control lookup

M4 D 1
Clique 1
M2 D 1
M1 D 1
M3 D 1
Clique 2
20
Related Work

• Direct addressed, cool caches Unsal 01,
  Asanovic 01
• Tags maintained in registers that are addressed
  within loads/stores
• Split temporal/spatial cache Rivers 96
• Hardware managed, two partitions
• Column partitioning Devdas 00
• Individual ways can be configured as a
  scratch-pad
• No load/store based partitioning
• Region based caching Tyson 02
• Heap, stack, globals
• More finer grained control and management
• Pseudo set-associative caches Calder 96,Inou
  99,Albonesi 99
• Reduce tag check power
• Compromises on cycle time
• Orthogonal to our technique

21
Code Size Overhead
Annotated LD/STs
Extra MOV instructions
15
16
12
10
8
6
Percentage instructions
4
2
0
epic
cjpeg
djpeg
unepic
Average
pegwitenc
pegwitdec
rawcaudio
rawdaudio
mpeg2dec
mpeg2enc
pgpencode
pgpdecode
gsmencode
gsmdecode
g721encode
g721decode
