Characterizing Unstructured Overlay Topologies in Modern P2P FileSharing Systems

1

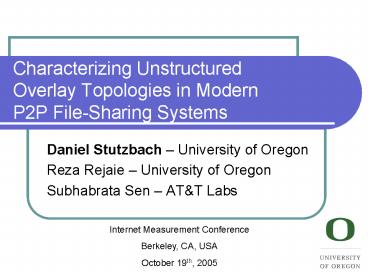

Characterizing UnstructuredOverlay Topologies in
Modern P2P File-Sharing Systems

• Daniel Stutzbach University of Oregon
• Reza Rejaie University of Oregon
• Subhabrata Sen ATT Labs

Internet Measurement Conference Berkeley, CA,
USA October 19th, 2005
2
Motivation

• P2P file-sharing systems are very popular in
  practice.
• Several million simultaneous users collectively.
• 60 of all Internet traffic CacheLogic Research
  2005
• Most use an unstructured overlay
• Understanding overlay properties is important
• Understanding how existing P2P systems function
• Developing and evaluating new systems
• Unstructured overlays are not well-understood.
• We studied overlay properties in Gnutella.
• Size one of the largest P2P systems more than 1
  million users
• Mature In use for several years older studies
  for comparisons
• Open No reverse-engineering needed

3
Defining the Problem
Ultrapeer
Top-level overlay

• Gnutella uses a two-tier overlay.
• Improves scalability.
• Ultrapeers form an unstructured mesh.
• Leaf peers connect to the ultrapeers.
• eDonkey, FastTrack are similar.
• Studying the overlay requires snapshots.
• Snapshots capture the overlay as a graph.
• Individual snapshots reveal graph properties.
• Consecutive snapshots reveal dynamics.
• However, capturing accurate snapshots is
  difficult.

Leaf
4
Challenges in Capturing Accurate Snapshots

• Snapshots are captured iteratively by a crawler.
• An ideal snapshot is instantaneous.
• But the overlay is large and rapidly changing.
• Therefore, captured snapshots are distorted.
• Sampling
• Partial snapshots are less distorted, but may be
  unrepresentative
• For some types of analysis, the whole graph is
  needed.
• Previous studies capture either
• Complete snapshots slowly, or
• Partial snapshots.

5
Cruiser a Fast Gnutella Crawler

• Features
• Distributed, highly parallelized implementation
• Dynamic adaptation to bandwidth and CPU
  constraints
• Cruiser is orders of magnitude faster.
• Captures one million nodes in around 7 minutes
• 140,000 peers/min, compared to 2,500 peers/min
  Saroiu 02
• We investigated the effects of speed on
  distortion.
• Daniel Stutzbach and Reza Rejaie, Capturing
  Accurate Snapshots of the Gnutella Network, the
  Global Internet Symposium, March, 2005.
• 4 node distortion
• 15 edge distortion

6
Data Set

• More than 80,000 snapshots, over the past year.
• To examine static properties, we focus on four
• To examine dynamic properties, we use slices
• Each slice is 2 days of 500 back-to-back
  snapshots
• Captured starting 10/14/04, 10/21/04, 11/25/04,
  12/21/04, and 12/27/04

7
Summary of Characterizations

• Graph Properties
• Implementation heterogeneity
• Degree Distribution
• Top-level degree distribution
• Ultrapeer-leaf connectivity
• Degree-distance correlation
• Reachability
• Path lengths
• Eccentricity
• Small world properties
• Resiliency

• Dynamic Properties
• Existence of stable core
• Uptime distribution
• Biased connectivity
• Properties of stable core
• Largest connected component
• Path lengths
• Clustering coefficient

8
Top-level Degree
Max 30 in most clients
Max 75 in some clients
Custom

• This is the degree distribution among ultrapeers.
• There are obvious peaks at 30 and 70 neighbors.
• A substantial number of ultrapeers have fewer
  than 30.
• What happened to the power-law seen in prior
  studies?

9
What happened to power-law?
Ripeanu 02 ICJ

• When a crawl is slow, many short-lived peers
  report long-lived peers as neighbors.
• However, those neighbors are not all present at
  the same time.
• Degree distribution from a slow crawl resembles
  prior results.

10
Shortest-Path Distances

• Distribution of distances among ultrapeers and
  among all peers
• In the top-level, 70 of distances are exactly 4
  hops.
• Across all peers, most distances are 5 or 6 hops.
• Shows the effect of the two-tier with multiple
  parents
• Despite large size, distances are short.

11
Is Gnutella a Small World?

• Small worlds arise naturally in many places.
• Movies actors, power grid, co-authors of papers
• They have short distances, but significant
  clustering, compared to a similar random graph.
• Conclusion Gnutella is a small world.
• Very high clustering adversely affects flooding
  queries
• But Gnutella isnt clustered enough to affect
  performance.

12
Clustering coefficient
of edges between neighbors of node i
the maximum possible edges between neighbors of
node i
13
Resiliency to Node Failure

• After removing nodes, this figure shows how many
  remain connected.
• The Gnutella topology is extremely resilient to
  random node failure.
• Its resilient even when the highest-degree nodes
  are removed first.
• Complex algorithms are not necessary for ensuring
  resilience.

14
What about Dynamic Properties?

• Connections (i.e., edges) are constantly
  changing.
• Dynamics of Neighbor Selection due to protocol
• Dynamics of Peer Participation due to user
• Investigation
• whether a subset of participating peers form a
  relatively stable core for the overlay
• what properties (such as size, diameter, degree
  of connectivity, and clustering) this stable core
  exhibits
• what underlying factors contribute to the
  formation and properties of such a stable core

15
What about Dynamic Properties?

• Prior work suggests many peers are short-lived
  while others are very long-lived. How do these
  nodes interact?
• Methodology
• Capture a long series of back-to-back snapshots
• Annotate the last snapshot with the uptime of
  each peer
• Examine the properties of the annotated topology
• Group peers by uptime

Present for 5 snapshots
Present for 2 snapshots
Departed peer
Newly arrived peer
Time
16
Stable Core
gt 20 h

• Most peers are recent arrivals.
• Other peers have been around for a long time.
• We can select a set of peers based on a minimum
  uptime threshold.
• We call this the stable core.
• Does the longevity of a peer affect who its
  neighbors are?

gt 10 h
17
Biased Connectivity

• Hypothesis long-lived nodes tend to be more
  connected to other long-lived nodes
• Rationale Once connected, they stay connected.
• The longer theyre around, the more opportunities
  they have to neighbor.
• Verification Approach Check for biased
  connectivity
• Randomize the edges to create a graph without
  biased connectivity
• compare
• Are there more edges in the observed stable core
  compared to random?

18
Comparing Randomized with SC
Randomized version
SC version
19
Stable Core Edges

• 2040 more edges in the stable core compared
  to random.
• There is an onion-like bias where long-lived
  peers are more likely to be connected to other
  long-lived peers.
• Peers within the core do not depend on peers
  outside the core for reachability
• Despite high churn, there is a relatively stable
  backbone

20
Summary

• Characterizations of recent and accurate
  snapshots
• Graph properties
• The degree distribution in Gnutella is not power
  law.
• Gnutella exhibits small world characteristics.
• Gnutella is resilient.
• Dynamic properties
• There is a stable core within the topology
• Peer churn causes the stable core to have an
  onion-like shape.
• This effect is likely to occur in any
  unstructured system.

21
Future Work

• Examining long-term trends in Gnutella using many
  snapshots.
• Characterizing churn
• Characterizing properties of other
  widely-deployed P2P systems
• Kad (a DHT with more than 1 million users)
• BitTorrent
• Developing sampling techniques for P2P

22
Ultrapeer-gtLeaf Degree
LimeWire
BearShare
Other
Custom

• LimeWire ultrapeers have a limit of 30 leaf
  peers.
• BearShare ultrapeers have a limit of 45 leaf
  peers.
• There are distinct spikes at those points, with
  an even distribution of fewer leaf peers.
