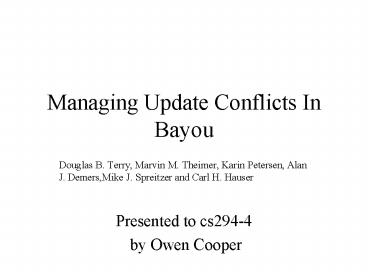

Managing Update Conflicts In Bayou

1
Managing Update Conflicts In Bayou

• Douglas B. Terry, Marvin M. Theimer, Karin
  Petersen, Alan J. Demers,Mike J. Spreitzer and
  Carl H. Hauser
• Presented to cs294-4
• by Owen Cooper

2
Bayous Goals

• Support distributed workgroup applications
• No continuous network connectivity
• Clients update the database while disconnected
• Clients synchronize with one another when
  convenient
• Allow the application to manage inconsistency
• Differentiate between stable and unstable data
• Allow applications to define conflicts
  resolutions
• Eventually provide a consistent view of writes

3
Sample Applications

• Book a room for a meeting
• Clients select a non-conflicting time backups
• At most one of these times will be official
• Bibliographic database
• Clients enter a name and body for the reference

4
System Model

• Data managed in replication objects
• Multiple servers keep copies of these objects
• Apply their own writes immediately
• Learn about other writes through interchange
• Writes contain conflict resolution detection
  information

5
Data Exchanges

• Data is exchanged via epidemic protocol
• Data data propagated between pairs of machines
• Data is transferred in order
• Easy to summarize the writes received

6
Conflicts Resolutions

• Updates at different replicas lead to conflicts
• What is a conflict?
• It depends on the application
• E.g. overlapping appointments for a scheduling
  app
• Key -gt value apps
• Assignment of the same key to different items
• Assignment of the same value to multiple keys
• Resolution also depends on the application
• Select from the backup list (for calendar)
• Assign a new key or merge values for
  bibliographic db

7
Conflict Aware Writes

• Writes include code
• To detect if they conflict with the db.
• Via queries and expected results
• Allows arbitrary validation of before state
• To merge the write in case validation fails
• Like conflict detection, can make arbitrary reads
  to perform the merge
• Must be deterministic
• Code is interpreted
• And in a library (to avoid copy/write)
• But may differ slightly (I.e. parameterized)
• Write actions atomic

8
Write Processing

• Writes are either tentative or committed
• Writes applied immediately
• Are stamped with an accept time and serverid
• Are applied tentatively
• Writes are ordered across servers
• By by committime, accepttime, serverid
• Tentative writes always after committed writes
• Tentative writes may be reordered
• Due to data obtained from other replicas
• When the tentative write is committed

9
Write Processing (2)

• Processing writes from an exchange
• Receive writes and identify time of first write
• Rollback local database
• Apply writes to write log (time-ordered merge)
• Roll forward

10
Write Processing (3)

• To achieve consistency
• Write logs need to contain the same writes
• Results equal for same starting state, write
• Conflict detection, merge procedures
  deterministic

11
Write Stability

• Write position will no longer change
• Two ways to achieve it
• clocks for all servers gt write timestamp
• Designate a primary to fix the position
• Bayou adopts the latter approach

12
Storage

• Three components
• Ordered log of writes
• Undo log to rollback tentative writes
• Tuple store
• Implemented as a relational db
• Tracks multiple views of a tuple
• Commited or full
• Tuple store checkpoint
• Version vectors
• Track latest write received from each replica
• Track log truncation

13
Access Control

• Granted at the level of a replica
• Read and write privledges
• Done using public key encryption
• Relies on well-known signing authority
• Operations
• Grant privilege give user privilege on a replica
• Signed by central authority
• Delegate a user grants privilege to another
  user
• Signed by delegating user
• Revoke revoke privilege
• Signed by grantor

14
Access Control (2)

• Checks done at beginning of exchange
• Access is granted if valid certificate presented
• And it is not known to have been revoked
• Validation done twice for writes
• Once accepted by one exchange, it is propagated
• Check again at the primary

15
Performance (1)

• Experiment using bibliographic app
• 1550 record database

16
Performance (2)
17
Discussion
