Epidemic Protocols

1

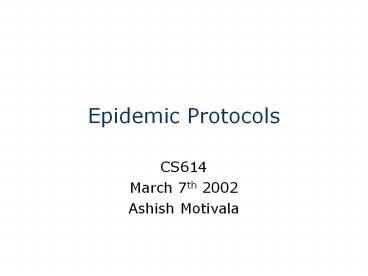

Epidemic Protocols

• CS614
• March 7th 2002
• Ashish Motivala

2
Papers

• Epidemic algorithms for replicated database
  maintenance Alan Demers, Dan Greene, Carl
  Hauser, Wes Irish and John Larson Proceedings of
  the Sixth Annual ACM Symposium on Principles of
  distributed computing , 1987
• Bimodal multicast Kenneth P. Birman, Mark
  Hayden, Oznur Ozkasap, Zhen Xiao, Mihai Budiu and
  Yaron Minsky ACM Trans. Comput. Syst. 17, 2
  (May. 1999)
• Managing update conflicts in Bayou, a weakly
  connected replicated storage system D. B. Terry,
  M. M. Theimer, Karin Petersen, A. J. Demers, M.
  J. Spreitzer and C. H. Hauser SOSP1995.
• Flexible update propagation for weakly consistent
  replication Karin Petersen, Mike J. Spreitzer,
  Douglas B. Terry, Marvin M. Theimer and Alan J.
  Demers SOSP, 1997,
• Fighting fire with fire using randomized gossip
  to combat stochastic scalability limits Indranil
  Gupta, Kenneth P. Birman, Robbert van Renesse To
  appear, March, 2002
• Dangers of Replication and a Solution Jim Gray,
  Pat Helland, Patrick ONeil, Dennis Sasha, SIGMOD
  1996 (ltlt Read in CS632)

3
Simple Epidemic

• Assume a fixed population of size n
• For simplicity, assume homogeneous spreading
• Simple epidemic any one can infect any one with
  equal probability
• Assume that k members are already infected
• infection occurs in rounds

4
Probability of Infection

• Probability Pinfect(k,n) that a particular
  uninfected member is infected in a round if k are
  already in a round if k are already infected?
• Pinfect(k,n) 1 P(nobody infects member)
• 1 (1 1/n)k
• E(newly infected members) (n-k)x Pinfect(k,n)
• Basically its a Binomial Distribution

5
2 Phases

• Intuition 2 Phases
• Infection
• Initial Growth Factor
• is very high about 2
• Exponential growth
• Uninfection
• Slow death of uninfection
• to start
• Exponential decline
• Number of rounds necessary to infect the entire
  population is O(log n)
• First Half 1 -gt n/2 Phase 1
• Second Half n/2 -gt n Phase 2
• For large n, Pinfect(n/2,n) 1 (1/e)0.5 0.4

6
Applications for Epidemic Protocols

• Reliable Multicast virtual synchrony, randomized
  rumour spreading.
• Systems (Database Replication) Clearinghouse,
  Grapevine, Bayou
• Membership and Failure Detection SWIM, SCAMP
• Data Aggregation
• Other distributed protocols leader election
  Lightweight Prob. broadcast delta reliability
  Li Li's work Kempe and Kleinberg's work
• Our focus today

7
Grapevine and Clearinghouse

• Weakly consistent replication was used at Xerox
  PARC
• Grapevine and Clearinghouse name services
• Updates are propagated by unreliable multicast
  (direct mail).
• Periodic anti-entropy exchanges among replicas
  ensure that they eventually converge, even if
  updates are lost.
• Arbitrary pairs of replicas periodically
  establish contact and resolve all differences
  between their databases.
• Various mechanisms (e.g., MD5 digests and update
  logs) reduce the volume of data exchanged in the
  common case.
• Deletions handled as a special case via death
  certificates recording the delete operation as
  an update.

8
Epidemic Algorithm Rumour Mongering

• Each replica periodically touches a selected
  susceptible peer site and infects it with
  updates.
• Transfer every update known to the carrier but
  not the victim in pull and vice versa in push.
  Rumours are dropped using counter or coins
  schemes.
• Partner selection is randomized using a variety
  of heuristics. Distance vs. Convergence Tradeoff.

• ie. If only neighbours are updated then link
  traffic is O(1) but convergence traffic is O(n).
• Sites connect to others at distance d with
  probability d-a
• Theory shows that the epidemic will eventually
  the entire population (assuming it is connected).
• Heuristics (push vs. pull) affect traffic load
  and the expected time-to-convergence. Pull
  converges faster than push.
• Pull pi1 (pi) 2
• Push pi1 pi/e where pi prob. of a site
  being susceptible after i rounds (cycles)

9
Recap.

• Two Reliable Multicast Models
• SRM
• Local repair of problems but no end-to-end
  guarantees
• Virtual synchrony model (Isis, Horus, Ensemble)
• All or nothing message delivery with ordering
• Membership managed on behalf of group
• State transfer to joining member
• Great performance for small systems. In large
  group sizes, under perturbations (heavy load,
  applications acting little flakey) performance is
  very hard to maintain.

10
Multicast scaling issue (SRM)
11
Multicast scaling issue (Ensemble)
12
Bimodal Multicast

• 2 Sub-protocols
• Unreliable data distribution (IP multicast)
• Upon arrival, a message enters the receivers
  message buffer.
• Messages are delivered to the application layer
  in FIFO order, and are garbage collected out of
  the message buffer after some period of time.
• The second sub-protocol is used to repair gaps in
  the message delivery record
• processes maintain a list of a random subset of
  the full system membership. In practice, we
  weight this list to contain primarily processes
  from close by processes accessible over
  low-latency links.

13
Start by using unreliable multicast to rapidly
distribute the message. But some messages may not
get through, and some processes may be faulty.
So initial state involves partial distribution of
multicast(s)
14
Periodically (e.g. every 100ms) each process
sends a digest describing its state to some
randomly selected group member. The digest
identifies messages. It doesnt include them.
15
Recipient checks the gossip digest against its
own history and solicits a copy of any missing
message from the process that sent the gossip
16
Processes respond to solicitations received
during a round of gossip by retransmitting the
requested message. The round lasts much longer
than a typical RPC time.
17
Optimizations

• Request retransmissions most recent multicast
  first
• Idea is to catch up quickly leaving at most one
  gap in the retrieved sequence
• Participants bound the amount of data they will
  retransmit during any given round of gossip. If
  too much is solicited they ignore the excess
  requests

18
Optimizations

• Label each gossip message with senders gossip
  round number
• Ignore solicitations that have expired round
  number, reasoning that they arrived very late
  hence are probably no longer correct
• Dont retransmit same message twice in a row to
  any given destination (the copy may still be in
  transit hence request may be redundant)

19
Optimizations

• Use IP multicast when retransmitting a message if
  several processes lack a copy
• For example, if solicited twice
• Also, if a retransmission is received from far
  away
• Tradeoff excess messages versus low latency
• Use regional TTL to restrict multicast scope

20
Bimodal Multicast and SRM with system wide
constant noise, tree topology
Repair requests (per sec)
21
(No Transcript)
22
Two predicates

• Predicate I A faulty outcome is one where more
  than 10 but less than 90 of the processes get
  the multicast.
• Predicate II A faulty outcome is one where
  roughly half get the multicast and failures might
  conceal true outcome

23
Bimodal Multicast is amenable to formal analysis
24
Unlimited scalability!

• Probabilistic gossip routes around congestion
• And probabilistic reliability model lets the
  system move on if a computer lags behind
• Results in
• Constant communication costs
• Constant loads on links
• Steady behavior even under stress

25
Good things?

• Overcome Internet limitations using randomized
  P2P gossip
• However, Internet routing can defeat our clever
  solutions unless we know network topology
• Both have great scalability and can survive under
  stress
• And both are backed by formal models as well as
  real code and experimental data

26
Further Work
27
Research Locations

• Cornell Spinglass
• http//www.cs.cornell.edu/Info/Projects/Spinglass
  /index.html
• SWIM http//www.cs.cornell.edu/gupta/swim
• MSR Cambridge (Kermarrec) http//research.microso
  ft.com/camdis/gossip.htm
• EPFL (Guerraoui) http//lpdwww.epfl.ch/publicatio
  ns

28
Bayou Basics

• The motivation for Bayou comes from observations
  of mobile computing.
• Connections are expensive, frequent, and often
  intermittent.
• Collaborating agents are likely to be guaranteed
  simultaneous connections.
• Bayou accommodates these applications by helping
  them manage weakly consistent data. Bayou does
  not attempt to be transparent.

29
Bayou Basics (cont.)

• Applications should use specific knowledge of
  their data, along with the knowledge that data
  may be stale, to detect and resolve conflicts.
• Applications detect and resolve conflicts
  differently
• Bayou allows for arbitrary dependencies,
  constraints, and detection of write/write and
  read/write conflicts.
• Programs resolve conflicts with each write.
  Resolution may involve cascading back-outs.
• Procedures must be deterministic so that they may
  be replayed on multiple machines.
• A write is considered tentative until committed
  at the primary server.
• A global ordering is used by the primary server
  to dictate which of several conflicting writes
  wins.
• A modification is stable once it reaches the
  primary server.
• Primary servers have authority, a tradeoff that
  allows data to become stable w/o hearing
  responses from all clients and servers.

30
Implementation

• Two applications are studied, a bibliographic
  database and a meeting room scheduler.
• Anti-entropy A client may connect to any server
  for reading and writing data.
• Servers replicate all data, and synchronize using
  pair-wise communication.
• Anti-entropy insures eventual consistency of the
  database (they "gossip"). A primary server is the
  authoritative source of consistency.
• Implementation each server logs committed and
  tentative data. Anti-entropy sessions update
  these logs accordingly.
• Access control and security security is achieved
  with public key cryptography, access control by
  allowing users to grant and revoke privileges.
  Primary servers are responsible for managing
  revocation lists.
