Data Streams

1

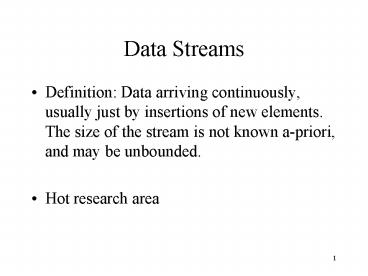

Data Streams

• Definition Data arriving continuously, usually
  just by insertions of new elements. The size of
  the stream is not known a-priori, and may be
  unbounded.
• Hot research area

2
Data Streams

• Applications
• Phone call records in ATT
• Network Monitoring
• Financial Applications (Stock Quotes)
• Web Applications (Data Clicks)
• Sensor Networks

3
Continuous Queries

• Mainly used in data stream environments
• Defined once, and run until user terminates them
• Example Give me the names of the stocks who
  increased their value by at least 5 over the
  last hour

4
What is the Problem (1)?

• Q is a selection then size(A) may be unbounded.
  Thus, we cannot guarantee we can store it.

5
What is the Problem (2)?

• Q is a self-join If we want to provide only NEW
  results, then we need unlimited storage to
  guarantee no duplicates exist in result

6
What is the Problem (3)?

• Q contains aggregation then tuples in A might be
  deleted by new observed tuples.
• Ex Select A, sum(B)
• From Stream X What if B lt 0 ?
• Group by A
• Having sum(B) gt 100

7
What is the Problem (4)?

• What if we can delete tuples in the Stream?
• What if Q contains a blocking operator near the
  top (example aggregation)?
• Online Aggregation Techniques useful

8
Global Architecture
9
Related Areas

• Data Approximation limits size of scratch, store
• Grouping Continuous Queries submitted over the
  same sources
• Adaptive Query Processing (data sources may be
  providing elements with varying rates)
• Partial Results Give partial results to the user
  (the query may run forever)
• Data Mining Can the algorithms be modified to
  use one scan of the data and still provide good
  results?

10
Initial Approaches (1)

• Typical Approach Limit expressiveness of query
  language to limit size of Store, Scratch
• Alert (1991)
• Triggers on Append-Only (Active) Tables
• Event-condition-action triggers
• Event Cursor on Active Table
• Condition From and Where Clause of Rule
• Action Select Clause of Rule (typically called a
  function)
• Triggers were expressed as continuous queries
• User was responsible for monitoring the size of
  tables

11
Initial Approaches (2)

• Tapestry (1992)
• Introduced Notion of Continuous Queries
• Used subset of SQL (TQL)
• Query Q was converted to the Minimum Monotone
  Bounding Query QM(t) Union QM(t) , for all t lt
  t
• Then QM was converted to an Incremental query QI.
• Problems
• Duplicate tuples were returned
• Aggregation Queries were not supported
• No Outer-Joins allowed

12
Initial Approaches (3)

• Chronicle Data Model (1995)
• Data Streams referred as Chronicles (append-only)
• Assumptions
• A new tuple is not joined with previously seen
  tuples.
• At most a constant number of tuples from a
  relation R can join with Chronicle C.
• Achievement Incremental maintenance of views in
  time independent of the Chronicle size

13
Materialized Views

• Work on Self-Maintenance important to limit size
  of Scratch. If a view can be self-maintainable,
  any auxiliary storage much occupy bounded space
• Work on Data Expiration important for knowing
  when to move elements from Scratch to Throw.

14
Data Approximation

• Area most working is being done nowadays
• Problem We cannot have O(N) space/time cost per
  element to solve a problem, but want solutions
  close to O(poly(logN)).
• Sampling
• Histograms
• Wavelets
• Sketching Techniques

15
Sampling

• Easiest one to implement, use
• Reservoir Sampling dominant algorithm
• Used for any problem (but with serious
  limitations, especially in cases of joins)
• Stratified Sampling (sampling data at different
  rates)
• Reduce variance in data
• Reduce error in Group-By Queries.

16
Histograms

• V-Optimal
• Gilbert et al. removed sorted restriction
  time/space using sketches in O(poly(B,logN,1/e)
• Equi-Width
• Compute quantiles in O(1/e logeN) space and
  precision of eN.
• Correlated Aggregates
• AGG-DY Predicate(X, AGG-I(X))
• AGG-D Count or Sum
• AGG-I Min, Max or Average
• Reallocate histogram based on arriving tuples,
  and the AGG-I (if we want min, and are storing
  min, min e in the histogram and receive new
  min, throw away previous histogram.

17
Wavelets

• Used for Signal Decomposition (good if measured
  aggregate follows a signal)
• Matias, Vitter Incremental Maintenance of top
  Wavelet coefficients
• Gilbert et al Point, Range Queries with wavelets

18
Sketching Techniques (1)

• Main idea If getting the exact value of a
  variable V requires O(n) time, then use
  approximation
• Define a random variable R with expected value
  equal to that of V, and small variance.
• Example (self-join)
• Select 4-wise independent variables ?i (i 1, ,
  dom(A))
• Define Z X2, X Sf(i)?(i) , f(i) frequency of
  i-th value
• Result is median of s2 variables Yj, where Yj is
  the average of s1 variables (boosting accuracy,
  confidence interval)

19
Sketching Techniques (2)

• Answer Complex Aggregate Queries
• Frequency moments Fk, where
• capture statistics of data
• mi the frequency of occurrence for value i
• F0 number of distinct values
• F1 number of total elements
• F2 Gini index (useful for self-joins)
• L1, L2 norms of a vector computes similarly to F2
• Quantiles (combination of histograms, sketches)

20
Grouping Continuous Queries

• Goal Group similar queries over data sources, to
  eliminate common processing needed and minimize
  response time and storage needed.
• Niagara (joint work of Wisconsin, Oregon)
• Tukwilla (Washington)
• Telegraph (Berkeley)

21
Niagara (1)

• Supports thousands of queries over XML sources.
• Features
• Incremental Grouping of Queries
• Supports queries evaluated when data sources
  change (change-based)
• Supports queries evaluated at specific intervals
  (timer-based)
• Timer-based queries are harder to group because
  of overlapping time intervals
• Change-based queries have better response times
  but waste more resources.

22
Niagara (2)

• Why Group Queries
• Share Computation
• Test multiple Fire actions together
• Group plans can be kept in memory more easily

23
Niagara - Key ideas

• Query Expression Signature
• Query Plan (generated by Niagara parser)

24
Group

• Group signature (common signature of all queries
  in a plan)
• Group Constant Table (signature constants of all
  the queries in the group, and destination
  buffers)
• Group plan the query plan shared by all queries
  in the group.

25
Incremental Grouping

• Create signature of new query. Place in lower
  parts of signature the most selective predicates.
• Insert new query in the Group which best matches
  its signature bottom-up
• If no match is found, create new group for this
  query
• Store any timer information, and the data sources
  needed for this query

26
Other Issues (1)

• Why write output to file, and not use
  pipelining?
• Pipelining would fire all actions, even if new
  needed to be fired
• Pipelining does not work in timer-based queries
  where results need to be buffered.
• Split operator may become a bottleneck if output
  is consumed in widely different rates
• Query plan too complex for the optimizer

27
Other Issues (2)

• Selection Operator above, or below Joins?
• Below only if selections are very selective
• Else, better to have one join
• Range queries?
• Like equality queries. Save lower, upper bound
• Output in one common sorted file to eliminate
  duplicates.

28
Tukwilla

• Adaptive Query Processing over autonomous data
  sources
• Periodically change query plan if output of
  operators is not satisfactory.
• At the end perform cleanup. Some calculated
  results may have to be thrown away.

29
Telegraph

• Adaptive Query Engine based on Eddy Concept
• Queries are over autonomous sources over the
  internet
• Environment is unpredictable and data rates may
  differ significantly during query execution.
  Therefore the query processing SHOULD be
  adaptive.
• Also can help produce partial results

30
Eddy

• Eddy Routes tuples to operators for processing,
  gets them back and routes them again

31
Eddy Knowing State of Tuples

• Passes Tuples by Reference to Operators (avoids
  copying)
• When Eddy does not have any more input tuples, it
  polls the sources for more input.
• Tuples need to be augmented with additional
  information
• Ready Bits Which operators need to be applied
• Done Bits Which operators have been applied
• Queries Completed Signals if tuple has been
  output or rejected by the query
• Completion Mask (per query) To know when a tuple
  can be output for a query (completion mask done
  bits mask)

32
Eddy Other Details

• Queries with no joins are partitioned per data
  source (to save space in the bits required)
• Queries with Disjunctions (ORs) are transformed
  into conjunctive normal form (and of ors).
• Range/exact predicates are found in Grouped filter

33
Joins - SteMs

• SteMs Multiway-Pipelined Joins
• Double- Pipelined Joins maintain a hash index on
  each relation.
• When N relations are joined, at least n-2
  inflight indices are needed for intermediate
  results even for left-deep trees.
• Previous approach cannot change query plan
  without re-computing intermediate indices.

34
SteMs - Functionality

• Keeps hash-table (or other index) on one data
  source
• Can have tuples inserted into it (passed from
  eddy)
• Can be probed. Intermediate tuples (results of
  join) are returned to eddy, with the appropriate
  bits set
• Tuples have sequence numbers. A tuple X can join
  only with tuples in stem M, if the indexed tuples
  have lower sequence numbers than X (arrived
  earlier).

35
Telegraph Routing

• How to route between operators?
• Route to operator with smaller queue
• Route to more selective operators (ticket scheme)

36
Partial Results - Telegraph

• Idea When tuple returns to eddy, the tuple may
  contribute to final result (fields may be missing
  because of joins not performed yet).
• Present tuple anyway. The missing fields will be
  filled later.
• Tuple is guaranteed to be in result if
  referential constraints exist (foreign keys). Not
  usual in web sources.
• Might be useful to the user to present tuples
  that do not have matching fields (like in outer
  join).

37
Partial Results - Telegraph

• Results presented in tabular representation
• User can
• Re-arrange columns
• Drill down (add columns) or roll-up (remove
  columns)
• Assume current area of focus is where user needs
  more tuples.
• Weight tuples based on
• Selected columns and their order
• Selected Values for some dimension
• Eddy sorts tuples according to their benefit in
  result and schedule them accordingly

38
Partial Results Other methods

• Online Aggregation Present current aggregate
  with error bounds, and continuously refine
  results
• Previous approaches involved changing some
  blocking operators to be able to get partial
  results
• Join (use symmetric hash-join)
• Nest
• Average
• Except

39
Data Mining (1)

• General problem Data mining techniques usually
  require
• Entire dataset to be present (in memory or in
  disk)
• Multiple passes of the data
• Too much time per data element

40
Data Mining (2)

• New algorithms should require
• Small constant time per record
• Use of a fixed amount of memory
• Use one scan of data
• Provide a useful model at all times
• Produce a model that would be close to the one
  produced by multiple passes over the same data if
  the dataset was available offline.
• Alter the model when generating phenomenon
  changes over time

41
Decision Trees

• Input A set of examples (x, v) where x is a
  vector of D attributes and v is a discrete class
  label
• Find at each node the best attribute to split.
• Hoeffding bounds are useful here
• Consider a variable r with range R
• N independent observations
• Computed average r differs by true average of r
  by at most e with probability 1-d, where

42
Hoeffding Tree

• At each node maintain counts for each attribute
  X, and each value Xi of X and each correct class
• Let G(Xi) be the heuristic measure to choose test
  attributes (for example, Gini index)
• Assume two attributes A,B with maximum G
• If G(A) G(B) gt e, then with probability 1-d, A
  is the correct attribute to split
• Memory needed O(dvc) (dimensions, values,
  classes)
• Can prove that produced tree is very close to
  optimal tree.

43
VFDT Tree

• Extension of Hoeffding tree
• Breaks ties more aggressively (if they delay
  splitting)
• Computes G after nmin tuples arrive (splits are
  not that often anyway)
• Remove least promising leaf nodes if a memory
  problem exists (they may be reactivated later)
• Drops attributes from consideration if at the
  beginning their G value is very small

44
CVFDT System

• Source producing examples may significantly
  change behavior.
• In some nodes of the tree, the current splitting
  attribute may not be the best anymore
• Expand alternate trees. Keep previous one, since
  at the beginning the alternate tree is small and
  will probably give worse results
• Periodically use a bunch of samples to evaluate
  qualities of trees.
• When alternate tree becomes better than the old
  one, remove the old one.
• CVFDT also has smaller memory requirements than
  VFDT over sliding window samples.

45
OLAP

• On-Line Analytic Processing
• Requires processing very large quantities of data
  to produce result
• Usually updates are done in batch, and sometimes
  when system is offline
• Organization of data extremely important (query
  response times, and mainly update times can vary
  by several orders of magnitude)

46
Terminology

• Dimension
• Measure
• Aggregate Function
• Hierarchy
• What is the CUBE operator
• All 2D possible views, if no hierarchies exist
• , if hierarchies
  exist

47
Cube Representations - MOLAP

• MOLAP Multi-dimensional array
• Good for dense cubes, as it does not store the
  attributes of each tuple
• Bad in sparse cubes (high-dimensional cubes)
• Needs no indexing if stored as is
• Typical methods save dense set of dimensions in
  MOLAP mode, and index remaining dimensions with
  other methods
• How to store? Chunk in blocks to speed up range
  queries

48
Cube Representations - ROLAP

• Store views in relations
• Needs to index produced relations, otherwise
  queries will be slow.
• Indexes slow down updates
• Issues If limited size is available, which views
  to store?
• Store fact table, and smaller views (ones who
  have performed most aggregation)
• Queries usually specify few dimensions
• These views are more expensive to compute
  on-the-fly

49
Research issues- ROLAP

• How to compute the CUBE
• Compute views from smaller parent
• Share sort orders
• Exhibit locality
• Can the size of the cube be limited?
• Prefix redundancy (Cube Forests)
• Suffix Redundancy (Dwarf)
• Approximation Techniques (Wavelets)

50
Research Issues - ROLAP

• How to speed up selected classes of Queries
  Range-Sum, CountDifferent structures for each
  case (Partial Sum, Dynamic Data Cube)
• How to best represent hierarchical data. Almost
  no research here.
