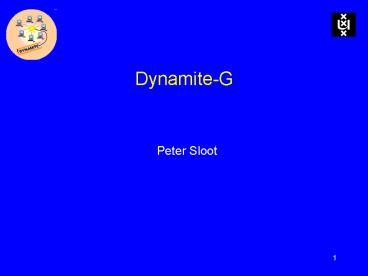

Dynamite-G

• Peter Sloot

2
Topics

• Load balancing by task migration in
  message-passing applications
• Checkpoint and restart mechanisms
• Migrating tasks
• Performance issues
• Current status

3
Why cluster and grid computing

• Clusters and grids increasingly interesting
• more workstations
• higher performance per workstation
• faster interconnecting networks
• price/performance competitive with MPP
• enormous unused capacity
• cyclic availability

4
Issues

• Clusters are inherently inhomogeneous
• intrinsic differences in performance, memory,
  bandwidth
• dynamically changing background load
• ownership of nodes
• Grids add
• differences in administration
• disjoint file systems
• security etc.

5
Goals of Dynamite

• Utilise unused cycles
• Support parallel applications (PVM-MPI)
• Respect ownership
• Dynamic load redistribution at task level
• Code level transparency
• User level implementation

6
Task allocation domains
Static task load
Dynamic task load
Static task allocation
Predictable reallocation
Dynamical reallocation
Static resource load
Dynamic resource load
7
Why migrate

• Performance of parallel program usuallydictated
  by slowest task
• Task resource requirements and available
  resources both vary dynamically
• Therefore, optimal task allocation changes
• Gain must exceed cost of migration
• Resources used by long-running programs may be
  reclaimed by owner

8
Checkpointing/restoring infrastructure

• User level
• Implemented in LINUX ELF dynamic loader V1.9.9
• can run arbitrary code before the application
  starts running
• wrapping function calls
• straightforward support for shared libraries
• only need to re-link with different loader
  (special option when linking)

9
Checkpointing

• Checkpointing
• signal received
• register/signal mask state saved using sigsetjmp
• process address space (text, data, heap, stack,
  shared libraries) dumped to a checkpoint file
• Checkpoint file is a standalone ELF executable

10
Restoring

• OS kernel loads text and data segments, invokes
  dynamic loader
• Dynamic loader
• recognises checkpoint file (special sections)
• restores heap, shared libraries and stack, jumps
  to signal handler (siglongjmp)
• Process returns from signal handler to
  application code

11
Handling kernel context

• Kernel context not automatically preserved
• open files, pipes, sockets, shared memory
• Open files important, call wrapping used (open,
  close, creat, ...)
• Shared file system a prerequisite
• Method allows shut-down of source node

12
Open files

• Relevant file operations are monitored
• primarily open, close, creat
• Obtain file-position before migration, close file
• Reopen and reposition file after migration
• no mirror or proxy needed on old host
• fcntl and ioctl calls are not monitored
• not much used and very complex
• incomplete functionality

13
Location independent addressing

• Standard PVM node identifier encoded in task
  identifier
• (e.g. t80001 task 1 running on node 8). Used
  when routing messages between tasks.
• Dynamite approach
• task identifier stays the same after migration
• routing tables maintained in all PVM daemons

14
Dynamite Initial State
Two PVM tasks communicating through a network of
daemons Migrate task 2 to node B
15
Prepare for Migration
Create new context for task 2 Tell PVM daemon B
to expect messages for task 2 Update routing
tables in daemons (first B, then A, later C)
16
Checkpointing
Node A
Node B
Newcontext
PVMD A
PVMD B
PVMtask 1
Node C
PVMD C
Program PVM Ckpt
Send checkpoint signal to task 2 Flush
connections Checkpoint task to disk
17
Restart Execution
Node A
Node B
NewPVM task 2
PVMD A
PVMD B
PVMtask 1
Node C
PVMD C
Restart checkpointed task 2 on node B Resume
communications Re-open re-position files
18
Connection flushing
SourcePVMD
Migrating task
Remote task
RemotePVMD
SIGURG
TC_MOVED
SIGUSR1
Time
TC_EOC
TC_EOC
TC_EOC
close()
EOF
TM_MIG
close()
Checkpoint
close()
19
Connection flushing

• all tasks are notified with SIGURG and TC_MOVED
  message
• migrating task M sends TC_EOC messages via all
  direct connections
• tasks reply to TC_EOC messages to M
• direct connections are closed
• source PVM daemon sends TC_EOC message to M
• migrating task M replies daemon with TM_MIG
• task-daemon connection is closed

20
Special considerations

• Critical sections
• signal blocking and unblocking
• Blocking calls
• modifications to low-level mxfer function
• Out-of-order fragments and messages
• message forwarding and sequencing
• Messages partially sent on migration
• if via direct connections, re-send entirely

21
Performance

• Migration speed largely dependent on the speed of
  shared file system
• and that depends mostly on the network
• NFS over 100 Mbps Ethernet
• 0.4 s lt Tmig lt 15 s for 2 MB lt sizeimg lt
  64 MB
• Communication speed reduced due to added overhead
• 25 for 1 byte direct messages
• 2 for 100 KB indirect messages

22
Migration (Linux)
23
Ping-pong experiment(Linux)
24
Migration decider
Configuration file
PVMD
Migration decider
Master monitor
25
Decider

• Cost of configuration derived from weighted sum
  of
• average CPU load
• average memory load
• migrations
• Use of maximum instead of average optional
• accounts for interdependence of tasks
• Branch and bound search
• Upper bound on search time

26
Three environments

• The progress of a test program
• Undisturbed (PVM)
• Disturbed and migrated (DPVMmigration)
• Disturbed but not migrated (DPVMload)

27
NAS CG Benchmark
28
3 tasks in a FE code
29
Status

• Checkpointer operational under
• Solaris 2.5.1 and higher (UltraSparc, 32 bit)
• Linux/i386 2.0 and 2.2 (libc5 and glibc 2.0)
• PVM 3.3.x applications supported, tested on
• Pam-Crash (ESI) - car crash simulations
• CEM3D (ESI) - electro-magnetics code
• Grail (UvA) - large, simple FEM code
• NAS parallel benchmarks

30
Dynamite The Grid

• Critical analysis of usefulness nowadays
• Popular computing platform Beowulf clusters
• Typical cluster management strategy space
  sharing
• Checkpointing multiple tasks or even the whole
  parallel application quite useful for fault
  tolerance or cross-cluster migration
• File access presents complex problems
• Dynamic resource requests to the grid

31
Road to Dynamite-G

• Study and solve issues for cross-cluster
  migration
• No shared file system
• Authentication
• Basic infrastructure stays the same, we only use
  some of the Grid services (remote file access,
  monitoring, scheduling)
• Full integration with Globus (job submission, job
  management, security)
• Globus is a moving target

32
Cross-cluster checkpointing
Node A
Node B
Helper task
PVMD A
PVMD B
PVMtask 1
Node C
PVMD C
Program PVM Ckpt
Send checkpoint signal to task 2 Flush
connections, close files Checkpoint task to disk
via helper task
33
Socket and File-based migration in a single
cluster
34
Nodes in two different clusters
35
Performance of socket migration

• Target file format retained
• Usually transfer to local disk (/tmp) most
  efficient
• For migration to local disk no network link is
  crossed more than once
• Performance depends on network speed, local disk
  speed and memory (cache) of target machine
• Performance compares well to original mechanism
  (checkpoint to file on file server)
• Consider mechanism as standard, also for
  in-cluster migration

36
Issues for file access

• Moving open files with tasks appears least
  complicated solution, but
• Tasks may open and close files required files
  unknowable at time of migration
• Task may share a file
• Files need to be returned after task completion
• Connect to proxy file server on source cluster
• Security issues
• Performance

37
Some other open issues

• Checkpointing and restarting entire programs
• Saving communication context
• Checkpoint-and-stay-alive
• Cross-cluster migration (target cluster known)
• Monitoring and scheduling
• Migration cost vs. performance gain
• Migrating tasks vs. migrating entire programs
• Grid
• When to start looking for a new cluster
• How best to use available mechanisms

38
Full integration with Globus

• Upgrade our checkpointer
• Existing Grid-enabled implementation of MPI,
  MPICH-G2, does not use "ch_p4" communication
  device, it uses its own "globus2"
• Start from scratch?
• Support most of the fancy features in MPICH-G2
  such as heterogeneity ?

39
Conclusions

• Migration of tasks allows
• optimal task allocation in dynamic environment
• freeing of nodes
• Dynamite addresses the problem of migrating tasks
  in parallel programs
• dynamically linked programs with open files
• direct and indirect PVM connections
• MPI expected in near future
• scheduler needs further work
• Slight performance penalties in communication and
  migration
• The road to Dynamite-G is long, but appears
  worthwhile

40
Collaborations

• UvA
• Kamil Iskra
• Dick van Albada
• ESI
• Jan Clinckemaillie, Henri Luzet
• Genias
• Ad Emmen

• Univ. Indonesia, Jakarta
• Chan Bassaruddin, Judhi Santoso
• IT Bandung
• Bobby Nazief, Oerip Santoso
• Univ. Mining Metallurgy, Krakow
• Marian Bubak, Darius Zbik
• Univ. Wisconsin
• Miron Livny
• State Univ. Mississipi
• Ioana Banicescu
