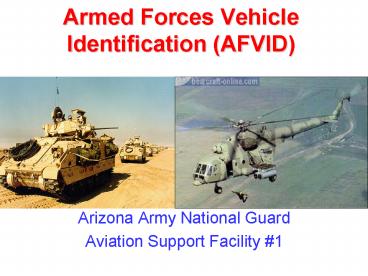

Armed Forces Vehicle Identification (AFVID)

1
Armed Forces Vehicle Identification (AFVID)

• Arizona Army National Guard
• Aviation Support Facility 1

2
AFVID

• FORMER SOVIET
• (RUSSIA)

3
New Threat Vehicles
KA-50 HOKUM (Russia)

• Anti Chopper/ Gunship Role
• 30mm Cannon
• 2 AA-11ARCHER AA Missiles
• 2 AT-16 ATGMS
• Counter-Rotating Main Rotors
• No Tail Rotor

4
New Threat Vehicles
Mi-28 HAVOK (Russia)

• Attack Role
• 12.7mm Chin Mounted Gun
• FFAR Pods
• AT-8 ATGMS
• Rodent Nose Cockpit
• Non-retractable Wheels

5
New Threat Vehicles
2S6 Tunguska (Russia)

• Newest ADA platform
• 4x 30mm Cannons
• 8x SA-19 SAMS
• Modified Track Veh. Chassis
• Looks similar to Gepard

6
New Threat Vehicles
BMP-T (Russia)

• Heavy IFV/APC
• 30mm Cannon
• 4x AT-6 ATGMS
• Modified T-55 Chassis
• ARENA System
• Based on Lessons Learned in Chechnya

7
New Threat Vehicles
T-90 (Russia)

• Newer Russian Tank
• 125mm Smooth Bore
• 12.7mm AA Gun
• SHTORA Counter-Measures
• Kontakt-5 ERA
• Full Length Track Skirts
• Lower Shilluoette

8
New Threat Vehicles
2S19 (Russia)

• Newer Russian SP Howitzer
• 152mm
• 12.7mm AA Gun
• 29, 000m Max Range
• 1500m Max Eff Range Direct Fire
• Modified T-72 Chassis
• Long Gun Tube With Muzzle Break

9
New Threat Vehicles
2S9 Nona (Russia)

• Newer Russian SP Mortar
• 120mm Breech-loading Mortar
• Large Turret
• Air Droppable
• Modified BMD-3 Chassis
• Gun Tube Flush With Front Slope

10
Older Threat Vehicles
BMP-1 (Russia)

• Carries Crew of 3 and 8 Assault Troops
• 73mm Main Gun 1300m Max Range
• AT-3 Sagger Missile on Main Gun
• PT-76 Chassis
• Amphibious
• Troops can fire while mounted

11
Older Threat Vehicles
2S1 M-1974 (Russia)

• 122mm Main Gun
• 1,000m Minimum Range
• 15,300m Maximum Range
• Modified MT-LB Chassis (7 road wheels)
• Smaller Turret than the 2S3
• Less Massive Gun than the 2S3

12
Older Threat Vehicles
ZSU-23-4 (Russia)

• Main Guns are Four 23mm Cannons
• 3,000m Maximum Effective Range
• Modified PT-76 Chassis
• Six Road Wheels / No Return Rollers
• GUN DISH Radar Mounted on Turret
• Thin Vulnerable Armor

13
Older Threat Vehicles
MI-8 / MI-17 Hip (Russia)

• Variable Armament (Mission Dependent)
• Five Bladed Main Rotor
• Commonly Mistaken for the Puma
• Crew of Three
• Transport Version Carries 24 PAX or
• 4000kg Maximum Internal Load

14
Older Threat Vehicles
MI-24 Hind (Russia)

• Variable Armament (Mission Dependent)
• Five Bladed Main Rotor
• Characteristic Bulging Canopies
• Crew of Two
• Capable of Transporting Eight Troops
• Windows Allow Troops to Fire

15
Older Threat Vehicles
SU-25 Frogfoot (Russia)

• Primary Role Close Air Support
• 30mm Main Gun Bottom of Fuselage
• Single Pilot
• Eight Pylons on Wings 4,000kg Load
• High Mounted Wings Back Tapered
• Pods Mounted on Squared Wing Tips

16
AFVID

• NATO
• OTHERS

17
New Friendly Vehicles
Achzarit (Israel)

• Heavy IFV/APC
• Modified T-55 Chassis
• Based on Lessons Learned in Middle Eastern
  fighting
• Clamshell doors in rear

18
New Friendly Vehicles
Leopard 2A6

• Newest Leo MOD
• L44 Extended 120mm Cannon
• Very Angular Turret Glacis Protrudes Almost to
  Bore Evac
• CITV

19
New Friendly Vehicles
Ariete (Italy)

• 120mm smoothbore
• Angled Glacis
• No Gun Mantle
• CITV
• Similar to Leo II

20
New Friendly Vehicles
Sabra (Israel)

• 120mm Smoothbore
• Modified M-60 Chassis
• Welded Angular Glacis
• Thermal Blanket Shroud

21
New Friendly Vehicles
Merkava Mk 3 (Israel)

• 120mm Smoothbore
• Wedge Shape
• Troop Carrying Capacity
• CITV
• 60mm Turret Mounted Mortar

22
Older Friendly Vehicles
Challenger 2 (British)

• L30 120mm Main Gun
• Crew of Four
• Looks Similar to M-1 Abrams
• Wave Shaped Armored Skirt
• Bore Evacuator in Center of Barrel

23
Older Friendly Vehicles
Stryker (US)

• Variable Role Weapons Platform
• Variable Crew
• Typical Roles
• Reconnaissance / INTEL
• NBC Reconnaissance
• Infantry Carrying Vehicle

24
Older Friendly Vehicles
Lynx (British)

• Four Bladed Main Rotor
• Cruise Speed 137 Knots
• Elongated Nose
• Army Version Uses Skids
• Navy Version Uses Wheels

25
Older Friendly Vehicles
MH-53E Sea Dragon MH-53J Pave Low III (US)

• Six Bladed Main Rotor
• Crew of Six
• 55 Troops Maximum Capacity
• Maximum 16 Ton External Load
• Mid-air Refueling Boom
• Twin-Engines

26
New Threat Systems/Counter Measures
ARENA Missile Defense System Kontakt 5 ERA (KE
effective)
27
New Threat Systems/Counter Measures
ARENA Missile Defense System
ARENA Receiver Antenna
ARENA mounted on T-80
Explosive Panels at Turret Ring
Receiver Antenna
28
New Threat Systems/Counter Measures
ARENA Missile Defense System
29
QUIZ

• Click on the link below to access the
• AFVID Quiz
• http//ang.quizstarpro.com
• Log-in and Click Search Tab
• Class Name AFVID
