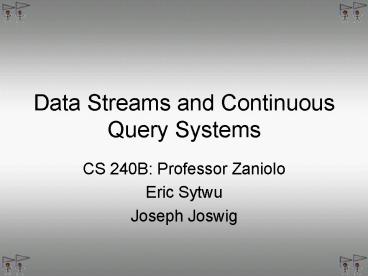

Data Streams and Continuous Query Systems

1
Data Streams and Continuous Query Systems

• CS 240B Professor Zaniolo
• Eric Sytwu
• Joseph Joswig

2
Outline

1. Review of Data Streams
2. NiagaraCQ
3. TelegraphCQ
4. Conclusion
5. Bibliography

3
Data Sets VS Data Streams

• Data Sets
• Infrequently changing data
• Ex. Employee personnel table, contact database,
  library system
• Data Streams
• Data arriving continuously
• Ex. Stock streamer, sensor networks, weather
  monitoring system

4
Traditional Database Query

• In a traditional query, the query engine returns
  a subset of the data that is currently in the
  system.

End User / Application
Query
Results
Query Processor
Static Data Sets
5
Continuous Queries

• Continuous queries are persistent queries that
  allow users to get new results as new information
  enters the system.

6
Niagara CQ
7
Goal

• Allow users to obtain new results from a database
  without having to issue the same query
  repeatedly.
• Develop a system that will allow a large number
  of users to be able to register continuous
  queries using a high level language like XML-QL

8
Whats wrong with previous continuous querying
systems?

• Previous group optimization efforts focused on
  finding an optimal plan for a small number of
  queries.
• Computationally too expensive to handle a handle
  a large number of queries
• Not designed for the web, which is constantly
  changing

9
Benefits of NiagaraCQ

• Based on group optimization
• Grouped queries can share computation
• Common execution plans of grouped queries reside
  in memory, saving on I/O costs compared to
  executing each query separately.

10
How do we get the benefits?

• Incremental group optimization
• Groups are created for existing queries according
  to their signatures, which represent similar
  structures among the queries.
• Each individual query in a query group shares the
  results from the execution of the group plan
• When a new query is submitted, the group
  optimizer considers existing groups as potential
  optimization choices, the new query is merged
  into an existing group

11
Example

• XML-QL query
• Expression signature

Quotes.Quote.Symbol in quotes.xml
constant
12
Query Plan

• Query plan

Trigger Action I
Trigger Action J
Select SymbolINTC
Select SymbolMSFT
File Scan
File Scan
Quotes.xml
Quotes.xml
13
Group Plan

• Group plan

Trigger Action I
Trigger Action J
Split
Join
SymbolConstant value
File Scan
File Scan
Quotes.xml
Constant Table
14
Materialized Intermediate Files

• Query split with intermediate files

Trigger_Act_j
Trigger_Act_i
File Scan
.
File Scan
File_j
File_i
Split
15
General Selection Predicates

• Attribute op Constant
• Attribute path expression without wildcards
• Op , lt, gt

16
Join Operators

• A join signature in or approach contains the
  names of the two data sources and the predicated
  for the join. Join queries are grouped with the
  same join signature.

17
Processing Continuous Queries

• 1. CQM adds continuous queries with file and
  timer information to enable ED to monitor events
• 2. ED asks DM to monitor changes to files
• 3.When a timer event happens, ED asks DM the last
  modified time of files
• 4.DM informs ED of changes to push-based data
  sources
• 5.If file changes and timer events are satisfied.
  ED provides CQM with a list of firing CQs
• 6.CQM invokes QE to execute firing CQs.
• 7.File scan operator calls DM to retrieve
  selected documents.
• 8.DM only returns data changes between last fire
  time and current fire time.

18
Experimental results

• Peformed on a Sun Ultra 6000 with 1GB RAM running
  JDK1.2 on Solaris 2.6

19
Experimental Results
20
Analysis of NiagaraCQ

• Pros
• Scalable to large number of queries, users
• Works with both change and timer based continuous
  queries
• Better performance, less I/O required to execute
  queries.
• Cons
• No dynamic re-grouping of groups, eventually,
  groups become sub-optimal
• Assumes queries have common structure, not always
  the case
• Incremental grouping works only for select and
  join as of now. Eventually, aggregation may be
  included.

21
Niagara in Review

• The goal was to develop an Internet-scale
  continuous query system using group optimization
  based on the assumption that many continuous
  queries on the Internet will have some
  similarities.
• Proposed novel incremental grouping methodology
• Supports both timer-based and changed based
  queries.

22
TelegraphCQ
23
TelegraphCQ Design Overview

• Focus Continuously Adaptive Query Processing of
  high volume and highly variable data streams.
• Large scale
• Deeply networked nature
• Unpredictability of the environment
• Need for close user interaction
• Data constantly moving and changing

24
TelegraphCQ Restrictions

• Data is pushed to the query processor
• Data arrival rate can be high and bursty
• On the fly processing, data can be stored, but
  real-time one pass analysis is important
• Ordering of data is of significant importance.

25
Design Goals

• scheduling and resource management for groups of
  queries
• support for out-of-core (non main memory) data
• variable adaptivity
• dynamic QoS support
• parallel cluster-based processing and distributed
  computation.

26
TelegraphCQ

• Complete Redesign and Re-implementation of
  Telegraph system with focus on focus on support
  for shared, continuous query processing over
  query and data streams.
• Distinguish it from the Telegraph projects
  broader focus on adaptive dataflow in general,
  and to emphasize the challenges we are addressing
  in our new implementation.

27
Telegraph Module Types

• Ingress and Caching
• Interface with external data sources
• TeSS HTML/XML Screenscraper
• TelNape Interfaces with popular P2P networks
• Local caching to hide network delays
• Query Processing
• pipelined, non-blocking versions of standard
  relational operators such as joins, selections,
  projections, grouping and aggregation, and
  duplicate elimination.
• State Module (SteMs)
• Adaptive Routing
• ability to re-optimize the plan on a continuous
  basis while a queryis running.
• Eddies
• Flux (Fault-tolerant, Load-balancing eXchange)
  Opaque dataflow module handles buffering and
  reordering of streams

28
Eddies

• Role Continuously route tuples among a set of
  other modules according to a routing policy
• Intercept tuples and choose the order that they
  travel between modules
• Eddy can shut down each module when the end of
  all of its input streams is reached and the
  modules have completed current processing.
• Not designed as general purpose scheduler, no
  enforcement of resource management policies
• Multiple eddies run as parallel threads on
  queries with disjoint sets of tables and streams.

29
Adaptive Processing W/Eddies SteMs

• SteM - temporary repository of tuples,
  essentially corresponding to half of a
  traditional join operator.
• It stores homogeneous tuples (i.e., tuples
  spanning the same set of tables) formed during
  query processing.
• Supports insert (build), search (probe), and
  optionally delete (eviction) operations.
• Two kinds of tuples can be routed to a SteM.
• When a tuple t in T (a build tuple) is routed to
  SteMT , t is added to the set of tuples in SteMT.
• When a tuple p ? T (a probe tuple) is routed to
  SteMT , SteMT returns concatenated matches for it
  to the Eddy. These concatenated matches are the
  tuples in p join SteMT that satisfy all query
  predicates that can be evaluated on the columns
  in p and T.

SteMsS
SteMsT
ST matches
S probe
T probe
Eddy
S build
T build
S
T
30
Fjords

• Inter Module Communications API
• Form the links between modules
• Supports a mixture of Push (streaming) and Pull
  (static) operations for query plans
• Allows modules to ignore the specifics of the
  data source.
• Supports non-Blocking dequeue operations

31
System Specifications

• Build on PostgreSQL platform
• process per connection model
• Coded in C/C

32
Example Landmark Query

• The input windows of these queries have a fixed
  beginning point in the timeline, and a forward
  moving endpoint.
• Example Select all the days after the hundredth
  trading day, on which the closing price of MSFT
  has been greater than 50. Keep this query
  standing in the system for a thousand trading
  days.
• SELECT closingPrice, timestamp
• FROM ClosingStockPrices
• WHERE stockSymbol MSFT
• And closingPrice gt 50.00
• for (t 101 t lt 1100 t )
• WindowIs(ClosingStockPrices, 101, t)

MSFT 101 60
MSFT 102 48
MSFT 103 52
MSFT 104 60
33
Example Sliding Window Query

• The input windows of these queries have forward
  moving beginning and end points.
• Example On every third trading day starting
  today, calculate the average closing price of
  MSFT for the three most recent trading days. Keep
  the query standing for fifty trading days.
• Select AVG(closingPrice)
• From ClosingStockPrices
• Where stockSymbol MSFT
• for (t ST t lt ST 50 t 3 )
• WindowIs(ClosingStockPrices, t - 2, t)

MSFT 101 60
MSFT 102 48
MSFT 103 52
MSFT 104 56
MSFT 105 55
MSFT 106 58
MSFT 107 52
MSFT 108 60
34
Example Temporal Band Join Query

• These queries join tuples in one stream with
  tuples in another based on timestamp.
• Example For the five most recent trading days
  starting today, select all stocks that closed
  higher than MSFT on a given day. Keep the query
  standing for twenty trading days.
• Select c2.
• FROM ClosingStockPrices as c1,
• ClosingStockPrices as c2
• WHERE c1.stockSymbol MSFT and
• c2.stockSymbol! MSFT and
• c2.closingPrice gt c1.closingPrice and
• c2.timestamp c1.timestamp
• for (t ST t lt ST 20 t )
• WindowIs(c1, t - 4, t)
• WindowIs(c2, t - 4, t)

35
Pros and Cons of System

• Pros
• Focus on extreme adaptability
• New code is multithreaded to help boost system
  parallelism and enhance performance particularly
  in multiprocessor scenarios.
• Cons
• Code not fully multi-threaded, existing
  PostgreSQL
• Queries separated into classes for processing
  based on disjoint footprints.
• Still in early development stages
• Issues still need to be solved
• no extensive performance analysis

36
TelegraphCQ Future Work

• Egress Modules
• Include fault tolerance in delivery of results,
  ie in mobile networks
• Improved interface with overlay networks
• Cluster and Distributed Implementations
• Extension of FLuX module
• Integration with TAG system

37
Conclusion and Review

• NiagaraCQ
• NiagaraCQ is a system that establishes
  scalability with a general strategy of
  incremental group optimization.
• TelegraphCQ
• TelegraphCQ is a system that combines prior work
  in Fjords, Eddies, and PSoup in order to query
  streaming data on large scales
• Other Data Streaming solutions
• Aurora
• STREAM
• StreamMill

38
Thank You for your time!
39
Bibliography

• J. Chen, D. DeWitt, F.Tian, Y.Wang. NiagaraCQ A
  Scalable Continuous Query System for Internet
  Databases. In Proc. Of the ACM SIGMOD Conf. on
  Management of Data, 2000.
• Xiaoning Wang, NiagaraCQ presentation.
  www.cs.wpi.edu/cs561/s03/talks/niagara-cq.ppt
• Chandrasekaran, et al. TelegraphCQ Continuous
  Dataflow Processing for an Uncertain World. UC
  Berkeley. 2003 CIDR Conference.
