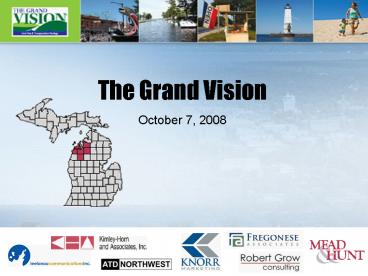

The Grand Vision

1
The Grand Vision

• October 7, 2008

2
Overview of Scenarios
3
Scenario ATrend
4
Scenario ATrend

• Limited multi-family
• Most rural living
• Villages see little growth
• Traverse City and Cadillac continue to see new
  buildings
• Most auto-oriented
• Most land consumptive

5
Scenario A - Grand Vision Region
6
Scenario A Antrim County
7
Scenario A Benzie County
8
Scenario A Kalkaska County
9
Scenario A - Grand Traverse County
10
Scenario A Leelanau County
11
Scenario A Wexford County
12
Scenario BRuralbyDesign
13
Scenario BRural byDesign

• Open space and agriculture preservation through
  rural clustering
• Less farm land lost than current trend
• Focused on life outside of cities and towns

14
Scenario B - Grand Vision Region
15
Scenario B Antrim County
16
Scenario B - Benzie County
17
Scenario B - Kalkaska County
18
Scenario B - Grand Traverse County
19
Scenario B - Leelanau County
20
Scenario B - Wexford County
21
Scenario CVillageFocused
22
Scenario CVillageFocused

• Village and small town centered growth
• Requires investment in sewer systems
• Enhances small town feel
• Supports agri-tourism
• Less parks, more nearby nature
• Smaller buildings
• Limited multi-family

23
Scenario C - Grand Vision Region
24
Scenario C - Antrim County
25
Scenario C - Benzie County
26
Scenario C - Kalkaska County
27
Scenario C - Grand Traverse County
28
Scenario C - Leelanau County
29
Scenario C - Wexford County
30
Scenario DCity Focused
31
Scenario DCityFocused

• Most new development in Traverse City and
  Cadillac with some development in villages
• Utilizes existing infrastructure
• Preserves farmland
• Up to 10 story buildings in Traverse City
• Includes more urban parks

32
Scenario D - Grand Vision Region
33
Scenario D - Antrim County
34
Scenario D - Benzie County
35
Scenario D - Kalkaska County
36
Scenario D - Grand Traverse County
37
Scenario D - Leelanau County
38
Scenario D - Wexford County
39
Transportation Overview
40
Scenarios

• Four development scenarios evaluated
• A, B, C, and D
• Each scenario was modeled and compared
• Unique Road network for each
• Unique transit network for each

41
Scenario Descriptions

• A - Assumes that future growth and development
  continues under existing trends. Transportation
  investment is largely new or widened roadways,
  includes some hike and bike trails, but minimal
  transit and walking paths.
• B - A rural development pattern will continue,
  many of the new homes distributed in rural
  cluster developments, minimal growth in existing
  cities and villages. Rural cluster developments
  generally result in longer work commutes
  requiring new or widened roadways. This scenario
  will have hike and bike trails but because
  densities are minimal transit and walking is
  limited.
• C - New development occurs primarily in the
  regions villages and small towns, with some
  growth in the main cities of Traverse City and
  Cadillac. This growth pattern, which concentrates
  development in villages, makes better use of
  regional bus, walking, biking, with limited
  roadway widening.
• D - Focuses on encouraging a larger share of
  housing and employment growth in the regions two
  main cities, Traverse City and Cadillac. Includes
  investment in urban bus circulars, walking and
  biking paths. This scenario has the least amount
  of new or widened roadways.

42
Determining Improvements

• Roads that observed Levels of Service at or below
  D were evaluated for improvement.
• Urban roads were widened only to four lanes.
• Rural Roads we widened to four lanes or given
  additional capacity to reflect passing lanes.
• Transit routes were based on development type,
  development density, and dependency (college
  students)

43
Scenario A Improvements

• Road improvements

• Transit Improvements

• 142 new lane miles

44
Scenario B Improvements

• Road improvements

• Transit Improvements

• 86 new lane miles

45
Scenario C Improvements

• Road improvements

• Transit Improvements

• 78 new lane miles

46
Scenario D Improvements

• Road improvements

• Transit Improvements

• 58 new lane miles

47
Additional Lane Miles (in each scenario)
48
Estimated Lane Cost
49
Vehicle Miles Traveled

• Regional Totals

• Per Capita

50
Vehicle Hours Traveled

• 4 minute difference per person (A versus D)

51
Delay (hours spent in congestion)
52
Alternative Modes

• Existing Transit Routes

53
Alternative Modes
54
Alternative Modes
55
Alternative Modes
56
Preliminary Corridors

• Based on the scenarios, eight main corridors
  within Traverse area require detailed analysis
• North Shore Dr.
• Front St.
• Division St.
• Airport Rd.
• Garfield
• M 72 East
• US 31 West
• MI 37 South

57
Preliminary Corridors

• Depending on the selected scenario additional
  corridors may be added
• Transit routes, lane configuration, access
  requirements, and traffic operations should be
  considered.
• Model has provided choke points, the detailed
  analysis will provide a list of recommended
  improvements.

58
Land Use and Transportation Scenario Tradeoffs
59
Scenario TradeoffsAnnual Tons of CO2 Emissions

• What does this mean?
• 172,000 tons of CO2 (the difference between
  scenarios A and D) is equal to the CO2 in over
  1.1million tanks of gasoline.

60
Scenario Tradeoffs Annual Hours Spent driving
per Person
61
Scenario Tradeoffs Annual Household Gas
Expenditure

• Assuming gas 4/gallon

62
Scenario Tradeoffs New Homes Multifamily Units
63
Scenario Tradeoffs Acres of Farm Forest Land
Consumed
64
Scenario Tradeoffs Total Cost of Lane Miles
Needed
65
Scenario Tradeoffs New Housing Units in Walkable
Areas

• Walkable Areas mixed use and pedestrian
  oriented design

66
Scenario Tradeoffs Daily Transit Ridership
67
Scenario Tradeoffs Value of Time Lost to
Congestion
68
Scenario Tradeoffs Acres of Infill
