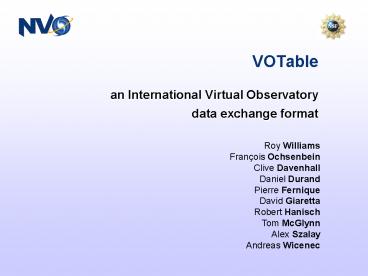

an International Virtual Observatory data exchange format

1
an International Virtual Observatorydata
exchange format

• VOTable

Roy Williams François Ochsenbein Clive
Davenhall Daniel Durand Pierre Fernique David
Giaretta Robert Hanisch Tom McGlynn Alex Szalay
Andreas Wicenec
2
XML Structured Information
ltFromgtAntonio Stadivariuslt/Fromgt ltTogtDomenico
Scarlattilt/Togt ltDategt ltDaygt13lt/Daygt ltMonthgt4lt/Mo
nthgt ltYeargt1723lt/Yeargt lt/Dategt ltBodygt Io bisogno
una appartamento acoglienti a Cremona lt/Bodygt
Separation of structure from presentation
4/13/23 April 13, 1723 17.iv.1723
The computer can read the document Find all
memos from April 1723
3
VOTable

• Full metadata representation
• Hierarchy of RESOURCEs
• containing PARAMs and TABLEs
• UCD (unified content descriptor)
• a has unit meter
• a has UCD ORBIT_SIZE_SMAJ (Semi-major axis of
  the orbit )
• Can reference remote and/or binary streams
• Table can be
• Pure XML
• "Simple Binary"
• FITS Binary Table

4
VOTable Parentage

• Astrores
• XML format for tables
• Developed at CDS Strasbourg
• Presented at ADASS 1999
• Vizier implementation
• XSIL
• XML format for Tables and Arrays
• Developed at LIGO Caltech 2000
• Extensible through Type-Class dynamic loading
• Java parsing, browsing, editing
• Matlab interface

5
Sample VOTable
lt?xml version"1.0"?gt lt!DOCTYPE VOTABLE SYSTEM
"http//us-vo.org/xml/VOTable.dtd"gt ltVOTABLE
version"1.0"gt ltDEFINITIONSgt ltCOOSYS
ID"myJ2000" equinox"2000." epoch"2000."
system"eq_FK5"/gt lt/DEFINITIONSgt ltRESOURCEgt
ltPARAM name"Observer" datatype"char"
arraysize"" value"William Herschel"gt
ltDESCRIPTIONgtThis parameter is designed to store
the observer's name lt/DESCRIPTIONgt
lt/PARAMgt ltTABLE name"Stars"gt
ltDESCRIPTIONgtSome bright starslt/DESCRIPTIONgt
ltFIELD name"Star-Name" ucd"ID_MAIN"
datatype"char" arraysize"10"/gt ltFIELD
name"RA" ucd"POS_EQ_RA" ref"myJ2000"
unit"deg" datatype"float"
precision"F3" width"7"/gt ltFIELD
name"Dec" ucd"POS_EQ_DEC" ref"myJ2000"
unit"deg" datatype"float"
precision"F3" width"7"/gt ltFIELD
name"Counts" ucd"NUMBER" datatype"int"
arraysize"2x3x"/gt ltDATAgt
ltTABLEDATAgt ltTRgt
ltTDgtProcyonlt/TDgtltTDgt114.827lt/TDgtltTDgt5.227lt/TDgt
ltTDgt4 5 3 4 3 2 1 2 3 3 5 6lt/TDgt
lt/TRgt ltTRgt ltTDgtVegalt/TDgtltTDgt279.
234lt/TDgt ltTDgt38.782lt/TDgtltTDgt8 7 8 6 8
6lt/TDgt lt/TRgt lt/TABLEDATAgt
lt/DATAgt lt/TABLEgt lt/RESOURCEgt lt/VOTABLEgt
6
Table Cell
boolean bit unsignedByte short int long char unico
deChar float double floatComplex doubleComplex
scalar
Primitives
arrays
variable length arrays
etc
7
VOTable is Flexy

• eg Table of images
• UCD"JPEG_IMAGE" datatype"unsignedByte"
  arraysize""
• eg Table of URL links
• UCDDATA_LINK"datatype"char" arraysize""

8
VOTable Schema (xsd)
9
Table Data Model

• Metadata
• Class definition for Row
• FIELD
• data type
• semantic type
• Data
• Each Row is a list of Cells
• Each Cell is an array of Primitives
• may be variable length

10
Table Data Layout

• All metadata first
• small, complex, XML
• Class definition for table record
• params, description, etc etc
• Then data
• (may be) large, remote
• XML binary FITS
• Instantiations of table record
• All records MUST have same format

11
Param Data Model

• Param is Table with one cell
• Like a FIELD value
• But with a value attribute

12
Primitives
datatype Meaning FITS Bytes
"boolean" Logical "L" 1
"bit" Bit "X"
"unsignedByte" Byte (0 to 255) "B" 1
"short" Short Integer "I" 2
"int" Integer "J" 4
"long" Long integer "K" 8
"char" ASCII Character "A" 1
"unicodeChar" Unicode Character   2
"float" Floating point "E" 4
"double" Double "D" 8
"floatComplex" Float Complex "C" 8
"doubleComplex" Double Complex "M" 16

• All have fixed binary length
• Same as FITS primitives
• Except Unicode

13
Multidimensional Array Cell

• A table cell can have lots of Primitives
• Example WCS parameters are arrays
• ltFIELD nameCRVAL datatypedouble arraysize
  2/gt
• Example up to 10 images, each 64x64
• ltFIELD name"thumbs" datatype"unsignedByte"
  arraysize"64x64x10"/gt

14
Hierarchy

• A VOTable contains RESOURCES
• RESOURCE can contain
• TABLE
• RESOURCE
• etc etc
• Usage example
• Many observations in the file,
• each is a RESOURCE
• Each observation is
• Parameters
• Calibration table
• Raw data table

15
Hierarchy

• New feature GROUP

ltTABLE nameNutation and Aberrationgt ltGROUP
nameNutationgt ltFIELD
nameLongitude/gt ltFIELD
nameObliquity/gt lt/GROUPgt ltGROUP
nameAberrationgt ltGROUP nameEquinox
1950.0gt ltFIELD nameC/gt
ltFIELD nameD/gt lt/GROUPgt
ltGROUP nameEquinox 1955.0gt ltFIELD
nameC/gt ltFIELD nameD/gt
lt/GROUPgt lt/GROUPgt lt/TABLEgt
16
Unified Content Descriptors

• UCD is a semantic type

PHOT.INT-MAG.B Integrated total blue magnitude
ORBIT.ECCENTRICITY Orbital eccentricity
STAT.MEDIAN Statistics Median Value
INST.QE Detector's Quantum Efficiency

• Can be resolved by web service
• to description, examples, etc
• Base Specifiers
• eg error in default right ascension
• POS.EQ.RA, MAIN, ERROR

17
VOTable Friends
Some self-describing file formats
XML BinaryStreaming Table Datacube Semantics
VOTable v v v v
BinX v v v v
MS Dataset v v
HDF v v
XDF v v
18
XML Parsing
SAX Event-Based Handlers for StartElement, Text,
EndElement, etc.
Found element BookCatalogue Found element
Book Found Element Title Found Text The Cambridge
Star Atlas Found End Element Title .
19
Parsing
DOM Document Object Model Returns a tree-like
Document object with data attached
BookCatalogue
Book
Book
Title
Title
Author
Cambridge Star Atlas
ISBN
Parallel Computing Works!
Wil Tirion
20
Binding to make a Parser
From the Schema an API and library is
generated JAXB Breeze Castor
This is JAVOT (Caltech)
for(int i0 ilttable.getFieldCount() i)
Field field (Field)table.getFieldAt(i)
String u field.getUcd() if(u !
null u.equals("POS_EQ_RA_MAIN"))
System.out.println("Field " i " is for RA")

21
VOTable Software
Treeview from UK-VO
22
VOTable Software
VOPlot from India-VO
23
VOTable Software
VOTool from US-VO
24
VOTable software
Mirage from Bell Labs
