Ontology-Driven Automatic Entity Disambiguation in Unstructured Text

1

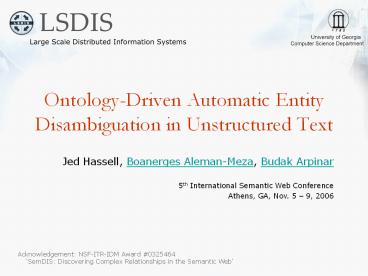

Ontology-Driven Automatic Entity Disambiguation
in Unstructured Text
Jed Hassell, Boanerges Aleman-Meza, Budak
Arpinar 5th International Semantic Web
Conference Athens, GA, Nov. 5 9, 2006
Acknowledgement NSF-ITR-IDM Award 0325464
SemDIS Discovering Complex Relationships in the
Semantic Web
2
The Question is

• How to determine the most likely match of a
  named-entity in unstructured text?
• Example
• Which A. Joshi is this text referring to?
• out of, say, 20 candidate entities (in a
  populated ontology)

3
likely match confidence score

• Idea is to spot entity names in text and assign
  each potential match a confidence score
• The confidence score represents a degree of
  certainty that a spotted entity refers to a
  particular object in the ontology

4
Our Approach, three steps

• Spot Entity Names
• assign initial confidence score
• Adjust confidence score using
• proximity relationships (text)
• co-occurrence relationships (text)
• connections (graph)
• popular entities (graph)
• Iterate again to propagate result
• finish when confidence scores are not updated

5
Spotting Entity Names

• Search document for entity names within the
  ontology
• Each match becomes a candidate entity
• Assign initial confidence scores

6
Using Text-proximity Relationships

• Relationships that can be expected to be in near
  text-proximity of the entity
• Measured in terms of character spaces

7
Using Co-occurrence Relations

• Similar to text-proximity with the exception that
  proximity is not relevant
• i.e., location within the document does not matter

8
Using Popular Entities (graph)

• Intention bias the right entity to be the most
  popular entity
• This should be used with care, depending on the
  domain
• good for tie-breaking
• DBLP scenario entity with more papers
• e.g., only two A. Joshi entities with gt50 papers

9
Using Relations to other Entities

• Entities can be related to one another through
  their collaboration network
• neighboring entities get a boost in their
  confidence score
• i.e., propagation
• This is the iterative step in our apprach,
• It starts with entities having highest confidence
  score
• Example
• Conference Program Committee Members
• - Professor Smith
• - Professor Smiths co-editor in recent book
• - Professor Smiths recently graduated Ph.D
  advisee
• . . . . . . . . .

10
In Summary, ontology-driven

• Using clues
• from the text where the entity appears
• from the ontology
• Example RDF/XML snippet of a persons metadata

11
Overview of System Architecture
12
Once no more iterations are needed

• Output of results XML format
• URI
• Confidence score
• Entity name (as it appears in the text)
• Start and end position (location in a document)
• Can easily be converted to other formats
• Microformats, RDFa, ...

13
Sample Output
14
Sample Output - Microformat
15
Evaluation Gold Standard Set

• We evaluate our method using a gold standard set
  of documents
• Randomly chose 20 consecutive post from DBWorld
• Set of manually disambiguated documents
• (two) humans validated the right entity match
• We used precision and recall as the measurement
  of evaluation for our system

16
Evaluation, sample DBWorld post
17
Sample disambiguated document
18
Using DBLP data as ontology

• Converted DBLPs bibliographic data to RDF
• 447,121 authors
• A SAX parser to convert DBLPs XML data to RDF
• Created relationships such as co-author
• Added
• Affiliations (for a subset of authors)
• Areas of interest (for a subset of authors)
• spellings for international characters
• Lessons learned lead us to create SwetoDblp
  (containing many improvements)

SwetoDblp http//lsdis.cs.uga.edu/projects/semdi
s/swetodblp/
DBLP http//www.informatik.uni-trier.de/ley/db/
19
Evaluation, Precision Recall

• We define set A as the set of unique names
  identified using the disambiguated dataset (i.e.,
  exact results)
• We define set B as the set of entities found by
  our method
• A ? B represents the set of entities correctly
  identified by our method

20
Evaluation, Precision Recall

• Precision is the proportion of correctly
  disambiguated entities with regard to B
• Recall is the proportion of correctly
  disambiguated entities with regard to A

21
Evaluation, Results

• Precision and recall (compared to gold standard)
• Precision and recall on a per document basis

Correct Disambiguation Found Entities Total Entities Precision Recall
602 620 758 97.1 79.4
22
Related Work

• Semex Personal Information Management
• The results of disambiguated entities are
  propagated to other ambiguous entities, which
  could then be reconciled based on recently
  reconciled entities (much like our work does)
• Takes advantage of a predictable structure such
  as fields where an email or name is expected to
  appear
• Our approach works with unstructured data

Semex Dong, Halevy, Madhaven, SIGMOD-2005
23
Related Work

• Kim
• Contains an entity recognition portion that uses
  natural language processing
• Evaluations performed on human annotated corpora
• SCORE Technology (now, http//www.fortent.com/)
• Uses associations from a knowledge base, yet
  implementation details are not available
  (commercial product)

SCORE Sheth et al, Internet Computing, 6(4),
2002
Kim Popov et al., ISWC-2003
24
Conclusions

• Our method uses relationships between entities in
  the ontology to go beyond traditional
  syntactic-based disambiguation techniques
• This work is among the first to successfully use
  relationships for identifying named-entities in
  text without relying on the structure of the text

25
Future Work

• Improvements on spotting
• e.g., canonical names (Tim Timothy)
• Integration/deployment as a UIMA component
• allows analysis along a document collection
• for applications such as semantic annotation and
  search
• Further evaluations
• Using different datasets and document sets
• Compare with respect to other methods, and
• to determine best contributing factor in
  disambiguation
• measure how far in the list we missed the right
  entity

UIMA IBMs Unstructured Information Management
Architecture
26
Scalability, Semantics, Automation

• Usage of background knowledge in the form of a
  (large) populated ontology
• Flexibility to use a different ontology, but,
• the ontology must fit the domain
• Its an automatic approach, yet
• Human defines threshold values (and some weights)

27
References

• Aleman-Meza, B., Nagarajan, M., Ramakrishnan, C.,
  Ding, L., Kolari, P., Sheth, A., Arpinar, B.,
  Joshi, A.,Finin, T. Semantic Analytics on Social
  Networks Experiences in Addressing the Problem
  of Conflict of Interest Detection. 15th
  International World Wide Web Conference,
  Edinburgh, Scotland (2006)
• DBWorld. http//www.cs.wisc.edu/dbworld/ April 9,
  2006.
• Dong, X. L., Halevy, A., Madhaven, J. Reference
  Reconciliation in Complex Information Spaces.
  Proc. of SIGMOD, Baltimore, MD. (2005)
• Ley, M. The DBLP Computer Science Bibliography
  Evolution, Research Issues, Perspectives. Proc.
  of the 9th International Symposium on String
  Processing and Information Retrieval, Lisbon,
  Portugal (Sept. 2002) 1-10
• Popov, B., Kiryakov, A., Kirilov, A., Manov, D.,
  Ognyanoff, D., Goranov, M. KIM - Semantic
  Annotation Platform. Proc. of the 2nd Intl.
  Semantic Web Conf, Sanibel Island, Florida (2003)
• Sheth, A., Bertram, C., Avant, D., Hammond, B.,
  Kochut, K., Warke, Y. Managing semantic content
  for the Web. IEEE Internet Computing, 6(4) (2002)
  80-87
• Zhu, J., Uren, V., Motta, E. ESpotter Adaptive
  Named Entity Recognition for Web Browsing, 3rd
  Professional Knowledge Management Conference,
  Kaiserslautern, Germany, 2005
• Evaluation datasets at http//lsdis.cs.uga.edu/a
  leman/publications/Hassell_ISWC2006/
