Chapter 3 Power Estimation

1

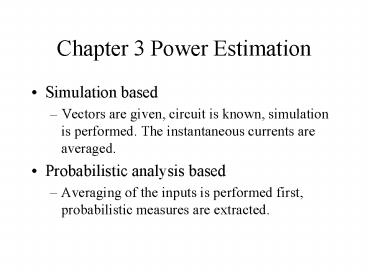

Chapter 3 Power Estimation

• Simulation based
• Vectors are given, circuit is known, simulation
  is performed. The instantaneous currents are
  averaged.
• Probabilistic analysis based
• Averaging of the inputs is performed first,
  probabilistic measures are extracted.

2
(No Transcript)
3

• Power is also dissipated due to glitching
  activity in a circuit. Glitches occur due to
  different delays through different paths of the
  circuit.
• A hazardous transition occurs at the output of
  the AND gate due to different delays through two
  different paths converging at the inputs to the
  AND gate.

4
(No Transcript)
5

• The glitches can die while propagating through a
  logic gate if the width of the glitch is much
  smaller than the inertial delay of the logic gate.

6
3.1 Modeling of Signals

• Stochastic process Let g(t), -8? t ?8, be a
  stochastic process that takes the values of
  logical 0 or logical 1, transitioning from one to
  the other at random times.
• Strict-sense stationary (SSS) A stochastic
  process is said to be strict-sense stationary if
  its statistical properties are invariant to a
  shift of the time origin. More importantly, the
  mean of such a process does not change with time.

7

• Mean ergodic If a constant-mean process g(t) has
  a finite variance and is such that g(t) and
  g(tt) become uncorrelated as t?8 then g(t) is
  mean ergodic.
• Definition 3.1 (Signal Probability) The signal
  probability of signal g(t) is given by
• P(g) lim T ? 8 ?-TT g(t) dt

8

• Definition 3.2 (Signal Activity) The signal
  activity of a logic signal g(t) is given by
• A(g) lim T ? 8 ng(T)/T
• where ng(t) is the number of transitions of g(t)
  in the time interval between T/2 and T/2.

9

• If the primary inputs to the circuit are modeled
  as mutually independent SSS mean-ergodic 0-1
  process, then the probability of signal g(t)
  assuming the logic value 1 at any given time t
  becomes a constant, independent of time and is
  referred to as the equilibrium signal probability
  of random quantity g(t) and is denoted by P(g1),
  which we refer to simply as signal probability.
• Hence, A(g) becomes the expected number of
  transitions per unit time.

10
(No Transcript)
11
3.2 Signal Probability Calculation

• Inputs Signal probabilities of all the inputs to
  a circuit
• Output Signal probabilities for all nodes of the
  circuit
• Step 1 For each input signal and gate output in
  the circuit, assign a unique variable.
• Step 2 Starting at the inputs and proceeding to
  the outputs, write the expression for the output
  of each gate as a function of its input
  expressions..

12

• Step 3 Suppress all exponents in a given
  expression to obtain the correct probability for
  that signal.
• Reconvergent fanout can produce expressions for
  the signal probability of internal nodes having
  exponents greater than 1. Intuitively, in
  probability expressions involving independent
  primary inputs, such exponents cannot be present.

13

• Let f be written in a canonical sum of products
  of primary inputs as follows
• f Si1p (?k1n sk), where sk is either xk or
  xk.
• Since the product terms inside the summation are
  mutually independent, we have
• P(f) Si1p (?k1n P(sk)). This expression is
  defined as the canonical sum of probability
  products of f.

14

• P(xk) P(xk) P(xk) (1 P(xk))
• P(xk) P2(xk)
• P(xk) P(xk)
• 0

15
3.3 Probabilistic Techniques for Signal Activity
Estimation
16
3.3.1 Switching Activity in Combinational Logic

• The Boolean difference of fj with respect to xi
  is defined as follows
• ? fj / ?xi fj xi1 ? fj xi0 where ?
  denotes the exclusive-or operation.
• The Boolean difference signifies the condition
  under which output fj is sensitized to input xi.

17

• If the primary inputs xi, i 1, , n, to logic
  gate M are not spatially correlated, then the
  signal activity at output fj is given by
• A(fj) Si1n P(?fj / ?xi) A(xi) (3.6)
• P(?fj / ?xi) signifies the probability of
  sensitizing input xi to output fj , while
• P(?fj / ?xi) A(xi) is the contribution of
  switching activity at output fj due to input xi
  only.

18
(No Transcript)
19

• ? fand / ?x1 fand x11 ? fand x10
• x2 ? 0
• x2
• A(fand) p(x2)A(x1) P(x1)A(x2)

20

• Equation (3.6) fails to consider the effect of
  simultaneous switching of signals at logic gate
  inputs and, hence, can grossly overestimate
  signal activity.

21

• The output switching activity is zero

22
3.4 Statistical techniques

• The circuit is simulated repeatedly using a logic
  simulator and the switching activities at various
  nodes are noted.
• Statistical mean estimation techniques are used
  in determining the stopping criteria in the Monte
  Carlo simulations.

23
3.4.1 Estimating Average Power in Combinational
Circuits

• Burch et al. experimentally determined that the
  power consumed by a circuit over a period t has a
  normal distribution.
• Let p and s be the measured average and the
  standard deviation of the random sample of the
  power measured over time T, respectively. Then
  with (1 - ?) 100 confidence we can write the
  following inequality
• ? p - Pavg? lt t?/2 s / N1/2

24

• where t?/2 is obtained from a t-distribution with
  N 1 degrees of freedom and Pavg is the true
  average power.
• ? p - Pavg? / p lt t?/2 s / (p N1/2) lt ?
• ? the desired percentage error for the given
  confidence level (1 - ?) 100.

25
3.4.2 Estimating Average Power in Sequential
Circuits

• The basic idea of Monte Carlo methods for
  estimating activity of individual nodes is to
  simulate a circuit by applying random-pattern
  inputs. The convergence of simulation can be
  obtained when the activities of individual nodes
  satisfy some stopping criteria.

26
(No Transcript)
27
(No Transcript)
28
3.5 Estimation of Glitching Power

• Static Hazard A static hazard is defined as the
  possible occurrence of a transient pulse on
  signal line whose static value is not supposed to
  change.
• Dynamic Hazard A dynamic hazard is the possible
  occurrence of a spurious transition during the
  occurrence of a functional 0 ? 1 or a 1 ? 0
  transition.

29
Three-valued logic simulation for AND Gate
30

• Logic simulation can be used to detect probable
  static hazards by using a six-valued logic.
• The estimate is pessimistic because some of these
  hazards might not be present under certain delay
  conditions.

31
Six-valued logic for Static hazard analysis
32
AND Operation with Six-Valued Logic
33

• 1000, 1100, 1110 corresponding to fast, medium,
  and slow falling signals.
• Eight-valued logic is required for logic
  simulation to detect dynamic hazard.

34
Eight-valued logic for dynamic hazard analysis
35
3.5.2 Delay Models

• A circuit node where two reconvergent paths with
  different delays meet may have a large number of
  spurious transitions.
• However, even in a tree-structured circuit with
  balanced paths there can be a large number of
  spurious transitions due to slight variations in
  delays.

36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
(No Transcript)
40
3.5.2.1 Statistical Estimation

• Delays are modeled as random variables and should
  be generated from time to time along the
  simulation.
• Whenever we generate a new set of delays, they
  correspond to another die or even the same die
  but with different operating conditions such as
  temperature and power supply voltage.

41
Activity a

• a F(PI, D) PI primary input vectors, D a
  random vector consisting of all the random
  variables of gate delays.

42
(No Transcript)
43
(No Transcript)
44
The difference is due to the glitching activity
45

• While the different nonzero-delay models do track
  each other (except for one circuit, C6288, which
  has a depth of about 120 levels), it is clear
  that the nonzero-delay models can produce very
  different results compared to the zero-delay
  case. The difference is due to the glitching
  activity.

46
For some circuits minimum and maximum average
power can vary widely if uncertain specifications
of primary inputs exist.
47
(No Transcript)
48
The delay mismatch of different paths causes
spurious transitions.
49
They are 20 times greater than those obtained
using the zero-delay model.
50
3.8 Power Dissipation in Domino CMOS

• Domino logic circuits do not have direct-path
  short-circuit currents except when static pull-up
  devices are used to moderate the charge
  redistribution problem or when clock skew is not
  well dealt with.

51
(No Transcript)
52
(No Transcript)
53
(No Transcript)
54
V
B fixed X1
X3
Z1
A Varies X2
Y
X1
X2
Cy
Z0
X3
Figure 3.36 CMOS gate y (x1 x2)x3
55
3.10 Power Estimation at the Circuit Level

• The gate presents a variable capacitance to the
  power/ground rails. The magnitude of this
  capacitance depends on the logic values at the
  input to the gate.
• Two signals A and B are to be connected to the
  two equivalent inputs x1 and x2 of the gate in
  Figure 3.36 such that very often A has a
  transition and B stays zero then A should be
  connected to x2 and B to x1 as this results in
  lower power consumption than the other case.

56
3.11 High Level Power Estimation
57

• The signal probabilities of the lower order bits
  of a word are essentially uncorrelated in space
  and time with a signal probability of 0.5 and
  switching activity of 0.25 and are essentially
  independent of the data distributions.
• The higher order bits show complete dependence
  because they represent the sign extensions in
  twos complement representation.

58
3.12 Information-Theory-Based Approaches

• The output entropy of Boolean functions can be
  used to predict the average minimized area of
  CMOS combinational circuits.
• If x is a random variable with a signal
  probability p, then the entropy of x is defined
  as
• H(x) p log2 1/p (1 p) log2 1/(1 p)

59

• For a discrete variable x, which can take n
  different values, the entropy is defined as
• H(x) Si1n pi log2 1/pi, where pi is the
  probability that x takes the ith value xi.
• Given the input signal probabilities of 0.5, the
  output entropy of the boolean function can be
  used to predict the area of its average minimized
  implementation as
• A K (2n / n) H(Y) where A is the area of the
  implementation and K is the proportionality
  constant, Y f(X).

60
(No Transcript)
61
(No Transcript)
62
RTL Register Transfer Level

• A high level technique to estimate power can be
  used in the following three steps
• Determine the input/output entropies of
  combinational logic block by running RTL
  simulation of sequential circuits.
• From the input/output entropies, determine the
  switching activity, area, and estimate of average
  power.
• Combine with latch and clock power to determine
  the total power dissipation.

63

• Two approaches to determining lower bounds of
  maximum dynamic power in static CMOS circuits
• deterministic (automatic test generation based)
  and
• simulation-based approaches.

64

• The instantaneous power dissipation due to two
  consecutive input binary vectors is proportional
  to
• Pi Sfor all gates T(g) C(g), where C(g)
  denotes the output capacitance of gate g and T(g)
  is a binary variable that indicates whether gate
  g switches or not corresponding to the two input
  vectors.

65

• To justify the transition i.e., to see if T()
  1 is achievable, the modified justification
  mechanism in a 5-V D algorithm (an ATG algorithm
  for stuck-at faults) is used.
• In CMOS circuits, the capacitive load of a logic
  gate can be approximated by the fanout of the
  gate.
• Pi Sfor all gates g(V1) ? g(V2) F(g), where
  V1, V2 denote two consecutive input binary
  vectors to the circuit, g() represents the
  boolean function of gate g in term of PIs, and
  F(g) denotes the number of fanouts of gate

66

• The justification mechanism in the algorithm
  includes two processes backtracing and
  implication.
• Two composite values to be in conflict if they
  have 0 and 1 at the same position.
• Experiments show the test generation approach is
  superior to the traditional simulation-based
  technique in both efficiency and the quality of
  the results.

67
(No Transcript)
68

• Each gate is associated with a stack to store all
  the composite logic values a/b that have been
  assigned to g a and b denotes g(V1) and g(V2),
  respectively. The variables a and b can be 1, 0,
  or u (unknown). At each gate, the top of the
  stack stores the most recently updated value for
  the gate.

69
After assigning a rising transition (0/1) to x,
y(V2) is forced to be 1.
70
(No Transcript)
71
Circuit level simulation

• Extract circuit netlist description from layout
• Captures internal (diffusion) and external
  (wiring and gate fanout) capacitances
• Run an analog simulation
• Characterization of device models (nfets, pfets)
• Solution of large system of equations so very
  computationally intensive ( lt few thousand
  transistors)
• Can accurately estimate (within a few ) dynamic
  and leakage power dissipation
• HSPICE, spectre (Cadence), PowerMill (Synopsys)

72
Gate level simulation

• Perform logic simulation to obtain the switching
  events for each net (signal)
• Logic description in structural VHDL or Verilog
• Zero-delay or unit-delay timing models
• Determine frequency of each net fy ty/(2T),
  where ty if the number of logic switches of net y
  and T is the simulation time, to compute dynamic
  power
• Pdyn ?CyVDD2fy
• Pre-layout so must estimate Cy

73
Gate internal and leakage power

• Use gate characterization (E(g, e)) and logic
  simulation event count (f(g, e)) to calculate the
  gates dynamic internal power (short circuit and
  charging/discharging of internal capacitors)
• Pint ?? E(g, e) f(g, e)
• During simulation record the fraction of time
  T(g, s)/T that each gate g stays in a particular
  states s to calculate leakage power
• Pleak ?? E(g, s) f(g, s)/T

74
Capacitance estimation

• Device (diffusion and gate) capacitance
• Depends on width/length of driving gates
  source/drain diffusion and fanout gates
• Part of characterization of cell based designs
• Wiring capacitance
• Depends on placement and routing
• Wire load predict wire length of a net from the
  number of pins incident to the net
• Mapping table can be constructed from historical
  data of existing designs

75
(No Transcript)
76
Gate level simulation considerations

• Simulation vectors need to be chosen carefully
  (application dependent)
• Internal power really depends on operating
  voltage, temperature, process, ?
  multidimensional characterization
• Accuracy within 5-10 of HSPICE
• Signal glitches may not be modeled precisely
  (glitches depend on delays in the circuit)

77
Gate level probabilistic analysis

• For each internal net y determine the signal
  probability of the net wrt to the given signal
  probabilities of the primary inputs
• From the signal probabilities determine the
  transition density D(y) of each internal net y
• Compute the total power
• P ? 0.5 CyVDD2 D(y)
• Pre-layout so must estimate Cy

78
Determining signal probabilities

• Signal probability definition
• P1 t1/(t0 t1) and P0 1 P1
• Propagate the given statistical quantities from
  the primary inputs to the internal signal nets
  and outputs of the circuit
• Propagate quantities using probabilistic signal
  propagation model

79
Signal propagation model

• Apply Shannons decomposition to the n-input
  Boolean function y f(x1, , xn)
• Y xifxi !xif!xi, where fxi(f!xi) is the new
  Boolean function obtained by setting xi 1 (xi
  0) in f(xi, , xn)
• P(y) P(xifxi) P(!xif!xi) P(xi)P(fxi )
  P(!xi)P(f!xi)
• Apply recursively (note P(!xi) 1 P(xi))

80
Determine transition density

• For a transition (1-to-0 or 0-to-1) to have
  occurred fxi ? f!xi 1 the Boolean difference of
  y wrt xi denoted dy/dxi
• P(dy/dxi) is the probability that dy/dxi
  evaluates to 1 and D(xi) is the transition
  density of xi
• Then the total transition density of the net y is
• D(y) ? P(dy/dxi) D(xi)

81
Gate level probabilistic analysis considerations

• Computationally efficient
• Must only compute signal probabilities and
  transition densities for each net to evaluate
• P ? 0.5 CyVDD2 D(y)
• Assumes given correct signal probabilities for
  primary inputs (and if wrong, large errors are
  possible)
• Given average power dissipation values

82
Architectural level simulation

• Perform RTL simulation to obtain the input
  activity for each major functional unit
• Architectural description in behavioral VHDL or
  Verilog or C, C
• Energy characterization of functional units
• Transition-sensitive energy models
• System busses
• ALUs, register file, pipeline registers
• Analytical energy models
• Caches, DRAMs
