Advanced Speech Coding for VoIP

1
Advanced Speech Coding for VoIP

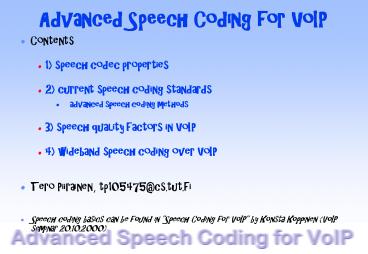

• Contents
• 1) speech codec properties
• 2) current speech coding standards
• advanced speech coding methods
• 3) speech quality factors in VoIP
• 4) wideband speech coding over VoIP
• Tero Piirainen, tp105475_at_cs.tut.fi
• Speech coding basics can be found in "Speech
  Coding for VoIP" by Konsta Koppinen (VoIP seminar
  20.10.2000)

2
Critical speech codec properties

• 1) Bit rate
• 2) Codec complexity
• 3) Speech quality
• intelligibility
• echo
• delay

3
Bit rate

• wireline quality speech is 64 kbps PCM coded
• human speech contains lots of redundancy,
  removing redundancy saves bits
• normal speech can be compressed effecively 110
  maintaining wireline quality, with silence
  suppression up to 120
• advanced coding means more delay and more
  complexity
• backgound noise makes it much more difficult to
  code speech
• low bit rate codecs perform worse in noisy
  environments

4
Complexity

• better coding ( lower bit rate, better quality)
  requires more processing
• low bit rate codecs require 20-40 MIPS
• at the same time, processing power is needed also
  for
• echo cancellation
• noise suppression
• etc.
• minimizing complexity means minimizing hardware /
  CPU MHz requirements

5
Speech quality

• Speech quality
• intelligibility
• echo
• delay
• Intelligibility can be measured by MOS
• subjective listener tests, rating ranging 1-5
• 1 bad
• 2 poor
• 3 fair
• 4 good ( wireline quality)
• 5 excellent

6
Speech coding standards

• G.711
• PCM wireline quality
• high bit rate (64 kbps)
• G.723.1
• wireline quality at 15.4 kbps
• chosen as default IP telephony speech codec by
  International Multimedia Teleconferencing
  Consortium (IMTC) Voice over IP (VoIP) forum
• heavy computation (30 MIPS)
• narrowband reference codec
• G.729A
• almost wireline quality at 8 kbps
• low delay 35 ms low complexity

7
Speech coding standards

• G.722
• SB-ADPCM Sub-Band Adaptine Differential Pulse
  Code Modulation
• wideband codec, sampling 16 khz audio signals
• bit rate 48..64 kbps
• used in many applications that require audio
  frequency bandwidth coding, such as video
  conferencing and multimedia
• wideband reference codec
• ETSI GSM AMR
• variable rate speech coding suitable for packet
  networks
• based on the earlier ETSI GSM speech codecs (FR,
  HR, EFR)
• offer robust coding and wireline quality whilst
  increasing network capacity
• adaptive coding to one of eight data rate modes
  4.75...12.2 kbps
• AMR speech coding algorithm is based on ACELP
  (Algebraic-Codebook-Excited Linear Predictive
  Coding)

8
ITU-T SpC summary
9
ETSI SpC summary
10
Speech codecs in H.323

• H.323 mandatory codec
• G.711
• H.323 supported speech codecs
• G.722
• G.723
• G.728
• G.729
• GSM codecs (FR, EFR, AMR)
• also audio codecs (MPEG1,..)

11
Speech production
12
Speech Synthesis Model
13
Linear prediction

• The vocal tract forms the tube, which is
  characterized by resonances, which are called
  formants.
• LPC analyzes the speech signal by estimating the
  formants
• The LPC parameters are transmitted and used as an
  input to LPC synthesis in the receiver end
• Because speech signals vary, LPC is done in short
  frames, normally 30 to 50 frames per second.

14
Linear Prediction
15
LPC example - unvoiced sound
16
LPC spectrum over time
Intensity
Time
Frequency
17
Long term correlation

• Vocal cords produces the signal, which is
  characterized by its intensity (loudness) and
  frequency (pitch).
• Long term correlation is represented by lag. Lag
  is the number of samples between long-term
  periods in continuos signal.
• The range of lag values for range between 20-150
  corresponding to the frequency range 400-50 Hz.

18
Analysis-by-Synthesis Coding

• In analysis-by-synthesis speech coding method
  encoder includes a local decoder used for speech
  synthesis.
• Input speech data is analyzed to obtain required
  coefficients for synthesis filters.
• Excitation vectors are generated and passed
  through the local decoder i.e. synthesis filters.

• The synthesized speech for each excitation vector
  is subtracted from the original speech to form an
  objective error.
• Objective error is spectrally weighted to obtain
  perceptually more meaningful measure of the
  coding error. Excitation vector and gain that
  minimize the subjective error are selected.
• The search of long-term periodic component in
  speech signal using analysis-by-synthesis method
  can be interpreted as an use of an adaptive
  codebook. The codebook is indexed by lag and the
  gain corresponds to the excitation gain.

19
Basics of Adaptive Codebook

• LTP-state memory can be interpreted as an
  adaptive codebook in which the consecutive
  codevectors differ only by one new value and a
  shift.
• LAG is an index to the codebook/delay line and
  GAIN is the excitation gain.
• Excitation from the adaptive codebook is combined
  with fixed excitation.
• Delay line is updated with the "best" codevector.

20
Virtual LAG
LAG
INPUT SPEECH
LAG
VIRTUAL LAG
USED LAG

• In simple case, LAG is bigger than subframe
  length
• If smaller LAG values are used, virtual LAG trick
  is needed because in decoder only past samples
  are available
• For samples for which delayed samples would be
  inside current frame LAG value multiples are
  used (utilizing periodicity)
• Enhances voices with high pitch (children, female)

21
Basics of vector quantization

• Each vector (e.g. LPC coefficients) can get
  whatever values in k- dimensional space.
• A vector is replaced and represented by a
  centroid
• Centroid is one vector in the parameter space for
  which distance to it is at minimum for a cluster
  of vectors
• Discrete amount of centroids quantization from
  Rk to C, where C is amount of centroids
• Table of centroids is called a codebook

22
Basics of vector quantization

• Quantization with a codebook
• For each vector a centroid or codevector to
  minimize
• distortion between original
• sample and the codevector
• is searched.
• Codevector is represented by its index in the
  codebook
• Exhaustive search codebookhas exponentially
  growingrequirements for calculationand storage
  complexity
• by using specific codebookstructure, the search
  can be fastened and complexity andstorage grow
  be made linear.
• Example binary tree stucture.

23
Two level vector quantizer

• Speech codec parameters can be quantized as
  vectors instead of quantizing each parameter
  separately. Vector quantization results savings
  in output bit-rate.
• The best quatization vector is searched from
  predefined codebook.
• In order to decrease the complexity of search,
  the search can be done in stages. The original
  vector is divided into smaller parts (vector
  splitting, band splitting etc.)
• For example in GSM HR speech codec, four best
  candidate vectors out of 64 are selected in
  prequantizer. In the next phase, 4 x 32 vectors
  are evaluated and the best is chosen.

24
Silence suppression

• In two-way conversation 60 of the time is only
  background noise, the silent periods can be
  suppressed without worsening quality.
• VAD voice activity detection
• detects voice activity only speech is coded
  transmitted
• CNG comfort noise generation
• completely silent periods feel uncomfortable by
  the receiver
• CNG algorithms fills the silent periods with
  generated noise
• some noise parameters are transmitted to maintain
  realistic noise characteristics
• Lowers the usage of bandwidth gt well suited for
  packet communication.
• VAD performance
• If the VAD sensitive is low, the algorithm will
  fail to notice the beginning of speech gt
  front-end-clipping.
• If the VAD is too sensitive gt inefficiency.
• The performance of the VAD algorithm becomes
  apparent in noisy environments like in a office,
  where there can be conversation or music as the
  background noise.

25
Example Analysis by Synthesis Coding (EFR)
Input Speech
LSP
LPC
GAIN
PULSE POSITIONS
LPC
LAG
GAIN
26
Main Blocks of GSM EFR Codec

• High-pass filtering of input speech frame in
  order to remove DC offset.
• LPC analysis two times per speech frame (every 10
  ms) i.e. two set of coefficients are calculated
  for 10 th order linear prediction filter. LPC
  coefficients are represented as Line Spectrum
  Pairs (LSP) and quantized.
• Open loop lag search is done two times per speech
  frame (every 10 ms) producing candidate LAG
  values
• Closed loop lag search is done for each sub-frame
  (every 5 ms) from the basis of candidate lags.
  Optimization of LTP parameters (LTP lag and gain)
  is done using analysis-by-synthesis search
  (adaptive codebook). Lag values can be fractional
  (non-integer) with accuracy of 1/6th. In
  addition, virtual lag is used i.e lag can be
  less that the size of subframe (pitch is over 200
  Hz). Lag value for the first subframe is fully
  coded. For other three subframes, delta coding is
  utilized.
• Lag is a number of samples between long-term
  periods in continuos signal. The range of lag
  values for GSM EFR codec is 18-143 corresponding
  to the frequency range 444-56 Hz. LTP resolution
  is enhanced in EFR by using fractional LAG
  values, which are computed from upsampled signal.

27
Main Blocks of GSM EFR Codec

• If smaller lag values are used than subframe
  length, virtual lag calculation is needed because
  in decoder only past samples are available. For
  samples for which delayed samples would be inside
  current frame lag value multiples are used
  utilizing speech signal periodicity. Virtual lag
  enhances high pitch voices of children and women.
• Codec architecture is called Algebraic Code
  Excited Linear Prediction (ACELP). Excitation
  vector utilizes Algebraic codebook. Vector is
  formed by 10 non-zero (equal to -1 or 1) pulses
  for each subframe (40 samples) in order to
  minimize the coding error.
• Synthesis filter includes effect of subjective
  weighting filters.
• Optimal combination pulse positions is determined
  using analysis-by-synthesis search. Codebook
  index i.e combination of pulse positions is
  calculated for each subframe.
• The gains are quantized. For algebraic codebook
  gain, moving average prediction is used.

28
AMR in short

• Improved speech quality in variable rate
• Based on GSM FR, HR and EFR codecs.
• Ability to trade speech quality and capacity
  smoothly and flexibly by codec mode adaptation
• Improved robustness to errors
• Wideband option is under consideration
• Narrow band codec specifications ready in
  December 1998
• Link adaption mechanism is required for measuring
  channel quality and selecting speech codec modes

29
Speech quality in VoIP

• These factors have major effect in speech
  quality
• Delay
• Jitter
• Packet loss
• Echo
• Tandeming

30
Delay

• major factor in speech quality
• Preferred maximum one-way delay is 200-400 ms,
  without echo with echo maximum is 25 ms
• three levels of delay
• algorithmic delay
• frame sampling lookahead delay typically 15-40
  ms
• processing delay
• speech frame encoding decoding delay typically
  5-10 ms
• communications delay
• channel delay between encoder decoder
  typically ?

31
Jitter

• variations in delay
• data buffering must be used at network edges
  ensuring that a constant stream of speech frames
  can be reproduced
• jitter may vary during a VoIP call
• smart buffering, where the buffer size can be
  changed during a call
• constantly measures network condition in order to
  decide on making these buffer adjustments
• if the buffer size is increased additional speech
  segments must be synthesised.
• if buffer size is decreased some parts of the
  speech signal must be dropped.
• gt These adjustments would preferably be made
  during silent periods.

32
Packet loss

• problem in heavily loaded networks where packet
  loss rates may be up to 10
• speech codecs are robust to random bit errors,
  but not on loosing complete speech frames
• forward error correction for voice frames is not
  relevant in IP networks because it can not handle
  losing whole packets
• interleaving cannot be used because of extra
  delay
• retransmission are not possible because of the
  real-time requirements
• current solutions usually include error detection
  function, usually a plain CRC check, which can be
  used as an indication for packet loss recovery
  procedure.

33
Echo

• Echo cancelling should be used when the
  round-trip delay exceeds 50 ms
• in VoIP, echo cancelling becomes complicated, as
  the delays are longer and may vary gt VoIP
  terminals must implement echo cancelling

34
Tandem effect

• intermediate speech coding and decoding phases
  deteriorate speech quality considerably
• most evident in low bit rate codecs
• especially important in cases where VoIP is
  interworking with other networks that use speech
  coding, (mobile networks, etc.)
• e.g. transcoding between G.723.1 and a GSM codec
  produces poor speech quality.
• TFO tandem-free operation
• standardization going on in ETSI for TFO with GSM
  networks
• considerable savings can be made by TFO in
  operational costs

35
Wideband Speech

• fundamental bandwidth limitation in public
  switched telephone network prevents the speech
  quality to be further enhanced
• gt most current codecs achieve good performance
  only to narrowband speech where the audio
  bandwidth is limited to 3.4 kHz
• wideband speech coding where audio bandwidth is
  extended to 7 kHz
• wideband coding exceeds wireline quality.

36
Why Wideband Speech ?

• Wideband speech supplies superior speech quality
  over current narrow band speech services exceeds
  the quality of wireline phones
• In narrowband speech (100-3600 Hz band) important
  high frequency components lost (eg. in
  's'-sounds)
• Wideband uses 50 - 7000 Hz band thus improving
  naturalness, presence and intelligibility
• wideband speech offers superior voice quality
  over the existing narrow band services (cellular
  systems, PSTN)
• especially suitable for applications with high
  quality audio parts

37
Wideband vs. narrowband
38
Wideband speech quality

• results indicate that there is a significant
  benefit in the wideband solution over narrowband
• increased audio bandwidth provided by the wide
  speech bandwidth will create a effect of
  proximity between the users
• it will almost completely eliminate the feeling
  of "talking over a wire" of the wireline network.
• Codec MOS
• GSM EFR (narrowband 3.4kHz) 3.3
• G.722, 48 kbit/s (wideband 7kHz) 4.06
• G.722, 56 kbit/s (wideband 7kHz) 4.57

39
Nokia AMR WB Speech Codec

• Collaboration with VoiceAge (University of
  Sherbrooke in Canada)
• ACELP technology very similar to AMR NB and GSM
  EFR
• Multirate codec 9 modes
• Same coding algorithm in each mode
• Very high code and data ROM reuse between modes
  (much better than in the AMR NB codec)
• VAD (integrated into the speech codec) and
  comfort noise generation
• Link Adaptation
• 9 speech codec modes
• 6.60, 8.85, 12.65, 14.25, 15.85, 18.25, 19.85,
  23.05, 23.85 kbit/s

40
AMR WB Standardization in 3GPP

• Initiated based on feasibility study in SMG11
  (2Q-1999)
• Initially 9 candidates, 5 companies were
  qualified into the selection phase Ericsson,
  FDNS-consortium (FT, DT, Nortel, Siemens),
  Motorola, Nokia and Texas Instruments
• Nokia WB codec selected as the best codec in 3GPP
  TSG S4 meeting in October 2000-gt will be
  standadized
• The final specifications are approved in March
  2001 (R4)
• The selected Nokia WB codec has also been
  approved to proceed into the ITU WB codec
  selection in March 2001

41
Speech Codec Bit Allocation into Parameter Groups
42
AMR WB Speech Quality vs. ITU G722 WB
Speech Quality
G722 64 kbit/s
G722 56 kbit/s
G722 48 kbit/s
Nokia AMR WB
3
23.85
23.05
19.85
18.25
15.85
14.25
12.65
8.85
6.6
AMR WB Bit rates kbit/s
43
AMR-WB Speech Quality in GSM Channel
Subjective Speech Quality Degradation in Function
of Channel Quality
Subjective Speech Quality
AMR-WB
AMR-NB
EFR
Error-free
13
10
7
4
Carrier to Interference Ratio (C/I) dB
44
Applications for Wide Band Speech

• Wide band telephony
• AMR NB equal to PSTN speech quality
• AMR WB improves the quality and provides
  naturalness
• Conferencing (Conversational multimedia)
• Quality improvement over the current codecs
  (G.722 at 48 and 56 kbit/s)
• Bit rate drops to half or less compared to G.722
• Streaming
• Low complexity, low bit rate solution for
  browsing type of applications

45
ITU-T wideband activity around 16 kbit/s

• In 1999, the following guidelines have been
  considered relevant in ITU-T for the new wideband
  activity around 16 kbit/s (12, 16, 20, and 24
  kbit/s)
• Input and output audio signals should have a
  bandwidth of 7 kHz at a sampling rate of 16 kHz.
• Primary signals of interest are clean speech and
  speech in background noise.
• High speech quality with the objective of
  equivalence to G.722 at 56/64 kbit/s.
• 16 kbit/s is the main bit-rate. It is required
  that the ability of the candidate to scale in
  bit-rate to lower bit-rates (less then 16 kbit/s)
  and up to 24 kbit/s with no fundamental changes
  in either the technology or the algorithm used.
• Robustness to frame erasures and random bit
  errors.
• Low algorithmic delay (frame size of 20ms or
  integer sub-multiples)
• The applications for the new activity were
  considered as follows Voice over IP (VoIP) and
  Internet Applications, PSTN applications, Mobile
  Communications, ISDN wideband telephony, and ISDN
  videotelephony and video-conferencing.

46
Introduction of wideband into systems

• implementation of WB requires
• 16 kHz sampling frequency in A/D and D/A
• Acoustic design of handset
• Tandem Free Operation (TFO)
