Title: Design Reviews


1

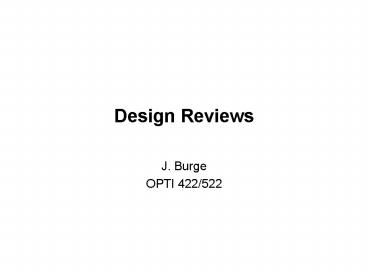

Design Reviews
  • J. Burge
  • OPTI 422/522

2
Types of reviews
  • Peer reviews
  • Informal and frequent
  • Usually only attended by teammates
  • with engineering databooks, not view graphs
  • These cover particular details
  • Products action items, technical memos
  • Internal reviews, e.g. Internal Preliminary
    Design Review
  • Semi-formal
  • without the customer
  • Coordinate different parts of the program
  • Prepare for formal reviews
  • Formal reviews, e.g. Preliminary Design Review
  • More formal part of program plan
  • with the customer
  • Also frequently has outside reviewers smart
    people who may know nothing about the project.
  • Products RFA, successful pass allows the project
    to continue.

3
Typical reviews
SRR System Requirements Review SCR System
Concept Review PDR Preliminary Design
Review CDR Critical Design Review PRR
Production Readiness Review TRR Test Readiness
Review
4
Purposes of Reviews
  • Obvious purpose
  • External review can find problems A little
    humility now can save you from untold pain later
  • Contractual reasons
  • Provides clean milestone for incremental funding
  • Less obvious values of reviews
  • Formal reviews impose discipline on a project
  • Reviews define milestones holds schedule
    together
  • Reviews force good systems engineering
    presentations will clearly define for subsystems
  • requirements, functional design, analysis,
    verification, risks
  • Forces you to chase down loose ends
  • Preparing for reviews high energy and
    productivity
  • Reviews provides opportunity for all involved to
    see the complete system

5
Products of reviews
  • Review package publication (overheads support
    stuff) distributed before the review
  • Discussion must be captured in minutes, action
    items, or RFA forms (Request for Action)
  • Also, these reviews usually build relationships-
  • Between technical people from customer and
    contractor
  • Within teams (you work like crazy closely with
    others)
  • Establish confidence from high level people in
    customers organization
  • A Pass score is often needed for more money,
    next phase of the project

6
PDR
  • Examines
  • system requirements
  • preliminary design
  • function allocation
  • verification tools
  • Work Breakdown Structure
  • Full-scale engineering design begins after this
    review.

(Prof. T. Bahill UA)
7
Results from PDR
  • confirm that
  • the design implements all the system functions
  • the system requirements are completely defined
    with
  • balance across cost, schedule, performance and
    risk
  • consistency to Test Evaluation results
  • allocated baselines for subsystems
  • sufficient design has been accomplished to verify
    the completeness and achievability of the defined
    requirements
  • the risk handling approach is reasonable
  • critical accomplishments, success criteria, and
    metrics encourage continued technical effort

(Prof. T. Bahill UA)
8
CDR
  • Examines
  • system design in full detail
  • resolution of technical problems
  • technical performance measures
  • manufacturing plan
  • interface control documents
  • Ensures that the design maturity justifies the
    decision to commence manufacturing and coding.

(Prof. T. Bahill UA)
9
Results from CDR
  • confirm that
  • the design is balanced across cost, schedule,
    performance and risk for the life cycle
  • the system physical architecture is an integrated
    detailed design that will satisfy requirements,
    including interoperability and interfaces
  • allocated baselines for subsystems are refined
  • detailed plans are ready to be built
  • test plan will verify all aspects of system
    performance

(from Prof. T. Bahill UA)
10
Design Reviews for 422
  • Somewhere between a CDR and a PDR
  • Plan 30 min presentation, 20 min discussion
  • Post Design Review material on the web
  • Invite faculty sponsor anybody else
  • Make reference to other documents. Have them
    available at your design review
  • Technical memos
  • Test Plan
  • Bill of Materials
  • Drawings
  • Collect and track RFA forms
  • Follow this up with Technical Data Package
  • Same basic info as design review, but in report
    format. Plan to update this at the end of the
    term as your final report.

11
Suggestion for 422 Design Reviews
  • Introduction
  • - top level description of system
  • - introduce team
  • - include top level schedule
  • Requirements
  • key requirements
  • functional decomposition
  • Design Overview
  • Identify subsystems and how everything fits
    together
  • Show how subsystems map onto functions
  • drawings/flow diagrams are very helpful here
  • use this to establish terminology
  • Subsystems - design
  • Hardware
  • show/describe
  • include trade studies performed for each
    subsystem (summary of results or open trades)
  • show analysis performed and results (prove that
    it will meet requirements)

12
422 Design reviews, cont
  • Subsystems (cont.)
  • Software
  • define modules
  • brief description of algorithms (perhaps
    visually)
  • estimate of lines of code for each module
  • Interfaces physical, logical data structures,
    data flow diagram
  • Risk Analysis summary of risk plan, identify
    important risk items
  • Fabrication plan
  • Overview of plans to build the system
  • Make reference to Bill of Materials, drawings,
  • Alignment plan
  • Test plan
  • - How will you prove that it meets requirements

13
Considerations,
  • Before the review
  • Prepare a clear statement of purpose
  • Invite tough reviewers and challenge them to find
    faults
  • Prepare a good review package
  • Deliver it early
  • Tell a clear story
  • Educate your customer
  • During the review
  • Defend your design
  • Expose your weaknesses
  • Be willing to see the value in a different
    approach
  • After the review
  • Follow up on action items
  • Respond quickly
  • Document the results

(from D. Beshore, Raytheon)
14
Successful reviews,
  • A good review produces criticism
  • Get the chaos out early
  • A good metric is how many valid items are
    identified
  • There is value to having the customer as an
    active participant in the review. It gives the
    customer confidence that you
  • understand the requirements
  • have the design well under way
  • understand customer expectations for the product
  • To do this, you must have a meaningful set of
    internal reviews first, and they must produce
    honest criticism

(from D. Beshore, Raytheon)
