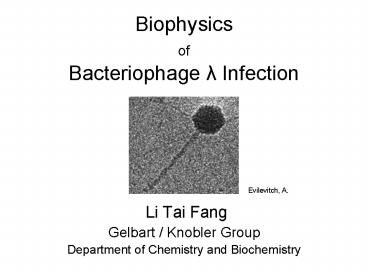

Biophysics of Bacteriophage Infection

1
Biophysics of Bacteriophage ? Infection
Evilevitch, A.

• Li Tai Fang
• Gelbart / Knobler Group
• Department of Chemistry and Biochemistry

2
Phage ? Infection
Capsid
Phage DNA
LamB
cell membrane
condemned E. coli cell
Note figure not drawn to scale
3
Phage ? Infection
Capsid
Phage DNA
LamB
cell membrane
condemned E. coli cell
dead E. coli walking
Note figure not drawn to scale
4
Bacteriophage ?

• dsDNA
• ? 50 nm
• L 16,500 nm (330 ?)
• Rg 380 nm
• Rcapsid 28 nm

5
Driving Force of Infection

• DNA is confined at close-packed density
• Crowding
• configurational entropy due to confinement
• Rg, DNA gtgt Rcapsid
• Bending
• stiffness of dsDNA
• ?DNA Rcapsid
• Electrostatic self-repulsion
• negative charges repel each other
• affected by solution conditions, e.g. ambient salt

6
Pressure vs. Genome Length Inside
Tzlil, Kindt, Gelbart, Ben-Shaul, Biophys. J. 84,
1616 (2003)
7
External pressure inhibits ejection
Incubation
Centrifugation
PEG 8000 Outside
UV260
DNase
Note figure not drawn to scale
8
nucleotides in solution
with LamB
weight percent of PEG8000
Evilevitch, Lavelle, Raspaud, Knobler, and
Gelbart, PNAS, 100, (2003)
9
genome ejection vs. osmotic pressure
osmotic pressure controlled by varying PEG
concentration
Evilevitch, Lavelle, Raspaud, Knobler, and
Gelbart, PNAS, 100, (2003)
10
DNA Ejection 3.5 atm osmotic pressure and Mg2
Fang, LT
11
a result from simulation
Mg2
DNA
DNA
Mg2
Mg2
Mg2
Mg2
Mg2
Mg2
Mg2
Lee, K-C and Liu, A
12
DNA Ejection3.5 atm osmotic pressure
phage with 48.6 kbps genome
Fang, LT
13
Different Salt _at_ 4 atm
14
Cell mimic

• To be able to separately control the environment
  of the cell and the capsid
• Two approaches
• Two-chamber cell construction
• Giant vesicles

Note figure not drawn to scale
15
Two-chamber Cell
fluorescent probe
membrane
LamB
wafer
? phage
cover glass
channel
Note figure not drawn to scale
16
Two-chamber Cell
fluorescent probe
membrane
LamB
wafer
? phage
cover glass
channel
Note figure not drawn to scale
17
Giant Vesicles
Decher, G, et al, Biochim Biophy Acta, 1990
Note figure not drawn to scale
18
ratcheting mechanism
Note figure not drawn to scale
19
ratcheting mechanism
cell membrane
DNA binding proteins
Zandi, Reguera, Rudnick, and Gelbart, PNAS, 100,
15, 2003
Note figure not drawn to scale
20
RNA polymerase
As a molecular motor 35 pN of force -- reported
by Wang, MD, et al, 1998, Science
RNA polymerase
Note figure not drawn to scale
21
Summary

• Genome translocation occurs due to stored energy
  inside the capsid
• Counter-ions affect the magnitude of the stored
  energy by orders of magnitude
• Dynamic studies of genome ejection
• How will different molecules -- e.g., proteins,
  salt -- change the ejection kinetics?

22
Acknowledgement
Committee

• Charles Knobler
• William Gelbart
• Joseph Loo
• Giovanni Zocchi
• Tom Chou

Dept. of Chemistry and Biochemistry Dept. of
Chemistry and Biochemistry Dept. of Chemistry and
Biochemistry Dept. of Physics and Astronomy Dept.
of Biomathematics
