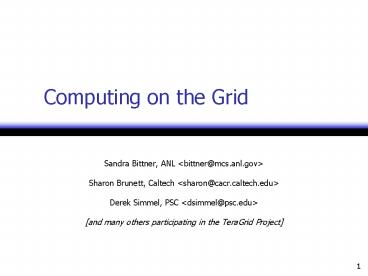

Computing on the Grid

1
Computing on the Grid

• Sandra Bittner, ANL ltbittner_at_mcs.anl.govgt
• Sharon Brunett, Caltech ltsharon_at_cacr.caltech.edugt

• Derek Simmel, PSC ltdsimmel_at_psc.edugt
• and many others participating in the TeraGrid
  Project

2
The TeraGrid VisionDistributing the resources is
better than putting them at one site

• Build new, extensible, grid-based infrastructure
  to support grid-enabled scientific applications
• New hardware, new networks, new software, new
  practices, new policies
• Expand centers to support cyberinfrastructure
• Distributed, coordinated operations center
• Exploit unique partner expertise and resources to
  make whole greater than the sum of its parts
• Leverage homogeneity to make the distributed
  computing easier and simplify initial development
  and standardization
• Run single job across entire TeraGrid
• Move executables between sites

3
TeraGrid Objectives

• Create unprecedented capability
• integrated with extant PACI capabilities
• supporting a new class of scientific research
• Deploy a balanced, distributed system
• not a distributed computer but rather
• a distributed system using Grid technologies
• computing and data management
• visualization and scientific application analysis
• Define an open and extensible infrastructure
• an enabling cyberinfrastructure for scientific
  research
• extensible beyond the original sites
• NCSA, SDSC, ANL, Caltech, PSC (under ETF)
• ETF2 awards to TACC, Indian/Purdue, ORNL

4
Measuring Success

• Breakthrough science via new capabilities
• integrated capabilities more powerful than
  existing PACI resources
• current PACI users and new communities requiring
  Grids
• An extensible Grid
• design principles assume heterogeneity and more
  than four sites
• Grid hierarchy, scalable, replicable, and
  interoperable
• formally documented design, standard protocols
  and specifications
• encourage, support, and leverage open source
  software
• A pathway for current users
• evolutionary paths from current practice
• provide examples, tools, and training to exploit
  Grid capabilities
• user support, user support, and user support

5
TeraGrid Application Targets

• Multiple classes of user support
• each with differing implementation complexity
• minimal change from current practice
• new models, software, and applications
• Usage exemplars
• traditional supercomputing made simpler
• remote access to data archives and computers
• distributed data archive access and correlation
• remote rendering and visualization
• remote sensor and instrument coupling

6
TeraGrid Components

• Compute hardware
• Intel/Linux Clusters, Alpha SMP clusters, POWER4
  cluster,
• Large-scale storage systems
• hundreds of terabytes for secondary storage
• Very high-speed network backbone
• bandwidth for rich interaction and tight
  coupling
• Grid middleware
• Globus, data management,
• Next-generation applications

7
Wide Variety of Usage Scenarios

• Tightly coupled jobs storing vast amounts of
  data, performing visualization remotely as well
  as making data available through online
  collections (ENZO)
• Thousands of independent jobs using data from a
  distributed data collection (NVO)
• Applications employing novel latency-hiding
  algorithms adapting to a changing number of
  processors (PPM)
• High-throughput applications of loosely coupled
  jobs (MCell)

8
Prioritization to ensure success

• Diagnostic apps to test functionality (ENZO, PPM)
• Flagship apps provide early requirements for
  software and hardware functionality
• Cactus, ENZO, EOL, Gadu, LSMS, MCell, MM5,
  Montage, NAMD, NekTar, PPM, Quake, Real time
  brain mapping
• Plans to approach existing grid communities
• GriPhyN, NEES, BIRN, etc.

9
TeraGrid Roaming
Attend TeraGrid training class or access
web-based TG training materials
Receive Account info, pointers to training, POC
for user services Ops, pointers to login
resources, atlas of TG resources
Apply for TeraGrid Account
Develop and optimize code at Caltech
Run large job at NCSA, move data from SRB to
local scratch and store results in SRB
Run large job at SDSC, store data using SRB.
Run larger job using both SDSC and PSC systems
together, move data from SRB to local scratch
storing results in SRB
Move small output set from SRB to ANL cluster, do
visualization experiments, render small sample,
store results in SRB
Move large output data set from SRB to
remote-access storage cache at SDSC, render using
ANL hardware, store results in SRB
(Recompile may be necessary in some cases)
10
Strategy Define Build Standard Services

• Finite Number of TeraGrid Services
• defined as specifications, protocols, APIs
• separate from implementation
• Extending TeraGrid
• adoption of TeraGrid specifications, protocols,
  APIs
• protocols, data formats, behavior specifications,
  SLAs
• Engineering and Verification
• shared software repository
• build sources, scripts
• service must be accompanied by test module

11
If your site wants to join the TeraGrid

• You must be this high to ride the TeraGrid
• fast network
• non-trivial resources
• meet SLA (testing and QA requirements)
• become a member of the virtual organization
• capable of TG hosting (peering arrangements)
• TG Software Environment
• user (download, configure, install, and run TG
  1.0)
• developer (join distributed engineering team)
• TG Virtual Organization
• Operations, User-services
• Add new capability
• make the whole greater than the sum of its parts

repo.teragrid.org
12
TeraGrid Resources and Services

• Compute Resources
• Data Resources and Data Management Services
• Visualization Resources
• Network Resources
• Grid Services
• Grid Scheduling Reservations

13
Compute Resources Today
4 Lambdas
CHI
LA
96 GeForce4 Graphics Pipes
100 TB DataWulf
96 Pentium4 64 2p Madison Myrinet
32 Pentium4 52 2p Madison 20 2p Madison Myrinet
20 TB
Caltech
ANL
256 2p Madison 667 2p Madison Myrinet
128 2p Madison 256 2p Madison Myrinet
1.1 TF Power4 Federation
500 TB FCS SAN
230 TB FCS SAN
NCSA
SDSC
PSC
Charlie Catlett ltcatlett_at_mcs.anl.govgt Pete
Beckman ltbeckman_at_mcs.anl.govgt
14
Common Data Services

• Database systems five systems (5x32 IBM Regatta)
  acquired at SDSC for DB2 and other related DB
  apps Oracle and DB2 clients planned at NCSA

15
The TeraGrid Visualization Strategy

• Combine existing resources and current
  technology
• Commodity clustering and commodity graphics
• Grid technology
• Access Grid collaborative tools
• Efforts, expertise, and tools from each of the
  ETF sites
• Volume Rendering (SDSC)
• Coupled Visualization (PSC)
• Volume Rendering (Caltech)
• VisBench (NCSA)
• Grid and Visualization Services (ANL)
• to enable new and novel ways of visually
  interacting with simulations and data

16
Two Types of Loosely Coupled Visualization
Interactive Visualization
TeraGrid Simulation
Computationally steeringthrough pre-computed data
TeraGridnetwork
User
Batch Visualization
short term storage
Long term storage
Processing batch jobssuch as movie generation
17
On-Demand and Collaborative Visualization
TeraGrid Simulation
On-Demand Visualization
Coupling simulation with interaction
AG
Voyager Recording
Collaborative Visualization
Preprocessing,filtering, featuredetection.
Multi-party viewingand collaboration
18
ETF Network Today
19
TeraGrid Optical Network
Ciena Metro DWDM (operated by site)
818 W. 7th St. (CENIC Hub)
455 N. Cityfront Plaza (Qwest Fiber Collocation
Facility)
2200mi
Ciena CoreStream Long-Haul DWDM (Operated by
Qwest)
Los Angeles
DTF Backbone Core Router
Chicago
Cisco Long-Haul DWDM (Operated by CENIC)
Additional Sites And Networks
Routers / Switch-Routers
Starlight
DTF Local Site Resources and External Network
Connections
115mi
25mi
140mi
25mi
??mi
Caltech
SDSC
ANL
NCSA
PSC
Site Border Router
Cluster Aggregation Switch
Caltech Systems
SDSC Systems
NCSA Systems
ANL Systems
PSC Systems
20
ETF Network Expansion
ETF Network Segments Blue 4x 10Gb/s White
13x 10Gb/s
21
Grid Services A Layered Grid Architecture
Talking to things communication (Internet
protocols) security
Connectivity
Controlling things locally Access to,
control of, resources
Fabric
22
TeraGrid Runtime Environment
CREDENTIAL
Single sign-on via grid-id
Assignment of credentials to user proxies
Globus Credential
Mutual user-resource authentication
Site 2
Authenticated interprocess communication
Mappingtolocal ids
Certificate
23
Common Authentication Service

• Standardized GSI authentication across all
  TeraGrid systems allows use of the same
  certificate
• Developed coordinated cert acceptance policy
• today accept
• NCSA/Alliance
• SDSC
• PSC
• DOE Science Grid
• Developing procedures and tools to simplify the
  management of certificates
• Grid mapfile distribution
• simplified certificate request/retrieval

24
TeraGrid Software Stack

• A social contract with the user
• LORA Learn Once, Run Anywhere
• Precise definitions
• services
• software
• user environment
• Reproducible
• standard configure, build, and install
• single CVS repository for software
• initial releases for IA-64, IA-32, Power4, Alpha

25
Inca Test Harness

• Example pre-production screenshots

26
Grid Scheduling Job Management Condor-G, the
User Interface

• Condor-G is the preferred job management
  interface
• job scheduling, submission, tracking, etc.
• allows for complex job relationships and data
  staging issues
• interfaces to Globus layers transparently
• allows you to use your workstation as your
  interface to the grid
• The ability to determine current system loads and
  queue status will come in the form of a web
  interface
• allows for user-drive load balancing across
  resources
• might look a lot like the PACI HotPage https//ho
  tpage.paci.org/

27
Advanced Reservations

• Users need
• Automated means
• Users may request reservations for specific
  resources
• Co-scheduling resources
• Instrument, detectors
• Multi-site single execution, peer scheduling
• Across heterogeneous sites and platforms
• Local Scheduling PBS/Maui Condor-G
• Manual Process help_at_teragrid.org
• Hot Topic in Research

28
TG Nuts Bolts
29
Approaches to TeraGrid Use

• Log in interactively to a login node at a
  TeraGrid site and work from there
• no client software to install/maintain yourself
• execute tasks from your interactive session
• Work from your local workstation and authenticate
  remotely to TeraGrid resources
• comfort and convenience of working "at home"
• may have to install/maintain add'l TG software

30
Requesting a TeraGrid Allocation
31
Allocations Policies

• TG resources allocated via the PACI allocations
  and review process
• modeled after NSF process
• TG considered as single resource for grid
  allocations
• Different levels of review for different size
  allocation requests
• DAC up to 10,000
• PRAC/AAB lt200,000 SUs/year
• NRAC 200,000 SUs/year
• Policies/procedures posted at
• http//www.paci.org/Allocations.html
• Proposal submission through the PACI On-Line
  Proposal System (POPS)
• https//pops-submit.paci.org/

32
User Certificates for TeraGrid

• Why use certificates for authentication?
• Facilitates Single Sign-On
• enter your pass-phrase only once per session,
  regardless of how many systems and services that
  you access on the Grid during that session
• one pass-phrase to remember (to protect your
  private key), instead of one for each system
• Widespread Use and Acceptance
• certificate-based authentication is standard for
  modern Web commerce and secure services

33
Certificate-Based Authentication
Registration Authority
Certificate Authority
A
CA
RA
Client Z
34
TeraGrid Authentication-gtTasks
GIIS
RA/CA
HPC
HPC
HPC
Data
Viz
35
Integrating complex resources

• SRB
• Visualization Resources
• ANL booth demos
• fractal demo during hands-on session
• Real-time equipment
• shake tables
• microscopy
• haptic devices
• Integration work in progress
• More research topics

36
SoftEnv System

• Software package management system instituting
  symbolic keys for user environments
• Replaces traditional UNIX dot files
• Supports community keys
• Programmable similar to other dot files
• Integrated user environment transfer
• Well suited to software lifecycles
• Offers unified view of heterogeneous platforms

37
TG Users Data Responsibilities

• Storage lifetimes
• check local policy command TG documentation
• Data transfer- srb, grid-ftp, scp
• Data restoration services/Back-ups
• varies by site
• Job Check-pointing
• responsibility rests with the user
• Email Relay only, no local delivery
• forwarded to address of registration
• Parallel Systems GPFS, PVFS

38
Onion Layers of MPI...

• Cross-site MPI (MPICH-G2, PACX, etc...)
• between administrative domains (sites)
• Inter-cluster (VMI)
• within-site, multiple clusters
• Intra-cluster MPI
• Portable MPI (MPICH)
• OS Vendor MPI (SGI, Cray, IBM,...)
• Interconnect-Vendor MPI (MPICH-GM,
  Quadrics-MPI,...)
• http//www.paci.org

39
Multi-Site, Single Execution
40
Computing Models
41
TeraGrid Computing Paradigm

• Traditional parallel processing
• Distributed parallel processing
• Pipelined/dataflow processing

42
Traditional Parallel Processing

• Tightly coupled multicomputers are meeting
  traditional needs of large scale scientific
  applications
• compute bound codes
• faster and more CPUs
• memory hungry codes
• deeper cache, more local memory
• tightly coupled, communications intensive codes
• high bandwidth, low latency interconnect message
  passing between tasks
• I/O bound codes
• large capacity, high performance disk subsystems

43
Traditional Parallel Processing - When Have
We Hit the Wall?

• Applications can outgrow or be limited by a
  single parallel computer
• heterogeneity desirable due to application
  components
• storage, memory and/or computing demands exceed
  resources of a single system
• more robustness desired
• integrate remote instruments

44
Traditional Parallel Processing

• Single executables to be on a single remote
  machine
• big assumptions
• runtime necessities (e.g. executables, input
  files, shared objects) available on remote
  system!
• login to a head node, choose a submission
  mechanism
• Direct, interactive execution
• mpirun np 16 ./a.out
• Through a batch job manager
• qsub my_script
• where my_script describes executable location,
  runtime duration, redirection of stdout/err,
  mpirun specification

45
Traditional Parallel Processing II

• Through globus
• globusrun -r some-teragrid-head-node.teragrid.or
  g/jobmanager -f my_rsl_script
• where my_rsl_script describes the same details as
  in the qsub my_script!
• Through Condor-G
• condor_submit my_condor_script
• where my_condor_script describes the same details
  as the globus my_rsl_script!

46
Distributed Parallel Processing

• Decompose application over geographically
  distributed resources
• functional or domain decomposition fits well
• take advantage of load balancing opportunities
• think about latency impact
• Improved utilization of a many resources
• Flexible job management

47
Distributed Parallel Processing II

• Multiple executables to run on multiple remote
  systems
• tools for pushing runtime necessities to remote
  sites
• Storage Resource Broker, gsiscp,ftp,
  globus-url-copy - copies files between sites
• globus-job-submit my_script
• returns https address for monitoring and post
  processing control

48
Distributed Parallel Processing III

• Multi-site runs need co-allocated resources
• VMI-mpich jobs can run multi-site
• vmirun np local_cpus grid_vmi gnp total_cpus
  -crm crm_name key key_value ./a.out
• server/client socket based data exchanges between
  sites
• Globus and Condor-G based multi-site job
  submission
• create appropriate RSL script

49
Pipelined/dataflow processing

• Suited for problems which can be divided into a
  series of sequential tasks where
• multiple instances of problem need executing
• series of data needs processing with multiple
  operations on each series
• information from one processing phase can be
  passed to next phase before current phase is
  complete

50
Pipelined/dataflow processing

• Key requirement for efficiency
• fast communication between adjacent processes in
  a pipeline
• interconnect on TeraGrid resources meets this
  need
• Common examples
• frequency filters
• Monte Carlo

51
Pipelined CMS Job Flow
2) Launch secondary job on remote pool of nodes
get input files via Globus tools (GASS)
Master Condor job running at Caltech
Secondary Condor job on remote pool
5) Secondary reports complete to master
Caltech workstation
6) Master starts reconstruction jobs via Globus
jobmanager on cluster
9) Reconstruction job reports complete to master
Vladimir Litvin, Caltech Scott Koranda,
NCSA/Univ of Wisc-Milwaulke
3a) 75 Monte Carlo jobs on remote Condor pool
3b) 25 Monte Carlo jobs on remote nodes via
Condor
7) gsiftp fetches data from mass storage
4) 100 data files transferred via gsiftp, 1 GB
each
TG or other Linux cluster
8) Processed database stored to mass storage
TeraGrid Globus-enabled FTP server
52
Academic Professional Development
53
Help your students to

• Master Problem Decomposition
• Develop Discipline focus
• Be curious and explore
• Identify problems and appropriate solutions
• Experiment in and out of the classroom
• Perform simulations
• Play with Legos other gadgets
• Find mentors
• Learn to ask the right questions!

54
University Students

• Develop advanced skills
• Systematic problem solving Design
• Professional Discipline
• Team building
• Practice skills in controlled academic
  environment
• Begin building professional networking
• Field work, exercise skills in real world
• Internships, Co-Ops, Part/Full Time Jobs
• Research collaborations
• Study Abroad
• Find mentors

55
Professional

• Develop professional relationships, expand
  professional network, find mentors
• Participation in Standards Groups
• Professional Societies Continuing Education
• Scientific understanding of Problems
• Communication Skills
• Verbal, Written, Cultural Awareness, Conflict
  Resolution
• Presentation Skills
• Engineering/Technical Skills
• Time Project Management

56
TeraGrid Gallery
57
IBM Itanium Nodes(SDSC, NCSA, ANL, Caltech)
58
IBM Itanium Nodes
59
Myrinet Interconnect High Speed Network
Force-10Aggregator
128-way Myrinet Switch
60
Terascale Computing System
LeMieux.psc.edu6 TeraflopsHP/Compaq Tru64
Unix3000 Alpha EV68 processors (750x4p) 4GB
RAM/node (3TB total) Dual-rail Quadrics
Interconnect
61
HP GS1280 "Marvel" Systems
Rachel.psc.edu0.4 TeraflopsHP/Compaq Tru64
Unix128 Alpha EV7 processors512GB Shared
MemoryQuadrics connectivity to LeMieux
62
µMural2 (Argonne)
63
Visualization Example

• This fun parallel application demo computes and
  renders Mandelbrot fractals.
• The fractal demo is provided courtesy of Dan
  Nurmi, Mathematics and Computer Science Division,
  Argonne National Laboratory

64
Colliding Spheres Demonstration

• Parallel finite element computation of
  contact-impact problems
• large deformations
• Frictional contact done in parallel
• orthogonal range queries
• Typical contact enforcement method
• start on continuum level
• Discretize non smooth differential equations
• Alternative method
• start with discretized contact surfaces
• consider collisions between triangles of finite
  element surface mesh
• Collision search can be costly since surface
  elements can collide with any other element
• Store contact surface mesh on all nodes

65
Colliding Spheres Demo

• Back end simulation running on 10 Itanium 2
  TeraGrid nodes at Caltech
• job launched with simple globus script
• Visualization running on Iris Explorer on laptop
• allows user to change velocities, initial
  properties of colliding spheres

66
Resource References

• TeraGrid http//www.teragrid.org
• Condor-G http//www.cs.wisc.edu/condorg
• DagMan http//www.cs.wisc.edu/dagman
• Globus http//www.globus.org
• PBS http//www.openpbs.org
• SRB http//www.npaci.edu/DICE/SRB
• SoftEnv http//www.mcs.anl.gov/systems/software

67
Resource References

• MPICH http//www.mcs.anl.gov/mpi
• MPICH-G2 http//www.niu.edu/mpi
• VMI http//www.ncsa.uiuc.edu
• PACX-MPI http//www.hlrs.de/organization/pds/proje
  cts/pacx-mpi/
