Parallel Architectures

1

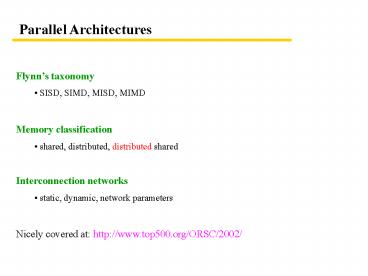

Parallel Architectures

• Flynns taxonomy
• SISD, SIMD, MISD, MIMD
• Memory classification
• shared, distributed, distributed shared
• Interconnection networks
• static, dynamic, network parameters
• Nicely covered at http//www.top500.org/ORSC/2002
  /

2
Flynns Taxonomy

• Flynn 66 classified computers according to
  instruction and data streams
• 4 basic categories
• Single Instruction, Single Data
• Single Instruction, Multiple Data
• Multiple Instructions, Single Data
• Multiple Instructions, Multiple Data

3
SISD

• Not a parallel computer
• Conventional serial, scalar von Neumann computer

• One instruction stream
• A single instruction is issued each clock cycle
• Each instruction operates on a single (scalar)
  data element
• Limited by the number of instructions that can
  be issued in a given unit of time
• Current processors (Intel Pentium, AMD Athlon,
  Alpha) are not strictly SISD due to pipelining
  and wide issue, but are close enough for our
  purposes only one thread can execute at a time.

4
SIMD

• Also von Neumann architectures but more powerful
  instructions
• Each instruction may operate on more than one
  data element
• Usually intermediate host executes program logic
  and broadcasts instructions to other processors
• Synchronous (lockstep)
• Rating how fast these machines can issue
  instructions is not a good measure of their
  performance
• Developed because there are many important
  applications that mostly operate upon arrays of
  data.
• Two major types
• Vector SIMD
• Processor array SIMD

5
Vector SIMD
Vector processing operates on whole vectors
(groups) of data at a time Example float
A8, B8, C8 Init(A,B,C) C AB
6
Vector SIMD (cont.)

• Examples
• Cray 1, NEC SX-2, Fujitsu VP, Hitachi S820
• Single processor of Cray C 90, Cray2, NEC SX-3,
  Fujitsu VP 2000 , Convex C-2
• NEC SX-6i

7
Memory Bandwidth in Vector SIMD
CAB One read/write path Two read/write
paths Two read, one write paths
time
Read A
Read B
Write C
Read A
Read B
Write C
Read A
Read B
Write C
8
Processor Array SIMD

• Single instruction is issued and all processors
  execute the same instruction, operating on
  different sets of data.
• Many, simple processing elements - 1000's.
• Processors run in a synchronous, lockstep fashion

9
Parallel SIMD (cont.)

• Well suited only for data-parallel applications
• Inefficiency due to the need to switch off
  processors see example
• Out of fashion today
• Includes systolic arrays
• Examples
• Connection Machine CM-2
• Maspar MP-1, MP-2

Example for i 0 to 1000 if ai gt bi
then xi ci else
xi di
Pi x x o x work o - idle
Pj x o x
10
MISD

• no such computer has been built
• there are some applications using MISD approach
• cryptography got the ciphertext, try different
  ways to decrypt it
• sensor data analysis try different
  transformations to get maximum information out of
  the measured data

11
MIMD

• The most flexible category
• Parallelism achieved by connecting multiple
  processors together
• Includes all forms of multiprocessor
  configurations
• Each processor executes its own instruction
  stream independent of other processors on unique
  data stream
• Advantages
• Processors can execute multiple job streams
  simultaneously
• Each processor can perform any operation
  regardless of what other processors are doing
• Disadvantages
• Load balancing overhead - synchronization needed
  to coordinate processors at end of parallel
  structure in a single application
• Can be difficult to program

12
MIMD (cont.)
13
MIMD vs SIMD programming example
Problem Given an upper triangular matrix,
compute the sum of the number in each
column. Parallel programs Program1 for
processor i sumi 0 for(j0 jlti
j) sumi Aj,i Program2 for processor
i sumi 0 for(j0 jltn j) if
(jlti) sumi Aj,i
14
Parallel Architectures

• Flynns taxonomy
• SISD, SIMD, MISD, MIMD
• Memory classification
• shared, distributed, distributed shared
• Interconnection networks
• static, dynamic, network parameters
• Nicely covered at http//www.top500.org/ORSC/2002
  /

15
Memory Classification

• MIMD machines can be classified according to
  where the memory is located and how it is
  accessed.
• Main classes
• Shared Memory with Uniform Memory Access time
• Distributed Memory
• Single Address Space Distributed shared memory
  with Non Uniform Memory Access access time
• Multiple Address Spaces
• communication only via message passing
• Called Massively Parallel Processors
• UMA and NUMA are usually cache coherent
• - if one processor updates a location in shared
  memory, all the other processors know about the
  update

16
Shared Memory
17
Shared Memory (cont.)

• Multiple processors operate independently but
  share the same memory resources
• Synchronization achieved by controlling tasks
  reading from and writing to the shared memory
• Often called Symmetric MultiProcessor
• Programming standard OpenMP, see
  http//www.openmp.org
• Advantages
• Easy for user to use efficiently
• Data sharing among tasks is fast (speed of
  memory access)
• Disadvantages
• User is responsible for specifying
  synchronization, e.g., locks
• Not scalable (low tens of processors)
• Examples Cray Y-MP, Convex C-2, Cray C-90 , quad
  Pentium Xeon

18
Distributed Memory - (cc)NUMA

• Local memory is directly accessible by other
  processors
• Has Non Uniform Memory Access time, as the time
  to access the memory of different processor is
  higher
• Popular choice today, e.g. SGI Origin 2000
• Moderately scalable low hundreds of processors

19
Distributed Memory - MPP

• Data is shared across a communications network
  using message passing
• User responsible for synchronization using
  message passing
• Scales very well thousands of processors
• Called Massively Parallel Processors
• Advantages
• Memory scalable to number of processors.
  Increase number of processors, size of memory and
  bandwidth increases.
• Each processor can rapidly access its own memory
  without interference
• Summary easy to build

20
Distributed Memory - MPP (cont.)

• Disadvantages
• Difficult to map existing data structures to
  this memory organization
• User responsible for sending and receiving data
  among processors
• To minimize overhead and latency, data should be
  blocked up in large chunks and shipped before
  receiving node needs it
• Summary difficult to program

21
Typical Combination

• Multiple SMPs connected by a network
• Processors within an SMP communicate via shared
  memory
• Requires message passing between SMPs

22
Clusters special case of MPP

• Main idea
• use commodity workstations/PCs and commodity
  interconnect to get a cheap, high performance
  solution
• Pioneering projects
• Berkeleys Network Of Workstations
• Beowulf clusters NASA Goddard Space Flight
  Center project
• ultra low-cost approach commodity PCs Linux
  Ethernet
• Advantages
• low cost, commodity upgradeable components
• Disadvantages (esp. early clusters)
• inadequate interconnect
• good only for problems requiring little
  communication (embarrassingly parallel problems)

23
Clusters (cont.)

• Improving communication
• replace TCP/IP by a low latency protocol
• replace Ethernet by a more advanced hardware
• Advanced Interconnect

24
One Page Summary
Instruction stream
Single
Multiple

• SISD
• sequential processors

• MISD
• does not really exist

Single
Data Stream
Single

• SIMD
• vector processors
• processor arrays

(cc)UMA
(cc)NUMA
Multiple
Address space

• MPP
• clusters

Multiple
Shared
Distributed
Memory Location
25
Parallel Architectures

• Flynns taxonomy
• SISD, SIMD, MISD, MIMD
• Memory classification
• shared, distributed, distributed shared
• Interconnection networks
• static, dynamic, network parameters
• Nicely covered at http//www.top500.org/ORSC/2002
  /

26
Interconnection Networks

• Dynamic Interconnection Networks
• built out of links and switches (also known as
  indirect networks)
• usually associated to shared memory
  architectures
• examples bus-based, crossbar, multistage
  (?-network)
• Static Interconnection Networks
• built out of point-to-point communication links
  between processors (also known as direct
  networks)
• usually associated to message passing
  architectures
• examples ring, 2D and 3D mesh and torus,
  hypercube, butterfly
• Important parameters of Interconnection Networks,
  Embedding
• latency, bandwidth
• degree, diameter, connectivity, bisection
  (band)width
• embeddings and their parameters

27
Dynamic Interconnection Networks
28
BUS Based Interconnection Networks

• processors and the memory modules are connected
  to a shared bus
• Advantages
• simple, low cost
• Disadvantages
• only one processor can access memory at a given
  time
• bandwidth does not scale with the number of
  processors/memory modules
• Example
• quad Pentium Xeon

29
Crossbar

• Advantages
• non blocking network
• Disadvantages
• cost O(pm)
• Example
• high end UMA

30
Multistage networks (i.e. ?-network)

• - Intermediate case between bus and crossbar
• - Blocking network (but not always)
• - Often used in NUMA computers
• ?-network
• Each switch is a 2x2 crossbar
• log(p) stages
• cost p log(p)
• Simple routing algorithm
• At each stage, look at the corresponding bit
  (starting with msb) of the source and destination
  address
• If the bits are the same, messages pass through,
  otherwise cross-over

31
?-network
32
Dynamic network exercises
Question 1 Which of the following pairs of
(processors, memory block) requests will
collide/block?
Question 2 For a given processor/memory request
(a,b), how many requests (x,y), with (x ! a) and
(y ! b) will block with (a,b) in an 8 node
?-network? How does this number depend on the
choice of (a,b)?
33
?-network
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
34
Static Interconnection Networks

• Network Parameters
• latency, bandwidth
• degree, diameter, bisection (band)width
• Specific networks
• Linear array
• Ring
• Tree
• 2D 3D mesh/torus
• Hypercube
• Butterfly
• Fat tree
• Embedding

35
Network Parameters

• Latency, Bandwidth
• hardware related
• depends also on the communication protocol
• Degree (maximum number of neighbours)
• influences feasibility/cost, best is a low
  constant
• Diameter (maximal distance between two nodes)
• determines lower bound on time for some
  algorithms
• Bisection (band)width
• the minimal number of edges separating two part
  of equal size (the bandwidth on these edges)
• lower bound on time for problems requiring
  exchanging a lot of data
• VLSI area/volume in 2D,
  in 3D

36
Linear Array, Ring, Tree

• important logical topologies
• algorithms are often described on these
  topologies
• actual execution is performed on the embedding
  into the physical network
• low bisection width (1,2), high diameter for
  line ring

p0
pn-1

p1
p2
p0
pn-1

p1
p2
37
2D 3D Array Torus

• good match for discrete simulation and matrix
  operations
• easy to manufacture and extend
• diameter bisection width (
  for the 3D case)
• Examples Cray 3D (3d torus), Intel Paragon (2D
  mesh)

38
Hypercube

• good graph-theoretic properties (low diameter,
  high bisection width)
• nice recursive structure
• good for simulating other topologies (they can
  be efficiently embedded into hypercube)
• degree log (n), diameter log (n), bisection
  width n/2
• costly/difficult to manufacture for high n, not
  so popular nowadays

39
Butterfly

• Hypercube derived network of log(n) diameter
  and constant degree
• perfect match for Fast Fourier Transform
• there are other Hypercube-related networks (Cube
  Connected Cycles, Shuffle-Exchange, De-Bruin and
  Bene networks), see the Leightons book for
  details

40
Fat Tree

• Main idea exponentially increase the
  multiplicity of links as the distance from the
  bottom increases
• keeps nice properties of the binary tree (low
  diameter)
• solves the low bisection and bottleneck at the
  top levels
• Example CM5

41
Embedding

• Problem Assume you have an algorithm designed
  for a specific topology G. How do you get it work
  on an interconnect of different topology G?
• Solution Simulate G on G.
• Formally Given networks G(V,E) and G(V,E),
  find a mapping f which maps each vertex from V
  into a vertex of V and each edge from E into a
  path in G. Several vertices from V may map into
  one vertex from V (especially if G has more
  vertices then G). Such a mapping is called
  embedding of G in G.
• Goals
• balance the number of vertices mapped to each
  node of G (to balance the workload of the
  simulating processors)
• each edge should map to a short path, optimally
  single link (so each communication step can be
  simulated efficiently) small dilation
• there should be little overlaps between
  resulting simulating paths (to prevent congestion
  on links)

42
Embedding - examples

• Embedding ring into line
• dilation 2, congestion 2
• similar idea can be used to embed torus into
  mesh
• Embedding ring into 2D torus
• dilation 1, congestion 1

43
Embedding Ring into Hypercube

• map processor i into node G(d, i) of d-ary
  hypercube
• function G() called binary reflected Grey code
• G() can be easily defined recursively
• G(d1) 0G(d), 1G(d)
• Example
• 0,1 00,01,11,10 000,001, 011,010,
  110, 111, 101, 100

r
110
111
010
011
100
101
000
001
44
Embedding arrays into Hypercube

• recursive construction using embedding rings as
  a building block
• assumes array sizes are powers of 2

45
Embedding trees into Hypercube

• arbitrary binary trees can be (slightly less)
  efficiently embedded as well
• example below assumes the processors are only at
  the leaves of the tree

46
Possible questions

• Assume point-to-point communication with cost 1 .
• Is is possible to sort in 2D mesh in time O(log
  n)? ? ?
• Is it possible to sort leaves of complete binary
  tree in time O(log n)? What about ?
• Recall that embedding of G into H maps each link
  of G to a path in H. Dilation is the maximal
  (over all links in G) length of such path, while
  congestion is the maximal (over all links of H)
  number of such paths that use the link.
• Given an embedding of G into H. What is its
  dilation? Congestion?
• Show how to embed 2D torus into 2D mesh with
  constant dilation. What is the dilation of your
  embedding? What is its congestion?
• Show how to embed ring into 2D mesh. Is it
  always possible to do it with both dilation and
  congestion equal 1? Constant?
• Given number x. Who is its predecessor/successor
  in d-ary binary reflected Grey code?

47
New Concepts and Terms - Summary

• SISD, vector- and processor array- SIMD, MISD,
  MIMD
• shared memory, distributed (shared) memory,
  cache coherence
• (cc)UMA, SMP, (cc)NUMA, MPP
• Clusters, NOW, Beowulf
• Interconnection Networks Static, Dynamic
• bus, crossbar, multistage, ?-network
• blocking, non-blocking network
• Torus, Hypercube, Butterfly, Fat Tree
• Embedding, dilation, congestion
• Grey codes
