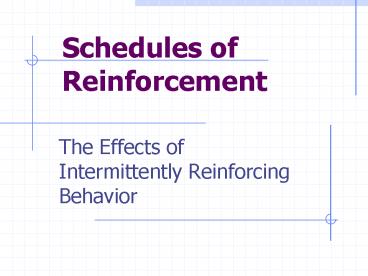

Schedules of Reinforcement

1
Schedules of Reinforcement

• The Effects of Intermittently Reinforcing Behavior

2
Schedules of Reinforcement

• Behavior is not necessarily going to be
  reinforced every time it occurs
• In real life, behavior is not often reinforced
  each time it occurred
• A reinforcement schedule is a rule stating which
  instances of behavior, if any, will be reinforced
• Intermittent reinforcement refers to
  reinforcement that is not administered to each
  instance of a response

3
Advantages of Intermittent Reinforcement

• Economizing on time and reinforcers when
  reinforcement does not have to be administered
  for each instance of a behavior
• Building persistent behavior which is much more
  resistant to extinction
• Delays the effects of satiation since fewer
  reinforcements need to be delivered

4
Types of Schedules

• Continuous reinforcement every instance of a
  behavior is reinforced
• Ratio schedules Reinforcement is based on the
  number of behaviors required
• Interval schedules Reinforcement is based on the
  passage of time
• Duration schedules Reinforcement is based on the
  continued performance of a response for a period
  of time
• Fixed schedules The requirements for
  reinforcement are always the same
• Variable schedules The requirements for
  reinforcement change randomly

5
Schedules of Reinforcement

• Continuous reinforcement refers to reinforcement
  being administered to each instance of a response
• Intermittent reinforcement lies between
  continuous reinforcement and extinction

6
An Example of Continuous Reinforcement

• Each instance of a smile is reinforced

7
Fixed Ratio Reinforcement

• A fixed number of responses is required for each
  reinforcement
• These schedules are designated FRn where nthe
  number of responses required
• These schedules usually produce rapid rates of
  responding with short post-reinforcement pauses
• The length of the pause is directly proportional
  to the number of responses required

8
An example of Fixed Ratio Reinforcement

• Every fourth instance of a smile is reinforced

9
Graph of Fixed Ratio Responding
10
Fixed Interval Reinforcement

• These schedules require the passage of a
  specified amount of time before reinforcement
  will be delivered contingent on a response
• No response during the interval is reinforced
• The first response following the end of the
  interval is reinforced
• This schedule usually produces a scalloped
  pattern of responding in which little behavior is
  produced early in the interval, but as the
  interval nears an end, the rate of responding
  increases
• This also produces an overall low rate of
  responding

11
Graph of Fixed Interval Responding
12
Variable Schedules of Reinforcement

• Variable schedules differ from fixed schedules in
  that the behavioral requirement for reinforcement
  varies randomly from one reinforcement to the
  next
• This usually produces a more consistent pattern
  of responding without post-reinforcement pauses
• Variable ratio schedules produce an overall high
  consistent rate of responding
• Variable interval schedules produce an overall
  low consistent rate of responding

13
An Example of Variable Ratio Reinforcement

• Random instances of the behavior are reinforced

14
Graph of Variable Ratio Responding
15
Graph of Variable Interval Responding
16
Fixed and Variable Duration Schedules

• The response is required to continue for a
  specified or variable period of time for
  reinforcement to be delivered
• These schedules produce a continuous rate of
  behavior since that is the requirement for
  reinforcement

17
Extinction of Intermittently Reinforced Behavior

• The less often and the more inconsistently
  behavior is reinforced, the longer it will take
  to extinguish the behavior, other things being
  equal
• Behaviors that are reinforced on a thin
  schedule are more resistant to extinction than
  behaviors reinforced on a more dense schedule
• Behavior that is reinforced on a variable
  schedule will be more resistant to extinction
  than behavior reinforced on a fixed schedule

18
Reducing Reinforcer Density

• Large amounts of behavior can be obtained with
  very little reinforcement using intermittent
  schedules
• Initially, behavior needs dense schedules of
  reinforcement to establish it, preferably
  continuous reinforcement
• As the behavior is strengthened, reinforcement
  can be gradually reduced in frequency
• Start with as low a density as the behavior can
  tolerate and decrease the density as responding
  is strengthened

19

• If it is reduced too quickly, signs of extinction
  may be observed
• Response rate may slow down
• Inconsistent responding may be seen
• May see an increase in other responses
• This is known as schedule strain
• If this happens, retreat to a denser
  reinforce-ment schedule
• Adding a conditioned reinforcer in between
  reinforcements can help bridge the gap

20
Variations of Reinforcement Schedules I Limited
Hold

• This is applied when a faster rate of responding
  is desired with a fixed interval schedule
• Response rate can be slowed down if response is
  not made soon after the end of the interval
• By limiting how long the reinforcer is available
  following the end of the interval, responding can
  be speeded up
• If the response is not made within that period,
  the reinforcement is lost and another is not
  available until the end of the next interval

21
Variations of Reinforcement Schedules II
Concurrent Schedules

• Two or more basic schedules are operating
  independently at the same time for two or more
  different behaviors
• The organism has a choice of behaviors and
  schedules
• This provides a better analog for real-life
  situations because reinforcement is often
  available for more than one response class or
  from more than one source or both

22
Concurrent Schedules (contd)

• When similar reinforcement is scheduled for each
  of the concurrent responses
• the response receiving the higher frequency
  of reinforcement will increase in rate
• the response requiring the least effort
  will increase in rate
• the response providing the most immediate
  reinforcement will increase in rate

23
Matching Law and Maximizing

• The proportion of responses made to each schedule
  will be proportionate to the ratio of reinforcers
  available under each schedule
• Maximizing subjects switch back and forth
  between alternatives to receive maximum
  reinforcers
• Concurrent ratio schedules little
  switching back and forth
• Concurrent interval schedules the subjects
  can earn close to all of the reinforcements on
  both schedules

24
Example of the Matching Law

• You are speaking to 2 people, providing them with
  information that is of interest to them.
• When you look at each person, person A is looking
  at you (the reinforcement) about 75 of the time
  and looking away about 25 of the time.
• Person B is looking at you about 25 of the time
  and looking away about 75 of the time.
• About what percent of the time will you be
  looking at each person?

25
Variations of Reinforcement Schedules II Chained
Schedules

• Two or more basic schedule requirements are in
  place, one schedule occurring at a time but in a
  specified sequence
• There is usually a cue that is correlated with a
  specific schedule and is present as long as the
  schedule is in effect
• Reinforcement for responding in the 1st component
  is the presentation of the 2nd
• Reinforcement does not occur until the final
  component is performed

26
Variations of Reinforcement Schedules III
Conjunctive Schedules

• The requirements for two or more schedules must
  be met simultaneously
• Task/interval interactions
• When the task requirements are high and the
  interval is short, steady work throughout the
  interval will be the result
• When task requirements are low and the
  interval long, many nontask behaviors will be
  observed
