Title: ECHO DEPository


1

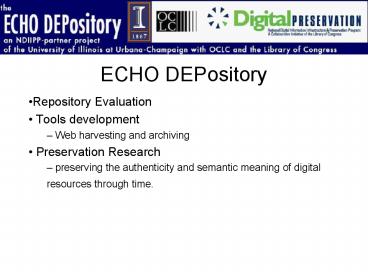

ECHO DEPository
  • Repository Evaluation
  • Tools development
  • Web harvesting and archiving
  • Preservation Research
  • preserving the authenticity and semantic meaning
    of digital resources through time.

2
Hub and Spoke
  • Repository Interoperability Architecture with a
    forward-looking emphasis on preservation metadata
    and activities

3
The problem
  • Plethora of repositories
  • Not just across institutions, but even with a
    single institution
  • Overabundance of data sources
  • Web crawlers like Heritrix or OCLC's WAW,
    digitization and scanning services, individual
    authors, batch ingest from legacy systems
  • Current integration solutions are local and ad
    hoc
  • Enforcing centralized preservation policy
    difficult

4
The solution
  • A common METS-based profile
  • A standard programming API
  • A series of scripts that use the API and METS
    profile for creating SIPs and DIPs which can be
    used across different repositories

5
(No Transcript)
6
Details of current implementation
  • Based on ingest scripts that were developed to
    support the repository evaluation
  • Java except at the outermost layers where native
    API calls are utilized
  • We consider this a proof-of-concept
    implementation the goal being to demonstrate
    round-trip interoperability between three
    repositories DSpace, Eprints, and Fedora

7
Phased implementation
  • Phase 1 Interoperability
  • Phase 2 Persistent Storage Layer
  • METS Profile as an AIP
  • JSR-170 content repository standard
  • End-user Access (search/browse/render) is low
    priority

8
To-Hub Spoke
Data Store / DIPs
Extract format-specific technical metadata
Generate/collect digital provenance metadata
Embed links to digital items
Model structure of the item
Embed native metadata
Transform/enrich native metadata
metadata.xml
9
From-Hub Spoke
SIPs
Transform hub metadata to repository-compatible
metadata
Assemble into packages for repository ingest
Add the METS file as an item in the submission
package
metadata.xml
hubMets.xml
10
METS Profile
  • DRAFT http//dli.grainger.uiuc.edu/echodep/mets/
    DRAFTS/BaseMETSProfile.xml
  • May be overlaid on top of, or inherited from,
    other profiles
  • Foci
  • Repository interoperability
  • minimally at the file and descriptive metadata
    level, probably not at the structural level
  • Digital preservation
  • Web captures
  • Focus on preservation, not access
  • agnostic regarding file formats or structures

11
METS Profile
  • Descriptive Metadata
  • Required MODS
  • Retain any native descriptive metadata
  • Technical Metadata
  • Required PREMIS Object for each file or
    bit-stream
  • File level technical metadata appropriate per
    format
  • E.g. textMD for text files, MIX for images
  • Raw JHOVE output

12
METS Profile
  • Provenance
  • Recorded for all non-trivial changes to
  • Descriptive Metadata
  • Files and Bitstreams
  • Structural Maps
  • PREMIS Event and optional associated Agent
  • ECHODEP Event Types
  • METADATA_TRANSFORMATION
  • METADATA_CREATION
  • STRUCTMAP_MODIFICATION
  • STRUCTMAP_DELETION

13
METS Profile
  • Requirements for use of PREMIS
  • All linking via ID IDREF-type attributes not
    identifier elements
  • Embedding
  • Object in techMD
  • Event in digiprovMD
  • Rights in rightsMD
  • Agent in digiprovMD or rightsMD
  • All Files at a Composition level of 0
  • No packaging, compression, or encryption

14
Possible Outcome
  • Extension of the Harvard METS API for support of
    PREMIS elements
  • instantiate PREMIS schema elements as objects
  • set element and attribute values
  • add to the content model of its parent METS
    element
