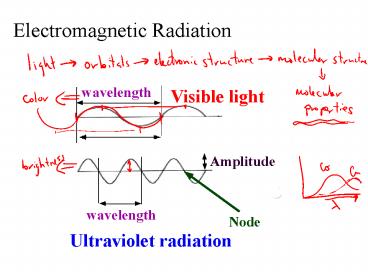

Electromagnetic Radiation

1
Electromagnetic Radiation
2
Figure 7.1
3
Wave motion wave length and nodes
4
(No Transcript)
5
(No Transcript)
6
Short wavelength --gt high frequency high
energy

• Long wavelength --gt
• small frequency
• low energy

7

• Rank the following in order of increasing
  frequency
•
• microwaves
• radiowaves
• X-rays
• blue light
• red light
• UV light
• IR light

8

• Waves have a frequency
• Use the Greek letter nu, ?, for frequency, and
  units are cycles per sec
• All radiation ? ? c
• c velocity of light 3.00 x 108 m/sec
• Long wavelength --gt small frequency
• Short wavelength --gt high frequency

9

• What is the wavelength of WONY?
• What is the wavelength of cell phone radiation?
  Frequency 850 MHz
• What is the wavelength of a microwave oven?
  Frequency 2.45 GHz

10
Quantization of Energy
Light acts as if it consists of particles called
PHOTONS, with discrete energy.

• Energy of radiation is proportional to frequency

E h ?
h Plancks constant 6.6262 x 10-34 Js
11
E h ?
Relationships
12

• Rank the following in order of increasing photon
  energy
•
• microwaves
• radiowaves
• X-rays
• blue light
• red light
• UV light
• IR light

13
E h ?
What is the energy of a WONY photon?
14
Energy of Radiation

• What is the energy of 1 mole of UV light with
  wavelength 230 nm?

15
Energy of Radiation

• What is the energy of 1 mole of IR light with
  wavelength 1200 nm?

16
Where does light come from?

• Excited solids emit a continuous spectrum of
  light
• Excited gas-phase atoms emit only specific
  wavelengths of light (lines)

17
Light given off by solids
18
Light given off by Excited Hydrogen Gas
19
The Bohr Model of Hydrogen Atom

• Light absorbed or emitted is from electrons
  moving between energy levels
• Only certain energies are observed
• Therefore, only certain energy levels exist
• This is the Quanitization of energy levels

20
Line Emission Spectra of Excited Atoms

• Excited atoms emit light of only certain
  wavelengths
• The wavelengths of emitted light depend on the
  element.

21
Line Emission Spectra of Excited H Atoms
High E Short ? High ?
Low E Long ? Low ?
22
Line Spectra of Other Elements
23
Atomic Absorption and Emission
24
Origin of Line Spectra
Balmer series
25

• For H, the energy levels correspond to

Constant 2.18 x 10-18 J
26
Each line corresponds to a transition

• Example n3 ? n 2

27
Name ____________

1. _________
2. _________
3. _________
4. _________

28
Quiz

• Q1. Emission line with longest wavelength
• Q2. Absorption line with highest frequency
• Q3. Emission line with lowest frequency
• Q4. Transition that leads to forming H

29
Matter Waves

• All matter acts as particles and as waves.
• Macroscopic objects have tiny waves- not
  observed.
• For electrons in atoms, wave properties are
  important.
• deBroglie Equation

30
Matter waves
Macroscopic object 200 g rock travelling at 20
m/s has a wavelength
Electron inside an atom, moving at 40 of the
speed of light
31
Can see matter waves in experiments
32
Heisenberg Uncertainty Principle

• Cant know both the exact location and energy of
  a particle
• So, for electrons, we DO know the energy well, so
  we dont know the location well

33
Schrodingers Model of H

• Electrons act as standing waves
• Certain wave functions are allowed
• Wave behavior is described by wave functions ?
• ?2 describes the probability of finding the
  electron in a certain spot
• Also described as electron density

34
Example Wavefunction

• Equation slightly simplified

35
Its all about orbitals

• Each wavefunction describes a shape the electron
  can take, called an ORBITAL
• Allowed orbitals are organized by shells and
  subshells
• Shells define size and energy (n 1, 2, 3, )
• Subshells define shape (s, p, d, f, )
• Number of orbitals is different for each
  subshell
• s 1
• p 3
• d 5
• f 7

36
(No Transcript)
37
(No Transcript)
38
(No Transcript)
39
Quantum Numbers
